Fixed Focus vs Autofocus Endoscope Camera Modules: Which Fits Your OEM Device?

Quick Answer

Choose a fixed-focus endoscope camera module when the target normally stays within a predictable working-distance range and the device benefits from a simpler optical structure.

Choose autofocus when the target distance changes significantly during operation and the system needs to maintain focus across a wider observation range.

Autofocus is not automatically better.

For many compact endoscope devices, fixed focus can provide a simpler structure, smaller camera head and more predictable imaging behavior. Autofocus becomes valuable when changing target distance is a real part of the device task.

The correct selection sequence is:

working distance → target movement → required depth of field → camera diameter → host/control architecture → focus type.

1. When Fixed Focus Makes More Sense

Fixed focus is particularly suitable when:

• the target distance is relatively stable;

• the camera works mainly in close-range inspection;

• compact camera-head size matters;

• the device does not need focus control;

• repeatable imaging at a defined distance is more important than a wide focus range.

Many small-diameter SincereFull modules use fixed-focus optical structures because the available mechanical space is limited.

For a 1–4mm camera head, adding autofocus mechanics may create unnecessary size and integration complexity.

2. When Autofocus Becomes Valuable

Autofocus is more useful when the camera needs to observe targets at substantially different distances.

Current SincereFull autofocus directions include 5MP and 12MP USB configurations designed for variable-distance imaging. The 5MP series includes a focus range from approximately 5cm to infinity, while the 12MP direction supports approximately 3.5cm to infinity.

Typical projects include:

• larger industrial borescopes;

• cavity inspection systems;

• inspection devices where object distance changes;

• OEM visualization systems requiring both close and more distant observation.

Fixed Focus vs Autofocus

3. Depth of Field Can Reduce the Need for Autofocus

A common mistake is:

“The target distance changes, so I need autofocus.”

Not always.

If the fixed-focus lens provides enough depth of field to cover the required range, autofocus may add little practical value.

OEM teams should first define:

• nearest observation distance;

• farthest observation distance;

• acceptable sharpness range;

• FOV;

• target size.

Only then should autofocus be considered.

4. Diameter Can Decide the Focus Direction

For very small camera heads, fixed focus is usually more practical because there is limited space for moving optical structures.

For larger 11–14.5mm autofocus configurations, the mechanical envelope allows more flexibility.

Current SincereFull autofocus product directions include:

• 11mm 5MP Bare Module;

• 12.5mm 5MP protected configuration;

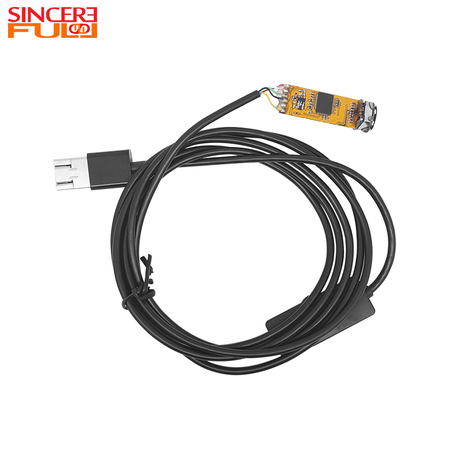

• 12.5mm 12MP Bare Module;

• 14.5mm 12MP protected configuration.

Recommended Direction

Choose Fixed Focus when:

• the device works at one main distance;

• diameter is strongly constrained;

• simple integration matters.

Choose Autofocus when:

• working distance varies significantly;

• the device has enough mechanical space;

• higher-detail observation at different distances is required.

RFQ Checklist

Provide:

• nearest target distance;

• farthest target distance;

• camera-head diameter;

• FOV;

• resolution;

• device application;

• host interface;

• available front-end space.

FAQ

Is autofocus always better than fixed focus?

No. If the working distance is predictable, fixed focus may provide a simpler and more compact solution.

Can a small-diameter endoscope camera use autofocus?

It depends on the mechanical structure, but autofocus becomes more difficult as the camera head becomes smaller.

Can fixed focus cover multiple distances?

Yes, if the optical depth of field covers the required range.

When should I choose a 5MP autofocus module?

5MP autofocus may be suitable when variable-distance imaging is required but 12MP detail is not necessary.

When should I consider 12MP autofocus?

When higher image detail and variable-distance observation are both important and the host/system can support the configuration.

Can focus range be evaluated for a custom project?

Lens and focus requirements can be evaluated according to the target device.
