SF-SWAF10MM-A2
SINCEREFIRST

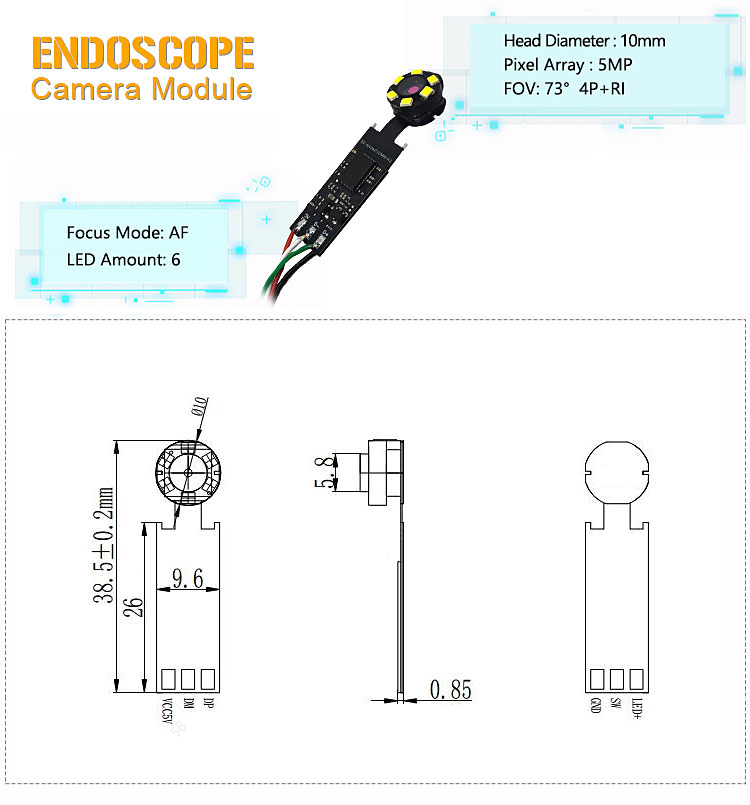

| This 10mm Diameter 5MP HD Image Side-View Auto Focus Endoscope Camera Module with 6 Leds is a high-performance adaptive lateral imaging component optimized for variable close-range side shooting demands. Built with a compact structure of 38.5±0.2mm total length and 0.85mm board thickness, the 10mm outer diameter probe features strong universality for mainstream cavity and pipeline detection environments. Equipped with a high-precision 5MP pixel array and premium 4P+IR optical architecture, the module forms a 73° diagonal balanced field of view that effectively suppresses image distortion and restores real object textures and contours for lateral shooting. Adopting professional side-view optical design, it directly captures clear images of side walls, corners and lateral structures that forward-view probes cannot observe, eliminating detection blind spots. The built-in AF auto-focus motor actively calibrates focal length automatically at different working distances, eliminating manual focusing operations and improving detection efficiency. Six front ring-arranged LED lights provide stable independent auxiliary lighting, enabling clear imaging in completely dark enclosed spaces without external light sources. Designed with standard YCS/IN/GND three-wire pinout, it supports simple and fast circuit integration. Fully RoHS compliant, this module integrates high-resolution lateral imaging, intelligent focusing and self-illumination to deliver stable and reliable visual output for daily inspection and cosmetic observation applications. |  |
1. Professional Side-View Optical Design: Adopts dedicated lateral imaging structure to observe side walls and corner positions, effectively eliminating conventional detection blind spots.
2. 5MP High-Definition Imaging: High-grade pixel array enhances detail resolution to accurately identify tiny textures and subtle surface defects.
3. Intelligent AF Auto Focus: Built-in focusing motor automatically calibrates focal length for different distances and simplifies operation procedures.
4. 6 Ring LED Fill Light: Integrated front LEDs provide independent lighting for dark closed cavities without external light assistance.
5. Optimized 4P+IR Optical Design: 73° moderate field of view controls distortion efficiently and ensures high-fidelity close-range lateral imaging.
Product Name | 5MP Side View Endoscope Camera Module |
Pixel | 5MP |
Working Current | 140mA-150mA |
Output Interface | USB2.0 |
| Fcous Mode | Auto Focus |
Image Sensor | CMOS |
Features | Mini Endoscope Camera |
| Format | YUV/MJPG |
Lens | FOV 73° 4P+RI |
Diameter | 10mm |
Led | 6PCS |
Warranty | 10 Years |
1. Equipment Internal Maintenance: Can inspect lateral defects and rust on engine blocks, valve bodies and mold sidewalls without disassembly via its professional side-view imaging capability.
2. Beauty Skin Detection: Can serve as a built-in imaging unit for skin and pore analyzers to capture microscopic skin texture details accurately.
3. Pipeline Cavity Inspection: Can visually check lateral blockages, cracks and corrosion inside pipelines with inner diameter above 10mm relying on its standard side-view probe.
4. Portable Maintenance Devices: Can act as a standardized embedded visual module for handheld automobile and household appliance maintenance equipment to realize all-round lateral detection.
1. Is the module's side-view angle adjustable or fixed?
It has a fixed 73° side-view field of view (FOV), specifically designed for clear observation of target sides and inner walls.
2. Do I need to install drivers to use this module?
No. It supports plug-and-play via the UVC 1.1 protocol, so no additional drivers are required.
3. Does the module have built-in lighting for dim environments?
Yes. It is equipped with 6 high-brightness 0402-spec LED fill lights to ensure clear imaging in low-light conditions.
4. Does the module support auto-focus for side-view imaging?
Yes. It integrates auto-focus technology, enabling precise capture of subtle features on target sides/inner walls.
5. Which operating systems are compatible with the module?
It works with Windows, Mac OS, Linux, and Android—covering all mainstream platforms for flexible deployment.
6.Has the module obtained international quality certifications?
Yes. It meets CE, FCC, RoHS, and ISO standards, satisfying compliance requirements for both medical clinical use and industrial quality inspection.
