SF-N1050-V1 + SF-YL0320-V1
SINCEREFIRST

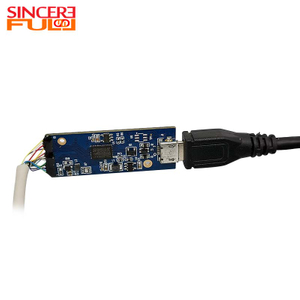

| This OV2740 CMOS Sensor 1080P Separate USB Interface HD Endoscope Camera Module is built around the professional OV2740 image sensor, stably outputting 1920×1080 high-definition visuals to meet precise microscopic observation demands; it adopts MJPEG encoding to support 60fps high-speed transmission at 1080P resolution, paired with standard UVC plug-and-play protocol and OTG expansion function, realizing hassle-free connection via USB2.0 High-Speed TYPE-C/5Pin 1.0 interface without driver installation. Optimized for low-light environments, the module delivers clear imaging at a minimum illumination of 1lux, with a signal-to-noise ratio of 38.3db to ensure pure and delicate pictures, while the dedicated macro optical design enables high-definition close-range capture with distortion controlled below 2% for accurate detail restoration. Powered by DC5V with a working current of 120–140mA for stable energy supply, it also integrates comprehensive ESD anti-static protection and passes rigorous reliability tests, featuring MJPEG/YUV2 dual output formats and an open-source camera scheme, making it a reliable visual acquisition solution for embedded medical devices and industrial precision inspection in various narrow spaces. |  |
1.High-Frame-Rate Real-Time Imaging: Adopting efficient MJPEG encoding technology, the module achieves 60fps smooth real-time preview at full 1080P resolution, eliminating motion blur and trailing even during dynamic observation; coupled with 1lux ultra-low illumination performance and 38.3db high signal-to-noise ratio, it captures clear, high-fidelity images in dim confined spaces without sacrificing picture quality, fully meeting real-time dynamic detection requirements.
2.Driver-Free Plug-and-Play Connectivity: Fully compatible with standard UVC (USB Video Class) protocol and USB2.0 OTG protocol, supporting TYPE-C/5Pin 1.0 interface access; it requires no additional driver installation or complex debugging, plugging into various devices to quickly activate imaging and data transmission, and the open-source camera scheme further lowers the threshold for secondary development and integration
3.High-Definition Macro Optical Performance: Equipped with a 1/6-inch professional macro lens, it excels in close-range precise observation, with optical distortion strictly controlled below 2% to avoid picture deformation; the module features accurate color reproduction and delicate detail presentation, clearly capturing tiny structures and subtle defects that are invisible to the naked eye, perfectly matching high-precision microscopic observation scenarios.
4.High Reliability & Protective Design: The whole module undergoes high and low temperature testing, temperature shock, vibration and drop reliability verifications, with built-in ESD anti-static protection to resist complex on-site interferences; the stable DC5V power supply design and 120–140mA low working current ensure long-term stable operation, greatly improving durability and adaptability in harsh environments.

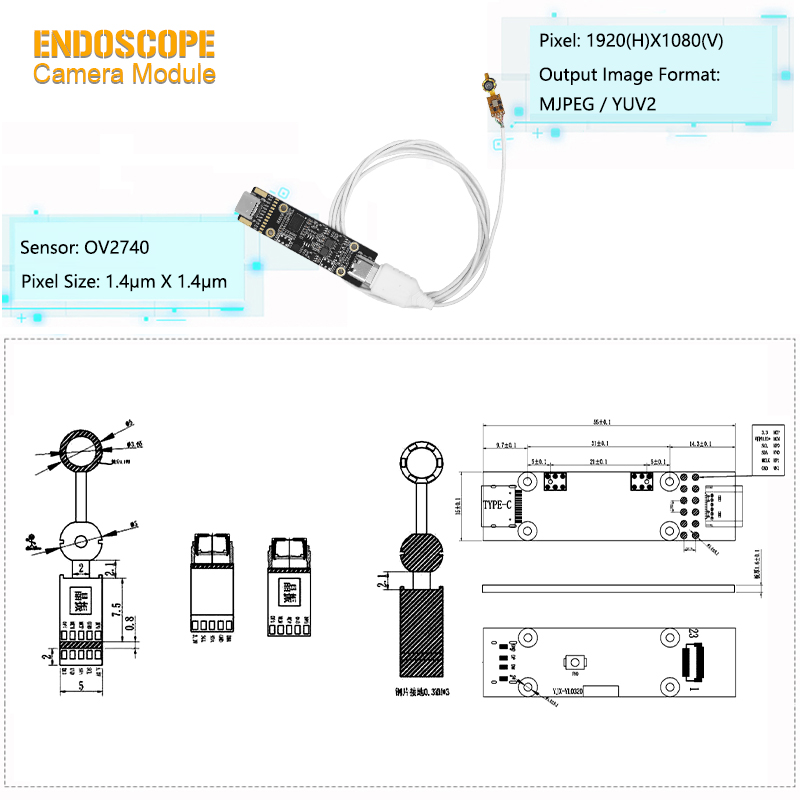

Product Name | Separate Endoscope Camera Module |
Lens Size | 1/6-inch |
Pixel Size | 1.4μm×1.4μm |
Sensor | OV2740 Sensor |
Resolution | 1920×1080 (1080P Full HD) |
Dynamic Range | 73.3dB |
Signal-to-Noise Ratio | 38.3dB (low-light environment) |
Output Format | MJPEG/YUV2 |
Interface | USB2.0 High Speed |
Protocol | OTG |
| Feature | 1080P 60fps |
It supports devices with Type-C interfaces, such as smartphones, laptops and desktop computers. It is also compatible with the UVC protocol, enabling plug-and-play without the need for additional drivers.
It is a professional imaging device for 1080P HD real-time observation in medical, industrial, and maintenance scenarios. It captures internal visuals and transmits them to monitors via USB2.0, supporting precise operations and inspections.
Connect the module to a compatible device (Windows/Linux/Android) via TYPE-C/5PIN interface (no drivers needed). Insert the camera into the target area (body cavity, machinery, pipeline) and adjust focus/light as required for clear imaging.
60FPS reduces motion blur significantly, ensuring smooth tracking of moving tissues (medical) or fast-inspected objects (industrial). This improves operational safety and inspection accuracy compared to 30FPS modules.
Yes. Its 1.4μm large pixels and 38.3dB signal-to-noise ratio deliver sharp, noise-free images in low light, while the 73.3dB wide dynamic range adapts to uneven lighting in cavities or industrial spaces.
