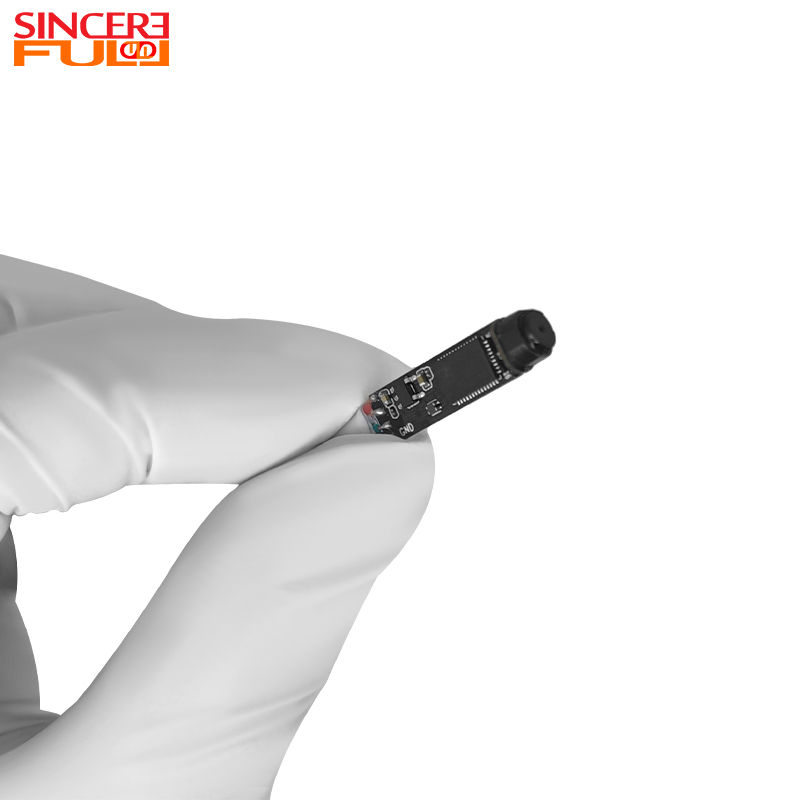

6mm Diameter 5MP Full High Definition GC5035 CMOS Sensor Endoscope Camera Module

This 6mm Diameter 5MP Full High Definition GC5035 CMOS Sensor Endoscope Camera Module,is a compact and high-definition USB camera module specifically designed for endoscopy and micro-imaging applications. It features a high-performance GC5035 image sensor supporting 5-megapixel high-definition imaging. The module features an ultra-compact package with a streamlined structure, facilitating seamless integration into precision instruments and portable devices while offering excellent spatial adaptability. Configured with a 4-pin USB interface, it supports plug-and-play functionality without requiring additional drivers and is compatible with mainstream operating systems. The lens offers an 88° field of view, providing a wide and distortion-free observation range. It is suitable for medical endoscopy, industrial pipeline inspection, micro-observation systems, and various embedded vision applications demanding high standards for both size and image quality.

Product Advantage ◢

• 1.High Resolution in Compact Design：This module integrates a 5-megapixel GC5035 sensor into an ultra-compact form factor, delivering clear and detailed imaging while occupying minimal space—ideal for size-constrained applications.

• 2.Wide 88° Field of View：With an 88° field of view, the module captures a broad scene without significant distortion, supporting comprehensive visual inspection even in confined or tubular environments.

• 3.Plug-and-Play USB Interface：Featuring a 4-pin USB interface compliant with UVC standards, the module enables easy, driver-free connectivity across common operating systems for quick deployment and use.

• 4.Suitable for Precision and Medical Use：Its small dimensions and stable optical performance make it well-suited for medical endoscopes, industrial borescopes, and other applications requiring reliable close-range imaging in compact assemblies.

Application of Endoscope Camera Module◢

1.Medical Endoscopy and Diagnostic Imaging：Suitable for integration into disposable or reusable medical endoscopes used in gastroenterology, urology, ENT, and dental examinations, providing high-definition internal visualization.

2.Industrial Borescope and Internal Inspection：Ideal for visual inspection inside machinery, engines, pipelines, valves, and electronic assemblies where compact size and clear imaging are required for maintenance and quality control.

3.Scientific and Laboratory Microscopy：Can be embedded into portable microscopes, laboratory imaging systems, and educational observation tools for specimen analysis and micro-documentation.

4.Consumer Electronics and Miniature Camera Systems：Applicable in miniaturized wearable cameras, smart devices, IoT visual sensors, and embedded systems that demand small form factor and reliable USB video output.

Technical Parameters ◢

FAQ ◢

1. What is the difference between medical and industrial endoscope modules?

The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).

2. What are the features of the dental endoscope module?

Integrated high color rendering ring LED light, resolution ≥1080p, some equipped with wireless handheld design, easy to take multi-angle photography in the mouth and connect to the diagnosis and treatment system.

3.Is this camera module compatible with Windows, macOS, and Linux systems?
Yes, the module is compliant with USB Video Class (UVC) standards, enabling plug-and-play functionality without additional drivers on Windows, macOS, Linux, and Android systems.

4. Can this endoscope module capture clear images in narrow spaces?

Yes. Equipped with a 5MP high - resolution camera and a 6mm slim lens, it can not only penetrate into narrow spaces but also present delicate details, balancing imaging quality and detection flexibility.
