SF-C10TV-D3.9
SINCEREFIRST
This is high performance medical imaging 3.9mm diameter LED endoscope camera module with steel shell. It adopts a 1/2.8-inch CMOS sensor and supports dual-mode output: 4K ultra-high definition resolution (3840×2160@30fps) and 1080P full HD (1920×1080@60fps). The lens is equipped with a 120° ultra-wide angle field of view and an adjustable focusing range of 2cm to 10cm, and supports automatic white balance and automatic exposure functions. The module integrates high-brightness LED fill lights (with brightness adjustable from 0% to 100%), has passed the IP67 waterproof and dustproof certification, and operates within a temperature range of 0℃ to 50℃. It supports dual-interface output of USB3.0/HDMI, is compatible with the DICOM medical imaging standard, and has built-in H.265 video compression technology. With a size of Φ8mm × 35mm and a weight of only 25g, it is specially designed for minimally invasive surgery and intracavitary examination, providing a precise and stable visualization solution. |  |
HD Imaging: Equipped with a 1/2.8-inch CMOS sensor, it outputs clear 720P resolution images, ensuring precise presentation of details in the surgical field of view.
Flexible Operation: The 89° wide-angle lens and adjustable focusing range of 10mm~60mm adapt to the operational needs in complex intracavitary environments.
Intelligent Adaptation: 4 LED fill lights and exposure function optimize image quality in real time, reducing the burden of manual adjustment.
Reliable and Durable: With an IP67 protection rating and a wide operating temperature range (0℃~40℃), it meets the requirements of high-intensity medical scenarios.

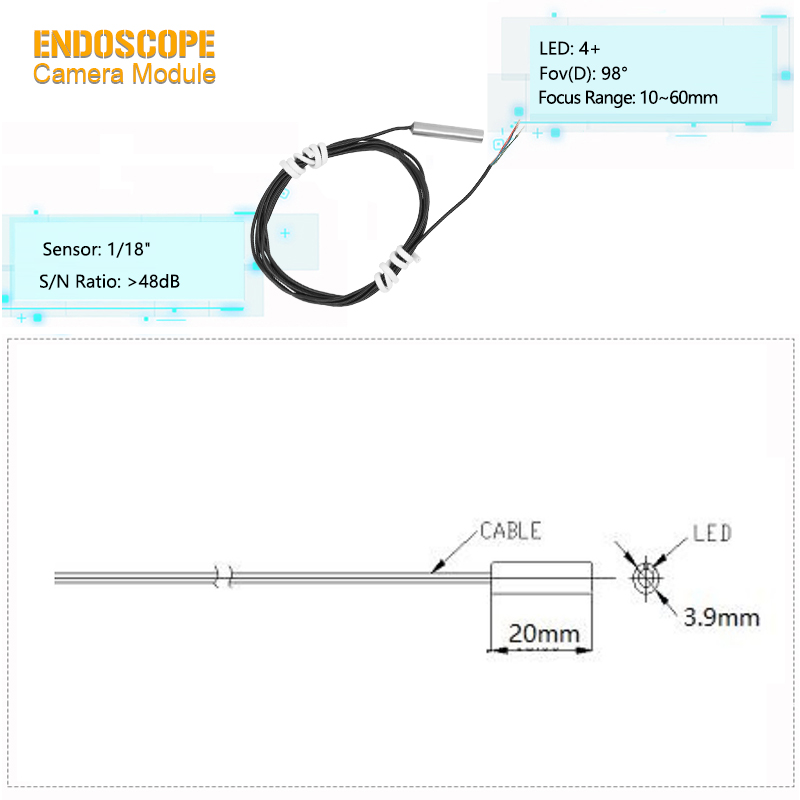

Product Name | 3.9mm Bronchoscope Camera Module |
Image Sensor | 1/18” |
Pixel | 0.1MP |
Led | 4pcs Hi-brightness white LED |
Focus Range | 10mm-60mm |
TV System | NTSC |
Power Supply | 3-5V |
Diameter | 3.9mm |
FOV(D) | 98° |
Gamma Correction | 0.45 |
For medical professionals, accurate diagnosis is the cornerstone of effective treatment. The 3.9mm Endoscope Camera Module plays a vital role in this process by providing a clear and detailed view of the internal body. In procedures such as endoscopic examinations of the digestive tract, respiratory system, or urinary tract, the camera module's 3.9mm diameter allows it to access these areas with minimal invasiveness. The high-resolution images it captures enable doctors to detect diseases, abnormalities, and injuries at an early stage, increasing the chances of successful treatment.
Minimally invasive surgeries have revolutionized the medical field, offering patients numerous benefits such as reduced pain, shorter recovery times, and smaller scars. The 3.9mm Endoscope Camera Module is an essential tool in these surgeries. It can be inserted through small incisions or natural orifices, providing surgeons with a clear view of the surgical site. The camera's flexibility and maneuverability allow for precise manipulation of surgical instruments, reducing the risk of damage to surrounding tissues. The real-time image transmission also enables the surgical team to work together seamlessly, ensuring the success of the procedure.
The 3.9mm Endoscope Camera Module is designed to be compatible with a wide range of medical equipment. It can be easily integrated with existing endoscopy systems, monitors, light sources, and other devices commonly used in medical facilities. This compatibility makes it convenient for hospitals and clinics to upgrade their equipment without having to invest in an entirely new infrastructure. It also allows for seamless integration with electronic medical records systems, enabling the easy storage and retrieval of patient data related to endoscopic procedures.
In the medical field, maintaining strict sterilization and hygiene standards is crucial to prevent the spread of infections. The 3.9mm Endoscope Camera Module is designed with this in mind. The materials used in its construction are compatible with standard medical sterilization methods, such as autoclaving, ethylene oxide sterilization, and chemical disinfection. The camera module's design also minimizes the risk of contamination, with smooth surfaces and sealed components that are easy to clean. This ensures that the camera module can be safely used in multiple patients without the risk of transmitting diseases.
The 3.9mm Endoscope Camera Module is also a valuable tool for medical training and education. It can be used to simulate real-life medical procedures, allowing medical students and trainees to practice their skills in a safe and controlled environment. The high-quality images and videos captured by the camera module can be used for educational purposes, such as teaching anatomy, surgical techniques, and disease diagnosis. This helps to improve the skills and knowledge of medical professionals, ultimately benefiting patient care.
