How do endoscope cameras work in harsh environments?

Introduction

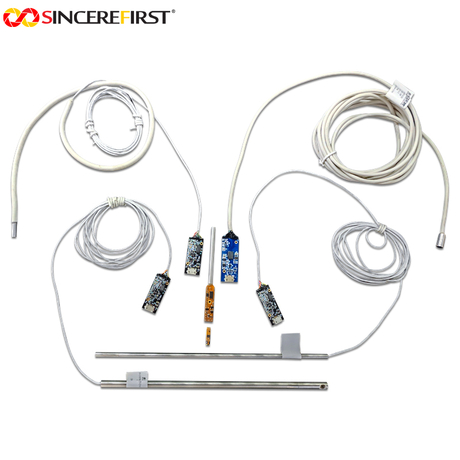

Endoscope cameras are used in demanding places – inspecting jet engines at high altitude, crawling through hot industrial pipes, or working in freezing outdoor conditions. A standard consumer camera would quickly fail. An endoscope camera module for harsh environments must resist temperature extremes, moisture, dust, vibration, and sometimes chemicals. This article explains how these tiny cameras are engineered to survive and perform reliably where ordinary cameras cannot.

What Is a “Harsh Environment”?
Different applications bring different hazards:

A robust OEM camera module must be tailored to your specific hazards.

1. Sealing Against Moisture and Dust (IP Rating)
The most basic need is keeping water and dust out. Common ratings:

• IP67 – Dust‑tight, can be submerged 1 m for 30 min.

• IP68 – Dust‑tight, submersible beyond 1 m (depth specified).

Achieving this requires:

• Hermetic sealing – epoxy or laser welding.

• Overmolded cables – jacket molded into the housing.

• Sealed lens window – glass or sapphire bonded with O‑ring or adhesive.

A mini endoscope camera module (2–5 mm diameter) can still be IP68‑rated, but precision is harder.

2. Withstanding Temperature Extremes
Endoscopes face rapid temperature changes. Design strategies:

• Use glass lenses – plastic expands more, losing focus.

• Select extended‑temperature sensors – rated –40 °C to +105 °C or wider.

• Avoid condensation – fill cavity with dry nitrogen or pot completely.

• Match thermal expansion of lens and housing.

A 4k endoscope camera module must maintain focus across temperature – achieved with matched coefficients.

3. Resisting Vibration and Shock
Inserting a scope into a running engine or attaching it to a robot arm causes constant vibration. Solutions:

• Potting – fill cavity with epoxy/silicone to immobilise components.

• Rigid flex PCBs – more vibration‑resistant than ribbon cables.

• Lens retention – threaded rings or adhesive, not just friction.

A usb endoscope camera module that may be dropped needs shock‑resistant packaging (e.g., stainless steel housing).

4. Chemical Resistance (Oils, Solvents, Acids)
In industrial settings, endoscopes may contact oil, hydraulic fluid, or cleaning solvents. Suitable materials:

• Stainless steel (304, 316L) – resists most chemicals.

• PEEK (polyetheretherketone) – high‑performance polymer.

• Sapphire windows – impervious to nearly all chemicals.

An aluminium housing may corrode quickly in a chemical plant. An OEM camera module can be built with chemical‑resistant materials.

5. Maintaining Image Quality
Survival is not enough – the camera must deliver a clear image. Key features:

• Anti‑fog coating – prevents condensation on the lens window.

• IR‑cut filter – for accurate colour; fixed or removable (ICR).

• Wide dynamic range (WDR) – handles bright reflections and dark shadows.

A 4k endoscope camera module for turbine inspection needs a sharp, thermally stable glass lens with AR coating.

6. Cable Durability
The cable is often the weakest link. For harsh environments:

• Polyurethane (PUR) jackets – resistant to oil, abrasion, UV.

• Strain relief at both ends – overmolded boots prevent bending stress.

• Shielded cables – protect against electrical noise from motors.

A usb endoscope camera module for industrial use should have a reinforced cable with strain‑relief connector.

7. Testing for Harsh Environments
An OEM camera module for harsh conditions must pass rigorous tests. Typical protocols:

• Thermal cycling – e.g., –40 °C to +85 °C for 100 cycles.

• Vibration – 10–500 Hz, 2 g for 1 hour per axis.

• IPX8 submersion – 2 m depth for 24 hours.

• Salt spray – 5% NaCl, 48 hours.

At Sincere, we define the test plan for your environment.

Summary
An endoscope camera module for harsh environments uses hermetic sealing (IP67/IP68), temperature‑hardened components, vibration‑resistant potting, chemical‑resistant materials (stainless steel, PEEK, sapphire), and durable cables with strain relief. A mini endoscope camera module can achieve these even at small diameters. A usb endoscope camera module for field use needs a robust connector and cable. For high detail in demanding conditions, a 4k endoscope camera module requires thermally stable glass optics. When standard products are not enough, an OEM camera module from an experienced manufacturer can be tailored to your exact harsh environment – underwater, inside a hot engine, or on a frozen oil rig.

Contact Sincere to discuss your endoscope camera module for harsh environments.
