What temperature range can industrial endoscope cameras withstand?

Industrial endoscope cameras are used in some of the harshest environments on earth – inside jet engines, near molten metal, in frozen pipelines, and inside hot industrial ovens. Unlike a medical endoscope camera module that operates at human body temperature (around 37°C), an industrial endoscope camera module must survive extreme heat, freezing cold, and rapid temperature changes. So what temperature range can these rugged cameras actually withstand? The answer depends on the specific design, but typical industrial borescopes operate reliably from -20°C to +80°C, while specialised high‑temperature models can handle up to +150°C or even higher for short periods.

Why Temperature Range Matters for Endoscope Cameras

An industrial endoscope camera module contains sensitive electronics: a CMOS image sensor, LED drivers, and often a USB bridge chip. These components have specified temperature limits. Exceeding them can cause:

• Image noise or complete failure of the sensor.

• Focus shift due to expansion of the lens housing.

• Battery swelling or electrolyte leakage (for cordless models).

• Melting of plastic internal components or softening of adhesives.

For a camera usb module that connects to a laptop, the USB interface itself is rated for 0°C to +50°C in most specifications, but industrial‑grade versions extend this range.

Typical Temperature Ranges by Component

A standard 4k endoscope camera module using a commercial Sony IMX415 sensor may have an operating range of 0°C to +60°C. An industrial version with an extended‑temperature sensor (e.g., IMX415‑AAA) can work from -40°C to +85°C.

Industrial vs. Medical Endoscope Camera Modules

A medical endoscope camera module is designed for use inside the human body. It does not need to withstand freezing temperatures or high heat; its operating range is typically +10°C to +40°C, matching clinical environments. Sterilisation requires brief exposure to high temperature (autoclave) but the camera is not running during that cycle.

In contrast, an industrial endoscope camera module may be inserted into a hot engine cylinder immediately after shutdown, or left in a freezing warehouse overnight. Therefore, industrial models are built with wider‑temperature components and often include heat‑resistant glass lenses and metal housings.

How Industrial Cameras Achieve Wide Temperature Ranges

1. Sensor selection – Choosing a CMOS Camera Module with an industrial temperature rating (-40°C to +105°C) instead of a commercial grade.

2. Glass lenses – Plastic lenses expand and contract significantly; glass lenses maintain focus across a wider range.

3. Metal housing – Aluminium or stainless steel dissipates heat better than plastic and does not become brittle in the cold.

4. Potting – Internal cavities filled with thermally conductive epoxy protect components from vibration and moisture, and also help distribute heat evenly.

5. Low‑power design – Less heat generated internally means the camera can operate in high ambient temperatures without overheating.

Practical Temperature Ranges for Common Endoscope Types

What Happens Outside the Rated Range?

• Below minimum temperature – The LCD screen (if attached) may freeze and become unreadable. Lithium batteries lose capacity. The lens may fog when brought into a warm environment.

• Above maximum temperature – Image sensor dark current increases, producing “hot pixels”. Autofocus (if present) may stall due to lubricant thickening. Permanent damage to the CMOS sensor can occur.

How to Choose the Right Endoscope Camera for Your Temperature Environment

1. Identify your peak ambient temperature – If you are inspecting a furnace, even a short exposure near 100°C requires a specialised high‑temperature borescope with external cooling.

2. Check the sensor grade – Ask the supplier whether the endoscope camera module uses commercial (0°C to +70°C) or industrial (-40°C to +105°C) components.

3. Consider the lens material – Plastic lenses are fine for mild conditions; glass lenses are mandatory for high‑temperature or outdoor applications with large temperature swings.

4. For USB connectivity – A camera usb module that relies on a consumer‑grade bridge chip may be the weakest link. Look for USB Camera Module models rated for -20°C to +70°C.

Can a Medical Endoscope Camera Module Be Used Industrially?

No. A medical endoscope camera module is built for a narrow, room‑temperature range. Its seals, adhesives, and electronics are not designed for freezing cold or engine heat. Using a medical scope in an industrial environment will likely cause image degradation, focus shift, or permanent failure. Conversely, an industrial endoscope is not sterile and should never be used on a patient.

Sincere’s Industrial Endoscope Camera Modules

At Sincere, we offer industrial endoscope camera modules with extended temperature ranges. Our standard modules operate from -10°C to +60°C. For harsh environments, we can supply:

• High‑temperature versions with glass lenses and industrial‑grade CMOS sensors, rated -20°C to +80°C continuous.

• 4k endoscope camera module with active cooling for inspection of hot zones.

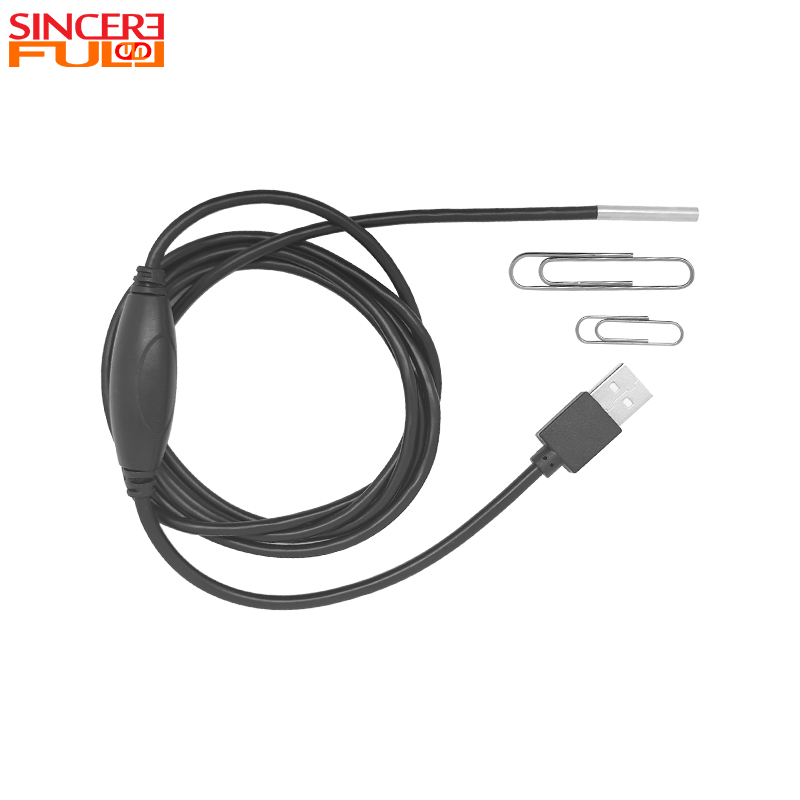

• USB Camera Module with ruggedised cable and industrial USB bridge chip.

All modules can be customised for your specific temperature requirements.

Summary

Industrial endoscope cameras typically withstand temperatures from -20°C to +80°C, while specialised models can go higher or lower. A standard camera usb module or 4k endoscope camera module with commercial components is limited to 0°C to +60°C. A medical endoscope camera module is not suitable for industrial use due to its narrow temperature range. When selecting an endoscope camera module, always check the operating temperature of the sensor, lens, and interface electronics. For extreme conditions, choose an industrial‑grade CMOS Camera Module, glass optics, and a robust USB Camera Module interface.

Contact Sincere to discuss your temperature requirements for industrial endoscope camera modules.
