Navigating sub-1mm spaces always presents a complex engineering challenge. Whether you perform minimally invasive medical procedures or validate precise industrial cleaning, you need reliable visual tools. Traditional fiber optics often hit strict physical limitations in these confined environments. Operating blindly forces teams to rely on lagging indicators or destructive testing. We need a modern solution breaking these older visual barriers.
The shift toward ultra-compact CMOS technology changes this dynamic entirely. It makes real-time, high-fidelity imaging possible in previously inaccessible zones. Engineers no longer have to guess about internal conditions or wait days for culture results. Visual evidence becomes immediate and highly actionable.
This guide examines the engineering realities of sub-1mm visual inspection. We explore technical specifications and integration requirements for this unique camera technology. You will gain a clear evaluation framework. This helps engineers and procurement teams make informed, technically sound decisions for their specific applications.
Form Factor: At 0.95mm (roughly the thickness of a sewing needle), this module safely accesses ≤1mm micro-pipes and anatomical cavities without causing structural damage.
Sensor Architecture: The OCHTA10 CMOS sensor balances extreme miniaturization with adequate diagnostic resolution, outperforming traditional fragile fiber optic bundles in durability and image clarity.
Plug-and-Play Integration: Native support for USB 2.0 and UVC (driver-free) protocols enables rapid deployment across proprietary medical displays and standard mobile terminals.
Evaluation Reality: Successful implementation requires accounting for thermal management (LED heat generation) and strict focal length requirements (3-30mm macro) during the design phase.
Industry professionals understand the severe drawbacks of blind operations. Operators frequently rely on lagging indicators, such as swab cultures, to verify cleanliness. These cultures take days to yield actionable results. In other cases, engineers dismantle expensive equipment entirely just to check internal components. These destructive testing methods waste valuable resources and halt critical production lines. Standard borescopes simply cannot penetrate sub-1mm gaps. You need equipment designed specifically for these restrictive micro-environments.
Many turn to an ultra small endoscope built on legacy fiber optics. However, these traditional bundles carry inherent flaws. Fiber optics rely on thousands of fragile glass strands. They easily snap during tight bends or aggressive insertions. Operators frequently experience frustrating "honeycomb" image artifacts. They also face steep, recurring manufacturing costs. CMOS technology eliminates these persistent headaches. Digital image processing brings lasting durability and superior clarity directly to the micro-scale.
A viable visual inspection device must achieve three distinct outcomes. First, it requires non-destructive entry into incredibly tight spaces. Second, it must deliver bright illumination without causing thermal damage to the surrounding environment. Finally, you need real-time, verifiable imaging to make immediate operational decisions. Delivering these three criteria defines a truly successful inspection protocol.
Designing a reliable tool for micro-environments demands extreme precision. The 0.95mm camera module achieves a strict outer diameter tolerance of 0.95±0.05mm. This dimension closely mirrors a standard sewing needle. It allows operators to slip the probe through tiny injection ports, narrow veins, or micro-fluidic channels effortlessly.
The core intelligence resides within the OCHTA10 sensor. This CMOS architecture balances the physical limits of silicon with strong optical performance. It ensures consistent frame rates and exceptional low-light sensitivity. These traits are essential because sub-1mm environments contain absolutely zero ambient light.
Optical performance directly dictates the usefulness of your inspection. A wide field of view allows operators to capture pipe inner walls or cavity margins in a single frame. The macro focus ensures accurate identification of micro-defects or bacterial colonies without constantly repositioning the probe. Furthermore, controlling lens distortion remains critical for accurate dimensional estimation during inspections.
Technical Parameter | Specification Details | Operational Benefit |
|---|---|---|
Outer Diameter | 0.95mm ± 0.05mm | Safely enters ≤1mm micro-pipes and tight anatomical cavities. |
Field of View (FOV) | 127° Diagonal (100°H × 100°V) | Captures wide interior surface areas in a single, comprehensive frame. |
Macro Focus | 3mm to 30mm | Maintains sharp clarity on close-up defects and micro-structures. |
Aperture | F2.8 | Maximizes light intake for improved visibility in dark environments. |
Distortion Control | Below -11% | Preserves accurate geometric shapes for precise visual measurement. |

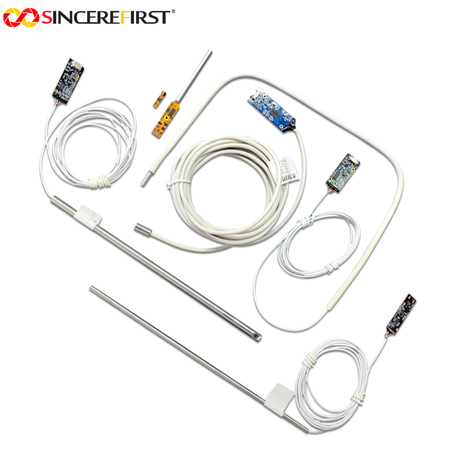

Transitioning from a standalone sensor to a fully functional micro camera module involves strict engineering disciplines. Illumination poses the most immediate challenge. Integrating an independent LED fill light requires careful thermal management. Confined, unventilated spaces trap heat rapidly. Without proper heat dissipation strategies, the localized temperature spikes. This can damage sensitive biological tissues or melt delicate industrial linings.
Environmental sealing represents another massive hurdle. Probes routinely encounter moisture, synthetic oils, and harsh chemical exposure. Your housing must achieve an IP67 rating. Waterproof and dustproof designs prevent internal short circuits and sensor degradation. Proper potting and advanced medical-grade adhesives keep the delicate circuitry completely isolated from external contaminants.
Data transmission and connectivity directly impact usability in the field. This module utilizes USB 2.0 and strictly complies with USB Video Class (UVC) standards. UVC compliance means the camera functions driver-free right out of the box. You can connect it directly to mobile phones, standard laptops, or industrial tablets. It draws necessary power directly from these host devices, eliminating heavy external battery packs.
When integrating these systems, engineers should observe specific guidelines to avoid common pitfalls:
Implement Active Power Management: Dim or pulse the LED lights dynamically to reduce continuous thermal buildup.
Ensure Strain Relief: Reinforce the connection point between the rigid camera head and the flexible cable to prevent signal wire breakage.
Leverage Host Processing: Use the connected tablet or smartphone to handle software-based image enhancements instead of overburdening the micro-sensor.
Ignoring Heat Output: Running LEDs at maximum brightness continuously in unventilated spaces will overheat the module.
Choosing the Wrong Cable Sheath: Selecting standard plastics instead of biocompatible or chemical-resistant polymers leads to rapid degradation.
Overlooking Connector Quality: Poorly soldered USB interfaces cause intermittent video dropouts during critical inspections.
The versatility of sub-1mm visual tools creates immense value across entirely different sectors. By adapting the exterior housing, manufacturers deploy the exact same underlying sensor architecture to solve diverse problems.
Sanitary Piping Inspection: Real-time visual verification guarantees cleanliness in food and pharmaceutical pipe inner walls. Operators validate CIP (Clean-in-Place) efficacy immediately without waiting for lab results.
Welds and Valve Assessment: Engineers inspect reaction tank welds and valve dead zones easily. They identify micro-cracks and degraded equipment seals before initiating costly, full-scale disassembly.
Aerospace Component Checks: Technicians feed the probe into turbine blades and complex hydraulic manifolds. They spot foreign object debris (FOD) rapidly, ensuring flight-critical systems remain uncompromised.
Minimally Invasive Diagnostics: The device functions as a highly effective medical camera module. Clinicians use it for specialized dental root canals, vascular navigation, and intricate veterinary scoping procedures.
Disposable Scopes: The cost-efficiency of modern CMOS sensors supports the rapidly growing market for single-use medical endoscopes. Discarding the tool after a single procedure entirely eliminates cross-contamination risks and expensive sterilization cycles.
Surgical Robotics Integration: Robotic arms require localized visual feedback. Embedding these tiny sensors near the surgical end-effectors provides surgeons with distinct, close-up perspectives during complex operations.
Procurement teams and lead engineers must evaluate micro-visual tools pragmatically. You cannot expect 4K cinematic resolution from a sensor smaller than a grain of sand. A tiny endoscope prioritizes physical access and basic visual confirmation over extreme pixel density. Buyers must align their internal expectations accordingly. Focus on identifying blockages, assessing surface integrity, or guiding instruments rather than capturing perfectly polished marketing footage.
Cable flexibility and length also dictate performance. You must assess the delicate trade-off between flexible wire insertion and signal degradation. Micro-cables experience higher resistance over long distances. Pushing a signal past two meters requires specialized shielding and active amplification. You must determine exactly how much reach your specific application truly needs.
Compliance defines the final barrier to deployment. For medical applications, you must evaluate the module's exterior materials. Adhesives and polymers must meet strict FDA or CE biocompatibility standards. If you intend to reuse the device, it must withstand harsh sterilization protocols, though single-use models remain the preferred trend.
Prioritize suppliers who demonstrate strong technical agility. Avoid vendors offering only generic, off-the-shelf solutions. Look for partners who readily offer custom focal adjustments, bespoke cable lengths, and transparent failure-rate data.
Evaluation and Assessment Matrix | ||
|---|---|---|
Evaluation Category | Key Metric to Review | Impact on Final Application |
Optical Priority | Size vs. Resolution | Ensures the probe actually fits the required space while maintaining diagnostic clarity. |
Signal Integrity | Cable Length Limits | Prevents video lag and signal dropouts during deep pipe or vein inspections. |
Safety Standards | Biocompatibility (FDA/CE) | Guarantees patient safety and prevents toxic reactions from housing materials. |
Vendor Agility | Customization Capability | Allows hardware tailoring to match specific focal lengths and integration ports perfectly. |
The miniature endoscope camera represents a massive leap forward in micro-visual inspection. By offering an objective view into previously inaccessible spaces, it transitions industrial maintenance and medical diagnostics from guesswork directly to verifiable science. You no longer have to rely on assumptions or destructive testing.
Engineers and procurement leaders should prioritize thermal management, environmental sealing, and basic integration ease. Discard fragile fiber optic methods and embrace durable CMOS technology. Outline your exact focal length needs and strict dimensional constraints early in the design phase. By selecting experienced vendors capable of custom modifications, you secure a reliable visual tool that completely transforms your workflow.
A: Micro-cables face strict physical limits regarding data transmission. Signal degradation typically begins past 2 to 3 meters for sub-1mm wiring. Resistance increases over distance, dropping the necessary voltage for the sensor. Engineers often use active repeater cables or signal amplification boards to extend this range. Custom solutions can push transmission further, but you must balance cable flexibility against signal integrity.
A: Standard designs prioritize single-use applications to eliminate cross-contamination risks entirely. Reusable models require specialized protective sheaths or robust hermetic sealing. Standard autoclaving uses extreme heat and pressure, which destroys unshielded micro-sensors. If you require a reusable device, your vendor must integrate specific medical-grade adhesives and heat-resistant housings to endure repeated autoclave cycles safely.
A: Wide-angle lenses naturally curve the visual field to capture more surrounding details. However, this module limits optical distortion to under -11%. This specific threshold keeps structural shapes recognizable and accurate. If your application demands absolute geometric measurement, you can apply standard software correction algorithms to flatten the image feed dynamically.
A: No specialized software is necessary. The device utilizes native USB 2.0 and UVC (USB Video Class) protocols. It operates driver-free across modern operating systems. You can connect it directly to industrial tablets, standard laptops, or mobile devices. Any generic OS camera application or basic diagnostic software will instantly recognize the hardware and display the video feed.
