In industrial pipe wall scanning, mobile on-site inspection, blind-spot-free monitoring of narrow spaces, and embedded wide-angle vision acquisition, imaging system selection often requires trade-offs among resolution, frame rate, field of view, and physical size. When the inspection task demands both clear capture of fast-moving details (e.g., rotating machinery, moving workpieces) and wide-area coverage to reduce probe movement, while also requiring the probe to pass through common pipes above 5mm, a USB endoscope module based on the OV2740 Camera Module with a 5mm diameter, 1080P@60fps high frame rate, and 140° ultra-wide angle becomes a professional solution worth evaluating. This article provides a clear selection framework from five dimensions—physical size, image performance, optical characteristics, interface protocol, and typical applications—while incorporating key terms such as endoscope camera module, OV2740 Camera Module, usb endoscope camera, HD Camera Module, 5mm Diameter, mini Camera Module, 1080P@60fps, UVC Camera Module, Wide Angle Camera Module, and CMOS Camera Module to help you precisely match high-fluency, wide-field inspection needs.
Step 1: Measure the minimum inner diameter of the target channel to assess probe passability.
The probe diameter is 5mm, a standard compact size among mini Camera Module products. Engineering significance:
Easily accesses industrial pipes, equipment cavities, automotive engine inspection ports, and HVAC ducts with inner diameter ≥5.5mm, covering most common medium-bore inspection scenarios.
The 5mm diameter balances structural strength and passability—neither as bulky and constrained as 8mm+ probes, nor sacrificing optical performance like sub-2mm probes.
Paired with a 140° ultra-wide angle, a single advancement covers a larger circumferential area, reducing probe movement and improving inspection efficiency.
When selecting, verify: Is the minimum inner diameter ≥5.5mm? For 90° bends, evaluate the probe’s rigid section length (typically 10-12mm) and cable bend radius. The module is integrated, requiring no external processing box—plug-and-play.
Step 2: Assess the inspection task’s requirements for dynamic smoothness and detail resolution.
This module incorporates the OV2740 Camera Module based on CMOS Camera Module technology, outputting 1080P@60fps Full HD images, making it a high-performance HD Camera Module. Key value:
60fps high frame rate ensures no stutter or motion blur when the probe moves quickly or the target is in motion, ideal for rotating machinery inspection, moving workpiece online detection, and high-speed fluid monitoring. Compared to 30fps, 60fps halves the time sampling interval, significantly improving the ability to capture transient defects.
1080P resolution clearly reveals 0.1mm-level micro-scratches, cracks, corrosion pits, and foreign objects, meeting precision manufacturing and quality inspection needs.
As a high-frame-rate usb endoscope camera, it achieves stable transmission over USB2.0 bandwidth via MJPEG compression, with moderate host decoding burden.
When selecting, assess: For static or slow-moving targets (e.g., pipe wall corrosion), 30fps may suffice; for high-speed motion (e.g., engine pistons, fast-moving conveyors), 1080P@60fps is necessary.
Step 3: Confirm field coverage, working distance, and distortion tolerance.
This module features a 140° diagonal ultra-wide angle (characteristic of a Wide Angle Camera Module), focus range 8–80mm, and distortion < -53%. Engineering value:
The 140° ultra-wide angle achieves extreme field expansion within a 5mm diameter probe, covering a very wide area at typical working distances of 30-50mm, capturing most of the pipe inner wall circumference in a single frame, effectively reducing blind spots and probe movement.
The 8–80mm focus range covers from ultra-close (8mm) to medium distance (80mm), delivering clear images without frequent focusing, especially suitable for scenarios with varying working distances.
Distortion < -53% (barrel) is acceptable in ultra-wide-angle endoscope designs, expanding peripheral vision; for precision measurement, software correction can be applied.
As a high-end Wide Angle Camera Module, this module is ideal for tasks requiring “large field + high dynamics.” When selecting, note: Edge distortion may affect size judgment—test with a calibration grid; confirm that the 8mm minimum focus distance meets ultra-close observation needs (e.g., inside chips).
Step 4: Evaluate host platform compatibility and development efficiency.

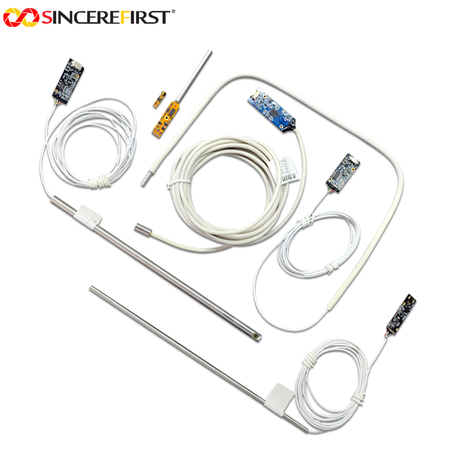

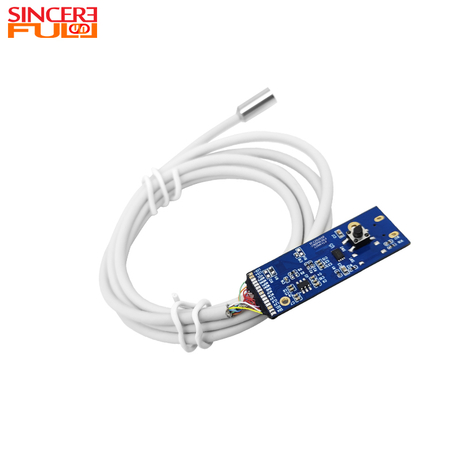

This module uses a Micro USB-5P interface, incorporates the standard UVC Camera Module protocol, supports YUV/MJPEG dual output formats, and complies with usb endoscope camera specifications. Key advantages:
Plug-and-play: No driver installation required; automatically recognized by Windows, Linux, Android (with OTG), macOS, etc.
Cross-platform compatibility: Direct connection to PCs, industrial computers, embedded boards (Raspberry Pi, Jetson), or portable tablets for rapid field deployment.
Dual-format output: YUV retains raw quality for algorithm analysis; MJPEG offers high compression for transmission and storage.
When selecting, verify: Does the target host’s USB port provide adequate power (5V/500mA is sufficient)? For long-distance transmission (>5m), use active USB extension cables.
Application Scenario | Recommended Configuration | Selection Rationale |
|---|---|---|
Industrial pipe (Φ≥5.5mm) inner wall rapid scanning | 5mm probe + long cable | 5mm Diameter fits common pipes; 140° ultra-wide covers large area; 1080P@60fps suits dynamic scanning |
Automotive engine/transmission internal dynamic inspection | Oil-resistant cable + handheld host | 60fps captures piston motion and gear meshing; Wide Angle reduces movement; UVC direct to diagnostic tablet |
Blind-spot-free monitoring of narrow spaces (equipment interior) | Fixed mount + stand | 5mm fits tight spaces; 140° eliminates blind spots; 1080P clear recording |
Mobile on-site inspection (pipeline robot) | Battery power + wireless video module | USB2.0 easily extends to WiFi; HD Camera Module quality meets remote judgment |
Embedded wide-angle vision acquisition (smart devices) | Direct motherboard connection + custom cable | mini Camera Module compact; UVC Camera Module driver-free integration |
The core value of the 5mm 1080P@60fps ultra-wide-angle USB endoscope module lies in combining the high-frame-rate HD quality of the OV2740 Camera Module, the 140° ultra-wide field of the Wide Angle Camera Module, the plug-and-play convenience of the UVC Camera Module, and the universal 5mm Diameter size—providing a cost-effective, highly flexible vision solution for industrial pipe scanning, dynamic inspection, narrow-space monitoring, and embedded vision. When selecting, prioritize three questions:
How fast is the motion? High-speed scenes require 1080P@60fps; static observation may use 30fps to reduce cost.
How wide a field is needed? For large-area coverage, choose 140° ultra-wide angle; for localized detail, a narrower field may reduce edge distortion.
What is the channel size? If inner diameter ≥5.5mm, the 5mm probe fits; for smaller diameters, evaluate thinner series.
As a manufacturer with over 30 years of optical imaging experience, SincereFirst not only supplies standard endoscope camera module products but also customizes cable length, LED illumination, and protection ratings according to your inspection scenario. We recommend obtaining engineering samples before mass production and conducting accessibility, image smoothness, and UVC compatibility tests in real pipes or equipment to ensure your selection is both scientifically sound and forward-looking.
