Endoscope cameras are no longer limited to standalone medical carts or bulky industrial borescopes. Today, they are increasingly embedded into compact, intelligent systems – from portable diagnostic devices to automated inspection robots. Integrating an endoscope camera module with an embedded system allows real‑time image processing, edge AI, and wireless connectivity. But how exactly does this integration work? This article explains the key steps, hardware choices, and software considerations for embedding an endoscope camera into your product.
The first decision is selecting an endoscope camera module that matches your embedded system’s physical and performance constraints.
Diameter and length – For tight spaces, a small camera module (e.g., 2–5 mm diameter) is essential. Disposable medical scopes often use ultra‑compact modules.
Resolution – A standard HD Camera Module (720p or 1080p) suits most diagnostic and inspection tasks. For surgical‑grade detail or advanced industrial inspection, a 4K Endoscope Camera Module provides four times the resolution.
Sensor type – Almost all modern endoscopes use a CMOS Camera Module because it offers low power, high speed, and excellent integration. CCD is obsolete for new designs.
Interface – Most embedded processors expect a MIPI CSI‑2 interface from a sensor camera module. Some modules include a USB bridge for plug‑and‑play convenience, but MIPI is preferred for low latency and low power.
The physical connection between the endoscope camera module and the embedded processor depends on the interface.
MIPI CSI‑2 (Recommended for embedded)
The camera module outputs differential data lanes (1, 2, or 4 lanes) plus a clock lane. This connects directly to the processor’s CSI receiver. Cable length is limited to about 30 cm, which is fine when the camera is close to the main board – typical for handheld endoscopes.
USB (UVC)

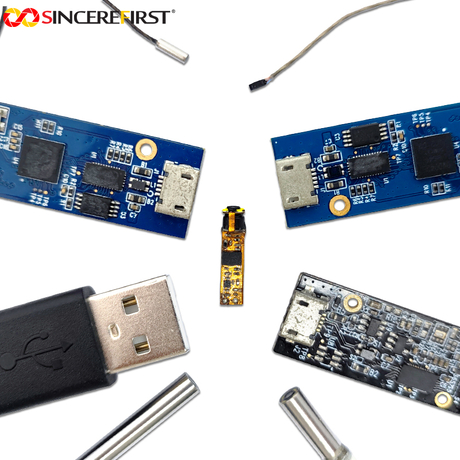

Some endoscope camera modules include a USB bridge chip. They appear as a standard UVC device. This is easier for prototyping but adds latency and power consumption. It is best for systems where the endoscope connects to a standard Linux/Android host via a longer cable.
Parallel (DVP)
Older or very low‑power MCUs may use a parallel interface. This is rare today and not recommended for new designs.
For a small camera module with a very thin tip, the cable is often a flexible printed circuit (FPC) or a coaxial wire bundle. The connection to the processor board must be secured with a locking ZIF connector.
An embedded system often runs on batteries. A CMOS Camera Module typically requires 3.3 V or 2.8 V for analog and 1.8 V for digital I/O. Many modules integrate voltage regulators, so a single 3.3 V supply may suffice. To save power:
Put the camera into standby mode when not in use.
Reduce the frame rate or resolution for non‑critical monitoring.
Use a hardware trigger to capture only one frame on demand.
On the embedded processor side, you need a driver that captures frames from the sensor camera module and makes them available to your application.
Linux – Most MIPI cameras are supported via the Video4Linux (V4L2) subsystem. You may need to write a device tree overlay to describe the sensor and its connections. For example, on a Raspberry Pi, enabling the imx219 overlay allows a 1080p CMOS Camera Module to work instantly. USB endoscope cameras are handled by the uvcvideo driver.
Android – Camera support is part of the Android Hardware Abstraction Layer (HAL). Vendor BSPs often include drivers for specific sensors.
RTOS (FreeRTOS, Zephyr) – You may need to write a low‑level driver. Simpler parallel or SPI‑based cameras are easier to support, but MIPI is more complex.
Once the driver is running, you can access the video stream using standard APIs (V4L2 on Linux, Camera2 on Android). For a 4K Endoscope Camera Module, ensure your processor has enough bandwidth and processing power to handle the high data rate.
After capturing frames, the embedded system can perform on‑device processing:
Compression – Encode video as H.264 or H.265 for storage or streaming.
Computer vision – Run OpenCV or deep learning models for defect detection, measurement, or tissue classification.
Overlay – Add graphics (scale, cross‑hair, text) before displaying on a local screen or sending to a remote viewer.
A high‑performance HD Camera Module can feed 1080p video into a small AI accelerator (e.g., Google Coral or NVIDIA Jetson) for real‑time inference.
Consider a battery‑operated industrial borescope:
Camera – 5.5 mm diameter 1080p endoscope camera module with MIPI output.
Processor – ARM Cortex‑A based SoC (e.g., i.MX8) with MIPI CSI input.
Display – Integrated 5‑inch touch screen.
Storage – microSD card for image and video recording.
Power – Rechargeable lithium battery with 3.3 V and 1.8 V rails.
Integration steps:
Physically mount the small camera module at the end of a flexible cable, terminating in a ZIF connector on the main board.
Load the Linux kernel with the appropriate sensor driver (e.g., for an IMX290 CMOS Camera Module).
Write a simple Qt application that uses V4L2 to capture frames, displays live video, and saves snapshots on button press.
Add an artificial intelligence model to detect cracks in real time.
Signal integrity – MIPI lanes are high‑speed. Keep traces short and impedance‑matched (100 Ω differential). Use a ground plane and avoid crossing noisy power lines.
Focus and alignment – For fixed‑focus endoscope camera modules, ensure the working distance matches the intended use. Test depth of field before finalising the design.
Heat – A 4K Endoscope Camera Module running continuously can warm up. Provide adequate heat sinking or reduce duty cycle.
Driver availability – Not every sensor has a ready‑made driver for your processor. Choose a sensor camera module that is already supported by your SoC vendor or has open‑source drivers.
If your embedded system runs a full Linux distribution and has a USB host port, a USB endoscope camera module can be the quickest path. The UVC driver works out of the box. However, you trade off higher latency and power consumption for ease of integration. This is acceptable for stationary inspection stations or training simulators, but less ideal for battery‑powered handheld devices.
Integrating an endoscope camera module into an embedded system involves selecting the right sensor camera module (diameter, resolution, interface), connecting it via MIPI (preferred) or USB, managing power efficiently, and writing or configuring drivers. A small camera module enables compact designs, while a CMOS Camera Module provides modern low‑power performance. For standard diagnostic tasks, an HD Camera Module (1080p) is sufficient; for surgical or high‑precision industrial applications, a 4K Endoscope Camera Module delivers the necessary detail. By following the hardware and software steps outlined above, you can turn a raw camera module into a fully functional embedded imaging device.
