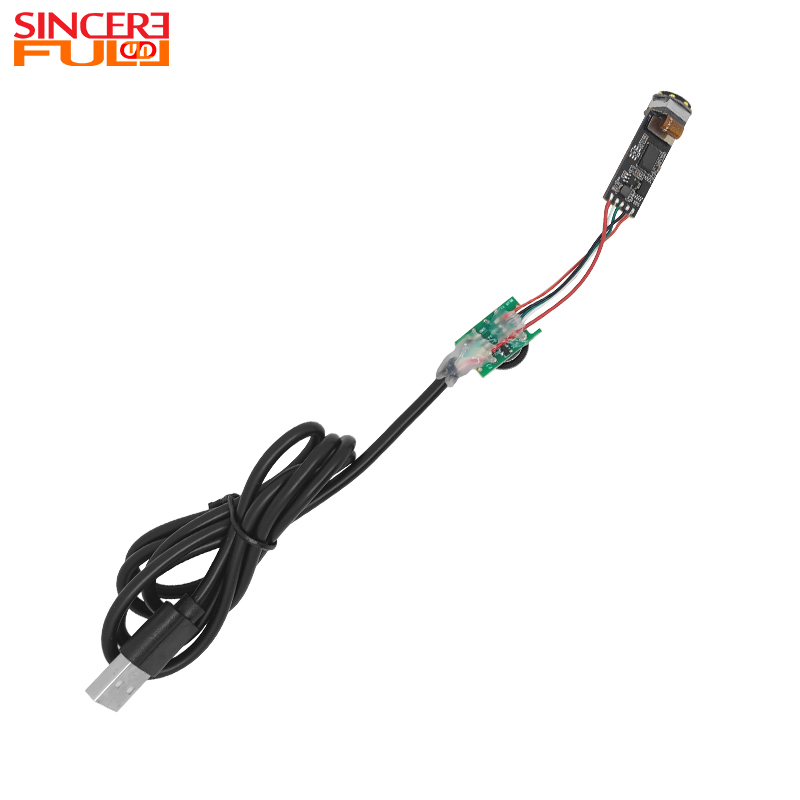

SF-SP12-D12.5 AF 12MP
SINCEREFIRST
| This is a 1080P HD CSI integrated industrial inspection endoscope camera module. It is equipped with a high-performance CMOS color image sensor, and its 12MP high pixels are suitable for industrial inspection scenarios. Cooperating with 3840x3104 high-definition resolution and a maximum frame rate of 30FPS, it can accurately capture the fine details of the inspected objects. With a sensor size of 1/3.06 inch and a pixel size of 1.12μm x 1.12μm, coupled with an F2.2 large aperture and an 80.9° wide field of view, it can present clear and bright images in complex industrial environments. In the field of industrial inspection, the advantage of the 12MP high pixels combined with the slim lens diameter of only 12.5mm is particularly significant: the small-diameter lens can easily penetrate into narrow spaces such as pipelines and mechanical gaps, while the high pixels ensure that millimeter-level detailed information can still be obtained within the limited field of view, solving the pain point of traditional endoscopes that "small field of view can't see clearly and high pixels can't get in". The module has a wide depth of field from 3.5cm to infinity and an autofocus function. The lens is integrated with 8 LED lamp beads to provide sufficient supplementary light, enabling accurate focusing on the inspection area even in dim environments. It adopts a USB2.0 interface and supports the UVC protocol to realize plug-and-play convenient operation; the integrated design, combined with SMT technology and AA process production, ensures the structural stability and imaging consistency of the bare module, providing a reliable visual solution for various scenarios such as internal inspection of industrial equipment and defect detection of precision components. |  |
High-Definition Detail Capture: Equipped with 12MP high pixels, paired with 3840x3104 resolution, 30FPS frame rate and F2.2 large aperture, it accurately presents millimeter-level fine details with clear and bright imaging.

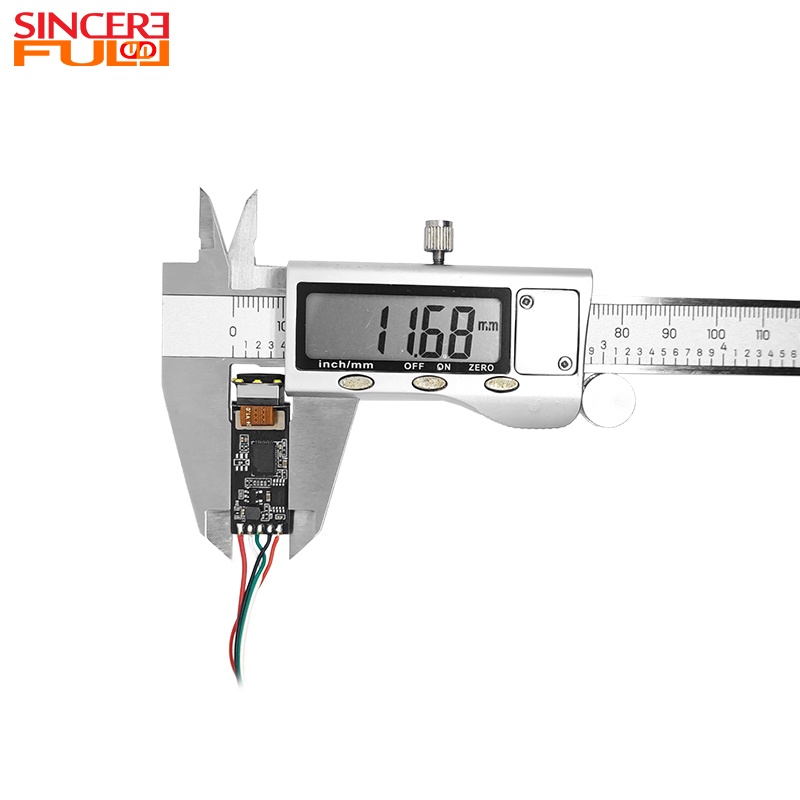

Narrow Space Adaptation: The combination of 12MP high pixels and a 12.5mm slim lens enables easy access to narrow spaces while ensuring clear details within the field of view, solving the traditional inspection pain points.

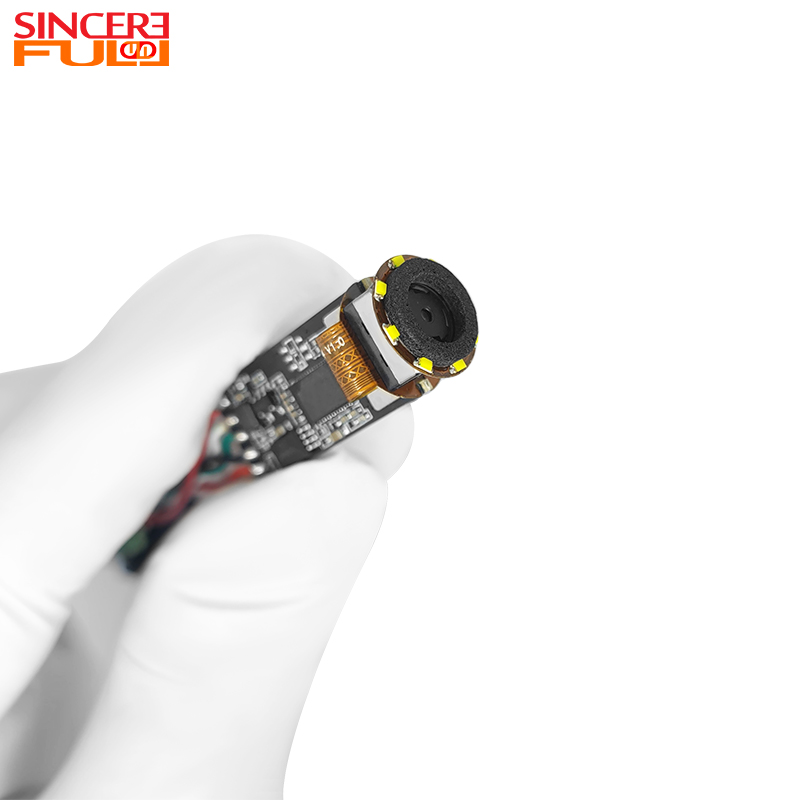

Complex Environment Adaptability: Featuring an 80.9° field of view, a wide depth of field from 3.5cm to infinity, combined with autofocus and 8 LED fill lights, it can accurately focus even in dimly lit environments.
Convenience, Stability and Durability: USB2.0 interface supports UVC protocol for plug-and-play functionality; supported by SMT technology and AA process, the integrated structure ensures stability and reliability.
1. Internal Inspection of Industrial Equipment: It can penetrate into narrow spaces such as internal cavities and pipelines of large industrial equipment like machine tools, engines, and pumps to detect wear, corrosion, looseness, etc. of internal parts, enabling comprehensive inspection without disassembling the equipment.
2. Defect Detection of Precision Components: Suitable for defect detection of small precision components such as electronic components, precision instruments, and molds. It can clearly present fine scratches, cracks, virtual solder joints and other issues, assisting in quality control.
3. Pipeline and Vessel Inspection: Targeting the internal inspection of industrial pipelines, pressure vessels, storage tanks, etc., it can detect pipeline blockages, inner wall corrosion, weld quality and other conditions, especially applicable to inspection scenarios of small-caliber pipelines.
4. Mechanical Gap Inspection: Used for the inspection of hidden parts such as gaps and interfaces of various mechanical structures, such as gaps in automobile gearboxes and joints of mechanical transmission components, to timely discover hidden dangers like foreign object jamming and component deformation.

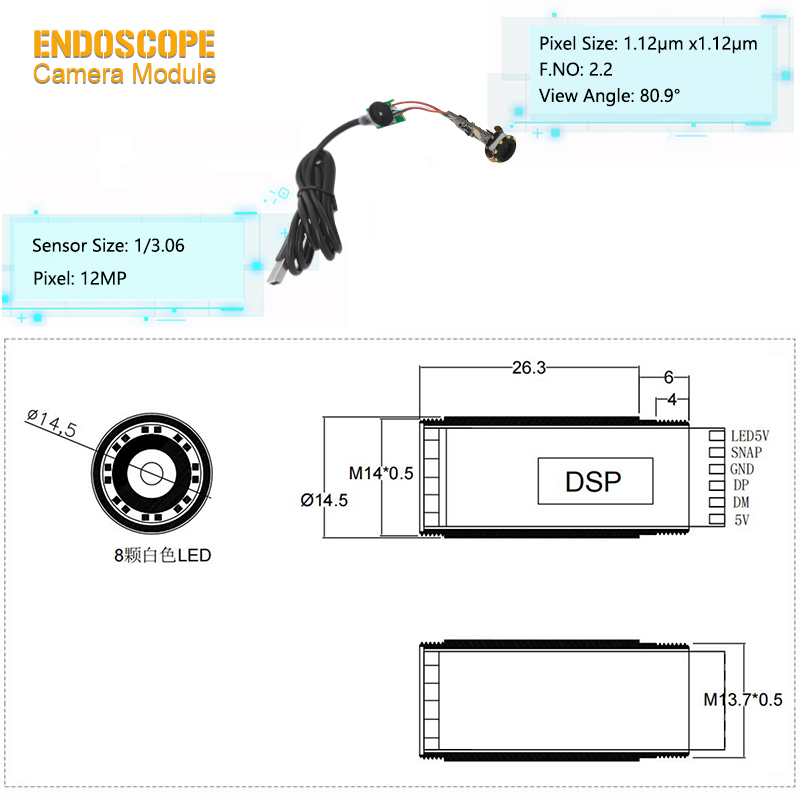

Product Name | 12.5mm Endoscope Camera Module |
Led | 8pcs |
Mounting Type | USB2.0 |
Sensor | CMOS |
Focusing Range | 3.5cm~Infinity |
Pixel | 12MP |
F.NO | 2.2 |
Trademark | SINCERE FIRST |
Focus Type | Auto |
Fov(D) | 80.9° |
The endoscope camera module collects the internal image through the front optical lens, converts it into electrical signal by CMOS or CCD sensor, and then optimizes it through image processing chip for noise reduction and enhancement, and finally outputs high-definition video signal. Some modules support wireless transmission or fiber optic signal transmission, suitable for medical or industrial inspection scenarios.
Mainstream resolutions include 720p, 1080p, 4K, etc. Medical grade modules usually require more than 1080p to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs according to demand. Ultra-high resolution modules are mostly used in precision surgery or scientific research.
In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.
