| Quantity: | |
|---|---|
SF-SWAF10MM-A2
SINCEREFIRST

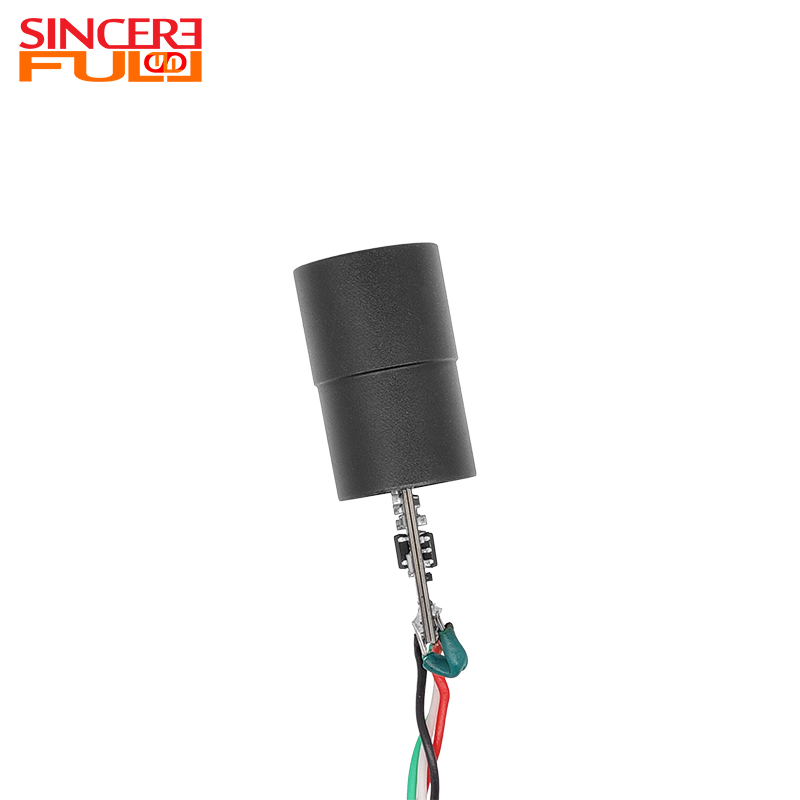

| This is a 5MP HD high-resolution auto-focus endoscope inspection camera module, which adapts to precise detection needs in multiple fields such as medical care, industry, and environmental monitoring by virtue of its high-resolution imaging and intelligent design. The core of the module is equipped with a 5MP CMOS image sensor. Compared with low-resolution modules such as 0.3MP, 1MP, and 2MP, it can output images in multiple resolutions including 2592×1944, 1920×1080, 1280×720, and 640×480. Fine textures can be clearly displayed, providing a high-fidelity visual basis for detection and diagnosis. In terms of structural and optical design, the module adopts a compact layout, with a diameter of only 10mm and a total height of 6.6mm±0.2mm. It is equipped with a steel sheet reinforcement structure, which combines a small size with anti-drop durability, allowing it to be easily embedded in narrow spaces. The optical lens has a 73° field of view (FOV) and adopts a 4P+RI lens configuration, which can cover a wide observation range and reduce detection blind spots. It has 6 built-in LED fill lights, and the brightness can be adjusted through the scroll button on the cable. Flexible fill light can be provided in dim environments to ensure imaging clarity. In terms of interface and compatibility, the module is equipped with a 2-in-1 (Android+USB2.0) interface and supports the UVC protocol to achieve "plug-and-play" functionality. No additional drivers need to be installed, and it is directly compatible with four mainstream operating systems: Windows, Mac, Linux, and Android. Real-time data transmission can be realized by connecting to computers, tablets, industrial control equipment, etc. The operating current is stably maintained at 140mA-150mA, featuring low power consumption and reliable operation. Combined with a 10-year extended warranty, it provides quality assurance for long-term high-frequency use. In addition, the module supports two image output formats: YUV and MJPG, which can be flexibly switched according to the needs of detection scenarios, meeting the high standards for image accuracy and stability in industrial and medical scenarios. The product has passed multiple international certifications such as FCC, CE, Reach, and RoHS, ensuring compliance with quality standards and environmental requirements of major global markets. |  |
Strong Detail Restoration: Relying on the 5MP CMOS sensor, it can output images with a maximum resolution of 2592×1944. The pixel density is much higher than that of low-resolution modules, enabling it to capture the micro-features of detected targets and avoid missed detection or misjudgment caused by blurry images.
High Operation Efficiency: Equipped with precise auto-focus technology, it can quickly lock onto detected targets at different distances without manual focus adjustment. It is especially suitable for dynamic detection scenarios, reducing the time consumed by manual operations and improving detection efficiency.
Smooth Images Without Motion Blur: It can stably output 30fps video at all resolution specifications including 2592×1944 (5MP) and 1920×1080 (1080P), avoiding image freezing or motion blur caused by insufficient frame rate, and ensuring visual continuity during dynamic detection processes.
Wide Adaptability: It supports four operating systems (Windows, Mac, Linux, and Android) and requires no custom drivers. It can be quickly connected to devices such as computers, tablets, and industrial control terminals via the USB2.0/Android interface, realizing simultaneous data transmission and power supply. This simplifies the equipment deployment process and lowers the threshold for use.

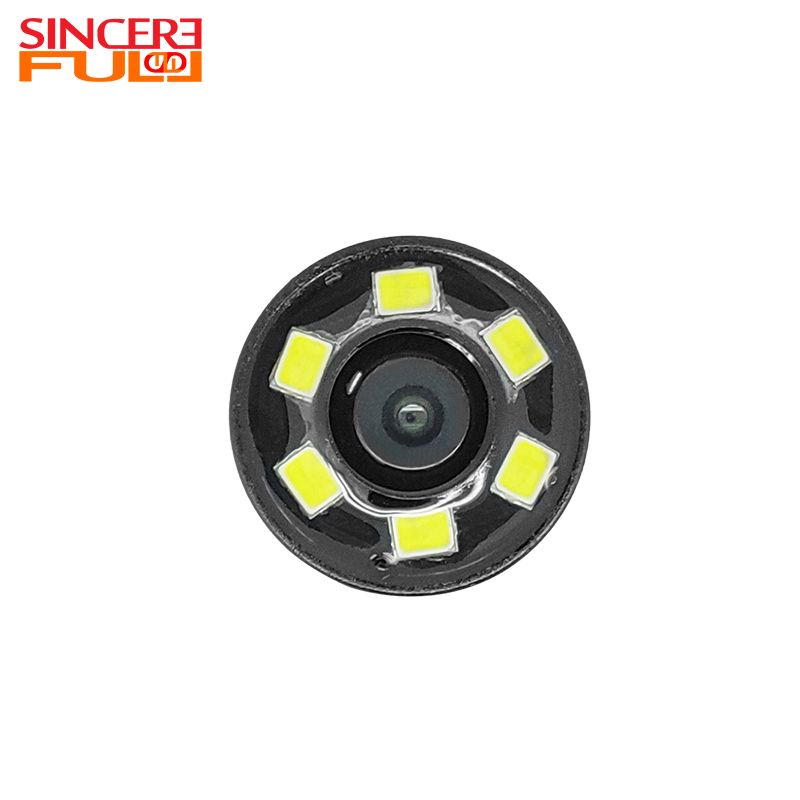

Adaptation to Complex Light Environments: With 6 built-in LED fill lights, the brightness can be adjusted in real time through the scroll button on the cable. Precise fill light can be provided in completely dark or low-light environments, avoiding reflection interference caused by excessive light or image blurriness caused by insufficient light, and adapting to light environment needs of multiple scenarios.
10-Year Warranty: The steel sheet reinforcement structure is adopted to enhance structural strength, enabling it to withstand slight collisions during conventional detection. The 10-year extended warranty period is far longer than the industry average, greatly reducing long-term maintenance costs. It is especially suitable for long-term use scenarios such as medical care and industry.
Product Name | Auto Focus Endoscope Camera Module |
Pixel | 5MP |
Working Current | 140mA-150mA |
Output Interface | USB2.0 |
Format | YUV MJPG |
Resolution | 640*480/1280*720/1920*1080/2592*1944 |
Lens | FOV 73° 4P+RI |

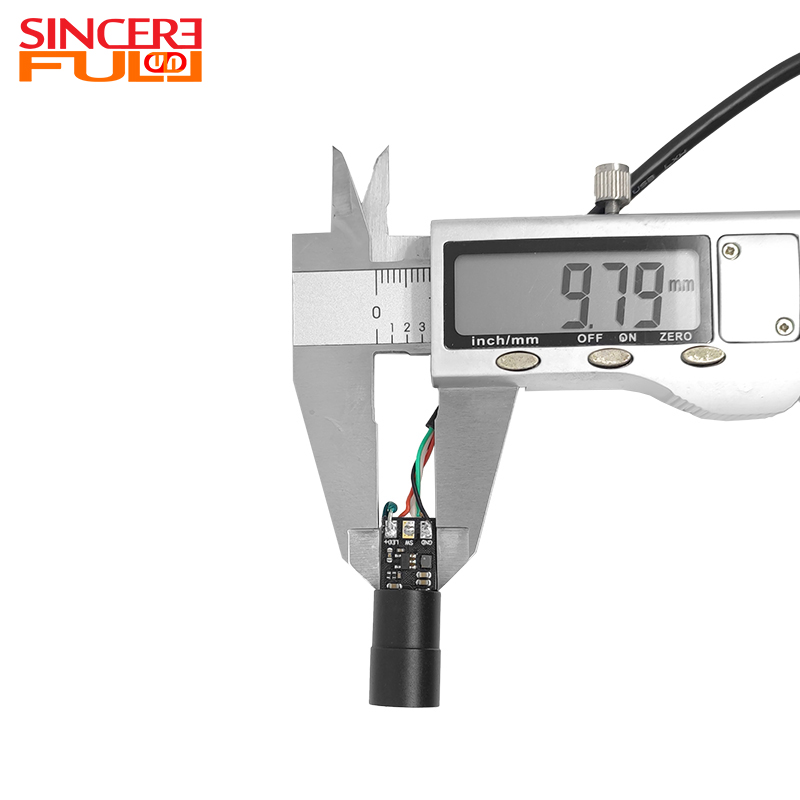

Diameter | 10mm |
Led | 6PCS |
Warranty | 10 Years |
Intervertebral Foramen Endoscope: As the core imaging component of the intervertebral foramen endoscope, it can penetrate into the intervertebral foramen area of the spine, clearly displaying the herniated part of the intervertebral disc and details of nerve root compression, assisting doctors in completing minimally invasive decompression surgeries and reducing intraoperative visual blind spots.
Choledochoscope: Adapted to choledochoscope equipment, it enters the bile duct through the biliary tract to observe the size and location of bile duct stones as well as inflammatory/tumor lesions on the bile duct wall, providing accurate image guidance for bile duct stone extraction and tumor biopsy.
Aero-Engine Borescope: Integrated into aero-engine borescopes, it penetrates into the interior of aero-engines to detect defects such as blade wear, carbon deposition, and cracks. Maintenance inspections can be completed without disassembling the engine, ensuring the safe operation of aviation equipment.
Electronic Component Precision Inspection Endoscope: Used as a precision inspection endoscope for electronic components, it magnifies and observes micro-problems such as cold soldering of chip pin solder joints, capacitor leakage traces, and circuit board line corrosion, improving the quality inspection accuracy of electronic equipment.
A1: It supports up to 2592×1944 (5MP) resolution, plus lower options like 1080P, 720P, and 640×480 for flexible use.
A2: No. It has built-in auto-focus, which quickly locks onto targets at different distances—no manual adjustments needed, saving operation time.
A3: It works with Windows, Mac, Linux, and Android. It supports UVC protocol for plug-and-play use, no extra drivers required.
A4: It comes with a 10-year extended warranty. The steel sheet reinforcement also makes it durable against minor collisions.
A5: Yes. It has passed FCC, CE, Reach, and RoHS certifications, complying with global quality and environmental requirements.
