SF-C2015USB-1080P-D7
SINCEREFIRST

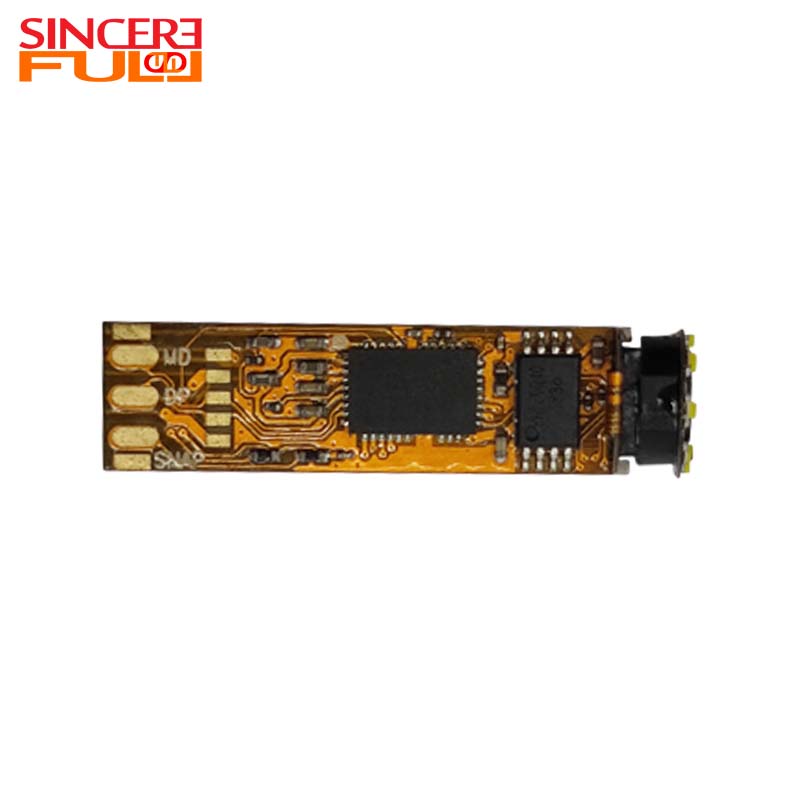

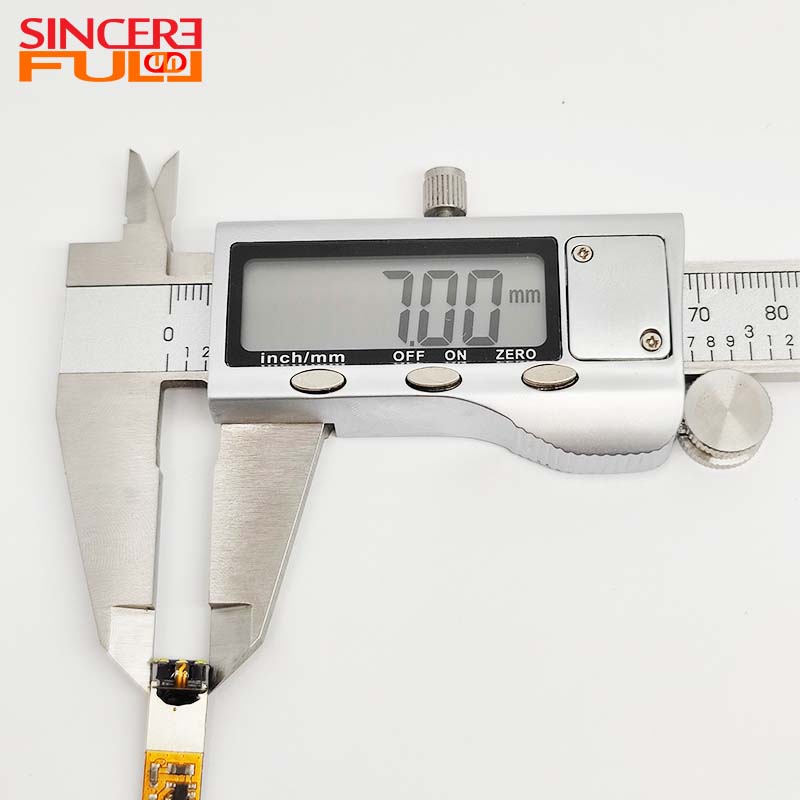

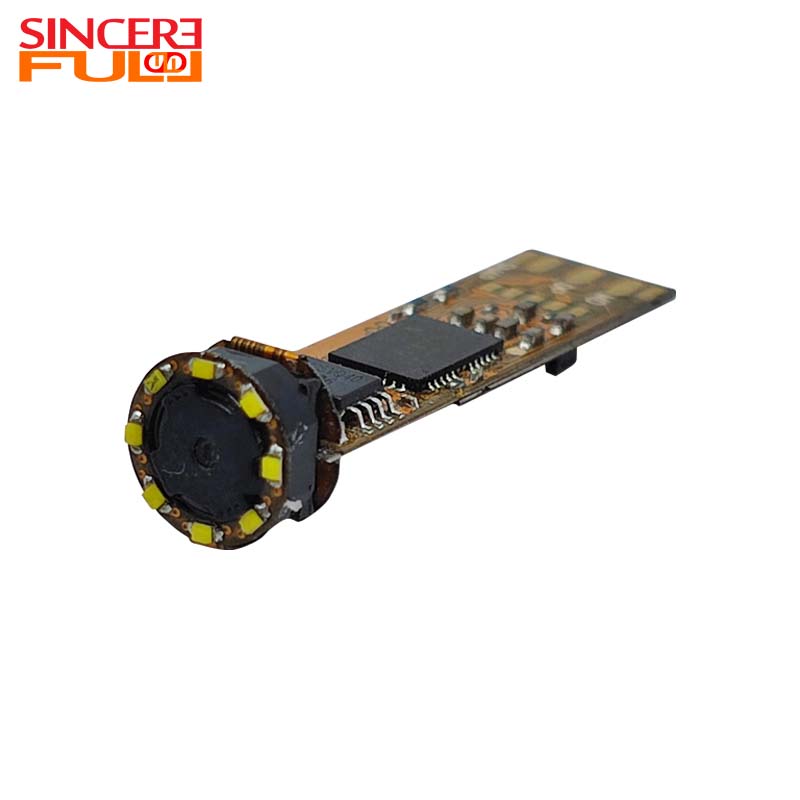

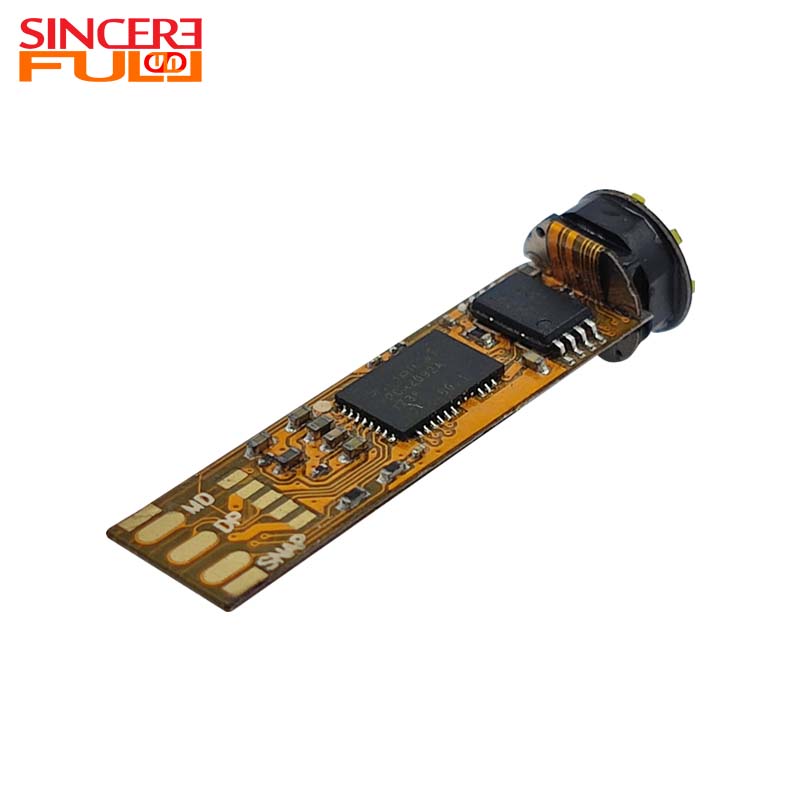

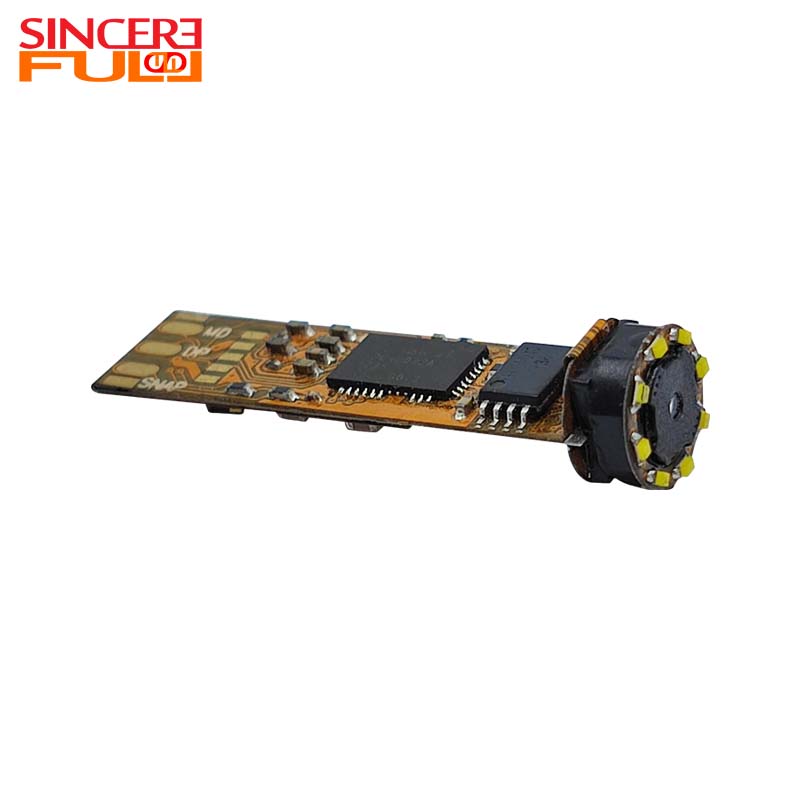

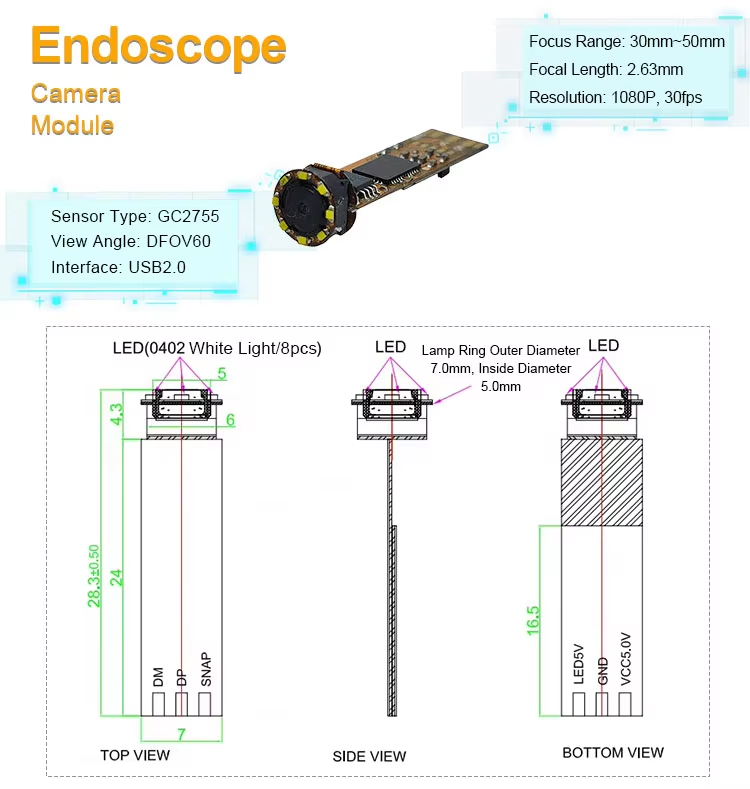

This is a 0.9mm diameter high-performance GC2755 CMOS sensor 2MP endoscope camera module, supporting 1080P full HD resolution, with image quality far exceeding that of similar products on the market. The module measures only 28mm×7.0mm and is equipped with a 0.9mm ultra-fine lens, allowing for easy access to narrow Spaces. It is equipped with 8 dimmable LED lights. The brightness can be adjusted through the line control knob to adapt to different lighting environments. The 30-50mm fixed focal length design ensures clear imaging. The universal UVC protocol supports plug-and-play, and it is compatible with Android devices and computers through a 2-in-1 data cable. This module features low power consumption and is widely used in fields such as medical testing, vehicle maintenance, industrial flaw detection and archaeological research. |  |
Features ◢
High-Definition Picture Quality: The 2MP high-definition sensor achieves a resolution of 1080P, with imaging clarity reaching the industry-leading level, improving picture quality by 4 to 6 times compared to ordinary endoscopes.

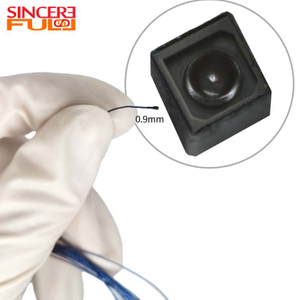

Miniaturized Design: With a diameter of only 0.9mm for a lens, it can reach precise Spaces that are difficult for traditional equipment to access, such as engine oil passages and human body cavities.

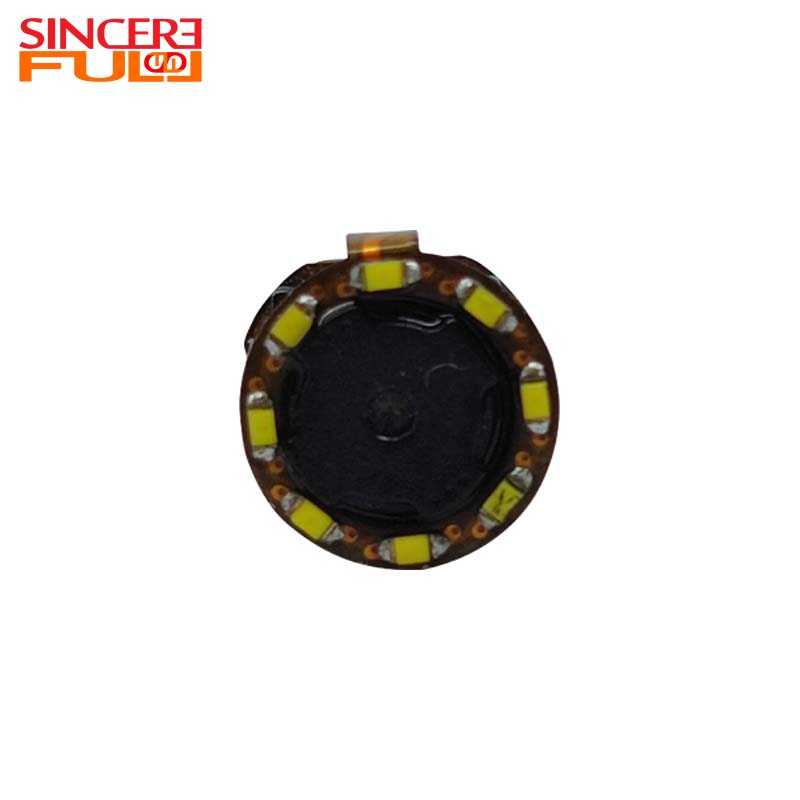

LED Supplementary Lighting: A ring-shaped supplementary lighting system composed of 8 LED lights solves the lighting problems in scenarios such as dark boxes and pipes.
Professional-Grade Optics: Optimized 30-50mm fixed focal length, presenting distortion-free clear images in scenarios such as medical examinations and industrial inspections.
Application Of Endoscope Camera Module ◢
Precision Mechanical Maintenance: Go deep into the engine oil circuit/gearbox to immediately detect metal fatigue or impurities in the lubricating oil.
Minimally Invasive Surgery Navigation: Perform laparoscopic/arthroscopic surgeries, and the distribution of blood vessels and nerves can be clearly displayed through high-definition picture quality.
Pipeline Flaw Detection: Waterproof design combined with adjustable light source to inspect the welds/corrosion conditions of oil pipelines.
Electronic Product Quality Inspection: The micro lens can detect the micro-solder joints on the circuit board, and industrial-grade anti-shake ensures the stability of the inspection.
Product Details ◢
Sensor | CMOS sensor |
Model Number | SF-C2015USB-1080P-D7 |
Mounting Type | USB |
Description | GC2755 Endoscope Camera Module |
Output Interface | USB3.0 |
Number of pixels | 2MP |
FOV(D) | 60° |
F No. | F2.8 |
FAQ ◢
1. How to clean the endoscope camera lens?
Use a sterile soft cloth and special lens cleaner to avoid alcohol damage to the coating. Industrial modules can be blown with air to remove dust, oil environment should be combined with oil resistant solvent.
2. What are the possible causes of noise in the image?
If the sensor is overheating, signal transmission interferes, or the ISO is too high in low light, check the heat dissipation design, cable shielding, or enable the noise reduction mode.
3. What are the typical requirements for custom modules?
Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
