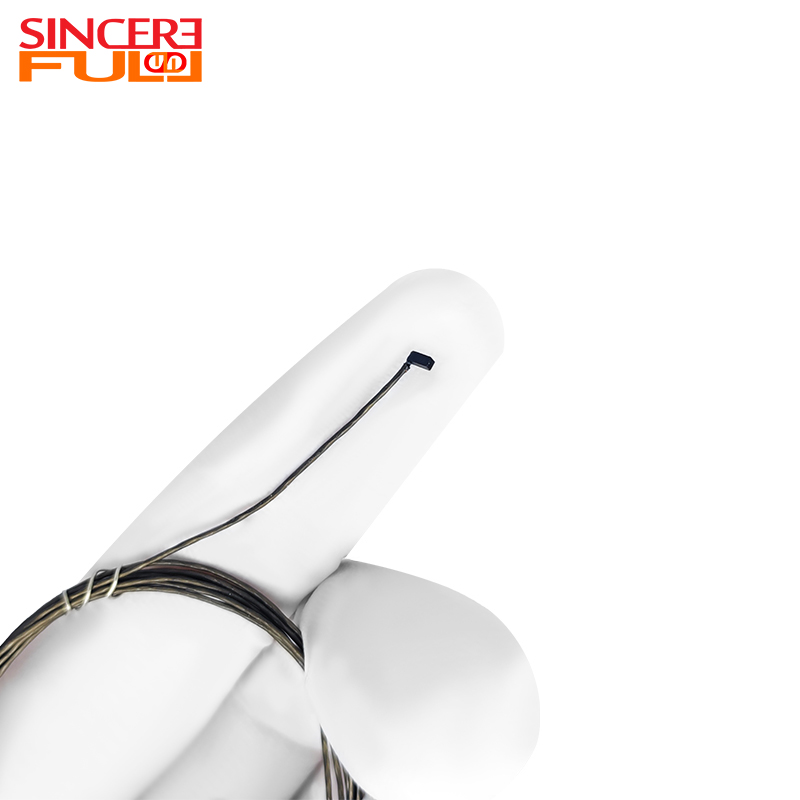

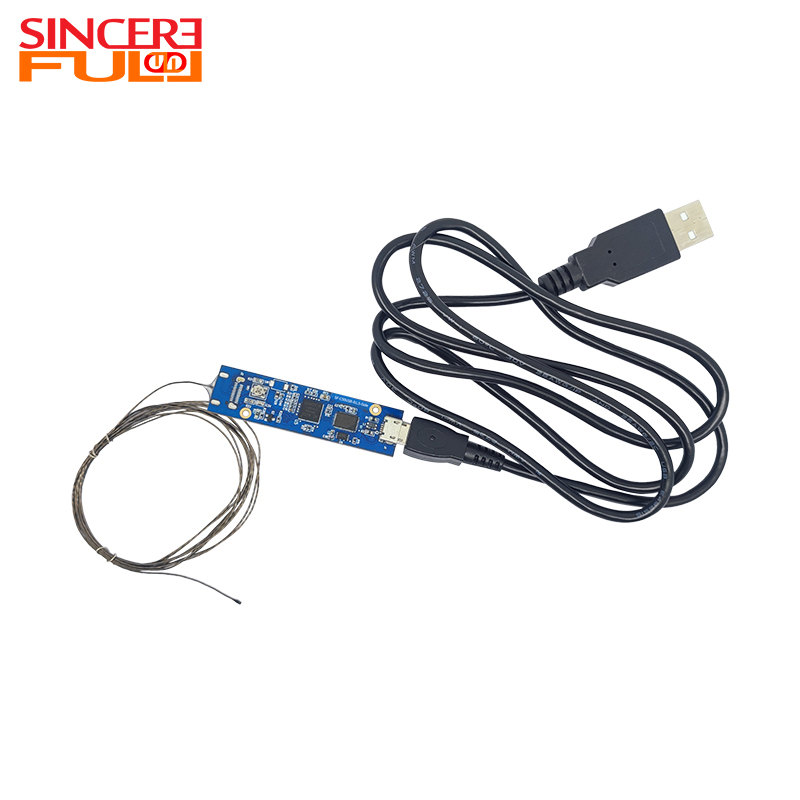

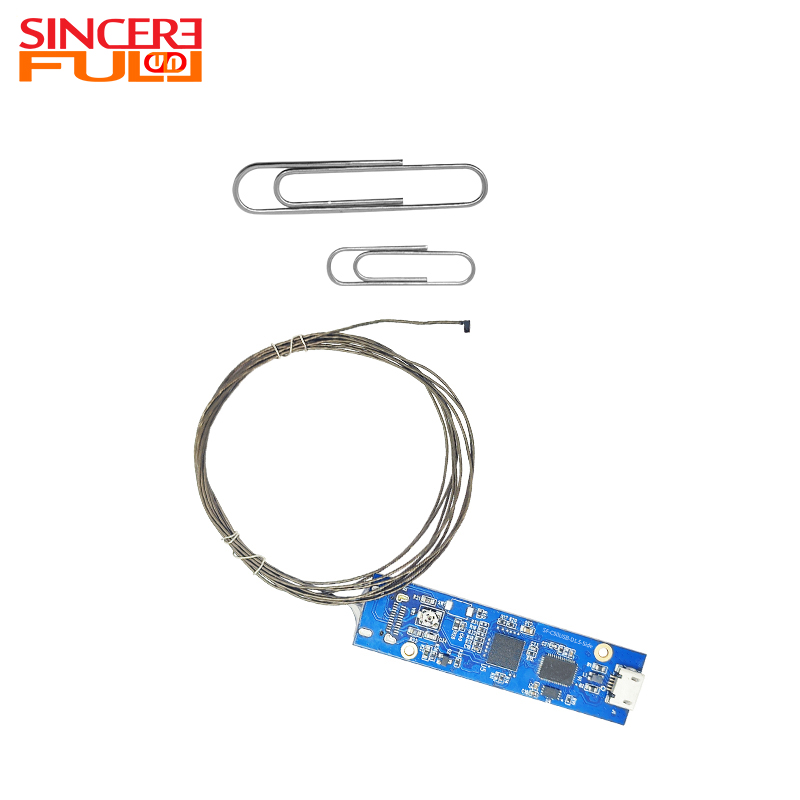

1.5 Mm Sensor OCHFA10 USB Endoscopic Camera Module

The OCHFA10 Separate USB Endoscopy Camera Module features high-resolution imaging, plastic, and this endoscope is designed with a plastic lens that reduces complications such as bleeding and hematomas when inserted into complex parts of the human body cavity and is easier to operate.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

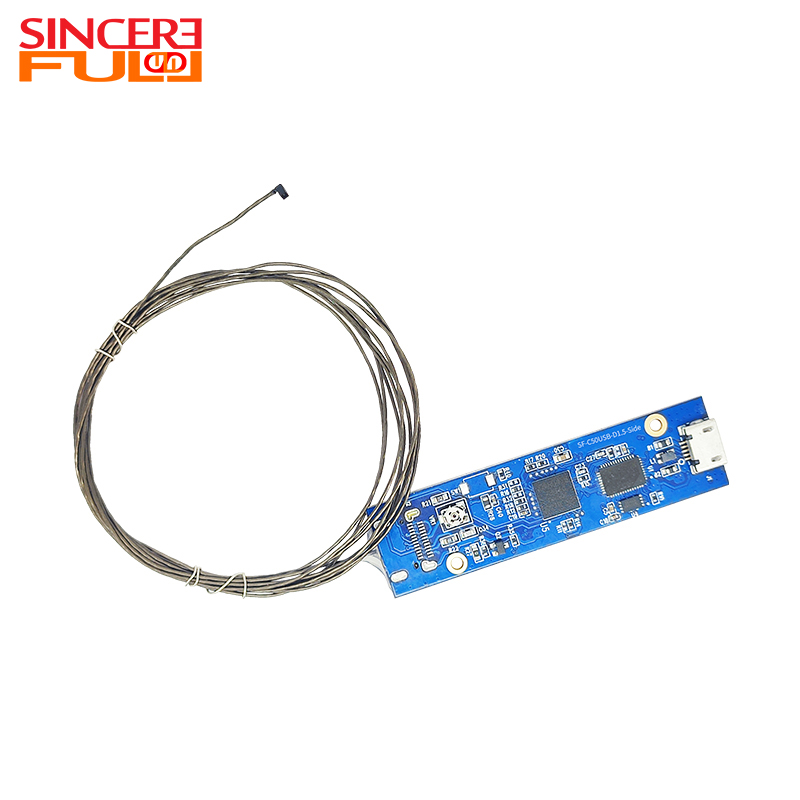

  • SF-C50USB-D1.5-Side

  • SINCEREFIRST


One of the most impressive features of the OCHFA10 USB Endoscopy Camera Module is its high resolution image quality. This allows physicians to see internal organs and tissues more clearly, allowing them to identify and treat diseases more effectively.



In addition, this endoscopic camera module has a focus range of 5~50mm, which allows for close macro observation, medium and long distance inspection, as well as automatic and clear imaging in the 5-50mm range, eliminating the need for frequent manual focusing steps!

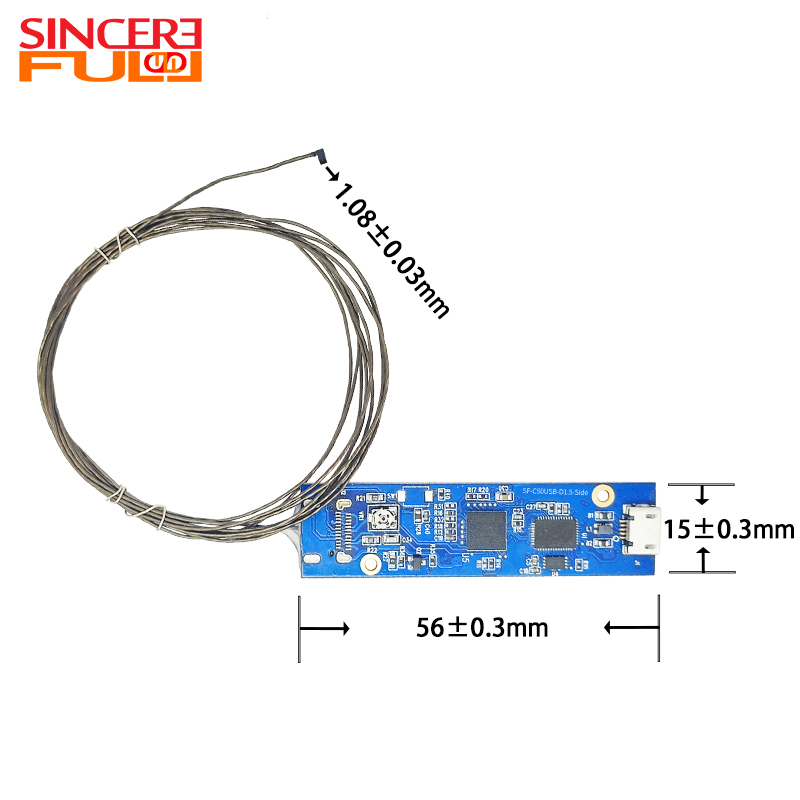

规格图


Features ◢

  • Separate structure, exchangeable probes of different lengths and angles

  • Plastic lenses can be coated to ensure light transmission, suitable for daily high-frequency use.

  • High quality images

  • UVC compliant, plug and play

  • Convenient and portable

  • Widely used in various medical applications


Application Of Endoscope Camera Module ◢

  • Industrial Video Borescope

  • Pipeline Inspection Borescope

  • Medical Inspection Borescope


Product Details ◢


Sensor

OCHFA10

Lens Material

Plastic

Connector

Mini USB-5P

Diameter

3.6mm

F No.

5.0

Basic tolerance

±0.1mm

Focusing Range

5~50mm

Focal Length

0.418mm

F Number

4.0

FOV(H*V)

86°*86°

TV Distortion

<-11%


FAQ


1. How to evaluate the cost performance of the module?

Comprehensive resolution, durability and after-sales support are required, and MTBF indicators can be prioritized in industrial scenarios.

2. Can I buy a used medical endoscope module?

Sterilization history, sensor wear (e.g. number of hours on) must be confirmed, and must be re-certified by the original manufacturer, otherwise there is a risk of cross-infection or performance.

3. What are the typical requirements for custom modules?

Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
