SF-N1070 D7.0
SINCEREFIRST

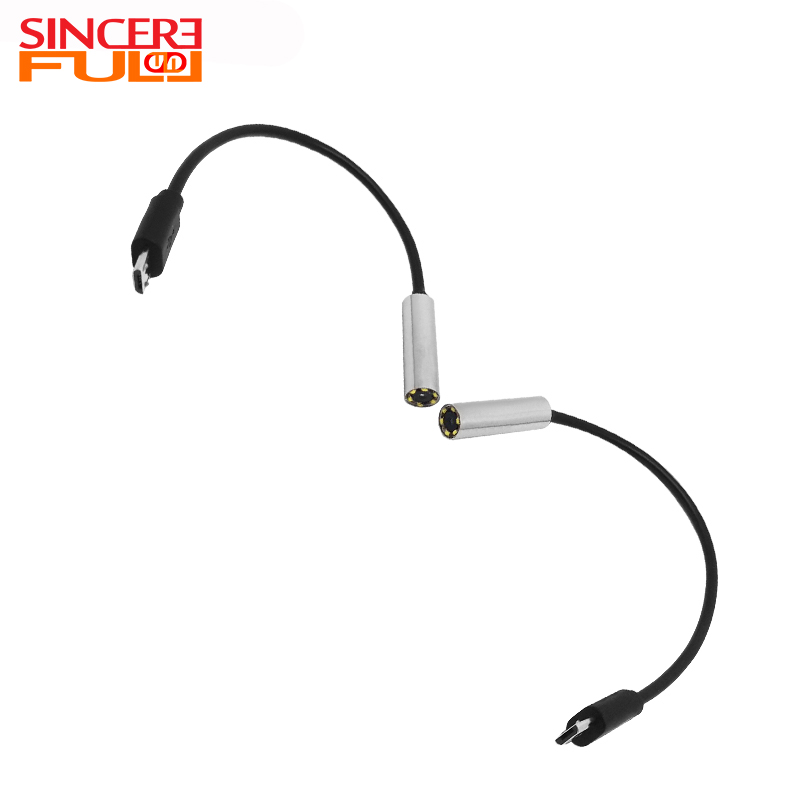

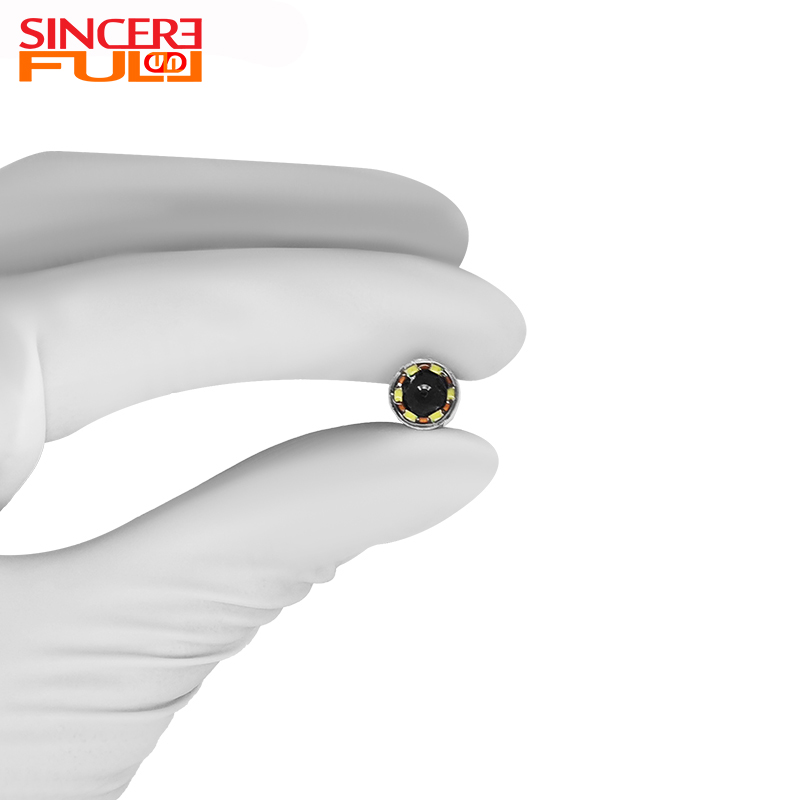

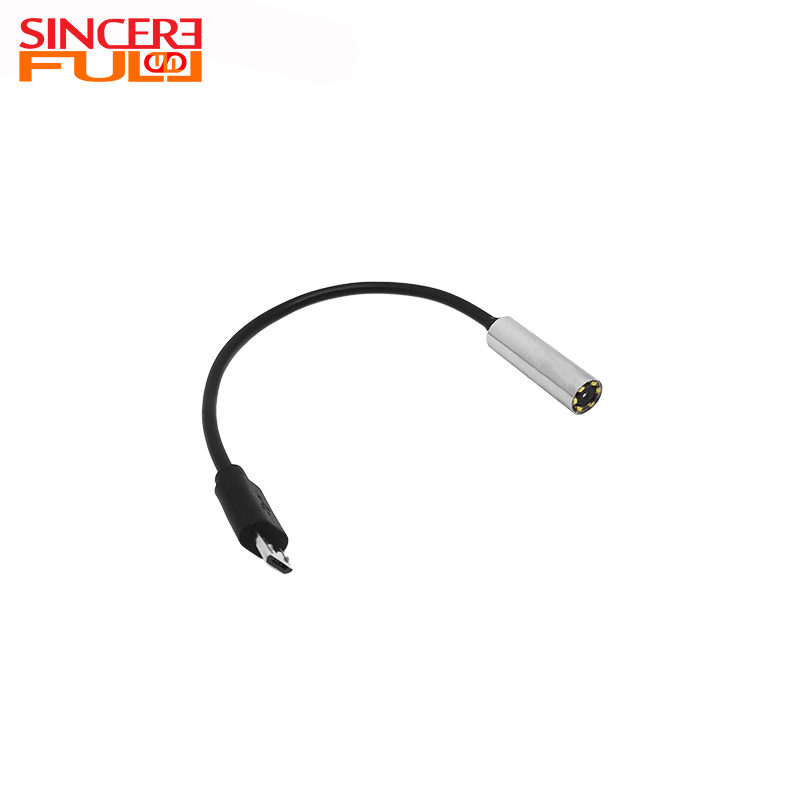

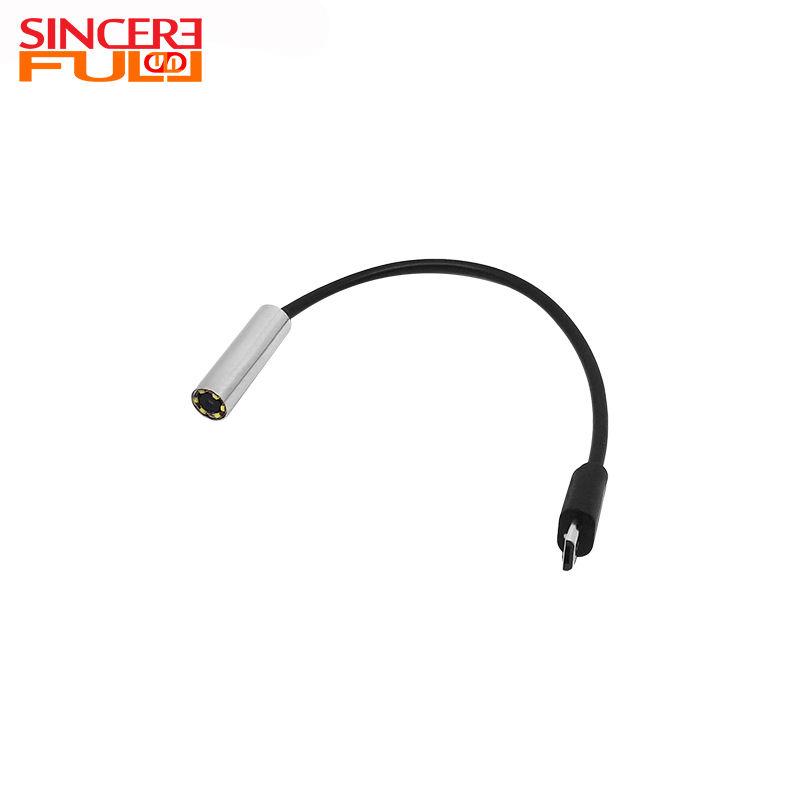

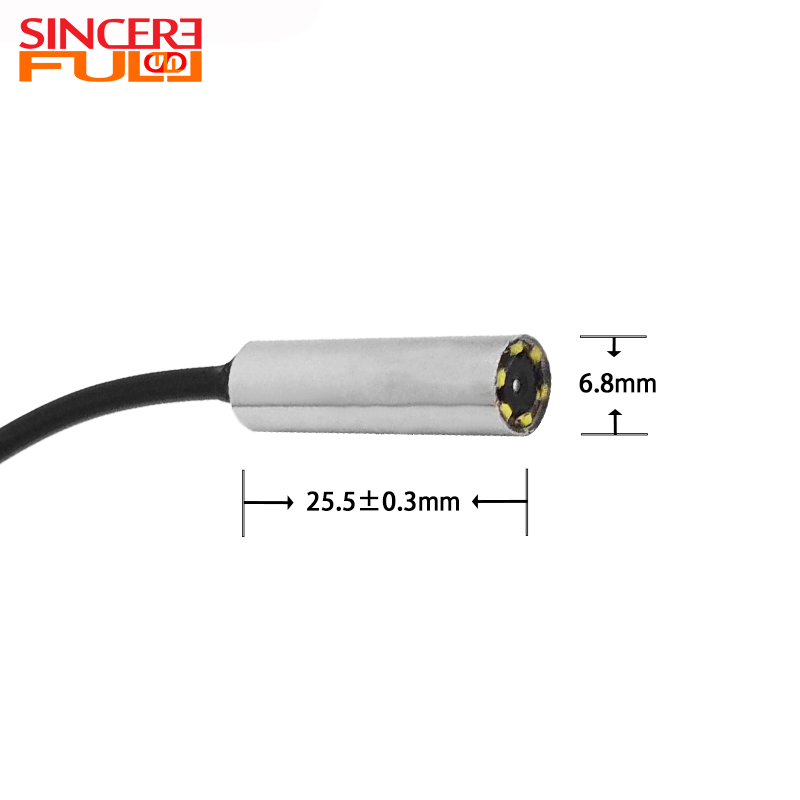

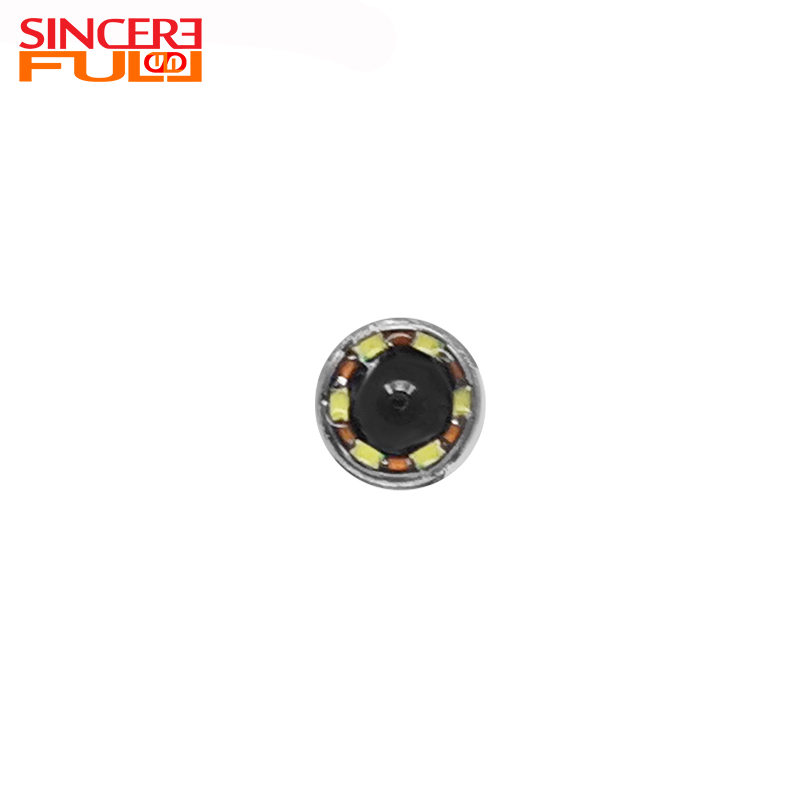

This endoscopic camera module uses the GC2755 image sensor to achieve 1920×1080 full HD resolution output through a 1/5-inch optical lens with a pixel size of 1.6μm×1.6μm, which can clearly capture the detailed features of the object under test. Support 30FPS real-time video transmission to ensure smooth dynamic detection without stuttering. The module adopts USB2.0 interface design to realize plug and play rapid deployment, compatible with mainstream operating systems and detection software. Integrated high brightness LED lighting system to provide uniform fill light to solve the problem of dim environment imaging. 7mm ultra-fine pipe diameter meets the needs of narrow space detection, and can work stably in the temperature range of -20 ° C to 70 ° C, adapting to complex industrial environments. The module is suitable for internal inspection of industrial equipment, precision parts quality inspection, scientific research observation experiment and other scenarios, providing cost-effective solutions for full high-definition visual inspection. |  |
1. Full HD imaging capability: GC2755 sensor with 1/5-inch lens, output 1920×1080 resolution image, 1.6μm pixel size to ensure accurate restoration of details, can clearly identify the tiny cracks of industrial parts, biological sample texture features.
2. Real-time dynamic detection: 30FPS frame rate supports smooth video transmission, suitable for dynamic process monitoring, such as mechanical motion state observation, fluid flow analysis.
3. Extreme environmental adaptability: the operating temperature range of -20℃ to 70℃ covers cold and high temperature scenes, and the IP67 protection grade can resist oil pollution and water vapor erosion, which is suitable for long-term use in industrial sites.
1. Industrial inspection: Explore the internal lubrication state of micro-bearings, the quality of electronic connectors solder joints, and replace traditional microscopes to improve efficiency.
2. Scientific research observation: Record the compound eye structure of insects and the growth process of plant roots to support microscopic imaging experiments.
3. Security maintenance: check the internal pipeline direction of the wall, the hidden structure of the foundation, and assist the acceptance of the building project.
Product Name | All-in-one Endoscope Camera Module |
Lens Size | 1/5 inch |
DSP | USB2.0 |
Sensor | GC2755 |
Pixel size | 20-80mm |
Image region | 1920µm x 1080µm |
lens | Hd lens/prime focus |
Operating temperature | -20～70℃ |
Storage temperature | 0～50℃ |
FOV（D） | 80° |
1. Advantages of AI-assisted endoscope modules?
It integrates real-time lesion labeling (such as polyp recognition), surgical navigation (blood vessel positioning), automatic exposure and other functions, and relies on edge computing chips (such as NVIDIA Jetson) for low latency processing.
2. What are the possible causes of noise in the image?
If the sensor is overheating, signal transmission interferes, or the ISO is too high in low light, check the heat dissipation design, cable shielding, or enable the noise reduction mode.
3. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
