| Quantity: | |
|---|---|
SF-C10TV-D3.9
SINCEREFIRST

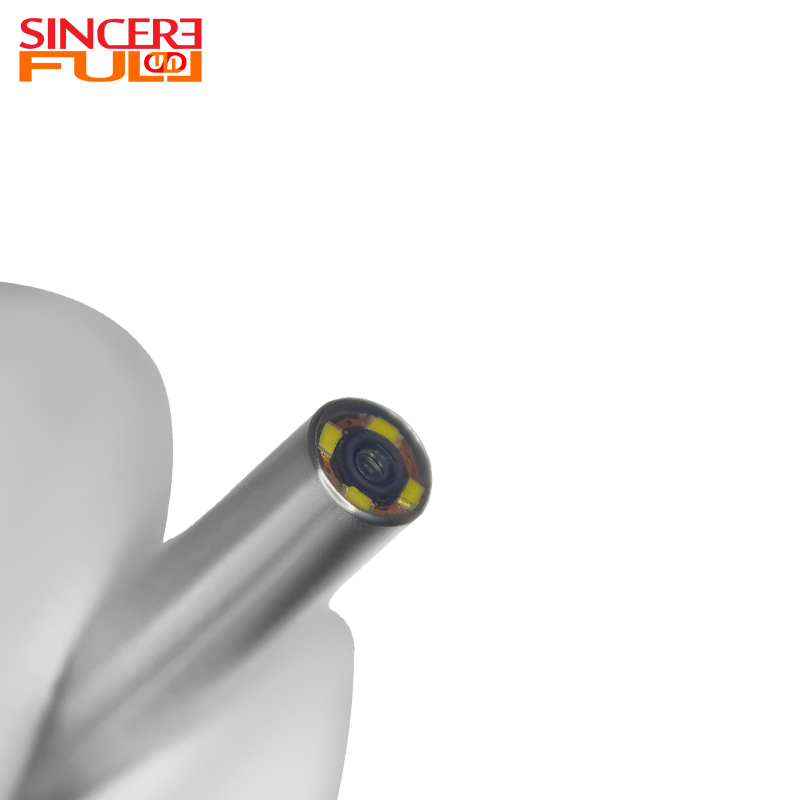

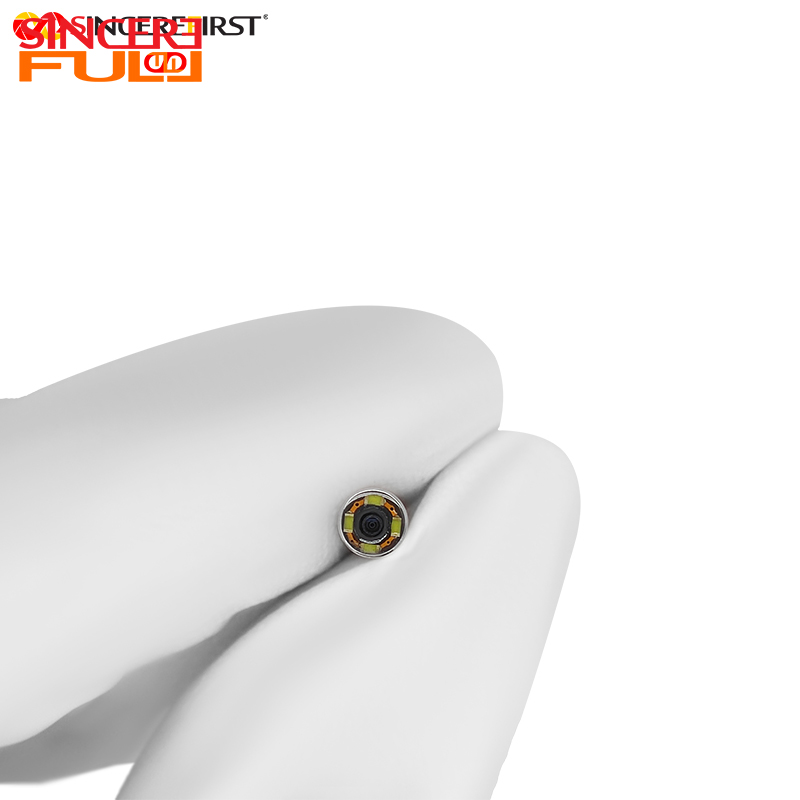

Designed for medical and industrial pipeline inspection, this 3.9mm endoscopic camera module features a high-performance OV6922 sensor with a resolution of only 0.08MP, but with its ultra-compact 1/18-inch chip size and low power consumption, it is perfect for space-constrained scenarios. Its 98° wide field of view Angle can fully cover the field of view of the inner wall of the pipeline, and with a flexible focusing range of 10-60mm, it can easily meet the detection needs of different pipe diameters and lengths. The module supports 0°-40° wide temperature operation, combined with a stable frame rate of 30fps, to ensure smooth video output in complex environments. Built-in 4 high light LED to provide uniform lighting, effectively compensate for the lack of light inside the pipeline. The module can be widely used in medical endoscopy, industrial pipeline defect detection and other fields, providing reliable visual support for accurate diagnosis and equipment maintenance. |
|

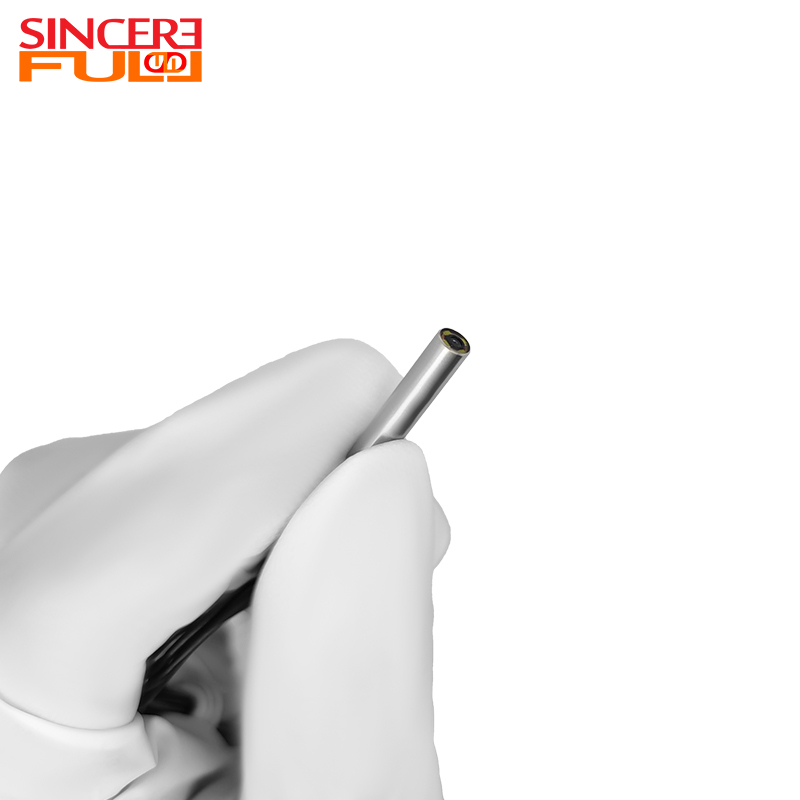

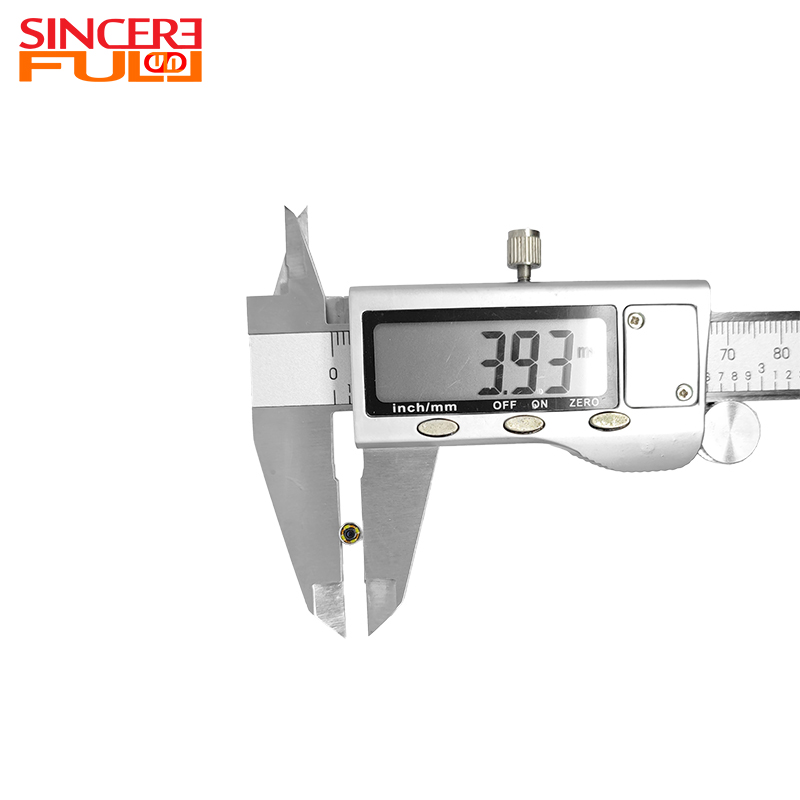

1. Compact design: The module is only 3.9mm in diameter and uses a 1/18in ultra-compact chip, which is ideal for space-demanding endoscopic applications.
2. Wide field of view Angle: With 98° wide field of view Angle (D), it can provide a wider field of view and facilitate the observation of a large range of pipeline interior conditions.
3. Flexible focusing: Support 10-60mm focusing range, so that the shooting distance is flexible and adjustable, to adapt to the detection needs of different pipe diameters and lengths.
1. Medical equipment: Widely used in endoscopy, to provide doctors with clear image support, help accurate diagnosis and treatment.
2. Industrial testing: Used for industrial pipeline defect detection, to help engineers quickly find equipment faults or defects, improve detection efficiency and accuracy, and ensure the safe operation of equipment.
Product Name | 3.9mm Endoscope Camera Module |
Sensor | OV6922 |
Pixel | 0.08MP |
LED | 0402 LED |
Focusing Rang | 10~60mm |
Image Device | 1/18" |
Operating temperature | 0°C ~ 40°C |
FOV(D) | 98° |
Operating humidity | 30%-40%RH |
AGC | On |
1. What is a endoscope camera module?
The endoscope camera module is an essential part of endoscopic equipment, enabling the capture of high-quality images or videos of internal body structures. It usually consists of an image sensor, optical lens, light source, connection interface, and a protective casing. This module plays a vital role in assisting healthcare providers to examine and diagnose the condition of internal organs or cavities during medical procedures. It offers live visual feedback, supporting surgical decisions and interventions with accurate, real-time imagery.
2. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability, wide temperature operation and special light sources.
3. Why do Otolaryngology departments need ultra-small diameter modules?
With a narrow ear/nasal canal space, a module with a diameter of less than 3mm can reduce patient discomfort while maintaining a high resolution to identify small lesions.

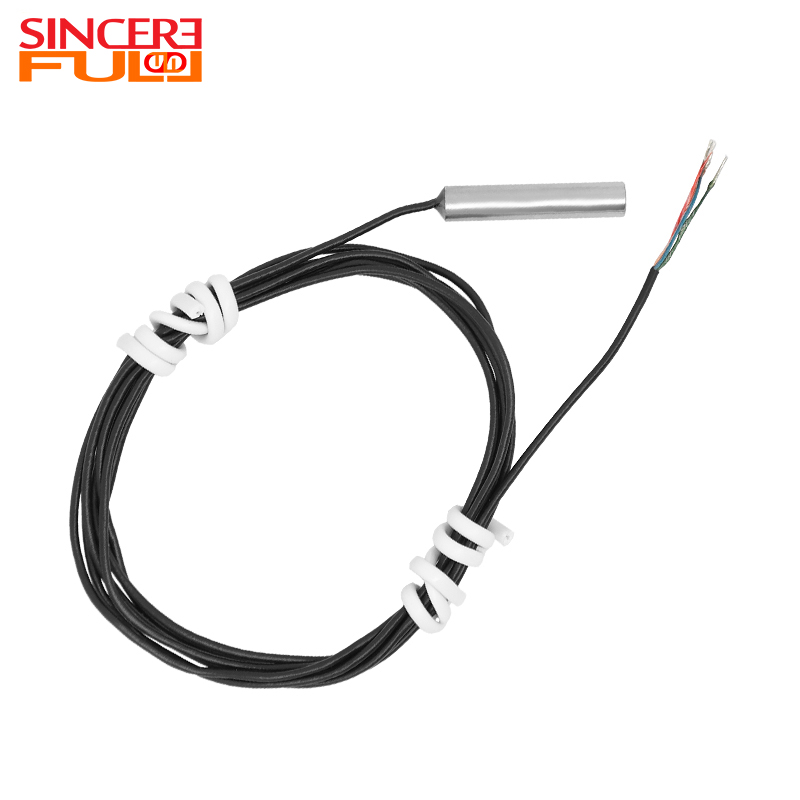

4. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
