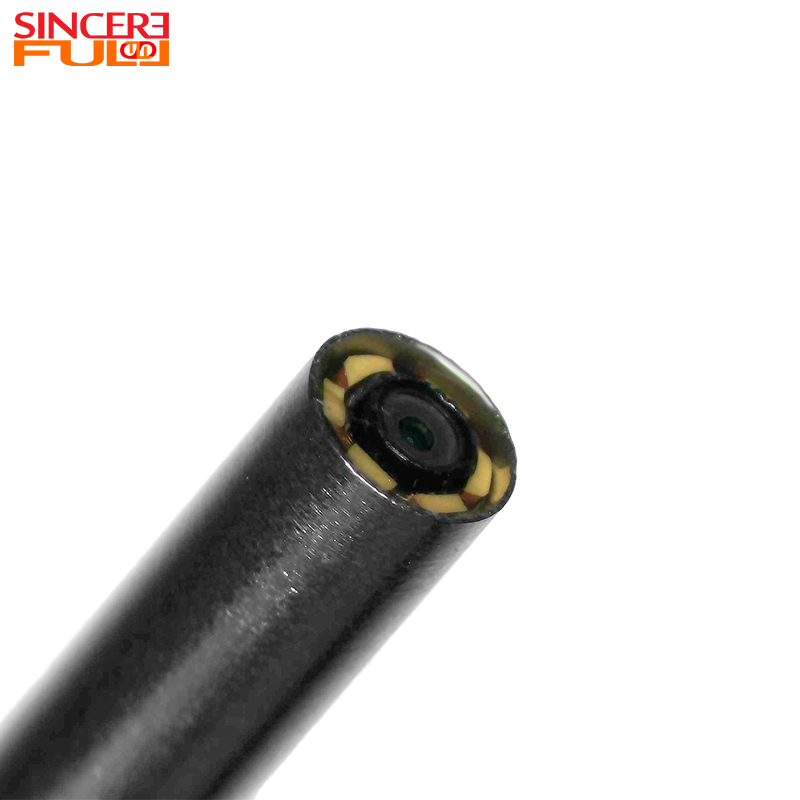

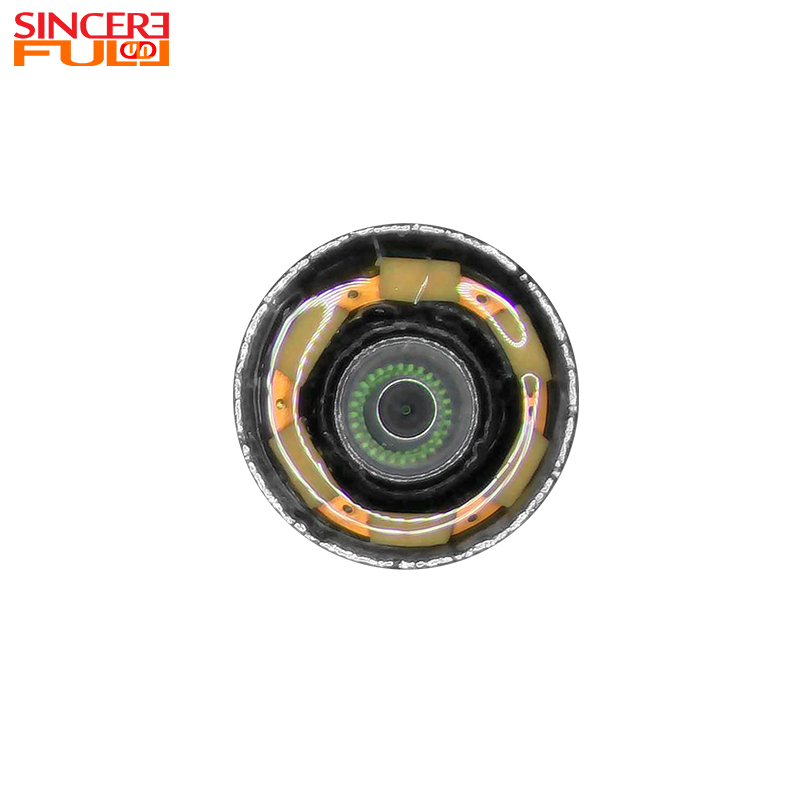

This endoscope camera equipped with the OV97342 chip features a compact design and is fitted with six 0402LED flashlights to ensure adequate illumination within a depth of field range of 10-40mm. Its 88° wide field of view, combined with a maximum imaging circle of 4.8mm, can capture a broader and clearer internal field of view. Optimized specifically for endoscopic detection scenarios, it is suitable for high-definition imaging requirements in narrow Spaces. The product has a precise structure and stable imaging quality. |  |
Product Advantage ◢
Application of Endoscope Camera Module
1.Industrial inspection : suitable for the identification of microscopic defects such as cracks and blockages in pipes.
2.Medical field : Meeting the need for real-time high-definition image transmission in minimally invasive surgery to alleviate patients' discomfort.
Technical Parameters ◢

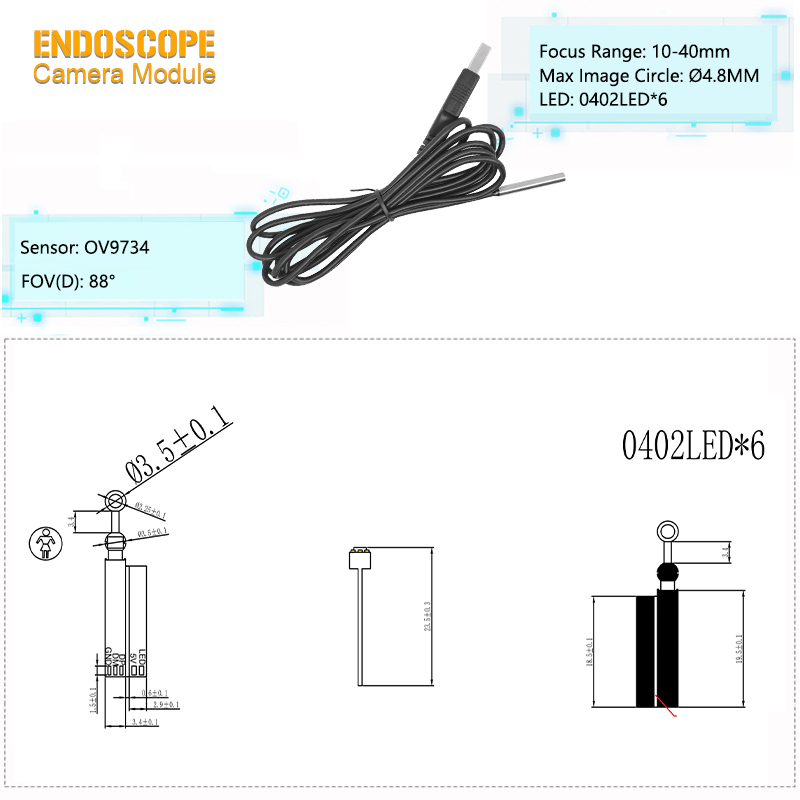

Product Name | OV97342 Sensor Endoscope Camera Module |

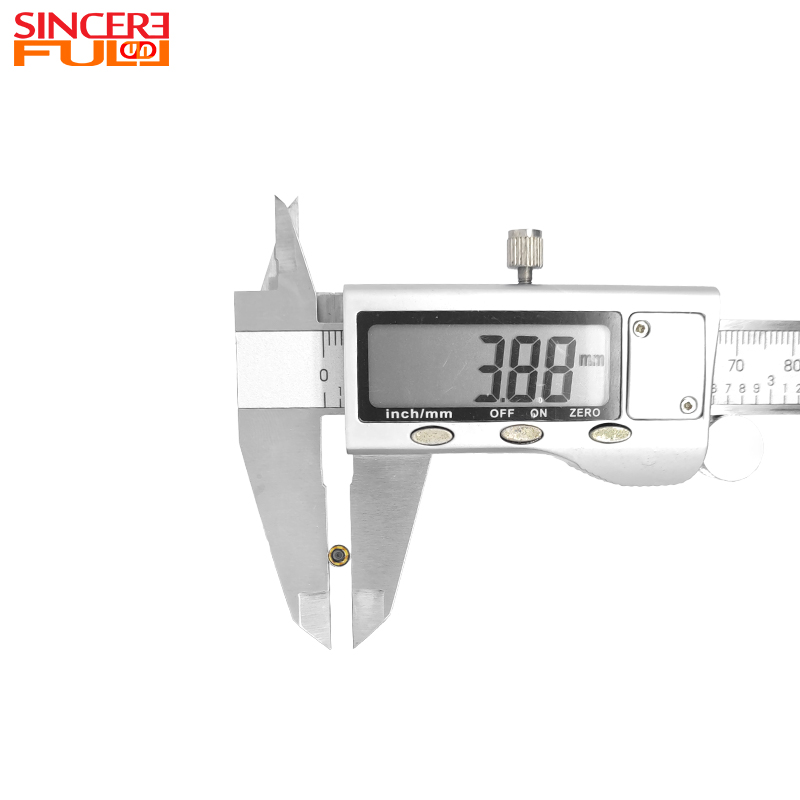

Diameter | 3.5MM |
DSP | Type-C |
Sensor | OV97342 |
Pixel size | 20-80mm |
Focusing Range | 88mm |
lens | Hd lens/prime focus |
Operating temperature | -20～70℃ |
Storage temperature | 0～50℃ |
FOV（D） | 88° |
Company Profile:
Guangzhou Sincere Information Technology Ltd., which was founded in 1992, is a manufacturer specialized in research, design and manufacture of camera module products. The headquater lies in Guang Dong China, totally 33, 350 squaremeter. The Company has strong capabilities in R&D and manufacturing. With great reputation among its customers worldwide. We support OEM and ODM services.
Advantages:
1.High-quality products: We offer high-quality camera modules that meet our customers' needs. Our products undergo strict quality inspections to ensure they are durable, efficient and reliable.
2. Quality Assurance: We provide customers with high-quality camera modules. By maintaining strict quality standards, we gain a competitive edge and win the trust of our customers.
3. Competitive Prices: We offer competitive prices that are both affordable and fair, making our products suitable for a wide range of customers.
4. Excellent customer Service: Our well-trained team of professionals is dedicated to providing outstanding customer service. We actively respond to customers' demands and take their feedback seriously.
FAQ
1.What is the working principle of the endoscope camera module?
The endoscope camera module collects internal images through the optical lens at the front end, converts them into electrical signals by CMOS or CCD sensors, and then optimizes them through noise reduction, enhancement, etc. by the image processing chip, and finally outputs high-definition video signals. Some modules support wireless transmission or optical fiber signal transmission, making them suitable for medical or industrial inspection scenarios.
2.Why is low-light performance important for endoscope modules?
When the ambient light inside the body or in the pipeline is insufficient, the module needs to be equipped with a high-sensitivity sensor and a large-aperture lens, and be combined with noise reduction algorithms to ensure the clarity of the dark field. Some products adopt infrared supplementary lighting or HDR technology to enhance low-light performance.
3. What is the significance of the depth of field range of the module?
The large depth of field can clearly present both near and far objects simultaneously, reducing the need for frequent focusing and is suitable for endoscopic surgery. Shallow depth of field is used to highlight specific planar details, such as epidermal examination.
