What Changes When an Endoscope Camera Module Goes Below 2mm?

Quick Answer

Reducing an endoscope camera head below 2mm changes more than the mechanical diameter.

Ultra-miniature designs place tighter limits on the sensor package, lens, illumination, shell, cable and assembly structure. A sub-2mm camera may provide access to extremely confined spaces, but OEM teams usually have less freedom in resolution, front lighting and mechanical protection.

The correct question is not:

“What is the smallest camera available?”

It is:

“What is the smallest camera that can still meet the device's real visualization requirement?”

Typical Sub-2mm Product Directions

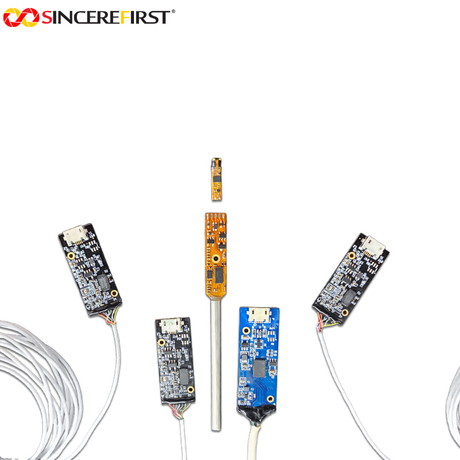

SincereFull currently has product directions including:

These products support different USB, AV, side-view and waterproof directions.

1. Sensor Choice Becomes More Restricted

The smaller the camera head, the less physical space is available for:

• sensor package;

• lens;

• PCB/FPC;

• mechanical support.

This is why ultra-small endoscope cameras often use sensors specifically designed for miniature imaging.

A customer should not assume that a larger mainstream sensor can simply be reduced to a smaller diameter.

2. Resolution Is Only One Part of Image Quality

In sub-2mm structures, image performance also depends heavily on:

• pixel size;

• aperture;

• lens design;

• working distance;

• illumination;

• image processing.

A 0.16MP ultra-small camera may still be the more practical option when mechanical access is the project's first priority.

3. LED Integration Becomes More Difficult

As diameter decreases, front-end space for LEDs also decreases.

OEM teams may need to consider:

• integrated LED;

• external illumination;

• fiber illumination;

• limited LED quantity;

• thermal control.

The illumination architecture should be decided early.

4. Protection Adds Diameter

A bare optical head and a finished waterproof probe do not have the same outer diameter.

Adding:

• shell;

• sealing;

• optical window;

• adhesive;

• assembly tolerance;

can increase the final probe diameter.

Therefore, customers should always specify:

maximum finished probe diameter

rather than only asking for the bare camera size.

5. Cable Design Becomes Part of the Mechanical Problem

A tiny camera head may still require:

• cable routing space;

• bend radius;

• connector space;

• strain relief;

• processing board placement.

A separated camera-head structure can help keep the front section compact, but it transfers integration work to the cable and processing-board design.

When Sub-2mm Makes Sense

Sub-2mm structures are most valuable when:

• the access channel is the dominant restriction;

• the inspection target is small;

• the device cannot accept a larger probe;

• the project can tolerate tighter optical and illumination constraints.

If a 3–4mm camera can physically fit, choosing 0.9mm only because it is smaller may create unnecessary engineering trade-offs.

RFQ Checklist

Provide:

• maximum finished diameter;

• camera-head length;

• target distance;

• FOV;

• resolution expectation;

• viewing direction;

• lighting method;

• cable length;

• protective structure;

• host/interface.

FAQ

Is 0.9mm always better than 1.5mm?

No. The 0.9mm direction is useful when access diameter is extremely limited. A 1.5mm design may provide more flexibility in optics, illumination and structure.

Can a sub-2mm module include LEDs?

Some configurations can, but LED availability depends on the complete camera-head design.

Can sub-2mm modules support waterproof structures?

Some product structures can support waterproof designs, but the finished diameter and sealing structure must be confirmed.

Does smaller diameter reduce image quality?

Not automatically, but it limits the available sensor, lens and illumination options.

Should I specify the bare module diameter or finished probe diameter?

Specify the finished probe requirement whenever possible.

Can the viewing direction be side-view?

Yes, side-view ultra-small configurations exist for certain sensor and structure directions.

CTA

Send the maximum finished probe diameter, target distance, viewing direction, illumination and interface requirements for sub-2mm camera module evaluation.
