How to Choose a Medical Endoscope Camera Module for OEM Device Integration

Quick Answer

Medical endoscope camera module selection should begin with the device structure and visualization task.

For disposable endoscopes, dental devices, veterinary systems, compact visualization equipment and other medical-device projects, the camera module must fit the available insertion diameter while providing usable imaging at the required working distance and illumination condition.

The highest resolution or smallest diameter is not automatically the best choice.

OEM teams should evaluate:

diameter, viewing direction, working distance, depth of field, illumination, image output, cable structure, host interface and final device compliance together.

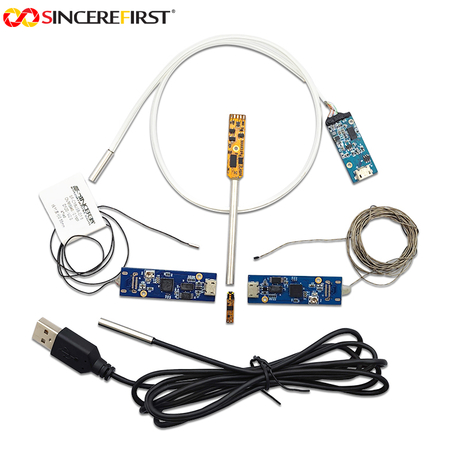

1. Diameter Is Usually the First Hard Limit

In compact medical devices, probe size often determines which sensor and optical structure can be considered.

Current SincereFull directions include camera structures around:

• 0.9–0.95mm;

• 1.5mm;

• 1.6–2.0mm;

• 2.8–3.9mm;

• larger 5–12.5mm configurations.

The product range includes OCHTA10, OVM6946, OCHFA10 and other sensor directions for small-diameter projects.

However, the smallest diameter may require trade-offs in:

• resolution;

• LED space;

• protective structure;

• lens size;

• cable design.

2. Working Distance Matters More Than Pixel Count Alone

A medical visualization device normally observes targets at a defined distance.

If the lens is optimized for a different distance, a high-resolution sensor will not solve the focus problem.

Before sampling, define:

• closest target distance;

• typical target distance;

• required depth of field;

• target size;

• expected FOV.

3. Illumination Should Be Evaluated with the Final Optical Structure

Many compact endoscope devices operate in dark environments.

Integrated LEDs can simplify the front structure, but OEM teams should test:

• brightness;

• reflection;

• image uniformity;

• heat;

• target color;

• protective window effects.

The best LED configuration depends on the complete device.

4. Choose Direct-View or Side-View According to the Device Task

Direct-view structures are useful when the target is ahead of the probe.

Side-view structures may be evaluated when the device must observe lateral surfaces.

SincereFull has small-diameter side-view directions based on OVM6946 and OCHFA10 as well as larger side-view USB configurations.

5. Interface Selection Depends on the Host

USB/UVC is useful for many development and visualization systems because it can simplify connection to compatible hosts.

Other architectures may use:

• AV;

• CSI;

• Type-C;

• separated camera-head and processing-board designs.

The correct interface depends on:

• host hardware;

• operating system;

• power;

• video format;

• cable;

• application software.

Medical vs Industrial Selection Differences

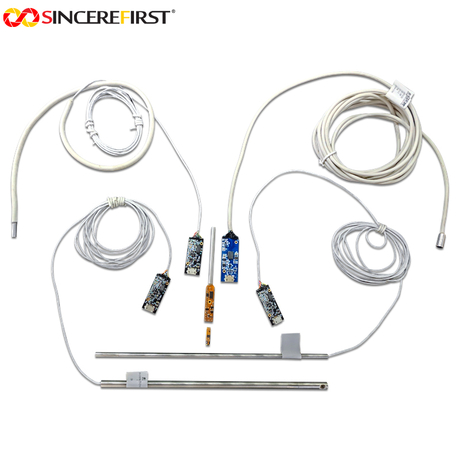

Recommended Module Directions

Typical directions include:

• OCHTA10 ultra-small modules for sub-1mm projects;

• OVM6946 1.5–2mm structures;

• OCHFA10 1.5–2mm modules where additional image detail is required;

• 2.8–3.9mm USB modules for more integration flexibility;

• 5–6mm high-frame-rate configurations where the larger device structure allows them.

RFQ Checklist

Provide:

• target medical device;

• maximum camera-head diameter;

• viewing direction;

• working distance;

• required FOV;

• resolution;

• frame rate;

• LED requirement;

• interface;

• cable length;

• host system;

• sample validation requirement.

FAQ

Does a medical endoscope camera module need the highest resolution?

No. The usable result depends on diameter, optics, working distance, illumination and host performance.

Is the smallest camera always preferred?

No. Use the smallest diameter required by the device. Extra mechanical space may allow better optics, LEDs or protection.

Can a medical camera module use USB?

Yes, USB/UVC can support device development and visualization projects when the host and software are compatible.

Can the camera diameter be customized?

Diameter and related optical/mechanical structures can be evaluated according to project requirements.

Does the camera module itself determine medical certification?

No. Final medical-device compliance depends on the completed device, target market, materials, structure and applicable regulations.

Can side-view imaging be used in medical devices?

It can be evaluated when the device needs lateral observation rather than only forward viewing.

CTA

Send your device structure, maximum camera diameter, working distance, illumination and host requirements to SincereFull for medical endoscope camera module project evaluation.

Note: This article is for device design and camera module selection reference. Final medical device compliance should be evaluated according to the target market, application and applicable regulations.
