The 2MP GC2755 CMOS Sensor USB2.0 7.0mm Diameter LED Endoscope Camera Module is a 2MP USB D7.0 Endoscope Camera Module based on the GC2755 sensor, designed for handheld inspection tools, USB endoscope devices, and close-range internal observation applications. It supports YUV / MJPEG output at 1936×1096@30fps, making it suitable for real-time visual inspection and USB-based video capture.
With a D7.0 diameter, integrated ALL type structure, 6pcs 0603 LED illumination, and Type-A / Type-C back connector options, this module can be evaluated for industrial borescopes, pipe inspection tools, maintenance cameras, and customized inspection instruments.
|  |
Product Highlight ◢
1. 2MP GC2755 Sensor for Practical Visual Inspection: The 2MP GC2755 sensor provides practical image detail for close-range inspection, internal structure observation, and general endoscope imaging applications.
2. 1936×1096@30fps YUV / MJPEG Output: The module supports YUV and MJPEG output at up to 1936×1096@30fps, suitable for real-time USB video preview and inspection image capture.
3. D7.0 Diameter for Compact Endoscope Design: The D7.0 front-end size makes the module suitable for compact inspection devices where a standard camera module is too large for the target space.
4. 6pcs 0603 LED for Close-Range Illumination: The built-in 6pcs 0603 LED configuration helps support close-range observation in dark cavities, pipes, equipment interiors, or other low-light inspection environments.
5. 80° FOV for Balanced Scene Coverage: The 80° field of view provides a balanced viewing angle for inspection tasks that require both scene coverage and usable image detail.
6.Type-A / Type-C Back Connector Options: The catalog lists Type-A / Type-C back connector options, allowing the connection structure to be reviewed according to the target USB host device.

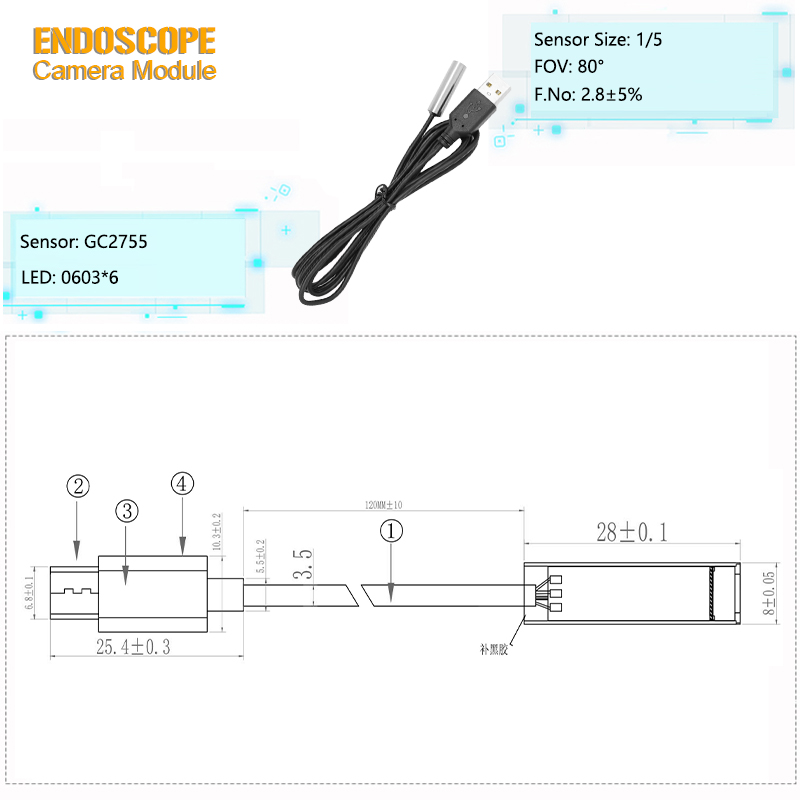

Technical Parameters ◢
Product Name | All-in-one Endoscope Camera Module |
Lens Size | 1/5 inch |
DSP | USB2.0 |
Sensor | GC2755 |
Pixel size | 20-80mm |
| Pixel | 2MP |
| Type | integrated |
| LED | 6pcs 0603 |
Image region | 1920µm x 1080µm |
lens | Hd lens/prime focus |
Operating temperature | -20～70℃ |
Storage temperature | 0～50℃ |
FOV（D） | 80° |
Application of Endoscope Camera Module◢
1. Internal Structure Observation : Facilitates non-destructive troubleshooting of complex machinery and precision components. Utilizes a miniature probe to penetrate the core of the equipment, intuitively revealing internal assembly status and hidden structures without the damage and time consumption of disassembly.
2. Close-Range Defect Checking : Enables microscopic inspection of minute scratches, cracks, or foreign debris. Relies on exceptional macro resolution to accurately capture surface flaws at extremely close working distances, fulfilling high-precision quality control requirements.
3. Equipment Maintenance Visualization : Accelerates preventive maintenance and fault diagnosis for heavy industrial equipment. Directly streams real-time HD footage of hidden areas to maintenance personnel, helping them quickly pinpoint abnormal components and significantly reduce equipment downtime.
4. Cavity Inspection with LED Illumination : Supports quality assessment in dark or enclosed containers. Features built-in high-brightness LEDs that effectively penetrate dark environments to clearly illuminate inner walls, ensuring the accurate identification of details like welds or foreign objects.
Customization & OEM Support◢
Diameter and structure evaluation can be reviewed according to the D7.0 front-end design and final device space.
Lens and FOV matching can be discussed based on the 80° FOV requirement and target inspection distance.
LED configuration review can be evaluated if the project requires different illumination brightness or front-end lighting structure.
Connector adaptation can be reviewed around Type-A / Type-C host connection requirements.
Cable and host-side integration should be confirmed according to the target device, cable length requirement, and USB host platform.
FAQ◢
1: What type of camera module is SF-N1070-V3?
SF-N1070-V3 is a USB Endoscope Camera Module with a D7.0 diameter, GC2755 2MP sensor, integrated structure, and built-in LED illumination. It is designed for compact inspection and endoscope device integration.
2: Is SF-N1070 the same as SF-N1070-V3?
The catalog lists the model as SF-N1070-V3 (Bare module). If the customer refers to SF-N1070, the exact version should be confirmed before quotation, sampling, or production review.
3: What is the value of the 6pcs 0603 LED design?
The 6pcs 0603 LED configuration helps provide close-range illumination for dark cavities, pipes, equipment interiors, and other inspection environments where external light is limited
.
4: Does this module support waterproof or IP67 use?
IP67 is not specified in the catalog for this model. Waterproof or protected structure support should be confirmed based on the final device design and project requirements.
5: What does the D7.0 diameter mean for device integration?
D7.0 indicates the front-end diameter direction for integration. It is suitable for compact inspection devices, but the final mechanical fit should be evaluated according to the customer’s tube, Shell, or handheld tool structure.
6: Can the Type-A / Type-C connector be selected for different devices?
The catalog lists Type-A / Type-C as the back connector options. The final connector should be reviewed according to the target host device, cable structure, and installation design.
7: Can this camera module be used with Windows, Linux, Android, or Type-C terminals?
This should be confirmed based on the target host platform. The catalog lists USB output and YUV / MJPEG format, but does not specify UVC, SDK, driver, or operating system compatibility.
8: What information should I provide to confirm whether this camera module fits my project?
Please share your target device, required diameter, host interface, connector preference, working distance, FOV requirement, cable length, installation space, and expected inspection application. This helps evaluate whether the standard module is suitable or whether a customized version should be reviewed.
