SF-C1019USB-D3.6-ALL-D95
SINCEREFIRST

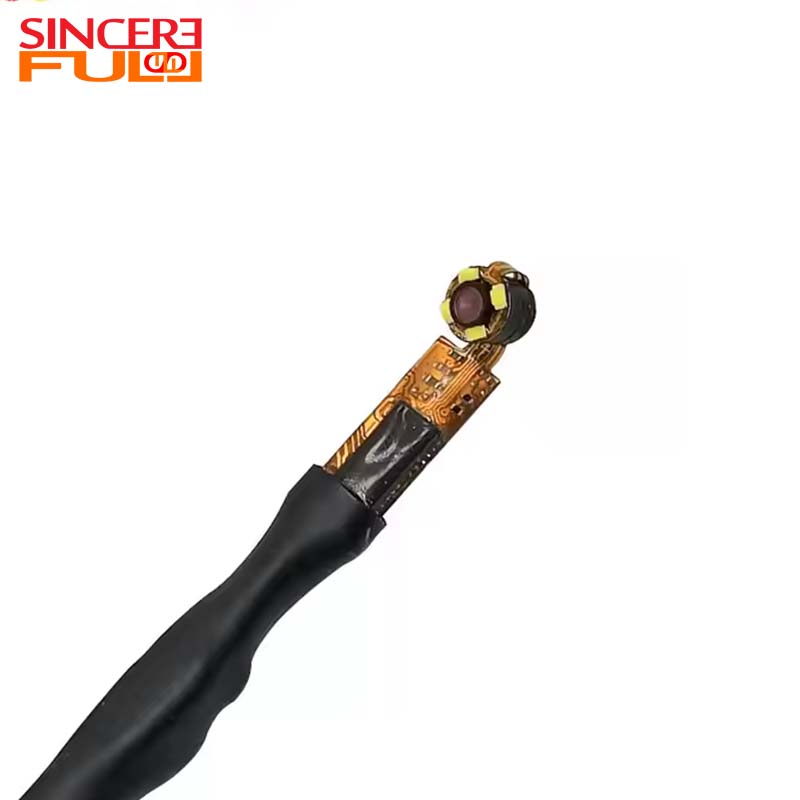

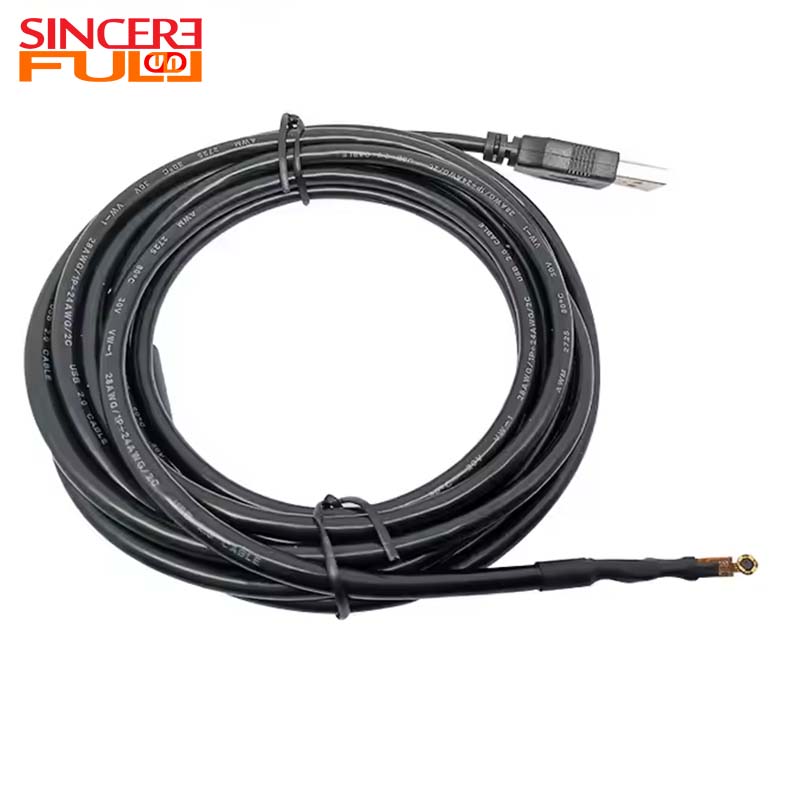

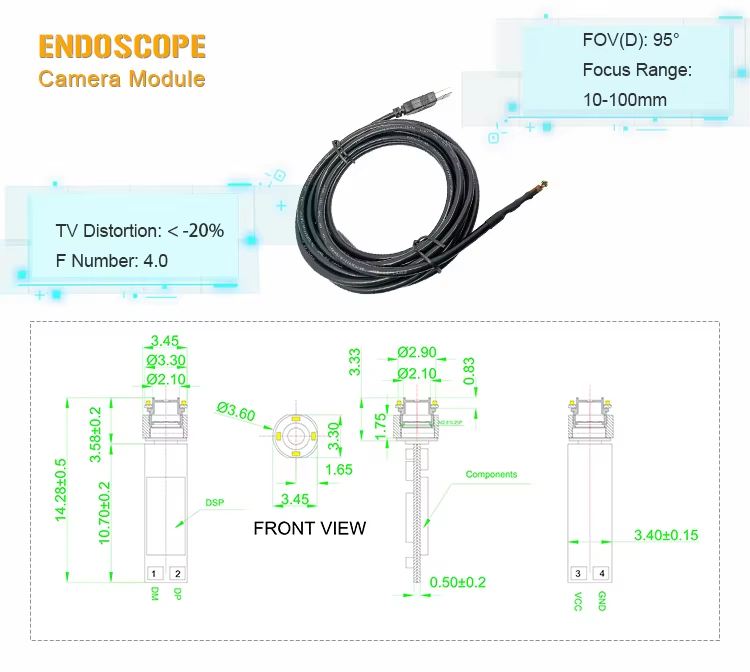

This is our 1MP Camera Module, featuring the OV9734 sensor for high-quality imaging. This micro endoscope camera module is engineered with a 95-degree diagonal field of view (DFOV) and a fixed focus range from 10mm to 100mm, delivering clear and detailed images that meet the stringent requirements of medical professionals. Our endoscope camera module is specifically designed with a compact 3.6mm diameter, ensuring ease of maneuverability in confined spaces. The distortion level of less than -20% ensures accurate image representation, which is critical for precise medical diagnostics. With an F-number of 4.0, this module performs optimally across various lighting conditions. Furthermore, our USB3.0 Camera Module supports high-speed data transfer, ensuring seamless connectivity and optimal performance efficiency. Whether used in surgical procedures or intricate examinations, this medical endoscope camera module provides reliable, high-resolution imaging at your fingertips. |  |
Product Advantage ◢
1MP Camera Module
Equipped with advanced OV9734 Sensor.
95-degree DFOV for versatile applications.
USB3.0 Camera Module for high-speed data transfer.
1. Minimally invasive surgery: hysteroscopic adhesion separation, ureteroscopic lithotripsy positioning.
2. Diagnostic endoscopy: microvascular imaging of digestive tract mucosa and dynamic observation of synovial hyperplasia.
3. Maintenance of energy facilities: inspection of welds of oil and gas pipelines, exploration of cooling channels of nuclear power equipment.
Technical Parameters ◢
Product Name | side view endoscope camera module |
Features | Medical endoscope camera module |
Pixel Size | 1MP |
Sensor | OV9734 |
Resolution | 720P Max 30fps |
Output | USB3.0 |
Lens angle | DFOV 95 |
Function | Waterproof / Weatherproof, Wide Angle, Built-in Siren, Two-way Audio, Thermal image, one-way audio, Vandal-proof, Abnormal sound detection, PAN-TILT, NIGHT VISION, Alarm I/O, RESET |
Interface | USB2.0 |
Focus | Fixed focus |
FAQ ◢
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources.
2. How does the Field of view (FOV) of the module affect the use effect?
The field of view Angle determines the imaging range. The wide Angle (above 120°) is suitable for observing a large area, but the edge may be distorted. Narrow angles (below 60°) provide a more focused picture. The selection should be based on the application scenario, such as laparoscopic surgery commonly used 70°-90° balanced field of view and detail.
3. What are the interface types of the module?
Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices are multi-integrated dedicated medical image interfaces.
