1MP HD Mini OV9734 Sensor Medical Endoscope Camera Module

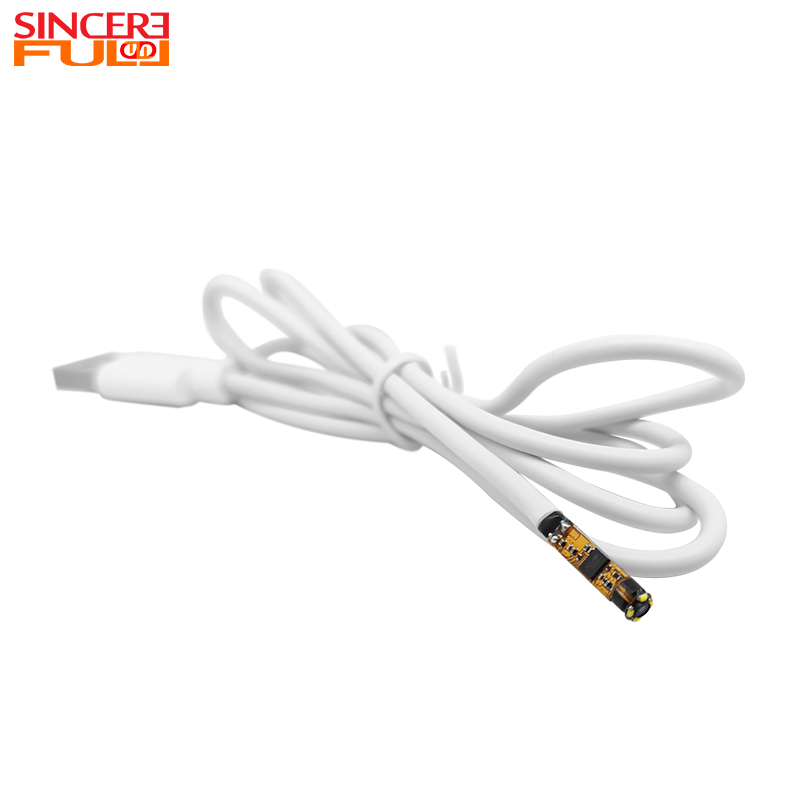

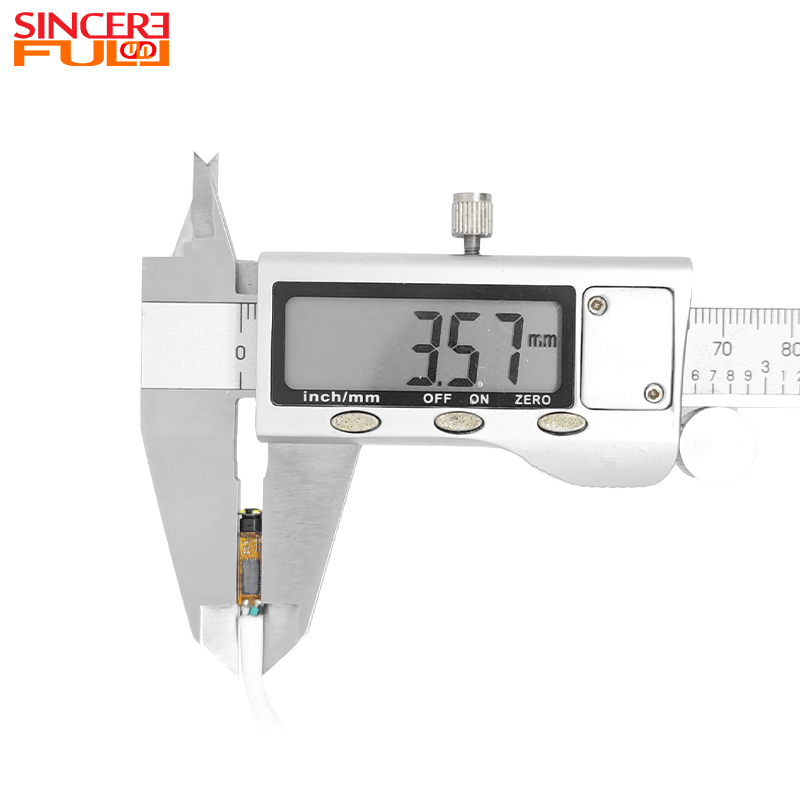

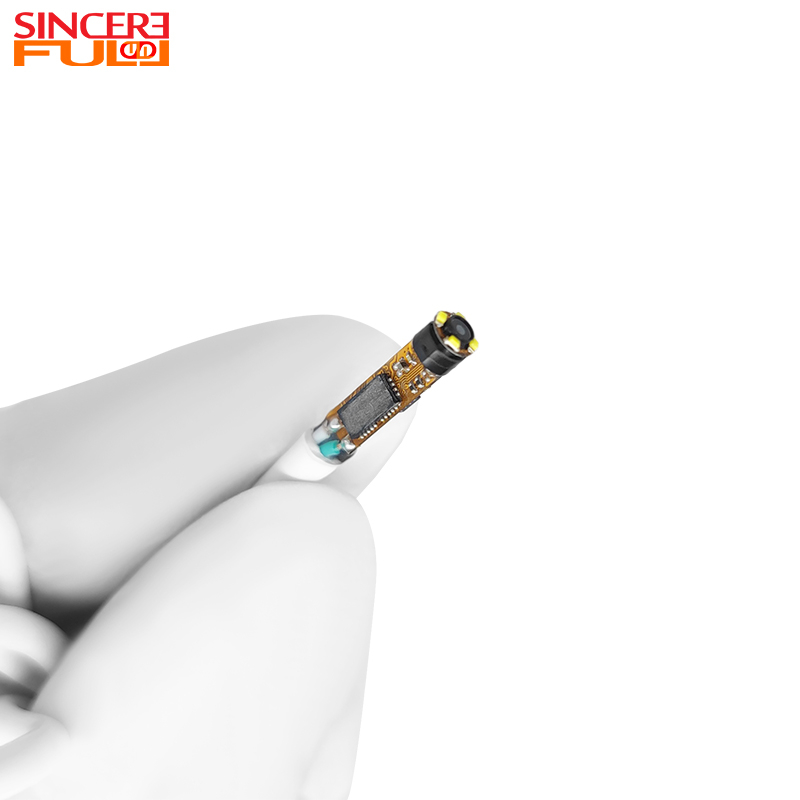

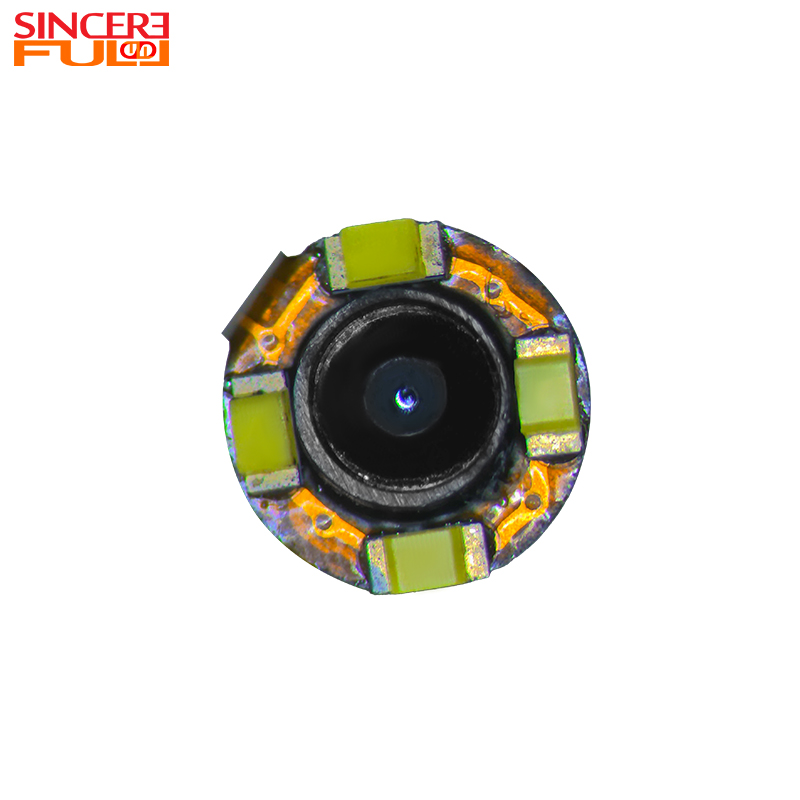

This 1MP HD Mini OV9734 Sensor Medical Endoscopic Camera Module features an Integrated structure that seamlessly merges the lens and DSP board into a single compact unit, with a bare module diameter of only 3.6mm. This design not only allows easy access to narrow anatomical passages and tiny industrial spaces, but also simplifies the integration process with host devices. The module is built around the OmniVision OV9734 CMOS sensor, delivering 1-megapixel imaging performance with support for 1280×720 HD resolution and 30fps frame rate, ensuring clear and smooth real-time visualization. It features a wide field of view of 95°(diagonal)×85°(horizontal)×43.5°(vertical), paired with a 1.08mm focal length and F4.0 aperture. The 10-100mm manual focus range enables precise capture of details at different distances. The sensor size is 1/9-inch with TV distortion less than -10%, maintaining imaging fidelity even in complex observation scenarios. Four built-in 0402 white LED beads provide stable auxiliary illumination in low-light environments. The module uses a Mini USB-5P interface, supports USB 2.0 UVC protocol, and offers plug-and-play compatibility with Windows, Android, and Linux systems without requiring proprietary drivers. Through FPGA-enhanced image processing technology, it effectively reduces noise and restores sharp details, while achieving ultra-low latency of less than 1ms for instant feedback during precise operations. To meet durability requirements for medical and industrial scenarios, the module features 2000V electrical isolation to ensure patient safety in clinical applications, and can withstand repeated sterilization cycles and harsh working environments.

Product Advantage ◢

• Integrated Compact Design: Achieves 3.6mm ultra-slim diameter through fusion of lens and DSP board, enabling easy access to anatomical cavities, small industrial pipelines, and other narrow spaces, while simplifying integration with host devices and reducing overall equipment volume.
• HD Low-Noise Imaging: FPGA-enhanced processing technology combined with OV9734 CMOS sensor outputs 1280×720 resolution at 30fps, effectively reducing noise and restoring fine details—critical for identifying tissue abnormalities and industrial defects.
• Multi-System Plug-and-Play: Compatible with USB 2.0 UVC protocol, seamlessly connects to Windows, Android, and Linux systems without additional drivers, significantly improving workflow efficiency in clinical and industrial scenarios.
• Medical-Grade Safety and Durability: Features 2000V electrical isolation to ensure patient safety, withstands repeated sterilization cycles and harsh clinical/industrial environments, ensuring stable long-term performance.
• Ultra-Low Latency for Precise Operation: Real-time video transmission with less than 1ms latency provides instant visual feedback, facilitating precise surgical maneuvers and industrial inspections.
• Flexible Illumination and Optical Performance: Four built-in 0402 white LEDs adapt to low-light environments; combination of 95° wide field of view, 1.08mm focal length, and 10-100mm focus range covers diverse observation needs without frequent equipment adjustments.

Application Of Endoscope Camera Module◢

1. Medical Diagnosis and Minimally Invasive Surgery: Integrated into electronic nasopharyngoscopes, disposable cystoscopes/hysteroscopes, otoscopes, and other devices for visual examination of ear canals, nasal passages, pharynx, and urogenital tracts.
2. Dental and Specialized Diagnostics: As a core imaging component for dental endoscopes, dermatoscopes, etc., assisting in intraoral examinations, periodontal assessments, or skin lesion observations.
3. Industrial Precision Inspection and Maintenance: Embedded in pipeline crawling robots, engine borescope instruments, precision mold endoscopes, etc., for inspecting internal mechanical wear, weld quality, or pipeline blockages.
4. Electronics Manufacturing and Repair: Applied in PCB circuit board inspection devices and micro-component assembly monitoring probes, helping locate soldering defects or perform quality control for precision assembly.

Technical Parameters ◢

FAQ◢

1. What is the core structural advantage of this module?

It adopts an Integrated design that merges lens and DSP board, achieving 3.6mm ultra-slim diameter for easy access to narrow spaces.

2. Can this module be customized for our equipment?

Yes. We offer flexible customization options including cable length, LED brightness and quantity, interface types (e.g., Type-C), and outer sheath materials (e.g., medical stainless steel sleeves) to meet your specific integration requirements.

3. Which operating systems are supported without additional drivers?

Windows, Android, and Linux systems (compatible with USB 2.0 UVC protocol, plug-and-play).

4. Does the 3.6mm diameter include LED illumination?

Yes, four 0402 white LEDs are fully integrated within the 3.6mm profile, providing 3000-6000K adjustable color temperature without increasing external dimensions.
