3.6mm VGA Sensor Pipe Inspection Endoscope Camera Module

This 3.6mm VGA Endoscope Camera Module features a 0.3MP sensor, 20-80mm focusing range, 90° FOV, and adjustable LED lights. It offers USB 2.0 plug-and-play connectivity for easy use in various inspection applications.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C0310USB-D3.6-D90-PLUS V1.0

  • SINCEREFIRST


This 3.6mm Diameter Camera Module, a versatile solution designed for various inspection needs. This VGA sensor boasts a resolution of 0.3MP , delivering sharp and stable images. The focusing range of this Pipe Inspection Endoscope Camera Module is between 20-80mm, with a wide field of view (FOV) of 90°.


It features four built-in LED lights, which can be easily controlled using the scroll button located on the cable. Users have the flexibility to switch the lights on or off and adjust their brightness to suit different lighting conditions and specific applications.

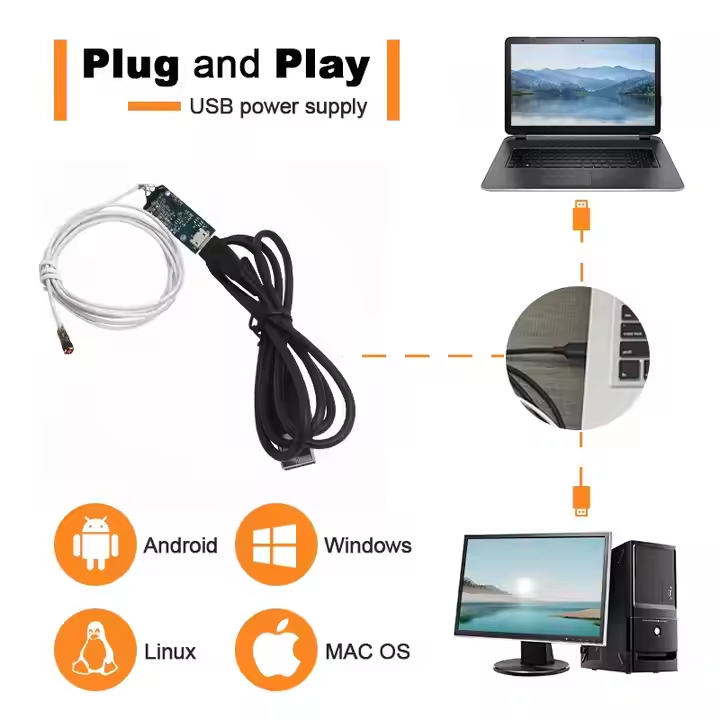

With a USB 2.0 interface, this Endoscope Camera Module adheres to UVC standards, ensuring a seamless plug-and-play experience without the need for additional software. this Inspection Endoscope Camera Module is an essential tool for any technician or enthusiast.

3.6mm Diameter Camera Module


Product Advantage ◢

Resolution: Utilizes a CMOS Image Sensor for 720P (1280x720) clarity.

Focus Range: Supports focusing from 10mm to 100mm, ideal for intricate inspections.

Lighting and Durability: Equipped with four 0402 white LEDs and IP67 waterproof rating for reliable use in various environment


Technical Parameters ◢

Product Name

Pipe Inspection Camera Module

Features

3.6mm Endoscope Camera Module

DSP

USB2.0 UVC

Sensor

VGA

Focusing Range

20mm-80mm

Waterproof

IP67

Focal Length

1.074mm

TV Distortion

<-5.5%

F Number

3.58

Fov(D)

90°


Durable and Reliable Construction

The 3.6mm Endoscope Camera Module is built to last. The insertion tube is made from a durable and flexible material that can withstand repeated bending and twisting without breaking. The camera head is protected by a robust casing that is resistant to impact, corrosion, and temperature variations. This ensures that the module can operate reliably in a variety of environments, whether it's in a sterile medical operating room or a harsh industrial setting.


In addition, the module is designed to be easy to clean and maintain. The materials used in its construction are compatible with standard cleaning and sterilization methods, making it suitable for use in medical applications where hygiene is of utmost importance. In industrial applications, the durability of the module means that it can be used for long periods without the need for frequent repairs or replacements.


Versatile Applications

The 3.6mm Endoscope Camera Module has a wide range of applications across different industries. In the medical field, it can be used for a variety of procedures, including bronchoscopy, cystoscopy, and arthroscopy. Its small size and flexibility make it ideal for accessing hard-to-reach areas of the body.


In the industrial sector, the module is used for inspecting pipes, valves, engines, and other machinery components. It can also be used for quality control in manufacturing processes, ensuring that products meet the required standards. Additionally, the module can be used in research and development to explore the internal structure of materials and products.


Customization Options

To meet the specific needs of different users, the 3.6mm Endoscope Camera Module offers a range of customization options. Users can choose from different lens types, lighting options, and accessories to tailor the module to their requirements. This allows for greater flexibility and adaptability in different applications.


For example, in medical applications, doctors can choose a lens with a specific field of view and magnification to suit the procedure they are performing. In industrial applications, technicians can select the appropriate lighting option to ensure optimal visibility in different environments.
