USB 1MP Sensor OV9734 Endoscope Camera Module with White LED
You are here: Home » Products » By Diameter » 3.6mm Endoscope Camera Module » USB 1MP Sensor OV9734 Endoscope Camera Module with White LED

Success Cases

USB 1MP Sensor OV9734 Endoscope Camera Module with White LED

The OV9734 USB Endoscope Camera Module enhances surgical precision with high-resolution imaging, compact design for minimal invasiveness, and durability, making it essential for both medical and industrial applications.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C1019USB-D3.6-PRO-D120-Glass

  • SINCEREFIRST


The OV9734 USB Endoscope Camera Module is revolutionizing the medical industry. Its features make it possible to perform complex surgeries with precision and accuracy. This remarkable technology has had a significant impact on the lives of countless patients around the world.


One of the most impressive features of the OV9734 USB Endoscope Camera Module is its high-resolution image quality. This allows doctors to see internal organs and tissues more clearly, allowing them to identify and treat diseases more effectively.


Another advantage of the OV9734 USB Endoscope Camera Module is its compact size and flexibility. It can be easily inserted into tiny incisions or body cavities, allowing doctors to perform surgeries with minimal invasiveness and faster recovery times.


In addition, the durability and reliability of the OV9734 USB Endoscope Camera Module make it an indispensable tool in the medical field. It can withstand harsh environments and repeated use, ensuring that medical professionals can rely on it for years to come. It can be used for both medical endoscope and industrial endoscope.

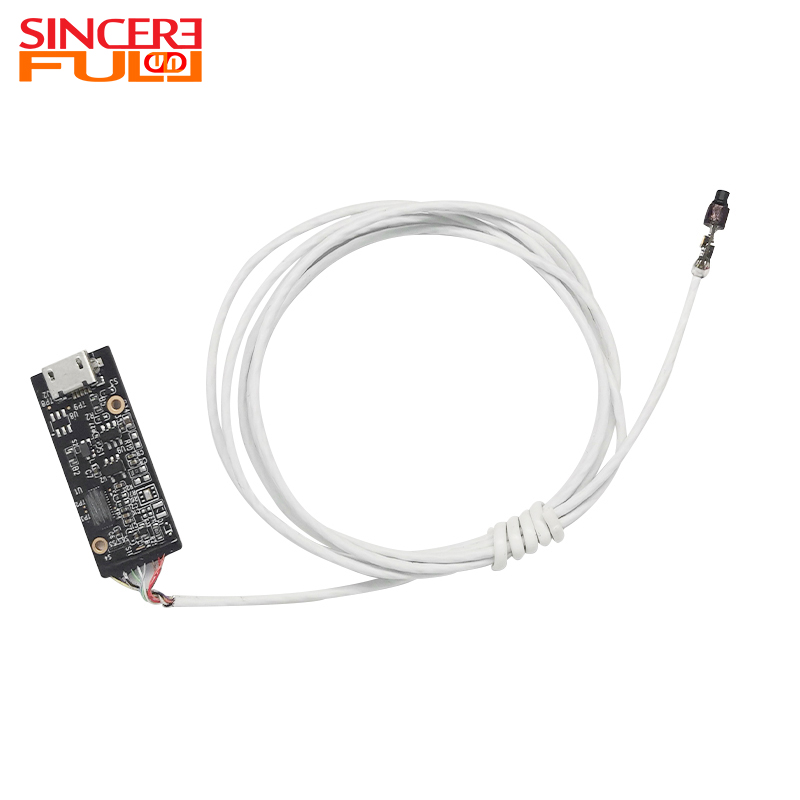

USB Camera Module


Features ◢

  • 1 mega pixel with Omnivision OV9734 CMOS image sensor

  • High quality image

  • UVC compliant, Plug & Play

  • Support Linux, Android and Windows

  • 4 built-in high quality LED lights

  • 3 different USB interfaces to choose: USB, Android and Type-C

  • Easy to use, easy to carry

  • Widely used for all kinds of medical applications


Application Of Endoscope Camera Module ◢

  • Industrial Video Endoscopes

  • Pipe Detection Endoscopes

  • Motor Vehicle Inspection Endoscopes

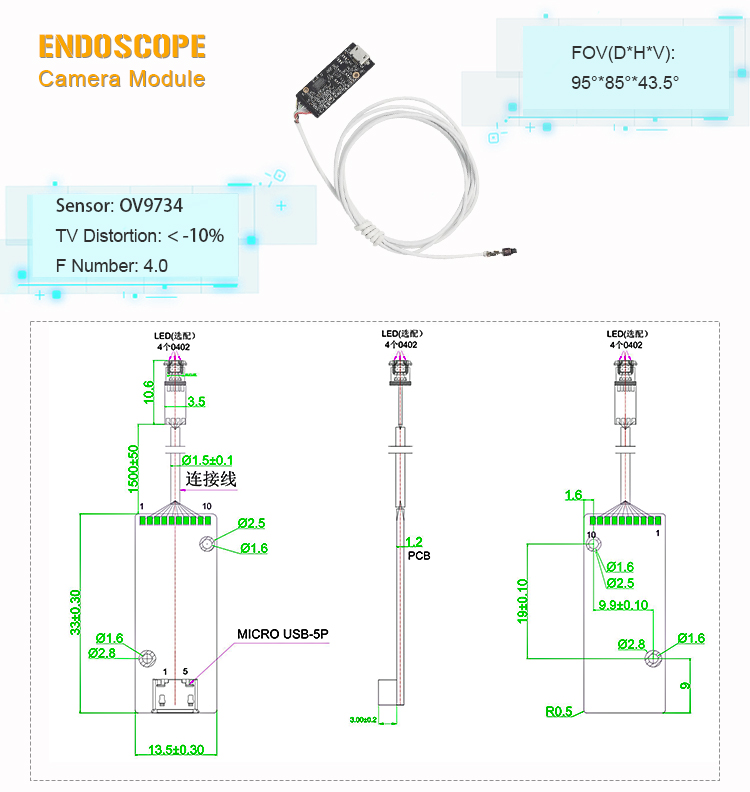

Product Details ◢


Sensor

OV9734

LED

0402 White LED

Connector

Mini USB-5P

Diameter

3.6mm

Pixel

1MP

DSP

USB2.0 UVC

Focusing Range

10-100mm

Focal Length

1.08mm

F Number

4.0

FOV(D*H*V)

95°*85°*43.5°

TV Distortion

<-10%



FAQ


1. What are the typical requirements for custom modules?

Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).


2. What can I do if the module fails to start?

Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.


3. What is the difference between medical and industrial endoscope modules?

The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
