Availability: | |
---|---|
Quantity: | |
SF-C0310USB-D3.9-ALL
SINCEREFIRST

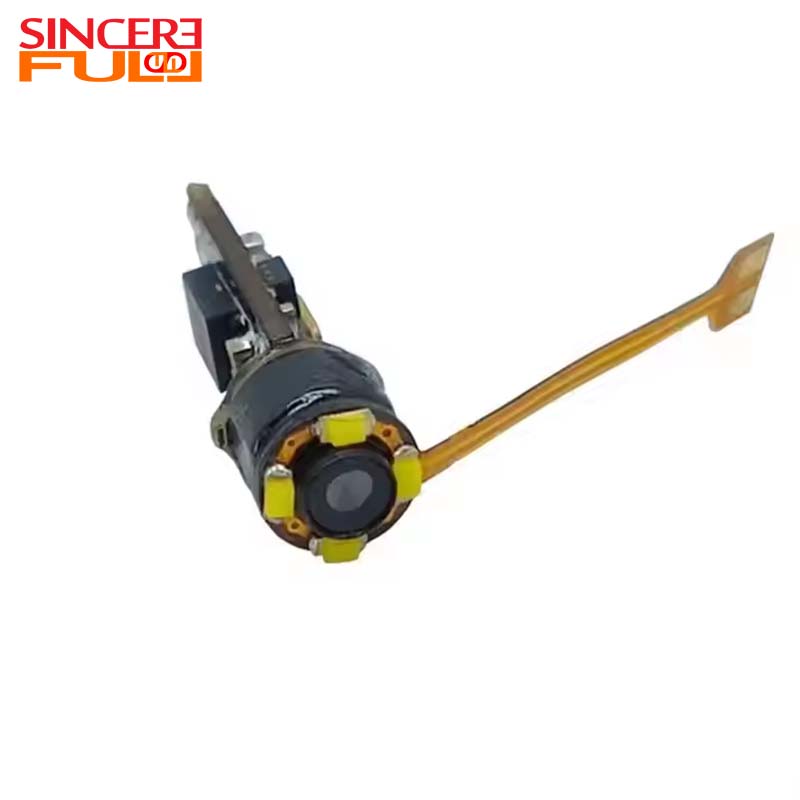

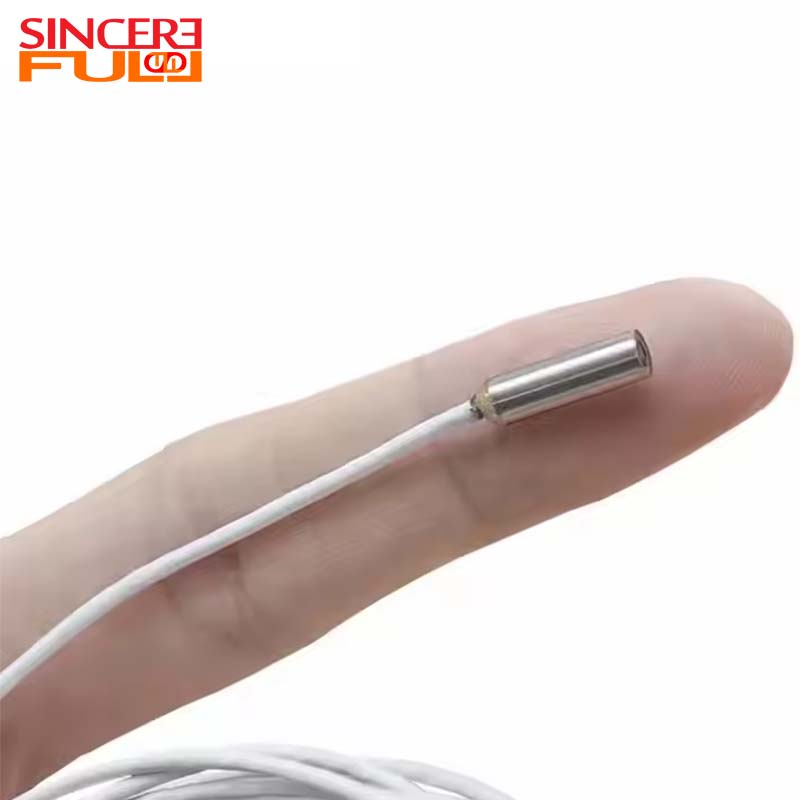

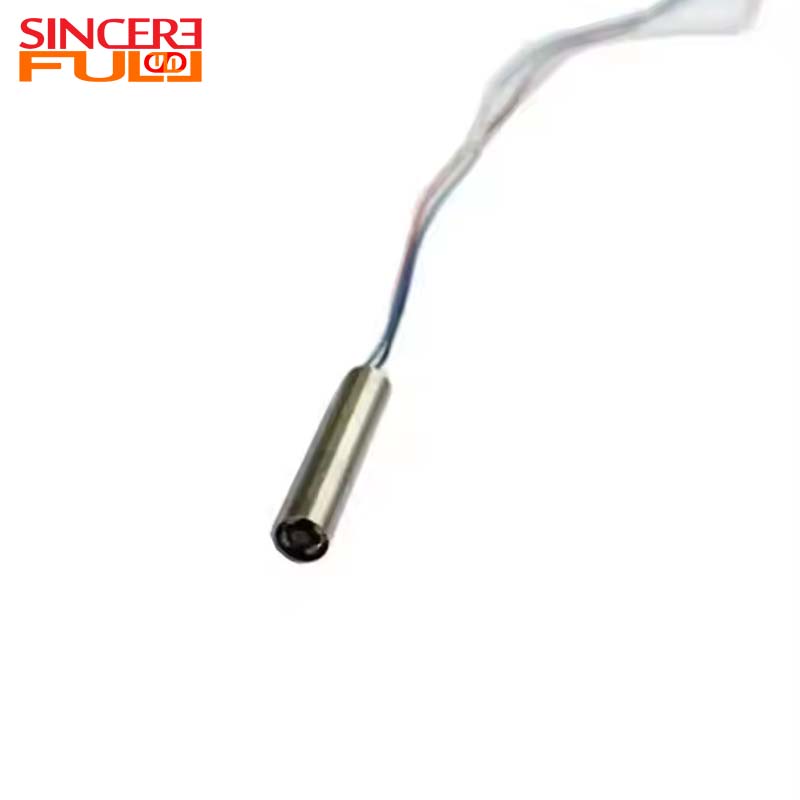

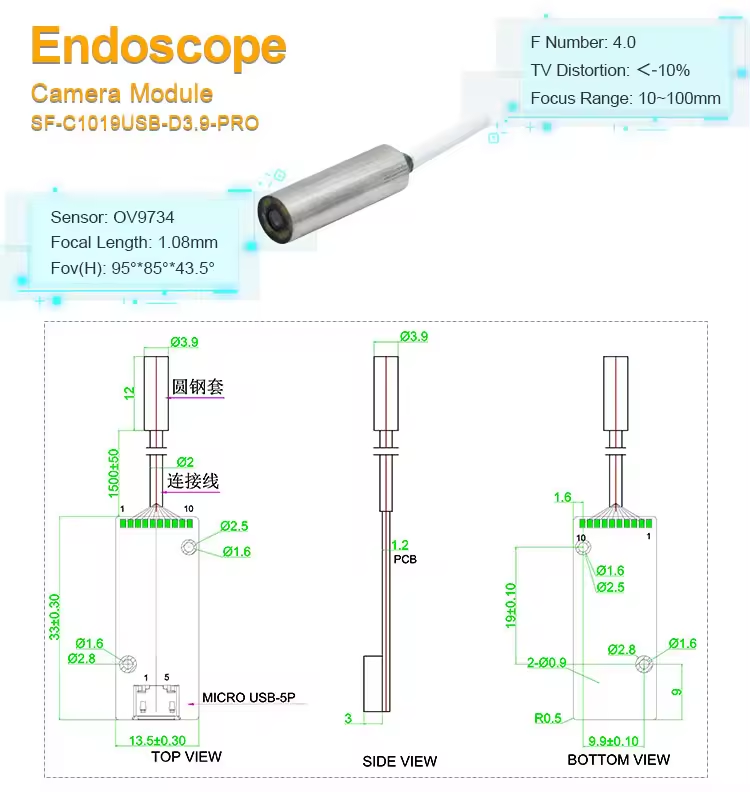

This the Medical Endoscope Camera Module is a highly versatile solution for various medical and industrial inspections, including laryngoscopy, gastroscopy, colonoscopy, gynecological surgery, and dental exams. It features a 2MP Camera Module with an Omnivision OV9734 CMOS sensor, offering 720P HD resolution. The camera's 3.9mm Diameter Endoscope Camera Module is available in two versions: with or without a steel sleeve. The Mini Camera Module has a 95° field of view and is perfect for tight spaces. Additionally, we provide customized endoscope camera modules to suit your specific needs. |
Resolution: The ES101 sensor offers 1000Hx1000V resolution with 1.4um BSI pixel design.
Flexible Output Formats: Supports full-frame, skip, binning, and window modes.
Image Output Compatibility: LVDS/MIPI+10bit/8bit options for versatile applications.
Compact and Versatile: Ideal for Medical Endoscope Camera Modules and 3.9mm diameter endoscope systems with wide-angle views.
1. Ultra-fine gastroscope: nasal insertion can reduce the discomfort of patients, and the 95° field of view can cover the blind area of the lower curvature of the stomach. NBI narrow-band imaging mode can enhance the details of mucosal blood vessels and improve the detection rate of early gastric cancer.
2. Aero engine hole detection: The customized high-temperature probe penetrates deep into the cooling hole of the turbine disc, and the 95° field of view covers the multistage blade, and the HD image quality detection coating spalling and crack growth.
3. Precision mold inspection: 3.9mm probe through the mold gate, wide Angle field of view to check the precision of the micro-core, support the quality verification of nanoscale injection mold.
Product Name | Endoscope Camera Module |
Features | Smallest Endoscope Camera Module |
Interface | USB |
Sensor | OV9374 |
Focusing Range | 10-100mm |
Fov(D) | DFOV95, DFOV110 |
Focal Length | 0.75mm |
Keyword | mobile phone cmos camera module |
Certification | CE RoHS Reach |
Led | 0402 White Led |
1. Advantages of AI-assisted endoscope modules?
It integrates real-time lesion labeling (such as polyp recognition), surgical navigation (blood vessel positioning), automatic exposure and other functions, and relies on edge computing chips (such as NVIDIA Jetson) for low latency processing.
2. How to achieve stereoscopic vision with 3D endoscope?
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
3. What are the typical requirements for custom modules?
Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
