SF-C2016USB-1080P60-D6
SINCEREFIRST

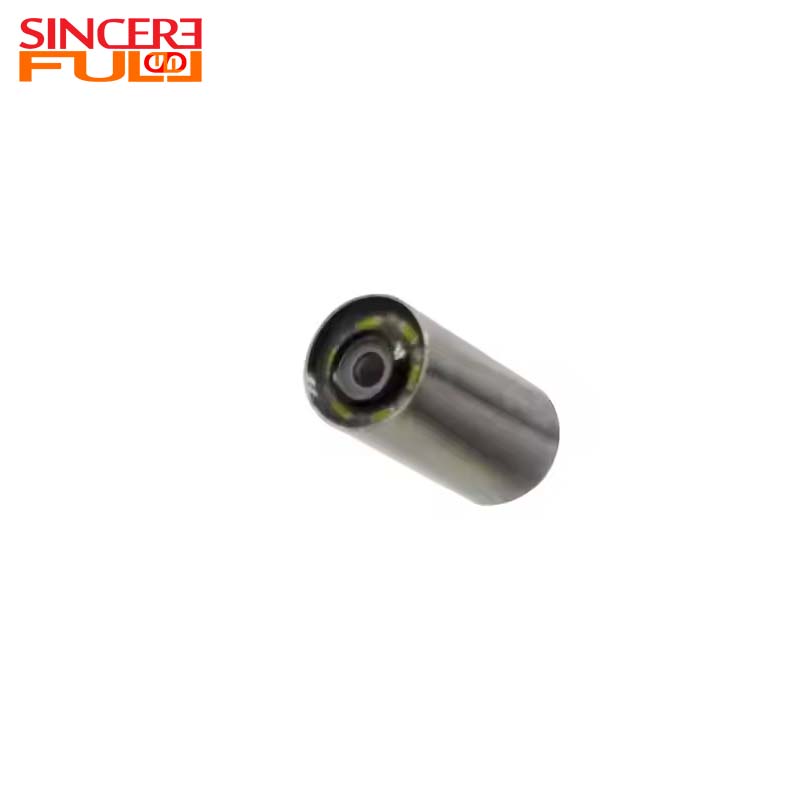

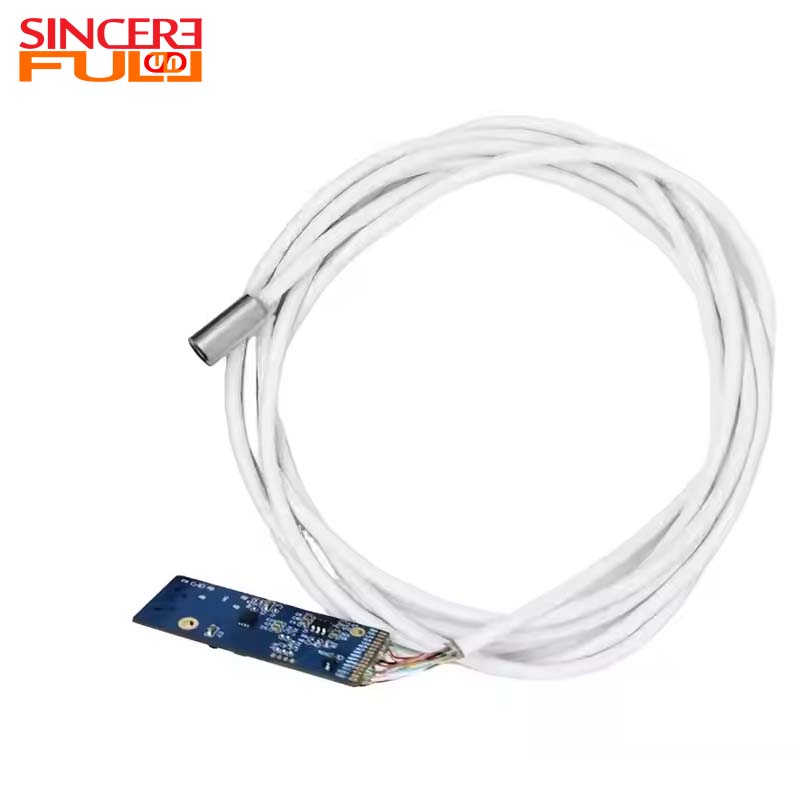

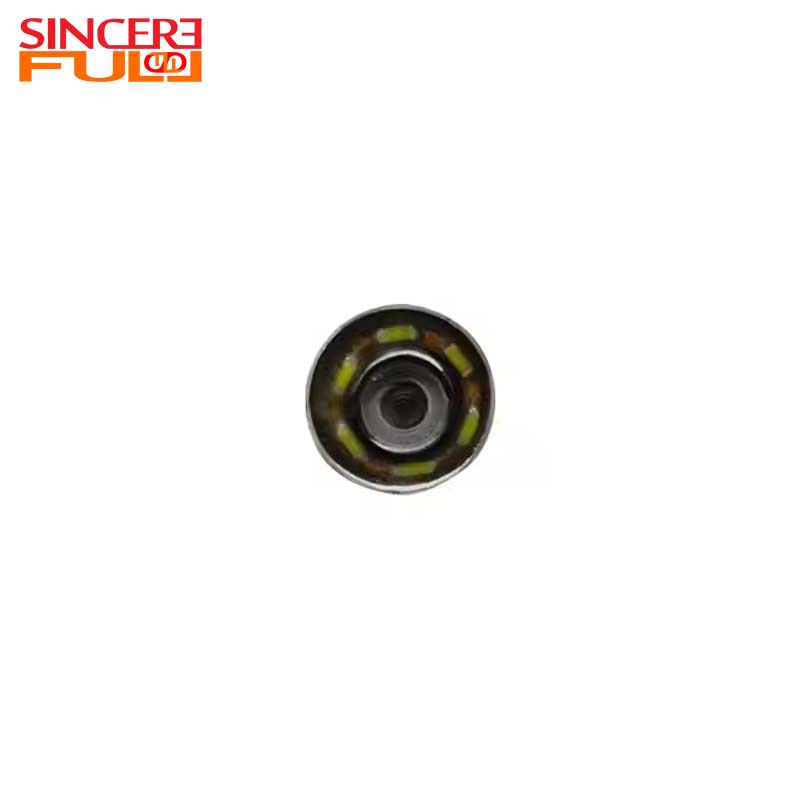

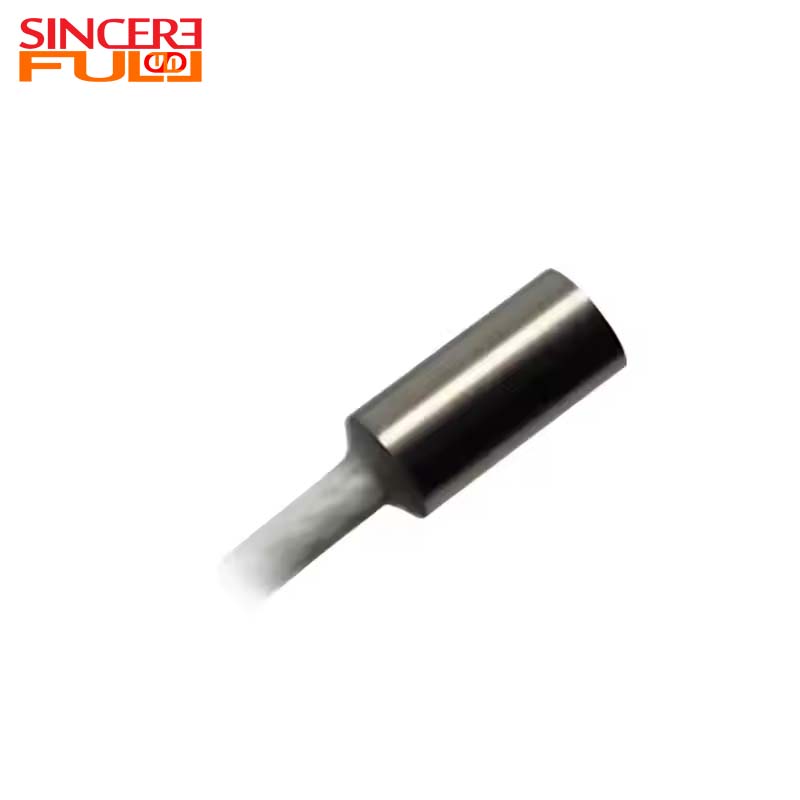

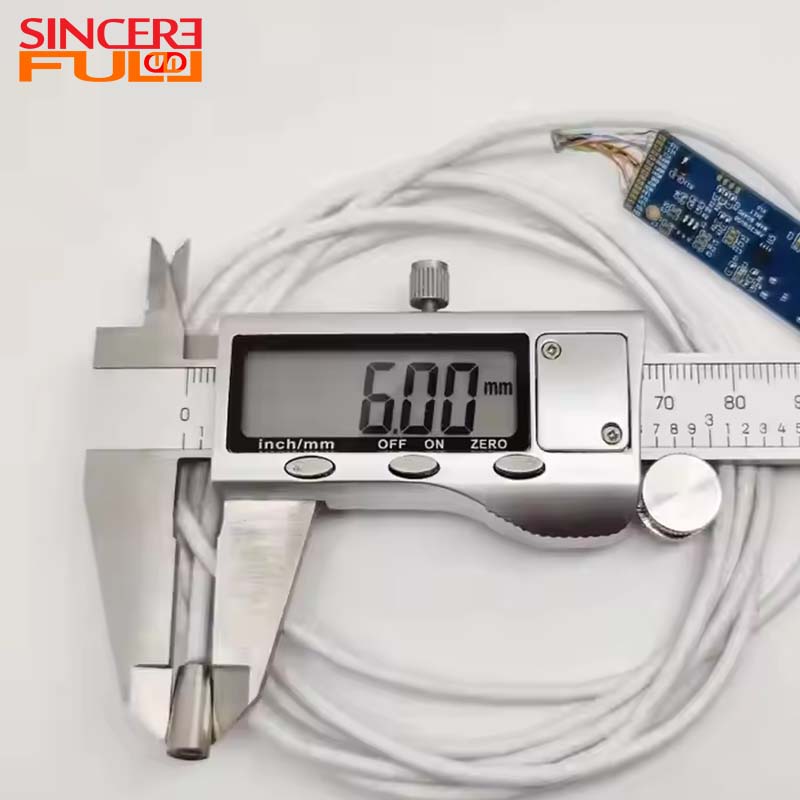

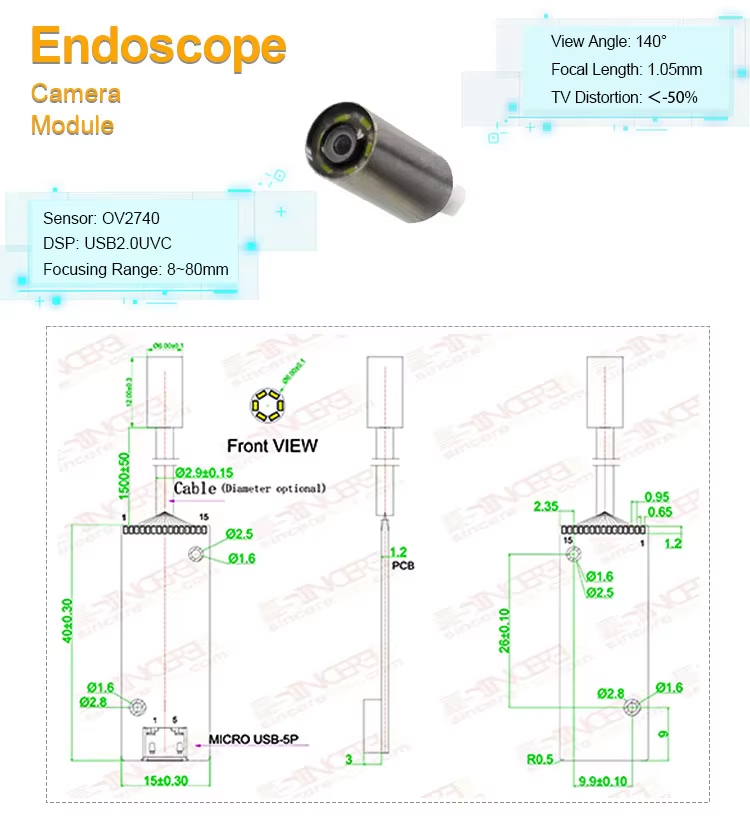

| This is a USB micro 6mm diameter 1080P endoscope camera module with an OV2740 image sensor. It features an ultra-slim 6mm probe paired with steel shell, ensuring structural robustness while enabling easy penetration into narrow inspection spaces. At its core, it is equipped with an OmniVision OV2740 image sensor with 2 million pixels, capable of outputting 1080P full HD video at a resolution of 1920x1080. Combined with an F5.9 aperture and a 1.05mm short focal length optical design, it further optimizes imaging clarity. The module boasts a 140° ultra-wide field of view (FOV) and a flexible depth of field ranging from 8mm to 80mm, allowing it to balance wide-range observation and close-up detail capture. The TV distortion rate is controlled below -50%, effectively ensuring imaging authenticity. In terms of protection performance, the module meets IP67 waterproof and dustproof standards, making it suitable for complex working conditions such as humidity and dust. Adopting a separated design, the module is connected to a 40mm×15mm DSP board via bonding wires, and outputs signals through a USB 5Pin interface. It supports USB 2.0 speed, complies with the UVC protocol, and is compatible with the OTG standard—no additional drivers are required, enabling plug-and-play across devices. It is widely suitable for integration into professional equipment in medical, industrial, and other fields. Manufactured using SMT technology and AA (Active Alignment) process, it has fully passed multiple international certifications including CE, FCC, RoHS, and Reach, ensuring stable and reliable product quality. |  |
Cross-platform Driver-free Integration: Built-in UVC standard protocol, compatible with mainstream systems such as Windows, Linux, and Android without installing dedicated drivers. The USB 2.0 OTG interface supports direct connection to mobile phones and tablets, significantly shortening equipment development cycles.
Industrial-grade Protection: IP67 protection rating combined with a stainless steel shell allows it to withstand 1-meter water immersion for 30 minutes; the 6mm probe is reinforced with a steel sleeve, and its impact resistance meets workshop-level usage requirements, making it suitable for high-humidity, oily, and dusty environments.
Optical Adaptability: The 8-80mm wide depth of field design enables clear capture of close-range microstructures and long-distance contours without frequent focusing; the 140° wide viewing angle reduces the number of probe rotations, improving pipeline inspection efficiency; the <-50% TV distortion rate ensures measurement accuracy.
60fps Full Real-time Streaming: Native 1080P@60fps output eliminates motion blur and supports fast-moving target tracking; in medical biopsies or industrial high-speed assembly line inspections, it ensures complete preservation of details in every frame.
Two-way Data Control: LED brightness supports real-time software adjustment and independent on/off control. It can dynamically optimize illumination intensity based on scene reflectivity, avoiding overexposure on metal surfaces and extending the module's service life.
Medical Endoscopic Equipment: Minimally invasive surgical instruments such as colonoscopes and laparoscopes, providing high-definition real-time imaging support for surgeries;
Vascular Detection Equipment: Vascular endoscopic detectors, assisting in the detection and diagnosis of vascular lesions;
Aerospace Detection Equipment: Aero-engine cooling channel inspection scopes, identifying defects such as turbine blade cracks;
Industrial Testing Instruments: Precision injection mold defect detectors, recognizing tiny gate flaws;
Underground Drainage Detection Equipment: Underground drainage pipeline endoscopes, enabling detection of internal blockages and damages in pipelines.
Product Name | Endoscope Camera Module |
Features | 6mm Endoscope Camera Module |
Interface | USB |
Sensor | OV2740 |
Focusing Range | 8mm-80mm |
Array Size | 1920x1080 |
Focal Length | 1.05mm |
TV Distortion | <-50% |
F .NO | 5.9 |
Fov(D) | 140° |
The metal housing and sealing design are suitable for high-temperature industrial working conditions, and the core components have temperature stability to ensure unaffected imaging.
Yes. The module outputs via a USB interface and is compatible not only with PCs but also with Android mobile devices.
The OV2740 is a high-performance CMOS image sensor. Its main advantages include the use of Back-Side Illumination (BSI) technology to enhance sensitivity, a large 1.4µm pixel size to capture more light, and support for HDR to handle high-contrast scenes, enabling it to deliver high-quality images under various lighting conditions.
The module supports MJPEG hardware compression format, enabling stable 1080P@60fps transmission within USB 2.0 bandwidth. For lossless image quality, switch to YUV mode; however, resolution reduction to 720P is recommended to ensure frame rate stability.
