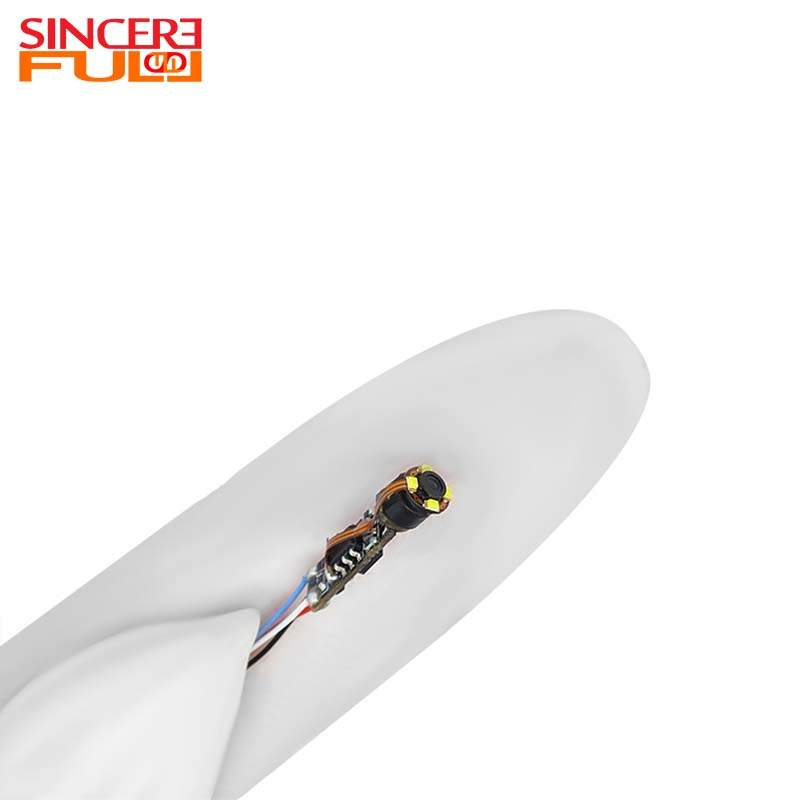

Mini 3.7mm Endoscope HD Inspection Digital CMOS Separated Endoscope Camera Module

This is mini 3.7mm endoscope HD inspection digital CMOS separated endoscope camera module is equipped with a CMOS color image sensor, featuring 0.1MP pixels and a resolution of 328x248, which can present clear color image details. With a sensor size of 1/18 inch, it is paired with an optical design that offers a diagonal field of view (DFOV) of up to 98°, enabling a wide observation perspective. The module adopts an F2.8 large-aperture lens with a fixed focal length of 20mm and supports a precise focusing range of 10~60mm. Through manual focusing, it can flexibly adjust clarity to meet observation needs in different scenarios. Meanwhile, the module integrates 4 high-brightness LED fill lights, which can effectively enhance imaging brightness in dim environments and ensure bright and transparent images. The product adopts a separated design with a lens diameter of only 3.7mm; its slender size allows it to easily penetrate into narrow spaces, providing reliable imaging support for various precision inspection and internal exploration scenarios.

Product Advantage ◢

• High-Definition Color Display: Equipped with a CMOS sensor, paired with 0.1MP pixels and 328x248 resolution, it presents details clearly.

• Wide-Angle Field of View: 1/18-inch sensor combined with a 98° diagonal field of view reduces blind spots and improves efficiency.

• Precise Focus Adjustment: F2.8 large-aperture lens supports 10~60mm focusing, with manual adjustment to adapt to multiple scenarios.

• Strong Light Supplementary: 4 LED fill lights ensure bright and transparent imaging in dim environments.

• Compact and Easy to Use: 3.7mm slim lens plus split design allows easy access to narrow spaces for inspection.

Application Of Endoscope Camera Module ◢

1. Precision Electronics Inspection: Penetrates into the interior of mobile phones and computers to quickly inspect the status of solder joints, components, and cables.

2. Pipeline and Machinery Exploration: Suitable for internal inspection of small pipelines and valves to check for inner wall wear and blockages.

3. Automotive Maintenance Detection: Penetrates into gaps of engines and gearboxes to check for part wear, oil leakage, and other issues, enabling quick fault location.

4. Home Appliance Maintenance: Passes through gaps in refrigerators and air conditioners to judge problems such as component aging and pipeline blockages.

Technical Parameters ◢

FAQ ◢

1. How to achieve stereoscopic vision with 3D endoscope?

Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.

2. What are the typical requirements for custom modules?

Common requirements include special dimensions, multispectral imaging, and interface protocol adaptation.

3. Why do some modules differ several times in price?

The differences are due to factors such as sensor brand, optical lens group, and medical certification.
