SF-U4530-SL-V3
SINCEREFIRST

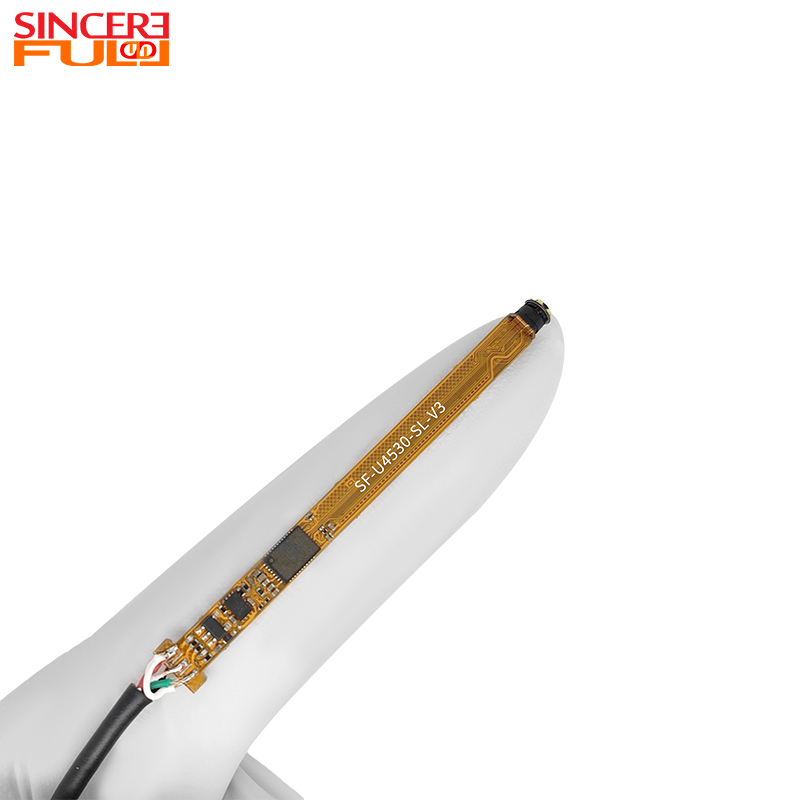

This BF2013 Sensor USB Interface 4.5mm Diameter Mini CMOS Endoscope Camera Module, is a micro endoscope camera module designed for confined-space inspection. With a diameter of just 4.5mm, it can access extremely narrow pipelines, deep holes, and tight crevices beyond the reach of conventional equipment. The module integrates a BF2013 CMOS image sensor with an effective resolution of 328(H)×248(V) (0.3MP). It features a 45° diagonal field-of-view and a 15mm fixed-focus lens, enabling precise directional imaging at close working distances. The USB interface supports plug-and-play operation, with integrated power and data transmission via standard 60mm leads (extendable upon request). |  |
1.Ultra-Compact Design: The 4.5mm diameter stainless steel housing allows access to extremely confined spaces, making it suitable for inspection tasks where conventional cameras cannot reach.
2.Precision Optics for Close-Range Inspection
The 45° field-of-view combined with 15mm fixed-focus lens delivers clear, undistorted images at optimal working distances for targeted inspection tasks.
3.Simplified Connectivity：USB interface with integrated power and data transmission enables direct connection to computers, tablets, or embedded systems without additional drivers or external power supplies.
4.Precision Optics for Close-Range Inspection：The 45° field-of-view combined with 15mm fixed-focus lens delivers clear, undistorted images at optimal working distances for targeted inspection tasks.
1.Precision Pipeline Inspection: Used for internal defect detection and condition assessment in small-diameter pipelines, hydraulic channels, and refrigeration tubes.
2.Electronics Maintenance: Enables visual inspection of internal components in smartphones, laptops, and precision instruments for fault diagnosis and quality verification.
3.Small-Scale Industrial Endoscopy: Applied in molds, valves, and small engine cavities for close-range observation and recording of internal conditions.
4.Medical-Assisted Visualization: Supports visualization in superficial body cavities and minimally invasive instrument guidance for clinical and laboratory applications.
Product Name | Endoscope Camera Module with LED |
Image Sensor | BF2013 |
Pixel | 640×480 Pixels |
Focusing Range | 15-50mm |
Focal Length | 1.5-5cm |
F NO | 1.0 |
Product Type | Endoscope Camera Module |
Led | 2016 Led |
FOV(D) | 45° |
Feature | CMOS sensor Endoscope Camera Module |
Q1: Does this endoscope camera module have no casing?
Yes, this endoscope module has no casing. We offer customized shell services and there are a variety of different shells to choose from.
Q2: How much does the housing increase the size?
The housing increases the diameter from 2mm to 2.5-4mm (depending on material/function), with a 10%-20% size increase, yet remains compact for confined spaces.
Q3: How to confirm compatibility? More specs?
Suitable if you need a ≤4mm diameter, VGA (653×493) resolution, 30fps real-time video, low power (<100mW), and medical/industrial use. Full specs available upon request.
