SF-C1011USB-D3.9-720P60-L20
SINCEREFIRST

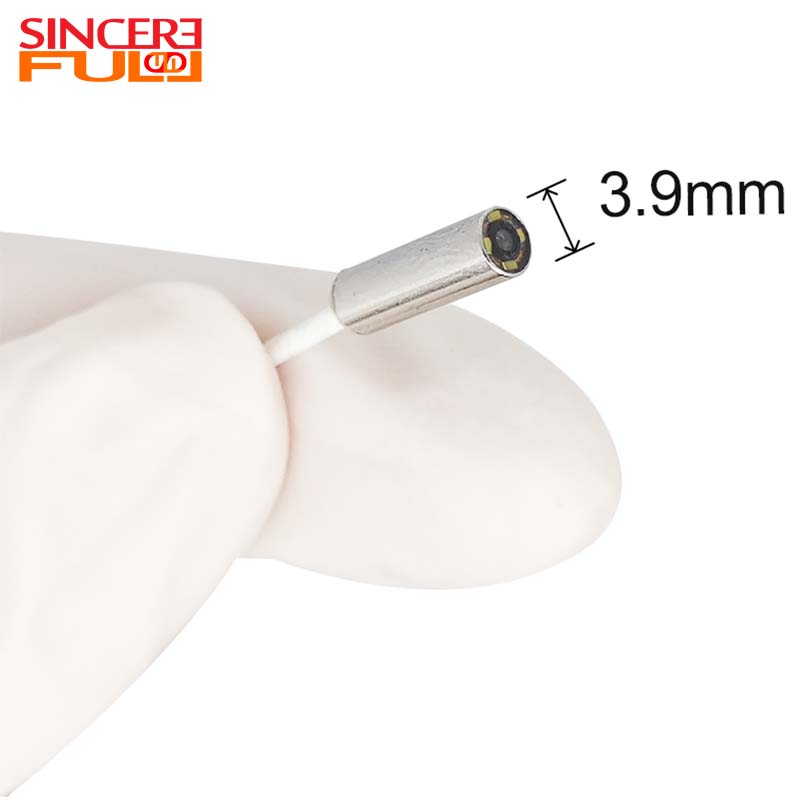

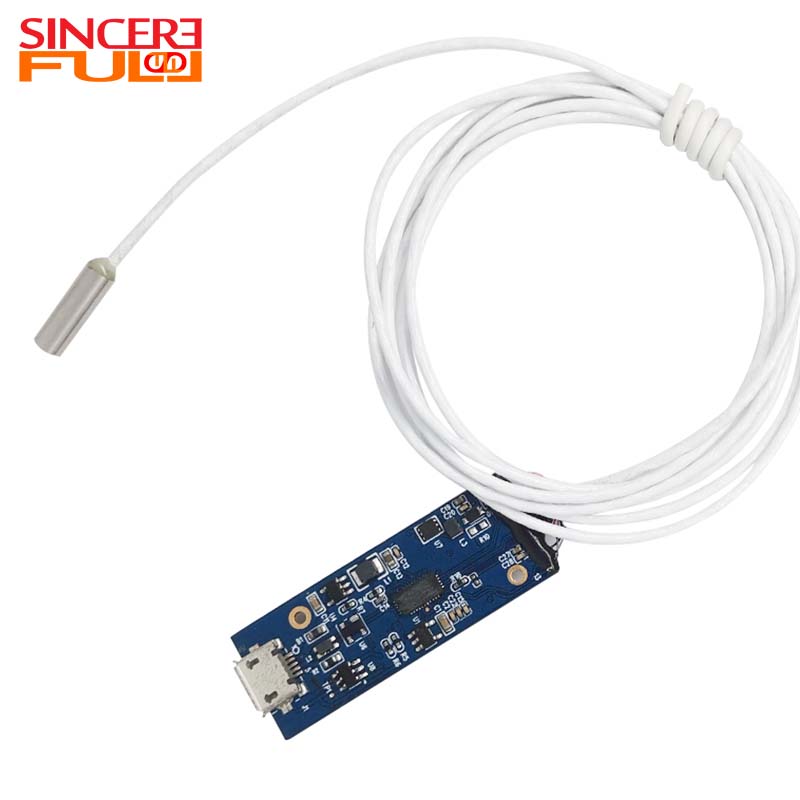

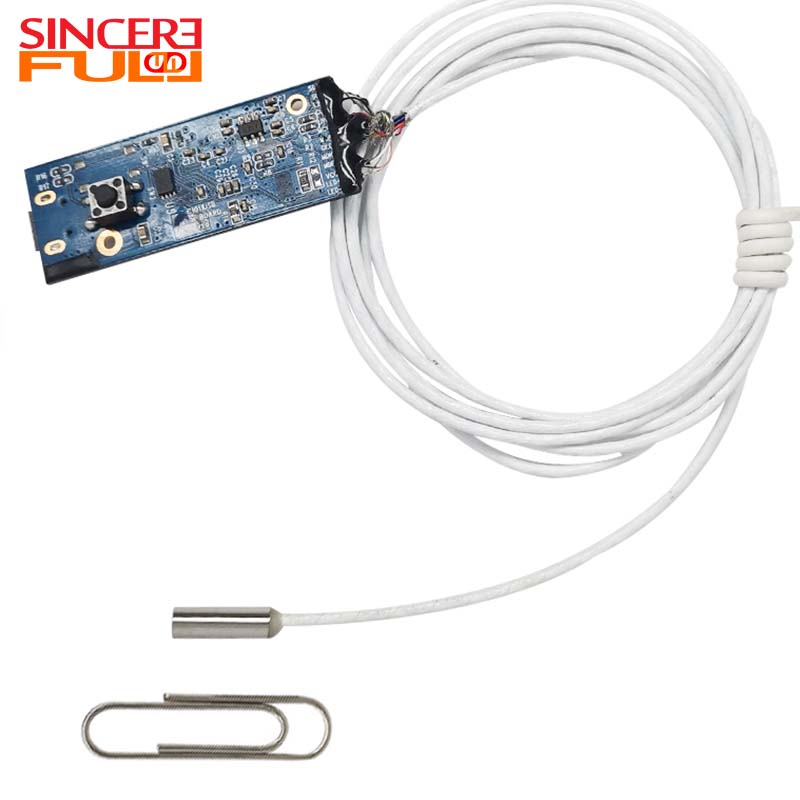

This 1/11-inch 720P 3.9mm Diameter HD CMOS Sensor Endoscope Camera Module is a mid-to-close range imaging device based on a 1/11-inch sensor. Its technical specifications and structural design are centered around the core requirement of precise observation at medium and short distances. Equipped with a 720P resolution sensor and a 60fps frame rate configuration, this module delivers smooth, blur-free images in dynamic observation scenarios. The combination of a 1.25mm focal length and F4 aperture ensures clear imaging within a 75° field of view. with TV distortion controlled within -10% to enhance geometric accuracy.Four 0402-sized white LEDs provide stable supplementary lighting during observation. This configuration, paired with a 10mm-100mm focus range, enables the module to capture clear details of small targets at close to medium distances, even in low-light conditions. For connectivity, the module employs a Type-C interface for both data transmission and power delivery, supporting standard UVC output formats. This design simplifies device connection procedures while reducing compatibility challenges with diverse end devices. Flexible cable selection options further accommodate varied application scenarios.Structurally, the module's base tolerances are strictly controlled within 0.1mm. Its compact form factor enables integration into observation devices with limited space, while the 5.1K pull-down resistor circuit configuration ensures stable interface power supply. The synergistic effect of these technical features enables the endoscope camera module to precisely match scenarios demanding smooth imaging and compact device size, such as small electronic device inspection, home endoscopy observation, and lightweight industrial component inspection. Its streamlined hardware configuration and practical performance parameters provide a cost-effective technical solution for mid-to-close-range observation tasks. |  |
Product Advantage ◢
1. Excellent high-frame-rate dynamic imaging performance: Equipped with a 720P resolution sensor and a 60fps high-frame-rate design, it delivers smooth, blur-free images, precisely meeting mid-to-close-range observation needs in dynamic scenes.
2. High Geometric Imaging Accuracy: Utilizing a 1.25mm focal length combined with an F4 aperture, it achieves clear imaging across a 75° field of view while controlling TV distortion to within -10%, effectively ensuring geometric accuracy in observed images.
3. Flexible and Convenient Connectivity: Features a Type-C interface compatible with standard UVC output format, eliminating the need for complex drivers. Supports optional cables to adapt to diverse terminal devices and application scenarios.
4. Strong Adaptability for Mid-to-Close Range Observation: Precise focusing range from 10mm to 100mm, paired with four 0402 white LEDs for stable illumination. Even in low-light conditions, it captures clear details when observing small targets at mid-to-close distances.
1. Small Electronic Device Inspection: Its compact structure complements a 10mm-100mm close-focus range, enabling access to confined spaces like circuit boards and micro-components. This facilitates clear observation of solder joints and assembly conditions, aiding quality control and troubleshooting for electronic devices.
2. Light Industrial Component Inspection: A 75° field of view and low-distortion imaging performance make it suitable for detecting surface defects and dimensional deviations in small hardware parts, precision plastic components, and other light industrial parts, meeting basic imaging needs for industrial production quality control.

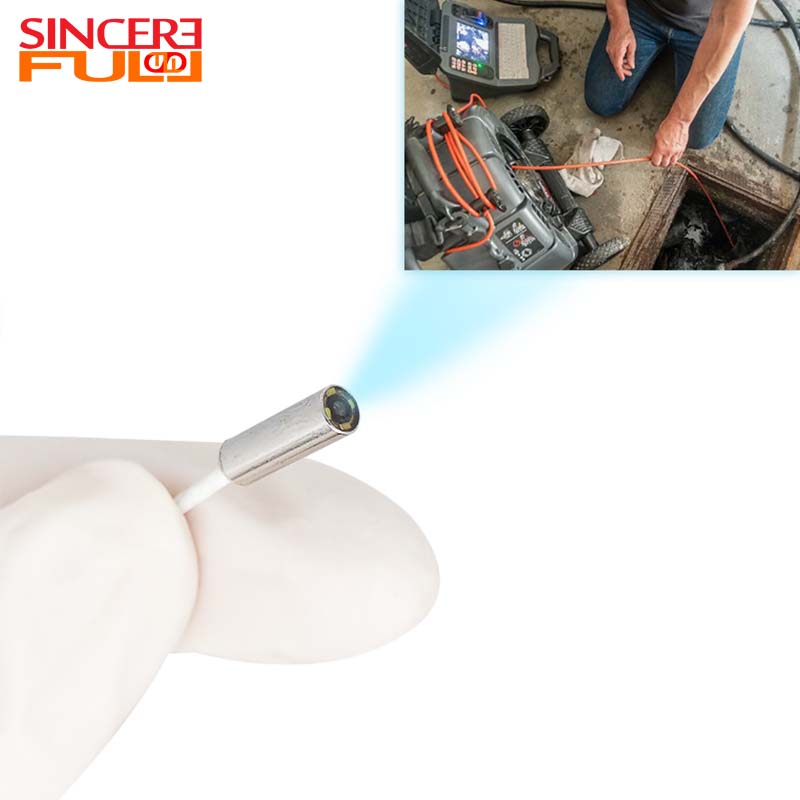

3. Consumer Portable Endoscopy Observation: Featuring a Type-C universal interface and optional cable configurations, it flexibly integrates with consumer portable endoscopy devices. Ideal for simple observations in household scenarios like plumbing and appliance interiors, it offers user-friendly operation and smooth imaging.
4. Basic Scientific Research Observation: 60fps high frame rate and stable supplementary lighting support dynamic macro observation of biological samples and internal monitoring of small experimental apparatus. This provides clear visualization for experimental data collection in fundamental research settings.
Technical Parameters ◢
Product Name | 720P Micro Endoscope Camera |
Image Sensor | CMOS |
Pixel | 720P |
Interface type | USB |
Focusing Range | 10mm-100mm |
Focal Length | 1.25mm |
F Number | 4 |
FOV(D) | 75° |
TV Distortion | ＜-10% |
Certificate | CE RoHS Reach |
FAQ ◢
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
2. What are the features of the dental endoscope module?
Integrated high color rendering ring LED light, resolution ≥1080p, some equipped with wireless handheld design, easy to take multi-angle photography in the mouth and connect to the diagnosis and treatment system.
3. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
