If a USB endoscope camera is recognized and can display video but later freezes, drops frames, reconnects, or disconnects completely, the camera sensor is not automatically the cause.
For OEM devices, instability usually needs to be investigated as a complete signal-and-power chain:
Camera Head → Cable → Connector → DSP / USB Interface → USB Cable → Host Port → Driver / UVC Layer → Video Format → Application
Cable length, power margin, connector quality, USB bandwidth, video format, host processing capacity, hubs, adapters, and application behavior can all change system stability.
USB Video Class supports standardized video-device communication and multiple payload formats, including uncompressed and MJPEG video, but successful enumeration does not guarantee that every resolution, frame rate, format, cable, and host combination will operate reliably.
The fastest troubleshooting method is therefore:
Do not replace the camera first. Isolate the failure stage first.
Different symptoms point toward different parts of the system.
Symptom | First Areas to Check |
|---|---|
Camera never appears | Host mode, cable, connector, interface board, power |
Camera appears but no image | Video format, application, supported mode, firmware |
Image freezes after several seconds | Bandwidth, host decoding, cable, power |
Frame rate gradually drops | Host load, video format, bandwidth, thermal behavior |
Camera repeatedly disconnects and reconnects | Power margin, cable, connector, host USB port |
Stable at low resolution but unstable at high resolution | Bandwidth, decoding load, signal margin |
Stable with LEDs off but unstable with LEDs on | Power delivery and voltage drop |
Stable on one PC but unstable on another host | Host controller, software, power policy or compatibility |
Stable with short cable but unstable with final cable | Signal integrity, voltage drop, connector path |
This symptom-first approach prevents teams from treating every USB issue as a camera failure.
A cable that works during desktop testing may fail after the camera is installed into the final device.
Longer cable paths can reduce both signal and power margin.
The actual result depends on:
Cable construction.
Conductor size.
Shielding.
Connector count.
Extension adapters.
Resolution.
Frame rate.
Video format.
Camera power demand.
LED power demand.
Host USB implementation.
SincereFull currently has long-reach configurations such as 5.0 mm and 6.0 mm OV2740 1080P60 product directions with extended cable structures, as well as separated architectures where the miniature camera head and USB processing board are positioned apart. These products illustrate why cable architecture should be validated together with the complete host system rather than treated as an accessory.
If the camera is unstable:
Replace the production-length cable with the shortest validated cable.
Remove unnecessary adapters or extension connectors.
Use a direct host USB port instead of a hub.
Test the same resolution and frame rate again.
If stability returns, rebuild the cable path step by step.
This quickly separates a camera problem from a transmission-path problem.
A camera that disconnects when LEDs are enabled may appear to have a USB communication issue, while the real problem is insufficient power margin or voltage drop.
The complete load may include:
Camera sensor.
DSP or USB bridge.
LEDs.
Additional control circuits.
Cable loss.
The system should therefore be tested under the highest expected operating load, not only with the LEDs off during basic preview.
Run four conditions:
Test | Purpose |
Camera + LEDs off | Establish baseline stability |
Camera + LEDs low brightness | Check moderate load |
Camera + LEDs maximum required brightness | Check worst-case power condition |
Camera + other host peripherals active | Check real system power margin |
If instability appears only as load increases, investigate power delivery before changing image parameters.
A system that works at VGA or 720P may become unstable at 1080P or a higher frame rate.
That does not automatically mean the sensor cannot support the mode.
The problem may occur elsewhere in the chain:
USB transfer margin.
Host controller.
Decoder.
Application.
CPU load.
Memory bandwidth.
Cable.
Hub.
Video format.
This is especially important in compact endoscope designs because high-resolution or high-frame-rate products are often paired with longer cables and integrated illumination.
Test progressively:
Lowest validated resolution / frame rate.
Target resolution at lower frame rate.
Target resolution and target frame rate.
Repeat using the alternative supported video format where available.
If instability only appears at the highest data mode, investigate bandwidth and host processing before treating it as a hardware defect.
Many USB endoscope camera configurations support YUV and/or MJPEG output. Current SincereFull USB product configurations include both YUV/MJPEG and MJPEG-only directions depending on the module.
The formats create different system loads.
Advantages:
Less compression-related image processing.
Useful when the host needs more direct image data.
Trade-off:
Higher data volume can place more demand on USB bandwidth.
Advantages:
Reduces the amount of video data transferred compared with uncompressed video.
Can help when USB bandwidth is the limiting factor.
Trade-off:
The host must decode the compressed video.
A weak host may move the bottleneck from USB bandwidth to processing capacity.
USB-IF's UVC documentation defines payload support for both uncompressed and MJPEG video formats.
Therefore:
Changing from YUV to MJPEG can solve one bottleneck while creating another.
Always test the target host.
A USB endoscope camera that works reliably on an engineering PC may fail on:
An Android terminal.
A low-power embedded computer.
A customized industrial controller.
A USB hub.
A low-cost tablet.
A host with multiple USB peripherals.
Do not approve the module based only on a laboratory PC.
Exact operating system.
Exact USB port.
Exact application.
Exact resolution.
Exact frame rate.
Exact video format.
Exact cable.
Exact power architecture.
Other peripherals operating at the same time.
The goal is not:
“Can the camera show an image?”
The goal is:
“Can the complete OEM device maintain the required image stream under its worst expected operating condition?”
During prototyping, engineers often add:
USB hubs.
USB-A to Type-C adapters.
Type-C to USB-A adapters.
Extension cables.
Docking stations.
OTG adapters.
Each additional connection should be treated as part of the final signal and power path.
If the production device does not need the adapter, remove it during root-cause testing.
A good troubleshooting rule is:
Make the USB path as short and direct as possible before changing camera parameters.
Replacing USB-A with Type-C does not automatically solve freezing or disconnect issues.
Type-C describes the connector form. The underlying camera may still use USB2.0 UVC, as seen in existing D3.9 OV9734 Type-C configurations.
Stability still depends on:
Protocol implementation.
Cable.
Host.
Power.
Video format.
Application.
Mechanical connection quality.
So the engineering question should not be:
“Should we change to Type-C?”
It should be:
“Which part of the USB path is losing margin?”
Endoscope devices frequently use long, flexible cables and compact connectors.
A system may work on the bench and fail after assembly because of:
Tight cable bending.
Cable pinching.
Repeated flexing.
Connector movement.
Poor strain relief.
Mechanical stress around the DSP board.
Cable routing close to motors or switching power electronics.
For OEM validation, inspect stability while the device is:
Straight.
Bent to the expected radius.
Moving.
Fully assembled.
Running LEDs.
Operating near other electronics.
Do not test only in a static open-bench condition.
Use one variable at a time.
Use:
Known-good host.
Short validated cable.
Direct USB port.
Standard video mode.
LEDs off or low.
Confirm stable operation.
Increase to the required resolution, frame rate, and format.
Use the production-intent length and connector path.
Operate LEDs at the required brightness.
Switch from engineering PC to the actual embedded, mobile, or industrial host.
Install the camera into the device.
Check:
Dropped frames.
Freeze events.
Disconnect count.
Recovery behavior.
Repeated plug/unplug.
Power cycles.
Temperature.
Image artifacts.
When failure appears, the last added variable becomes the first investigation target.
Before approving a USB endoscope camera module for production, confirm:
Required resolution.
Required frame rate.
YUV / MJPEG format.
Required controls.
Total length.
Connector type.
Extension points.
Shielding.
Bending requirement.
Camera load.
LED load.
DSP / interface load.
Host power capability.
Operating system.
USB port.
CPU / decoder capability.
USB hub architecture.
Other connected peripherals.
Camera enumeration.
Required video mode.
Decode stability.
Reconnect behavior.
Cable routing.
Strain relief.
Connector retention.
Bending and flexing.
EMI environment.
Different product structures should be tested differently.

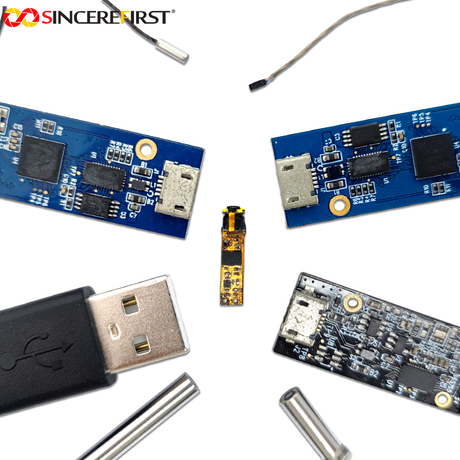

Current configurations include:
GC030A VGA USB.
OV9734 720P USB.
OH01A10 720P60 USB.
OV02C10 2MP USB.
Integrated and separated structures.
Type-A and Type-C options.
These are useful for compact OEM systems where connector type, board position, illumination, and cable routing affect the integration result.
OV2740-based 1080P60 configurations create a different validation problem because higher resolution and frame rate increase the importance of:
Host capability.
Video format.
Cable.
Power.
Long-run stability.

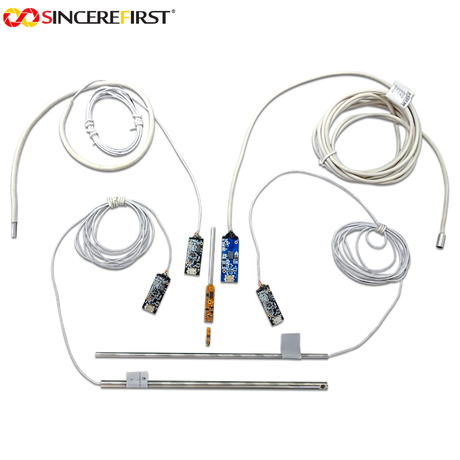

Separated architectures require validation of both:
Camera-head-to-board link.
Board-to-host USB link.
A system can therefore fail before the USB interface itself.
Start by separating bandwidth, host load, cable, power, and thermal behavior. Reduce resolution or frame rate, shorten the cable, remove hubs, test another supported video format, and compare on a known-good host.
The total power demand may have reduced the system margin. Test the same video mode with LEDs off and then increase illumination step by step. Also inspect cable voltage drop and host power delivery.
The higher mode may increase USB bandwidth or host decoding demand. Test the target format, frame rate, cable, host USB controller, and application separately before assuming the camera hardware is defective.
It may reduce USB data load compared with uncompressed video, but the host then has to decode the compressed stream. The result depends on where the current bottleneck is.
USB controller implementation, power availability, operating system, software, decoding capability, and other connected peripherals can differ. OEM approval should always use the target host.
No. A better cable can improve signal and power margin, but the failure may instead come from host bandwidth, software, connector contact, video format, power supply, or the internal head-to-board link.
Usually not. First recreate the problem with a controlled test matrix. If the same camera remains unstable under a known-good short cable, host, power supply, and supported video mode, then camera hardware should be investigated more deeply.
A freezing or disconnecting USB endoscope camera should be treated as a system problem until the failure stage is isolated.
The camera, cable, connector, DSP, USB path, power supply, host, video format, and application form one complete chain.
The most efficient OEM troubleshooting process is:
Start with a known-good baseline → add one requirement at a time → identify the first condition that causes instability.
This approach is faster and more reliable than changing cameras, cables, software, and host settings at the same time.
For USB integration troubleshooting, provide the camera configuration, host platform, operating system, cable length, connector path, resolution, frame rate, video format, LED requirement, and a description of when the freeze or disconnect occurs. SincereFull can help narrow the evaluation to the most relevant product and system variables.
