Working distance is the target distance at which an endoscope camera is expected to produce the most useful image. Depth of field is the distance range that remains acceptably sharp without refocusing. The correct choice depends on what the device must observe, how much the distance changes during use, the available camera-head diameter, illumination conditions and whether fixed focus or autofocus is practical. A close-range cavity camera may need strong detail at only a few millimeters, while a maintenance probe may need usable images across a much wider range. OEM developers should define the real inspection distance first, then evaluate focus consistency, field of view, light uniformity and mechanical fit on the final device.
A high-resolution sensor cannot recover detail when the target sits outside the useful focus range. In narrow-space imaging, the lens, sensor, aperture, camera-head structure and illumination must work together. A camera that looks sharp on a desktop chart at 50 mm may perform poorly when the real device observes tissue-like surfaces at 8 mm or machinery walls at 100 mm.
Working distance should therefore be defined as an application requirement, not as an afterthought. The most useful question is not “How many megapixels does the camera have?” but “At what distance must the device repeatedly show the required feature?”
Term | What It Describes | Why It Matters |
Working distance | The expected distance between the lens and the target. | Determines where the image should be optimized. |
Depth of field | The distance range that appears acceptably sharp. | Determines how much movement can occur without refocusing. |
Focus method | Fixed focus, manual adjustment or autofocus. | Affects consistency, response time, size and control requirements. |
Aperture and lens design | How light and rays enter the lens. | Influences sharpness range, brightness, diffraction and module size. |
Device Behavior | Recommended Direction | Main Validation Point |
Target stays at a stable close distance | Fixed-focus design optimized for the target range. | Sharpness at the real target surface and illumination level. |
Distance changes moderately during insertion | Fixed focus with a wider usable depth of field. | Near and far image quality without excessive distortion or noise. |
Distance varies from close range to open space | Autofocus or another project-specific focus solution. | Focus speed, hunting behavior, host control and motion stability. |
Side-wall inspection | Side-view lens with a defined lateral working distance. | Focus on curved walls, reflections and edge uniformity. |
· Camera-head diameter: Ultra-small heads leave less room for larger optics, moving focus structures and integrated illumination.
· Field of view: A wider lens can show more area but may reduce edge detail or increase distortion if it is not matched to the target distance.
· Aperture and illumination: More light may allow a smaller aperture and broader sharpness range, but LED heat, reflections and image noise must be controlled.
· Sensor and resolution: Higher pixel count can reveal more detail only when the lens resolves that detail and the target remains within focus.
· Probe movement: Hand movement, articulation and vibration can make a narrow focus range difficult to use even when the static image is sharp.
Medical device visualization often emphasizes small diameter, controlled close-range observation, color consistency and stable illumination. Industrial inspection may require longer viewing distances, reflective metal surfaces, side-view observation, long cable routing or changing cavity geometry. The same camera module should not be assumed to suit both project types without sample evaluation.

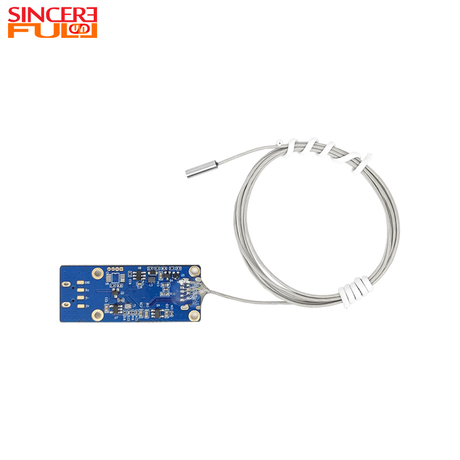

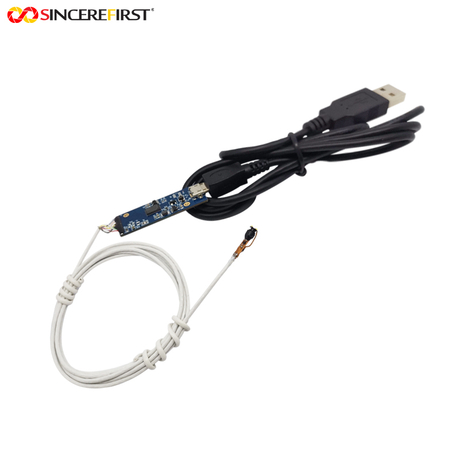

For ultra-small projects, compact fixed-focus modules in the 0.9 mm to 2.0 mm range are useful starting points when mechanical access is the first constraint. For mainstream 3.0 mm to 3.9 mm devices, developers can compare direct-view, side-view, integrated, separated and shell-supported structures. Where the viewing distance changes significantly, autofocus product families such as the SF-SP12-D12.5 and SF-SP12-D14.5 provide a different evaluation path, with a specified depth-of-field direction from 3.5 cm to infinity and USB2.0 integration.
1. Define the nearest, normal and farthest target distances in millimeters or centimeters.
2. Test the exact surface, cavity and lighting condition rather than a generic desktop chart only.
3. Measure center and edge sharpness at every required distance.
4. Check whether LED reflections hide the feature being inspected.
5. Evaluate focus stability while the probe moves, bends or rotates.
6. Confirm the final shell, window and assembly do not shift the optical position.
7. Validate the output on the actual host, cable length and application software.
· Application and target device type.
· Minimum, typical and maximum viewing distance.
· Maximum camera-head diameter and front-section length.
· Required field of view, resolution and frame rate.
· Fixed-focus or autofocus preference.
· LED, shell, waterproof and cable requirements.
· Host platform, connector and output format.
Is a wider depth of field always better?
No. A wider usable range can make operation easier, but it may involve trade-offs in aperture, brightness, lens size or image detail. The correct target is the smallest range that reliably covers the real device movement and inspection task.
Can software sharpen an image that is outside the focus range?
Software can enhance contrast or edges, but it cannot fully restore optical detail that was never captured. The lens and target distance must first produce a usable image.
Does autofocus automatically solve every distance problem?
No. Autofocus adds control, size, response-time and stability considerations. It may also hunt on low-contrast or reflective surfaces. It should be selected when distance variation justifies the added system complexity.
How should working distance be selected for a medical endoscope camera module?
Use the actual device structure and observation task. Confirm the nearest and farthest required distances, available illumination, camera-head size and final window or shell. The module should support device visualization evaluation without making clinical-performance assumptions.
Why can the same lens look different after final assembly?
A protective window, shell position, adhesive thickness or lens shift can change the effective optical path. Final validation should use the assembled probe rather than only the bare camera head.
Can SincereFull evaluate a custom focus range?
Lens, focus, field of view, LED, shell and interface options can be evaluated for the project. Feasibility depends on camera-head size, sensor package, target distance and required production structure.
Need help defining the right focus range for your device? Send the application, camera-head size, minimum and maximum viewing distance, interface and imaging requirements to SincereFull for project evaluation.
Note: This article is for device design and camera module selection reference. Final medical device compliance should be evaluated according to the target market, application and applicable regulations.
