Medical imaging devices are becoming smaller, smarter, and more integrated than ever. Yet, off-the-shelf camera modules often fail to meet the exacting standards of medical device manufacturers. Parameters such as diameter, sterilization compatibility, or image sensor type can make or break a product’s success in clinical use. For OEM engineers and product managers, customization is not an option—it’s a necessity. At SincereFull, a brand under SincereFirst with decades of expertise in precision imaging components, we focus on creating Medical Endoscope camera modules precisely tailored to each client’s specifications, transforming early design ideas into reliable, regulatory-ready imaging systems that reach clinical deployment faster and more efficiently. Our experience spans a wide range of surgical and diagnostic applications, from minimally invasive procedures to complex endoscopic interventions, enabling medical device companies to deliver high-quality imaging solutions without compromise.
When developing endoscopic imaging systems for specific clinical applications, OEMs often discover that no single module can fit all. Customization allows engineers to fine-tune every optical, electronic, and mechanical parameter to match their device design.
Sensor selection is one of the most critical decisions. Depending on the imaging goal, our customization options include the OCHTA10 for ultra-miniature 0.9mm modules ideal for micro-invasive applications, the OV9734 for 1MP high-definition imaging, or the OV2740 for 1080P-level clarity. Each sensor differs in resolution, pixel size, and sensitivity, allowing designers to optimize performance based on illumination levels, tissue contrast requirements, and diagnostic precision.
Lens focal length and field of view can be adjusted to meet distinct surgical or diagnostic use cases. For example, a narrow field is ideal for ENT or urological scopes requiring detailed close-up visualization, while a wider angle suits gastrointestinal or laparoscopic applications. SincereFull’s optical engineers carefully balance depth of field and distortion, ensuring the image remains sharp across the working distance. Advanced lens coatings can also be applied to reduce glare and enhance color fidelity in complex surgical environments.

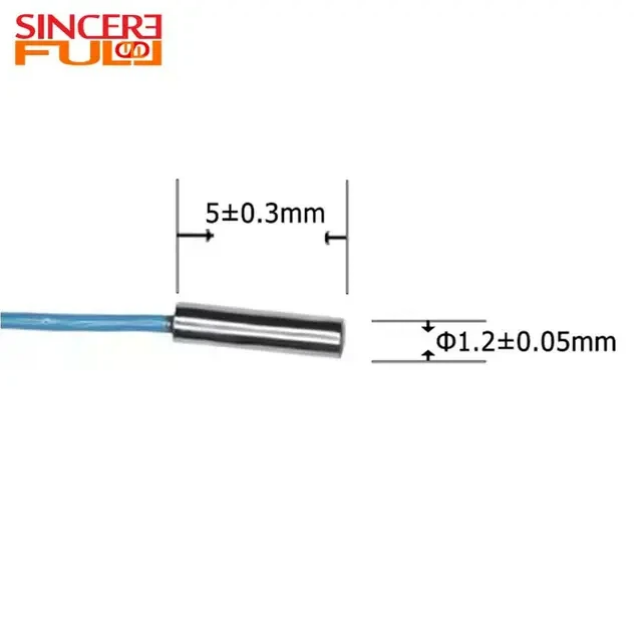

Module diameter customization is another decisive factor. Our product line spans from ultra-miniature 0.9mm to larger 12mm formats, covering the needs of both micro-surgical instruments and robust general-purpose scopes. Engineers can specify integrated or separate module designs, depending on the housing and assembly requirements of the host device. Customized diameters also improve ergonomics, allowing surgeons or end-users to handle instruments with increased precision and reduced fatigue during prolonged procedures.
LED arrangement and illumination intensity can also be customized to suit different tissue types or working distances. Our LED endoscope modules deliver bright, uniform illumination, and configurations can be designed for either frontal or side lighting. Additional optical diffusers and collimation options enable OEMs to adapt illumination for highly reflective surfaces or confined spaces, enhancing image clarity and clinical usability.
Finally, cable length and connector type are adapted to each OEM system. Whether USB 3.0, Type-C, CSI, or wireless transmission, our engineers ensure seamless electrical integration, shielding, and data reliability even under frequent sterilization and bending cycles. Customized cabling also supports modular system designs, facilitating quick assembly and maintenance for complex multi-channel medical devices.
Transforming an idea into a validated, manufacturable imaging module requires structured collaboration and technical precision. At SincereFull, our development process follows a proven path that ensures both speed and compliance.
The journey begins with a requirements specification stage, where the OEM’s engineering and clinical teams outline performance, sterilization, mechanical, and electrical needs. This includes desired diameter, resolution, illumination parameters, cable routing, and environmental constraints such as waterproof rating or autoclave resistance. Detailed functional mapping ensures that the final module aligns with both device integration needs and clinical workflow expectations.
Next comes the engineering drawing and concept validation phase. Our R&D team translates functional requirements into 3D mechanical drawings and detailed optical path simulations. This step ensures alignment between imaging quality expectations and manufacturability. We also assess sensor compatibility with the OEM’s image processing pipeline and power design, allowing early identification of potential integration challenges. Collaborative design reviews ensure the OEM is fully engaged at each milestone, reducing redesign cycles and accelerating project timelines.
Once specifications are confirmed, we build the prototype, integrating selected components into a fully functional module for evaluation. The prototype undergoes internal testing for resolution, distortion, and illumination balance. Upon OEM approval, limited quantities are provided for clinical validation, where real-world performance is measured against diagnostic benchmarks. Feedback from surgeons, technicians, and clinical engineers informs any final refinements.
After validation, we proceed to a small-batch pilot production, refining assembly procedures and ensuring repeatability. Pilot production allows OEMs to test manufacturing processes, optimize workflow, and verify regulatory documentation readiness. Only after successful pilot outcomes do we transition to stable mass production, delivering consistent quality for each unit.
This transparent, iterative process allows OEM partners to participate at every stage, ensuring that the final design not only meets technical expectations but also aligns with clinical usability and regulatory pathways.
In medical device development, performance alone is not enough—durability and reliability are equally critical. Our testing protocols ensure every customized endoscope camera module can withstand the demanding conditions of hospital environments.
Optical testing includes MTF (Modulation Transfer Function) evaluation for image sharpness, color accuracy verification, and low-light sensitivity measurements. Each customized module is tested against specific image quality acceptance criteria defined during the design phase. Additionally, modules are evaluated for glare suppression, contrast ratio, and uniformity of illumination, which are particularly important for delicate procedures requiring high diagnostic confidence.
Mechanical testing assesses structural robustness under vibration, bending, and torsion stress, simulating real-world use within flexible and rigid endoscopes. Cable assemblies undergo repeated flex cycles to ensure data integrity over prolonged use. Precision assembly tolerances ensure that each module retains consistent performance even under extreme handling conditions.
Sterilization testing is a vital step. Modules are exposed to repeated autoclave cycles and chemical disinfection to evaluate material compatibility and optical stability. Our waterproof modules are sealed to IP67 or higher, ensuring reliable operation after multiple sterilization procedures. Material choices are optimized for resistance to heat, moisture, and disinfectant chemicals, guaranteeing long-term reliability in clinical environments.
We also perform temperature and humidity endurance tests to confirm that image quality remains consistent across different clinical environments. Additional environmental simulations may include exposure to electromagnetic interference and mechanical shock, ensuring the module maintains performance under hospital operating room conditions. This comprehensive validation ensures that customized modules meet both performance and longevity requirements before integration into the OEM’s medical device.
Compliance documentation is often one of the most time-consuming parts of medical device development. To streamline this, SincereFull provides comprehensive documentation and traceability support aligned with CE and FDA requirements.
Our engineers prepare component traceability records, risk management documentation, and test reports for each project. This enables OEMs to integrate the module’s compliance data directly into their device’s technical file, simplifying regulatory submissions.
We also supply electrical safety test results, biocompatibility data (for patient-contact materials), and sterilization validation reports when applicable. In addition, a detailed bill of materials (BOM) and process documentation accompany every production batch, ensuring full transparency for post-market surveillance and audits.
By managing these documentation essentials, SincereFull helps OEM partners save valuable development time and reduce uncertainty during certification stages. Our long-standing experience in medical imaging component manufacturing ensures that every module we produce supports regulatory readiness from the earliest design phase. Beyond regulatory compliance, this documentation framework also facilitates maintenance, servicing, and future design iterations.
A medical device manufacturer developing a new diagnostic imaging tool approached us with a challenge: their existing off-the-shelf camera module lacked both the compactness and image clarity needed for their prototype. They required a 1MP HD imaging solution that could withstand frequent sterilization and offer seamless integration with their existing signal processing board.
Our engineering team recommended the OV9734 sensor for its balance of image quality and compact size. Working closely with the client, we customized the module’s diameter to 3.2mm, optimized the focal length for a 25mm working distance, and reconfigured the LED array for consistent illumination. The connector type was modified to match their internal board interface, avoiding unnecessary adapter circuits.
After building the prototype, we performed extensive image and sterilization testing to validate optical stability. Within two development cycles, the module achieved the desired performance benchmarks. The client successfully integrated the customized module into their handheld diagnostic device, cutting overall development time by nearly half compared to their previous sourcing attempts.
This project demonstrates how targeted customization, paired with technical expertise, accelerates medical device innovation while ensuring clinical reliability and regulatory compliance. The module’s performance not only met imaging requirements but also enhanced surgeon workflow and reduced the need for on-site troubleshooting during early clinical trials.
From early design sketches to full-scale production, SincereFull delivers a complete customization pathway that empowers OEMs to create imaging systems perfectly suited to their clinical goals. Every endoscope camera module customization project benefits from our experience in optical engineering, quality assurance, and regulatory documentation, ensuring reliable performance and faster market entry. Whether you need ultra-miniature 0.9mm modules, high-definition OV9734 solutions, or specialized configurations with custom cables and illumination, our team is ready to collaborate under strict confidentiality. Our proven expertise ensures OEMs receive modules that integrate seamlessly into their devices while maintaining high reliability and regulatory readiness. Contact us today to discuss your project requirements and discover how SincereFull can help you bring your next-generation medical imaging device to life.
