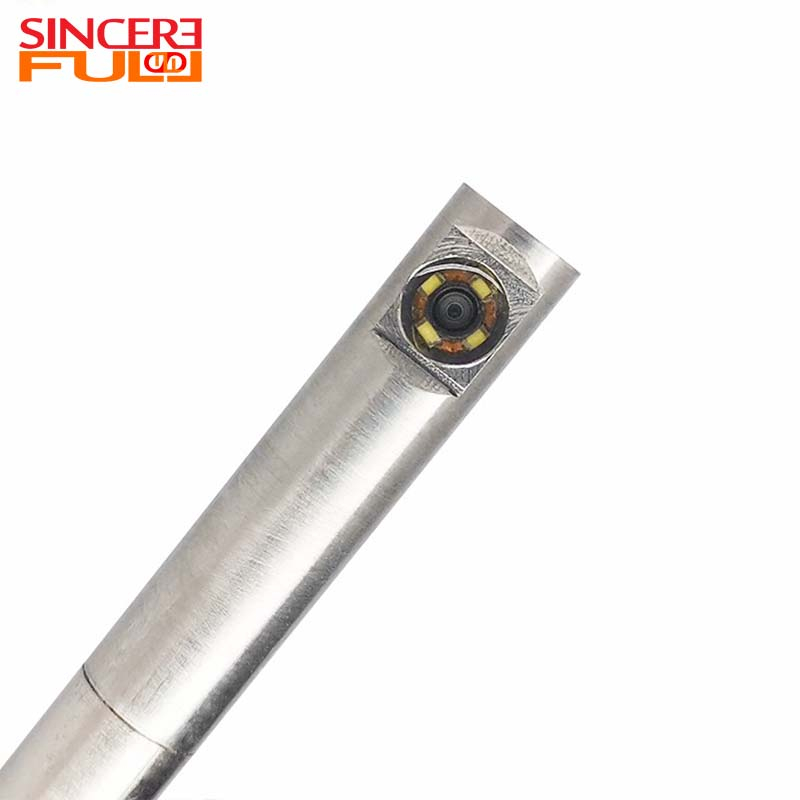

| The 1MP OV9734 Wide Angle USB2.0 Side View Endoscope Camera Module with D6.0 Steel Shell and IP67 for Pipe Wall Inspection designed for lateral surface inspection inside pipes, cylinders, machined bores, mechanical cavities, and equipment interiors. It supports YUV and MJPEG output at up to 1280×720@30fps, with a D6.0mm Diameter, 200mm Steel Shell direction, IP67 protection, D95° field of view, 10–100mm focus range, and 4pcs 0402 LED illumination. Unlike a standard Direct View endoscope camera that looks forward along the insertion path, this Side View configuration is designed for projects where the camera needs to observe nearby internal walls and lateral surfaces. |  |
Product Name | ENDOSCOPE Camera Module |
Image Sensor | OV9734 |
Pixel | 1MP |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
F NO | 5.0 |
Product Type | Endoscope Camera Module |
Led | 0402 Led |
TV Distortion | <-10% |
Feature | Side-View Endoscope Camera Module |
4.Precision Equipment Sidewall Inspection： It can be used to inspect the sidewalls, solder joints and cable arrangement status inside electronic equipment and instruments; it is applicable because its 6.0mm miniature diameter improves the accessibility of detection in narrow spaces, and short-distance optimized imaging ensures clear display of tiny details.
Side View optical structure matching for different lateral inspection targets.
Steel Shell length adjustment based on insertion depth and device structure.
FOV & Focus Range review for different pipe sizes and wall distances.
LED configuration adjustment for darker cavities and close-range inspection.
Cable & connector adaptation for cable length and host-side connection requirements.
IP67 structure review based on the final Steel Shell assembly and sealing requirements.
FAQ
1: What is the main difference between this Side View model and a Direct View endoscope camera?
This model is designed to observe lateral internal surfaces such as cylinder walls, pipe walls, and bore surfaces. A Direct View model is more suitable for observing the forward insertion path.
2: What type of inspection device is this module suitable for?
It is suitable for side-view industrial borescopes, engine cylinder inspection tools, pipe wall inspection cameras, machined bore inspection devices, and equipment maintenance systems.
3: Does this model support IP67 protection?
Yes. The corresponding configuration is listed with IP67 support. Specific immersion depth, duration, and liquid environment should be confirmed according to the final project and sealing assembly.
4: What is the benefit of the 200mm Steel Shell structure?
The extended Steel Shell direction is useful for straight insertion and fixed-depth lateral inspection, especially when the target surface is located deeper inside a bore, cylinder, or cavity.
5: What image output does the module support?
It supports USB2.0 UVC output with YUV and MJPEG formats, up to 1280×720@30fps.
6: Does the module include illumination?
Yes. It uses 4pcs 0402 LEDs for close-range internal illumination. Dimming is not included in this configuration.
7: Is this model suitable for precision dimensional measurement?
It is mainly designed for visual observation and inspection. The listed TV distortion is <-10%, so precision dimensional measurement should not be treated as a default application.
8: What information should I provide to confirm whether this module fits my project?
Please share your target device, required viewing direction, access Diameter, insertion depth, working distance, FOV requirement, cable length, connector type, waterproof operating condition, and expected inspection target. This helps evaluate whether the standard configuration is suitable or whether a customized version should be reviewed.
