SF-C2016USB-D5.0-L1500-D140-Glass V1.0
SINCEREFIRST
This 2MP 5mm OV2740 Endoscope Camera Module equipped with the OV2740 sensor, this USB2.0 camera module delivers 1080p HD resolution (1920x1080), ensuring sharp and detailed visuals. Its compact 5mm diameter makes it perfect for narrow spaces, offering a wide 140° field of view and an adjustable depth of field from 8mm to 80mm. This all-glass lens provides excellent image quality, even in challenging environments. the endoscope camera module is commonly employed in medical fields such as colonoscopy, laparoscopy, duodenoscopy, and dental endoscopy. its USB2.0 interface, this endoscope camera module is easy to connect to computers and other devices for seamless operation. Whether you're working with medical procedures or conducting inspections in confined areas, experience superior image quality with the OV2740 sensor,so this camera module is your go-to solution for clear, detailed imaging. |  |
Product Advantage ◢
The OV2740 sensor provides HD 1080p resolution.
5mm small diameter, suitable for small Spaces.
140° wide Angle field of view, depth range 8mm-80mm.
USB2.0 interface, widely used in medical inspection and industrial inspection.

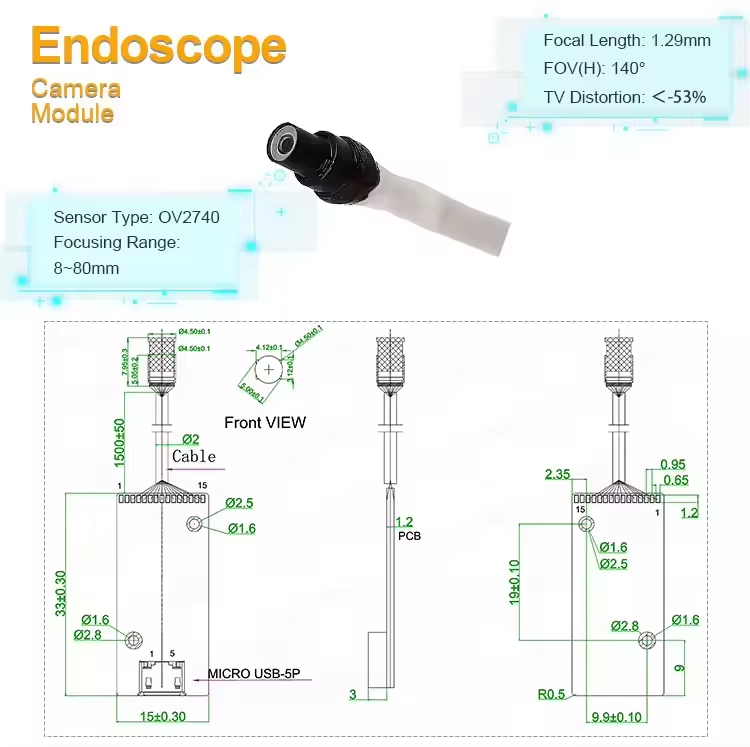

Technical Parameters ◢
Product Name | Endoscope Camera Module |
Image Sensor | OV2740 |
Pixel | 2mp |
Diameter | 5mm |
Focusing Range | 8~80mm |
TV Distortion | <-53% |
Output Interface | USB2.0 |
Theory | Cmos Imaging |
Fov(D) | 140° |
Connector | Micro USB-5P |
Product Uses ◢
medical inspection
Bronchoscopy
veterinary
industrial inspection.
FAQ ◢
Q1: What is a endoscope camera module?
A1: The endoscope camera module is a compact imaging device widely used in medical and industrial fields for visual inspection of internal structures. It comprises a camera lens, light source, and flexible or rigid catheter, allowing access to confined spaces. In medicine, it's utilized for examining organs and aiding minimally invasive surgeries, capturing high-resolution images and videos in real time. In industrial settings, these cameras inspect machinery, pipes, and hard-to-reach areas, efficiently identifying issues like leaks and corrosion. Many modules offer recording features and may include miniature tools for enhanced intervention.
Q2: Are you factory or trade company?
A2: We are a camera module company with a large production factory, we are specialized in the production of intelligent camera modules, with our own production workshop, a total of ten layers, clean and sterile, a large number of highly automated production equipment. Our production operation is very efficient. Adopt standardized and streamlined procedures to ensure the stability and reliability of the manufacturing process. Every employee in our workshop has undergone systematic professional training, strictly abide by the production procedures, while wearing specially designed clean room dustproof clothing, while maintaining the production environment of health and sterile dust-free, product quality belongs to the forefront of the industry, each endoscope module has gone through multiple stages of inspection and testing to ensure a high pass rate to achieve high control standards. In addition, our company has a dedicated research and development team, cooperate with each other, constantly research in the development of our proprietary products, and promote technological innovation in the industry.We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q3: How to control an endoscope camera module?
A3: To control the endoscope camera module, first connect the module to the microcontroller. Use libraries or drivers to set camera parameters such as resolution and frame rate. Image data is obtained in real time by sending control commands through a programming interface such as a serial port or I2C. The captured images can be viewed on a display or storage device. Make sure to follow the module's technical documentation and select the appropriate power supply and interface.
Q4: What does an endoscope camera module see?
A4: Endoscopic camera modules are used to capture images and videos of narrow internal structures and are widely used in medical, industrial and research applications. It is inserted into the body through a slender tube and equipped with a light source to provide a clear view, helping doctors observe organs and tissues and identify lesions and health problems. In medicine, endoscopes can visualize organs such as the stomach, intestines, and bronchus, and monitor tumors and infections. In industry, it inspects hidden parts of machinery and pipes for problems such as wear, corrosion or blockage.
Q5: What can be customized for endoscope camera modules?
A5: The endoscope camera module offers a variety of options customized to meet specific customer needs. Users can choose from integrated or standalone solutions tailored for a variety of medical or industrial endoscopy product applications. In addition, the endoscope module has different lens diameters to adapt to a wide range of operating environments, ensuring optimal imaging during operation. Customization options also include the need for a protective steel sheath, dust and water resistant, to enhance the durability of the endoscope. It is worth noting that the built-in LED lighting system can also be selected whether it is needed, and the high-brightness lamp beads can improve the visibility in low light conditions, making it easier to carry out clear inspections, especially for use in medical environments.
