USB OV9734 Sensor Endoscope Camera Module

This USB OV9734 Sensor  Endoscope Camera Module ,is a compact, plug-and-play professional imaging solution featuring an OV9734 sensor and a 110° ultra-wide-angle lens. It supports a wide focus range of 10–100mm and ensures clear imaging in low-light conditions with an F.NO 4 aperture. With optical distortion below –20%, it faithfully reproduces image details, making it ideal for medical endoscopy, industrial inspection, and other applications in confined spaces. The module supports a wide input voltage range of 3.8–5.5V, integrates a 3.3V LED illuminator, and provides standard electrical interfaces for rapid integration into various devices. It represents a cost-effective vision module that balances performance, reliability, and ease of use.

Product Advantage ◢

1.Plug-and-Play: Highly integrated design reduces customer development cycles

2.Superior Imaging: Wide-angle, low distortion, and large depth of field meet professional imaging demands

3.Rugged and Reliable: Precision mechanical construction and wide voltage design adapt to diverse operating environments

4.Flexible Integration: Standard electrical interfaces and compact dimensions facilitate embedding in various devices

Application of Endoscope Camera Module

1.Medical Endoscopy Field: Specifically designed to provide high-definition intraoperative visualization for minimally invasive surgical instruments (such as laparoscopes and arthroscopes), it can also be used for clinical diagnostics like oral endoscopy and ENT examinations, enabling physicians to perform precise, low-trauma procedures.

2.Industrial Non-Destructive Testing: Widely applied in energy and chemical industries for detecting internal corrosion and blockages in pipelines, inspecting internal defects in mechanical equipment (e.g., engines, turbines), and performing online quality control during precision component assembly.

3.Research and Education: Suitable for microscopic sample observation and biological tissue research in laboratories, as well as serving as teaching demonstration equipment to clearly visualize anatomical structures and mechanical operations.

4.Special Environment Monitoring: Serves engine compartment and body cavity inspections in automotive maintenance, aerospace pipeline and cabin inspections, and surveillance of hard-to-reach concealed areas in security applications.

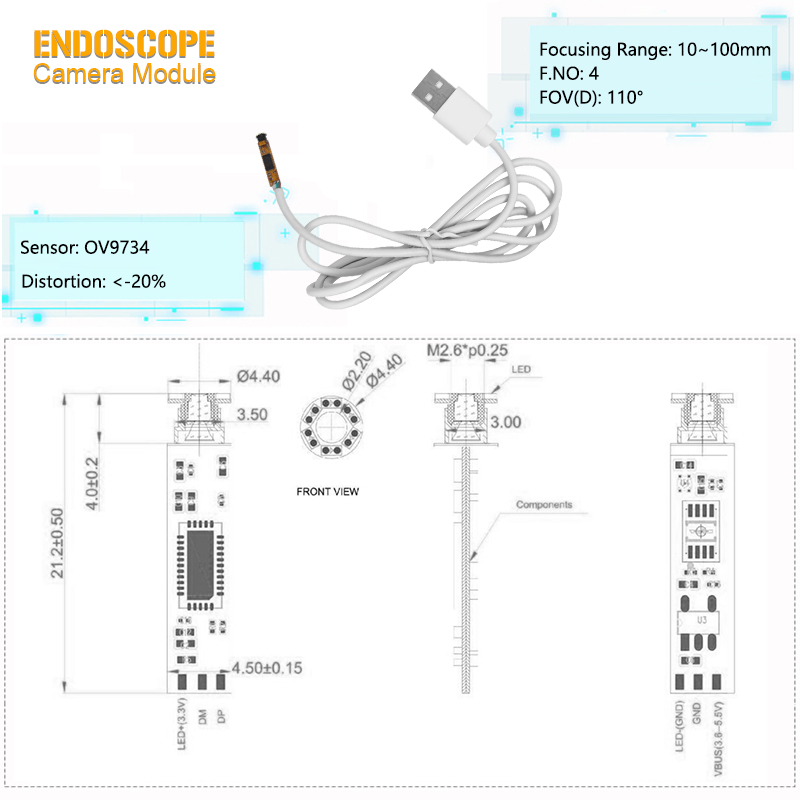

Technical Parameters ◢

FAQ

1.What are the differences between medical and industrial endoscope modules?

Medical modules emphasize biocompatibility, sterilization and high image quality, and must comply with FDA/CE certification. Industrial modules focus on durability (such as corrosion resistance), wide-temperature operation (-20°C to 70°C), and special light sources (such as UV).

2.How to clean the camera lens of an endoscope?

Use a sterile soft cloth and a dedicated lens cleaner to prevent alcohol from damaging the coating. Industrial modules can be air-blown to remove dust. In oily environments, oil-resistant solvents need to be used in combination.

3.What interface types are there for modules?

Common interfaces include USB3.0, HDMI, SDI, etc. In industrial scenarios, PoE power supply interfaces may be used, while medical devices mostly integrate dedicated medical imaging interfaces.
