SF-C1019USB-D6.0-SV-L25-D140
SINCEREFIRST

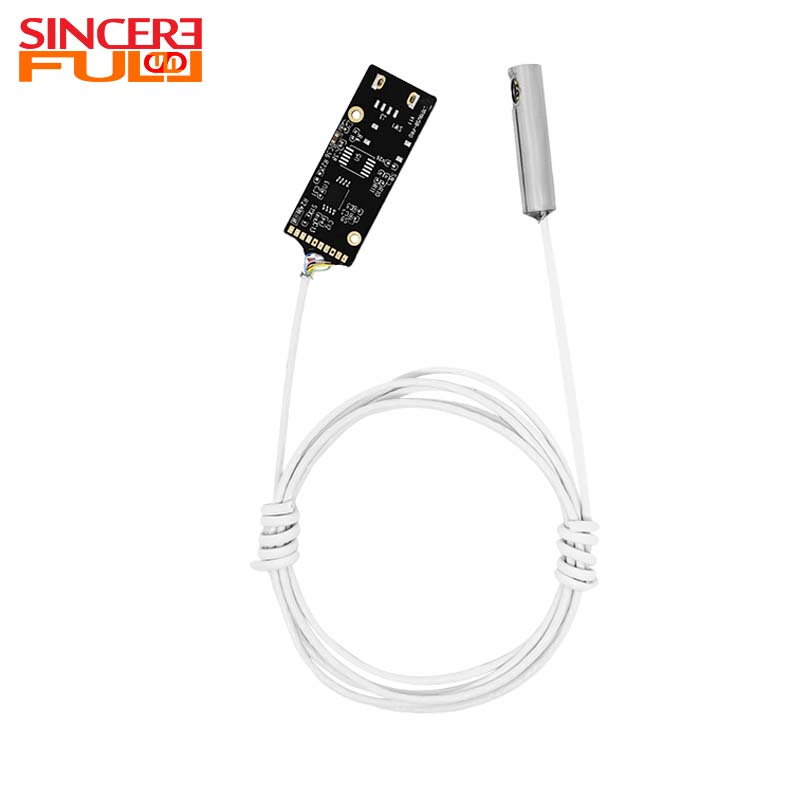

| This OV9734 CMOS Sensor Wide Angle 720P@30fps USB2.0 Side View Separate IP67 Waterproof Endoscope Camera Module, is a multi-scene lateral imaging module tailored for close-range side inspection of confined spaces. Reinforced with a built-in steel sheath, the 6.0mm probe balances structural durability and flexible passability to fit various narrow channels and enclosed cavities. Equipped with the OV9734 sensor and 1.08mm focal length F4.0 optics, it outputs stable 720P@30fps videos via YUV and MJPEG formats; the dedicated lateral optical design features a 95° diagonal field of view with distortion controlled below -10%, enabling direct sideward shooting without rotating the probe. Factory pre-calibration covers an extended focusing range from 10mm to 100mm to maintain consistent clarity across diverse working distances and simplify pre-use configuration. Four optional 0402 LED beads provide supplementary lighting for dark environments. Adopting Micro USB-5P interface and embedded UVC protocol, the module achieves driver-free plug-and-play connection across Windows, Linux and Android devices to cut deployment costs, while RoHS compliance further makes it a versatile imaging solution for daily inspection and minimally invasive auxiliary scenarios. |  |
1. Unique Side-view Optics: Adopts lateral light-out design to inspect sidewalls and pipe inner walls directly for comprehensive omni-directional detection.
2. 6mm Steel-sheathed Probe: Standard size pairs with reinforced steel structure to boost compatibility and adapt to various confined spaces.
3. 10–100mm Wide Focus Range: Covers universal inspection distances to deliver full-range clear imaging and reduce debugging workload.
4. UVC Driver-free Connectivity: Native UVC protocol supports multiple mainstream systems for fast integration and lower overall deployment cost.
Keywords | Fixed focus Endoscope Camera Module |
Sensor | OV9734 |
LED | 4 LED |
FOV(D*H*V) | 95°*85°*43.5° |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
FOV(D) | 90° |
TV Distortion | <-10% |
Output | USB2.0 UVC |
F Number | 3.58 |
Resolution | 720P Max 30fps |
Features | Side View Endoscope Camera Module |
Pipeline Inner Wall Detection: Can observe scratches, corrosion, weld seams and blockages inside pipes above 6mm by utilizing its professional lateral optical structure.
Cavity Sidewall Inspection: Can perform non-dismantling detection on sidewalls and corners of engines, valves and molds to locate hidden lateral defects.
Minimally Invasive Auxiliary Imaging: Can serve as lateral visual equipment for oral, otolaryngological and minimally invasive devices to assist fine medical observation.
Portable Side-view Inspection: Can act as the core imaging component of handheld endoscopes to support efficient lateral troubleshooting during on-site inspection.
FAQ◢
1. What is the practical value of the 10–100mm focus range?
2. What are the advantages of the OV9734 sensor in side-view endoscopy?
With its compact size, low power consumption, and stable 720P@30fps output, it perfectly balances the need for miniaturization with high image quality.3. What are the applicable scenarios for the optional LED illumination?
It is designed for dark or low-light environments like pipes and cavities. The added lighting significantly improves image clarity and visibility.
4. What are the core advantages of the side-view endoscope camera module?
Featuring a side-view design, it overcomes the limitations of traditional forward-viewing, making it ideal for inspecting sidewalls in narrow pipes or cavities. Additionally, its compact size, plug-and-play USB interface, and cost-effectiveness significantly reduce the integration complexity and overall cost for entry-level inspection devices.
