SF-YL745-V2
SINCEREFIRST

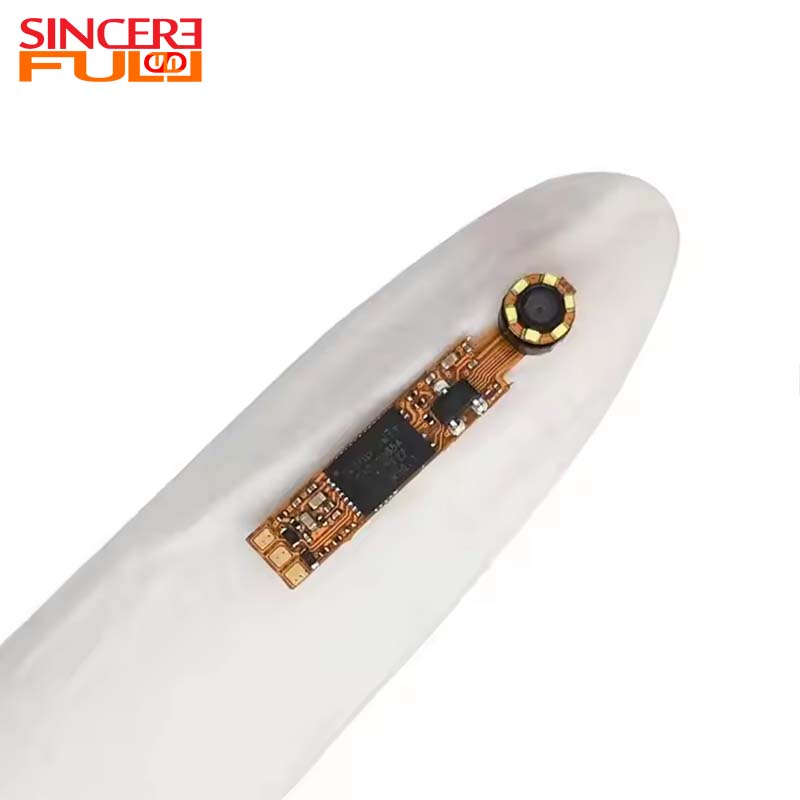

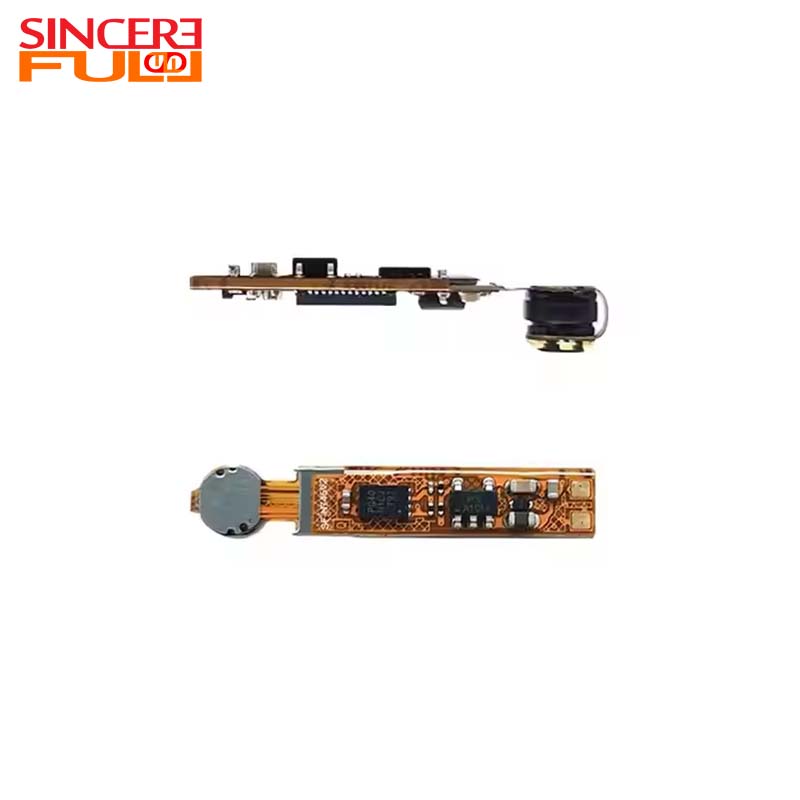

This endoscope camera module featuring the reliable GC1009 sensor from GalaxyCore. This 1MP camera module is designed for applications in the medical field, offering exceptional image quality at a resolution of 1280x720 pixels, which medical endoscope camera module is equipped with six LED lights positioned around the lens, ensuring captured images can be seen clearly to diagnose the condition. lt also high-speed camera module which use USB2.0 camera module,With minimal latency in surgery and other scenarios, the staff can operate in real time, ensuring immediate and efficient handling of the situation. This mini camera module not only shines in flexibility but also provides a cost-effective solution without compromising on stability or image quality. |  |
High resolution image: The GC1009 sensor with GalaxyCore delivers sharp images of 1280x720 pixels, ensuring excellent image quality in medical applications.

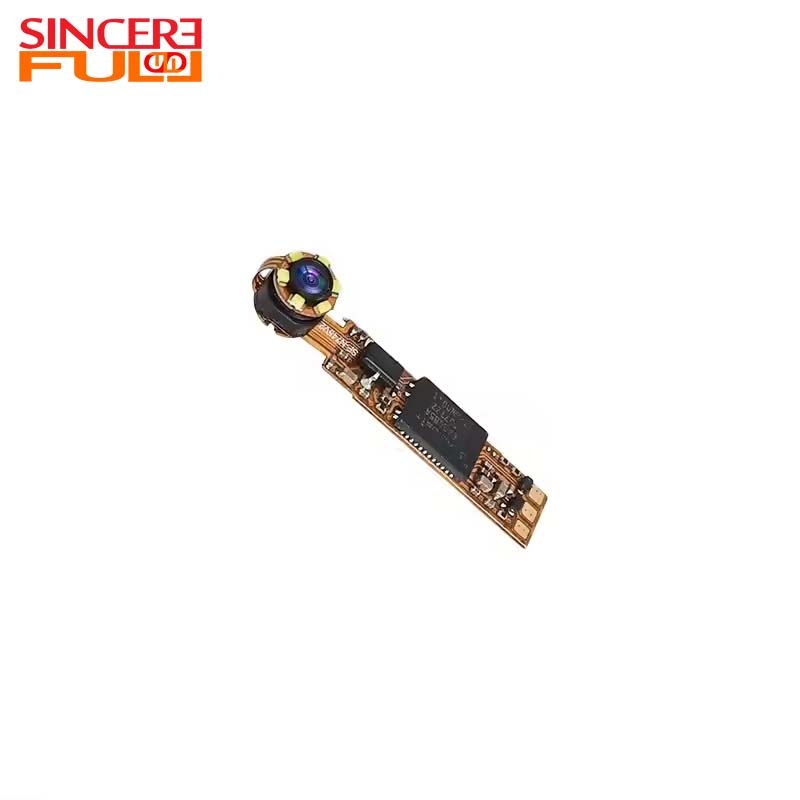

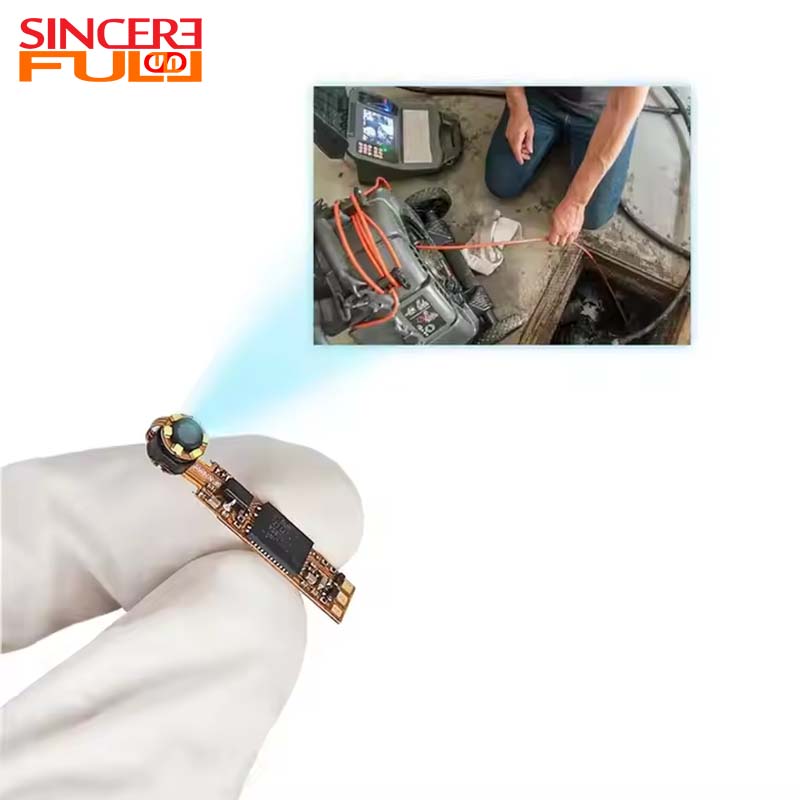

LED lighting: Six LED lights around the lens ensure clear image capture in all directions
High speed and low latency: USB2.0 interface is used to support real-time operation, suitable for rapid response needs such as surgery
1. Arthroscopic surgery: High frame rate capture of dynamic joint motion, auxiliary ligament repair or meniscus suture.
2. Skin tumor excision: accurately locate the lesion boundary in macro mode, restore the true skin color in LED white light mode, and support the comparative recording before and after surgery.
3. Debridement and suture: portable design for emergency cart, USB plug and play fast access to the monitoring system, support multi-angle wound recording.
Product Name | Endoscope Camera Module |
Image Sensor | GC1009 |
Pixel | 1mp |
Sensor Size | 1/9inch |
Pixel Size | 1.4 μ m x 1.4 μ m |
Video Output | Analog AV Interface |
Output Interface | USB2.0 |
Dynamic Range | 68db@8x gian |
Sensitivity | 600mV/Lux-sec |
USB Protocol: | USB2.0 HS/FS |
FAQ
1. What is the significance of the depth of field range of the module?
Large depth of field can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.
2. How to achieve waterproof and sterilization design?
The medical-grade module adopts IP68 waterproof seal, the shell material is resistant to high temperature and pressure, and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design.
3. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability, wide temperature operation and special light sources.
