SF-C50USB-D2.0
SINCEREFIRST

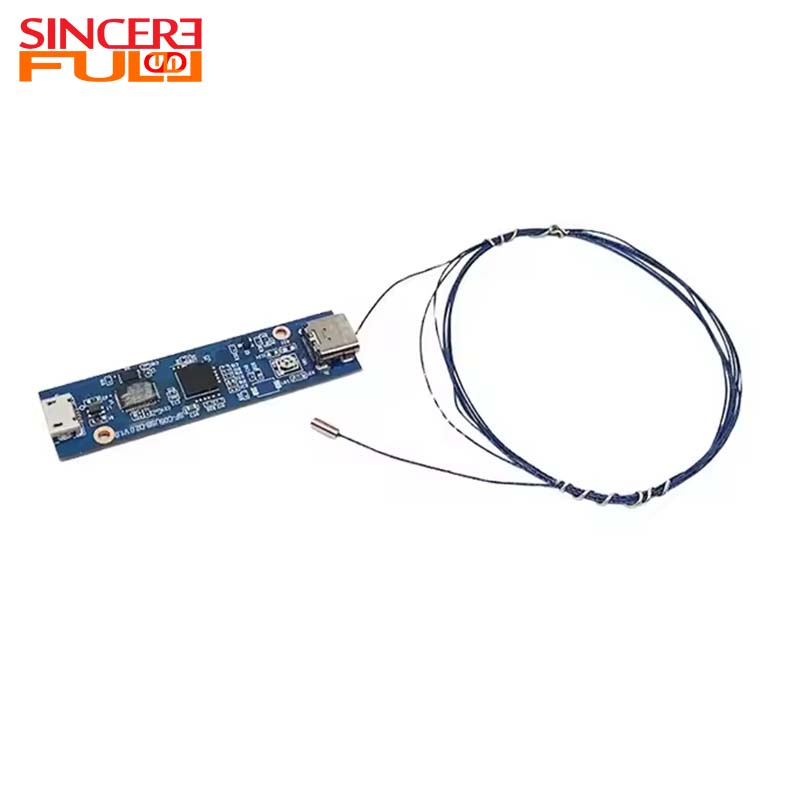

The OCHFA10 Sensor is a high-performance CMOS Sensor Camera Module designed for demanding medical endoscopy applications. With its ultra-compact 2.6 × 1.6 mm size and 2mm diameter lens, it enables integration into the smallest medical instruments. Featuring a resolution of 700 × 700 at 60 fps or 400 × 400 at 90 fps, this medical endoscope camera module delivers smooth, high-fidelity imaging. The USB2.0 camera module interface ensures seamless connectivity to a wide range of medical and industrial systems, while the built-in LED provides consistent and reliable illumination during in-body procedures. |  |
1. Superior Imaging Performance
The OCHFA10 offers crisp image quality at 700 × 700 resolution at 60 fps and 400 × 400 at 90 fps. Its high frame rate reduces motion blur and latency, delivering real-time diagnostics. Combined with a wide 86° field of view and IR cut filter, this camera module with LED ensures accurate color representation critical for detecting subtle tissue abnormalities.
2. Ultra-Miniaturized Design for Easy Integration
With an incredibly compact form factor of 2.6 × 1.6 mm, this USB2.0 camera module is optimized for tight spaces, allowing it to fit inside ultra-slim endoscopic tools. Its size, paired with its cylindrical 2mm lens, enables high maneuverability within confined anatomical structures or mechanical systems.
3. Built-In LED for Consistent Illumination
This camera module with LED features integrated lighting for enhanced visibility in low-light or internal environments. Its precisely positioned LED supports evenly distributed illumination, reducing shadows and enhancing diagnostic accuracy without requiring external light sources.
4. Sterilizable and Biocompatible for In-Body Use
The OCHFA10 medical endoscope camera module supports ETO and STERRAD sterilization protocols. Constructed with biocompatible materials and IP68 waterproof sealing, it meets rigorous medical safety standards, ensuring suitability for in-body, disposable, or reusable medical applications.
5. Low Power Consumption for Patient Comfort
Operating at just 82.2 mW, the OCHFA10 minimizes heat generation during procedures. This not only enhances patient comfort, but also protects delicate tissues from potential thermal damage, making it ideal for extended diagnostic or therapeutic use.
6. Industry-Standard USB2.0 Interface
The USB2.0 camera module interface ensures fast, stable image transmission and broad system compatibility. Whether in surgical imaging or industrial inspection, plug-and-play USB integration reduces development time and simplifies hardware design.
1. Semiconductor Wafer Inspection
The OCHFA10’s slim 2mm probe can navigate tight wafer environments to inspect 12-inch wafers. Its 90fps high frame rate captures micro-particles and defect propagation in real-time, enhancing classification accuracy. The wide-angle 86° lens ensures full-edge coverage under vacuum conditions.
2. Coronary Stent Delivery Guidance
In cardiology, this endoscope camera enables precise navigation through radial arteries using its ultra-slim probe. The 86° field of view and 90fps real-time imaging allow for safe deployment and tracking of stent expansion without damaging vascular walls, outperforming many traditional imaging systems.
3. Aero Engine Blade Inspection
Designed for harsh environments, the OCHFA10 fits into customized snake-like probes for inspecting turbine cooling holes. The IR cut filter eliminates thermal interference, enabling detection of micro-cracks in single-crystal blades. Its ability to work in confined, high-temperature areas gives it a distinct advantage over bulkier inspection tools.

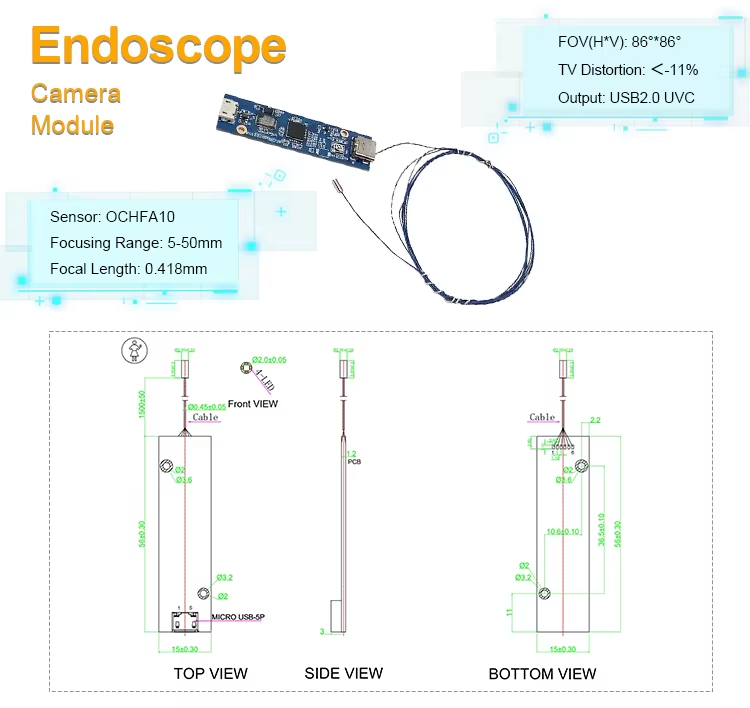

Product Name | Medical Endoscope Camera Module |
Image Sensor | OCHFA10 |
Pixel | 1MP |
Focusing Range | 10-100mm |
Focal Length | 0.418mm |
F NO | 5.0 |
Product Type | Endoscope Camera Module |
Led | 0402 Led |
TV Distortion | <-11% |
Feature | CMOS sensor Endoscope Camera Module |
Q1: How to prevent frequent cable breakage?
Use anti-bending cables with metal braid reinforcements. Avoid acute bends during use and wrap coils with a diameter greater than 10cm for storage. In industrial applications, consider adding protective spring tubes for strain relief.
Q2: Why are long cables needed in pipeline inspections?
For pipeline inspections, cables of 10–30 meters are common. They often include a Kevlar tensile layer and waterproof connectors, ensuring chemical resistance and real-time image transmission despite long-distance use.
Q3: How is waterproofing and sterilization achieved?
The module complies with IP68 waterproof standards and can endure 134°C steam sterilization. Its housing material resists high pressure and temperature. While medical modules offer full sterilization compatibility, industrial versions may opt for basic splash resistance.
