1.5mm Diameter CMOS Sensor OCHFA10 Mini Usb Medical Endoscope Camera Module

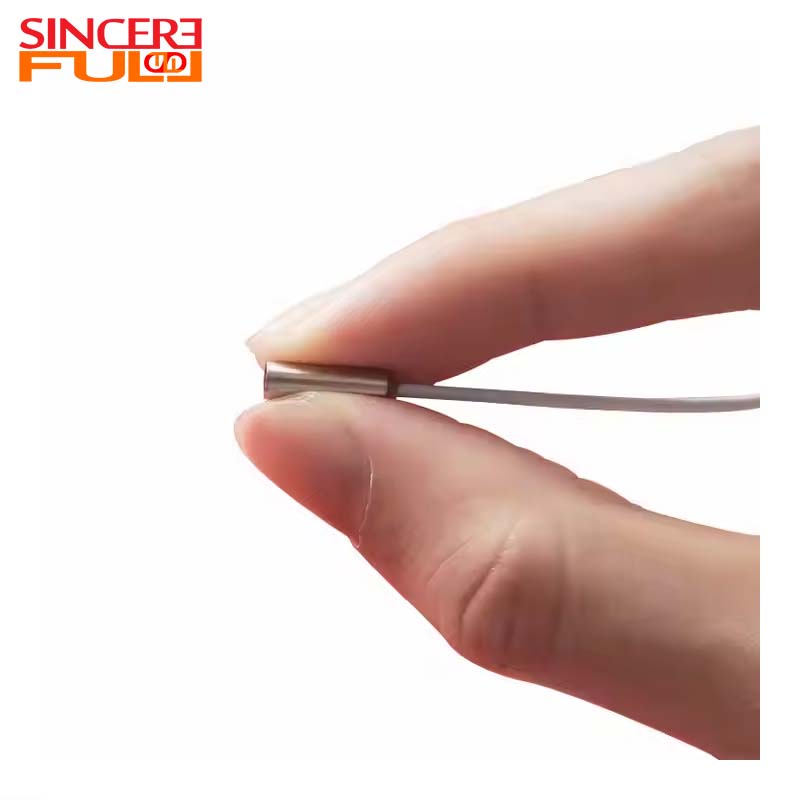

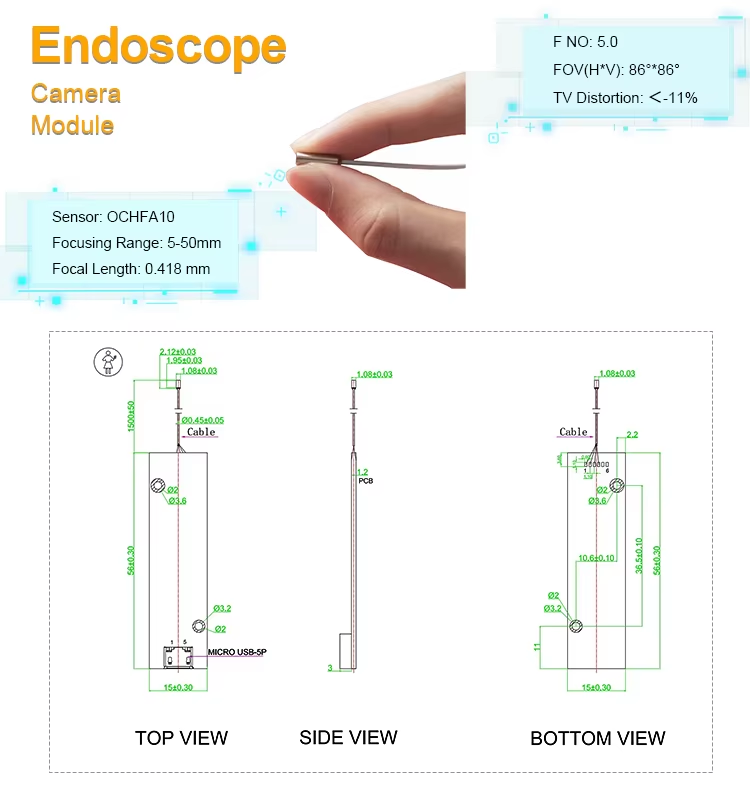

This is the 1.5mm Diameter CMOS Sensor OCHFA10 Mini USB Medical Endoscope Camera Module, core-equipped with the OCHFA10 CMOS sensor, delivering professional-grade imaging performance through a compact and miniaturized structure. Boasting a resolution of 720x720 pixels, the module supports real-time image transmission at 30 frames per second (fps), ensuring clear, smooth visuals free from motion blur or distortion. In terms of optical parameters, it features a focal length of 0.418mm, a field of view (FOV) of 86°×86°, and a focusing range spanning 5mm to 50mm, flexibly adapting to detection needs at different distances. Meanwhile, TV distortion is controlled below -11%, guaranteeing accurate restoration of the geometric shape of imaged objects. The module adopts a fixed F5.0 aperture paired with a high-quality lens, further enhancing image clarity and stability. It is equipped with a USB2.0 UVC interface (Micro USB-5P), supporting plug-and-play functionality and compatibility with multiple device systems. Image output supports dual formats (YUV and MJPG), meeting the diverse transmission and processing requirements in the medical imaging field. Manufactured in compliance with Class 100 cleanroom standards, the product comes with a 10-year warranty. With its reliable performance and compact size, it has become the preferred choice for medical diagnosis and industrial inspection.

Product Advantage ◢

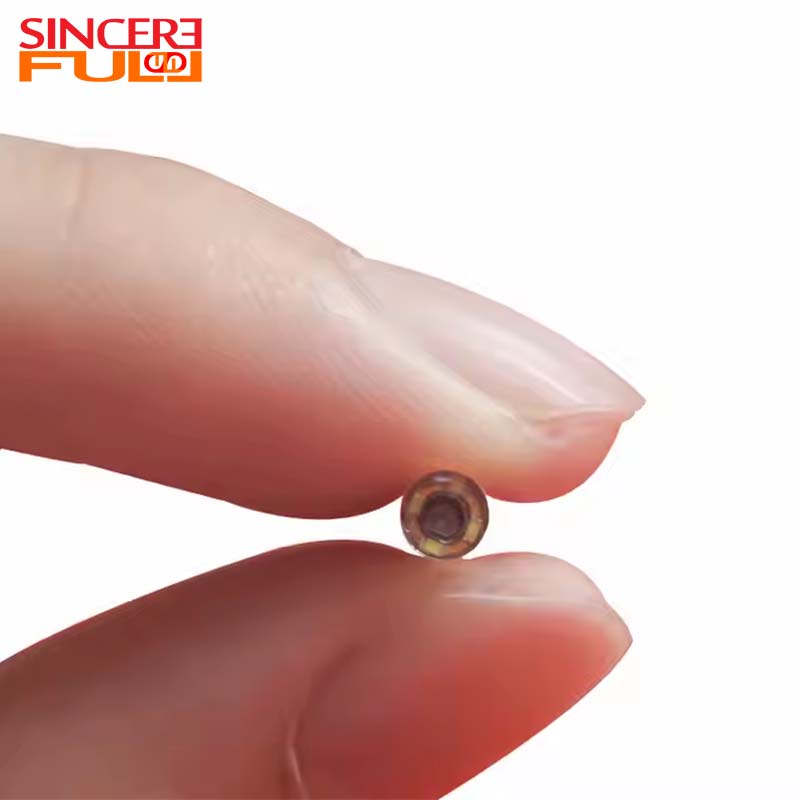

1. Ultra-Small Size & Medical-Grade Design: Featuring an ultra-fine 1.5mm diameter and miniaturized packaging, it is specifically designed for minimally invasive forward-view exploration procedures. It can easily access human natural body cavities or narrow industrial pipelines, minimizing inspection-related trauma and interference to the greatest extent.

2. HD Imaging & Smooth Transmission: Integrating the high-performance OCHFA10 sensor, it delivers 720P HD image quality and a smooth 30fps frame rate, ensuring blur-free dynamic inspections. The dual encoding formats (YUV/MJPG) can adapt to different host performance levels, enabling low-latency, uncompressed video streaming via USB 2.0.

3. Precise Optical Performance: The 0.418mm short-focal-length lens combined with a fixed F5.0 aperture can still present images with sharp edges and accurate colors even at an ultra-close working distance of 5mm. The wide 86° FOV and distortion rate below -11% ensure a broad observation range and the true shape of objects.

4. Robust & Reliable: Adopting industrial-grade manufacturing standards (SMT mounting and AA active alignment), the module offers excellent environmental adaptability. The 10-year warranty commitment reflects its high reliability and long service life in continuous use.

5. Convenient Connection & Compatibility: Fully compliant with the USB Video Class (UVC) 1.1 standard, it supports plug-and-play on Windows, Linux, macOS, and Android systems without the need for additional drivers, enabling quick integration into various medical or industrial inspection equipment.

Application Of Endoscope Camera Module◢

• Urological Ureteroscope: Works with holmium laser lithotripsy equipment to inspect ureteral wall inflammation and stone impaction;

• Orthopedic Arthroscope System: Serves as an auxiliary access lens to monitor the lateral meniscus repair process of the knee joint;

• Precision Hydraulic Valve Body Tester: Detects internal wear and casting porosity in 0.5-2mm oil passages;

• Semiconductor Wafer Transfer Arm Maintenance Instrument: Inspects particle contamination on the inner wall of the robotic arm's vacuum pipeline;

• Aeroengine Lubricating Oil Nozzle Endoscope: Detects carbon deposits on the annular side wall of nozzles and blockages in flow holes.

Technical Parameters ◢

FAQ ◢

1. How to handle blurry imaging?

First, check if the detected target is within the 5-50mm focusing range. Meanwhile, ensure the lens is free from dirt or obstructions—clear imaging can be restored after cleaning the lens surface.

2. Is manual adjustment required for the focusing function?

The module adopts a fixed-focus design with a focusing range of 5-50mm, covering the distance requirements of most detection scenarios without the need for manual adjustment.

3. What is the product's warranty period?

We offer a 1-year replacement service and an extended 10-year warranty, fully demonstrating its outstanding reliability and durability in design and manufacturing.

4. Which medical devices is it suitable for?

It is mainly applied to medical rigid endoscopes requiring a direct forward field of view, such as otolaryngology examination scopes, superficial cavity endoscopes, and direct-view imaging systems for certain minimally invasive surgeries.
