SF-C1011USB-D3.3-720P60
SINCEREFIRST

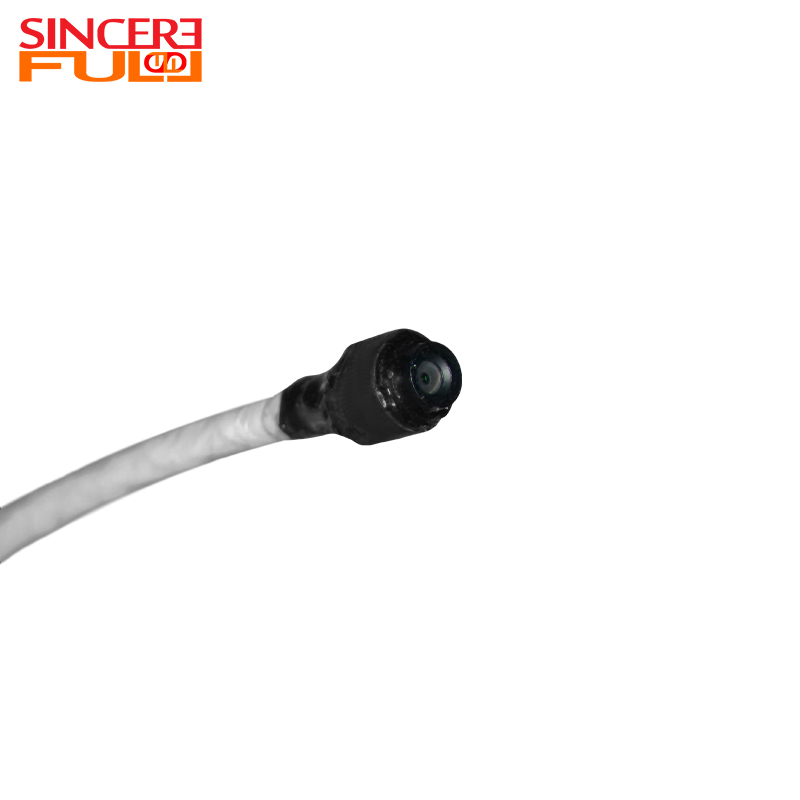

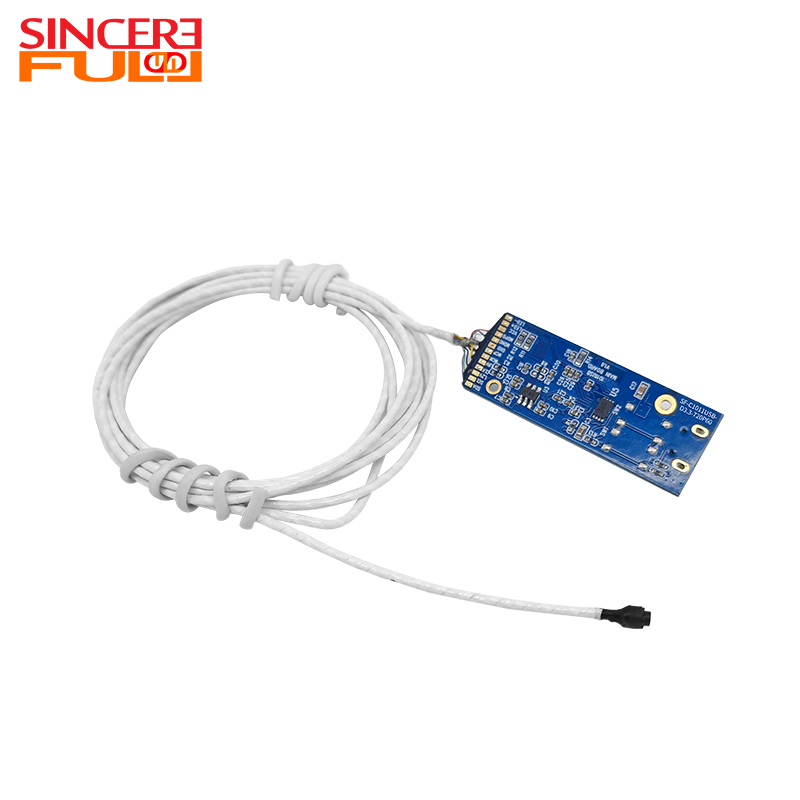

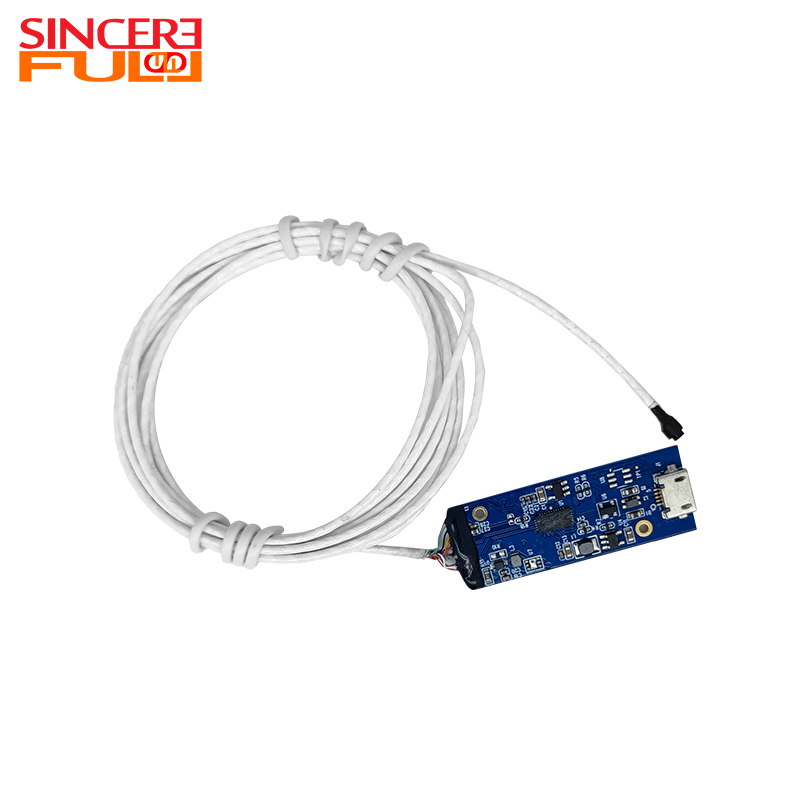

This 3.3mm HD USB endoscope camera module uses the OCH1A10 high-performance sensor, and through the 3.3mm ultra-fine tube diameter design, it can perform fine inspection tasks in various narrow Spaces. Its 720P resolution and 1.25mm ultra-short focal length clearly capture details in the 10-100mm focus range, and the F4 aperture balances brightness and depth of field to ensure stable image quality at different distances. The 95° wide field of view Angle covers a large range of observation areas, and the TV distortion rate is less than -2%, restoring the real space proportion. The built-in LED lighting system provides uniform fill light to solve the imaging problem in dim environments. USB interface to achieve plug and play, support 60FPS smooth video transmission, compatible with mainstream detection software. The endoscope camera module is suitable for industrial inspection, medical equipment. |  |

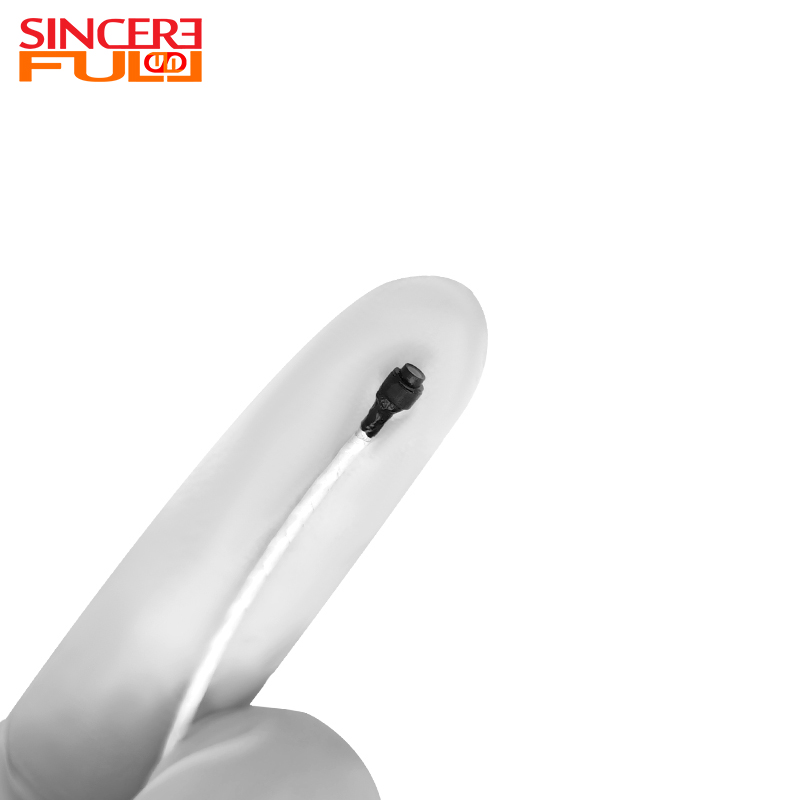

1. Ultra-fine detection capability: 3.3mm pipe diameter can penetrate into the narrow space of more than 4mm, suitable for internal inspection of precision instruments, micro-mechanical observation and other scenarios.
2. Hd dynamic imaging: OCH1A10 sensor with 720P resolution, output 60FPS smooth video, 1.25mm ultra-short focal length with 95° field of view Angle, clearly present a large observation area within 10-100mm distance, TV distortion rate is less than -2% to ensure geometric accuracy.
3. Intelligent lighting system: Built-in LED supports multi-level brightness adjustment, providing uniform lighting in dim environments such as pipes and walls to solve the problem of reflection and shadow interference.
1. Industrial inspection: Explore the internal lubrication state of micro-bearings, the quality of electronic connectors solder joints, and replace traditional microscopes to improve efficiency.
2. Medical equipment: Observe the assembly accuracy of optical components inside the endoscope instrument and assist in fault location.
3. Security monitoring: Check the inner sandwich of baggage and vehicle chassis structure to enhance the depth of security inspection.

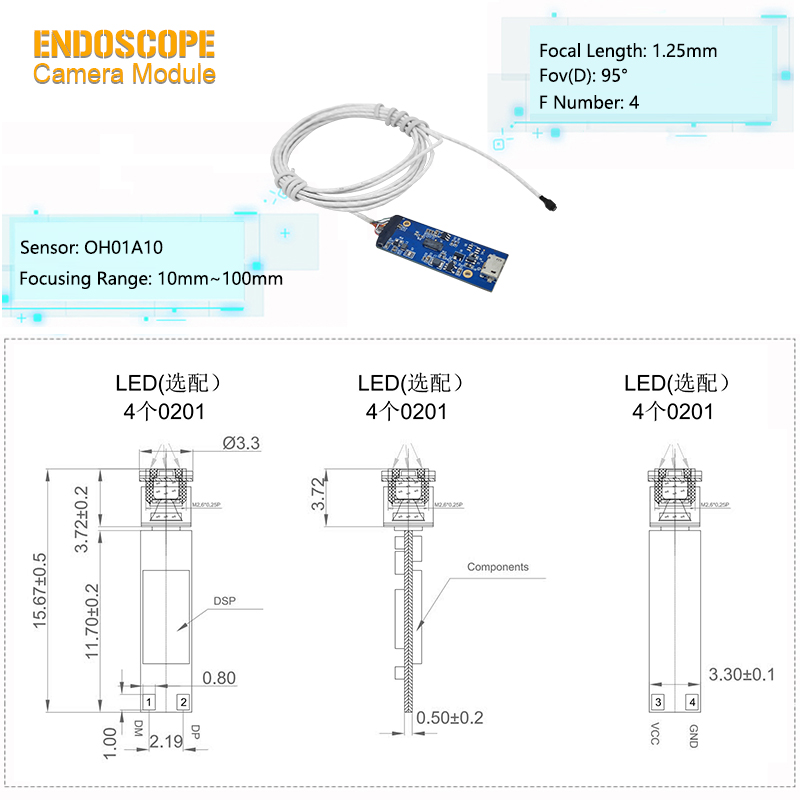

Product Name | 720P 60FPS endoscope camera module with led |
Basic tolerance | ±0.1mm |

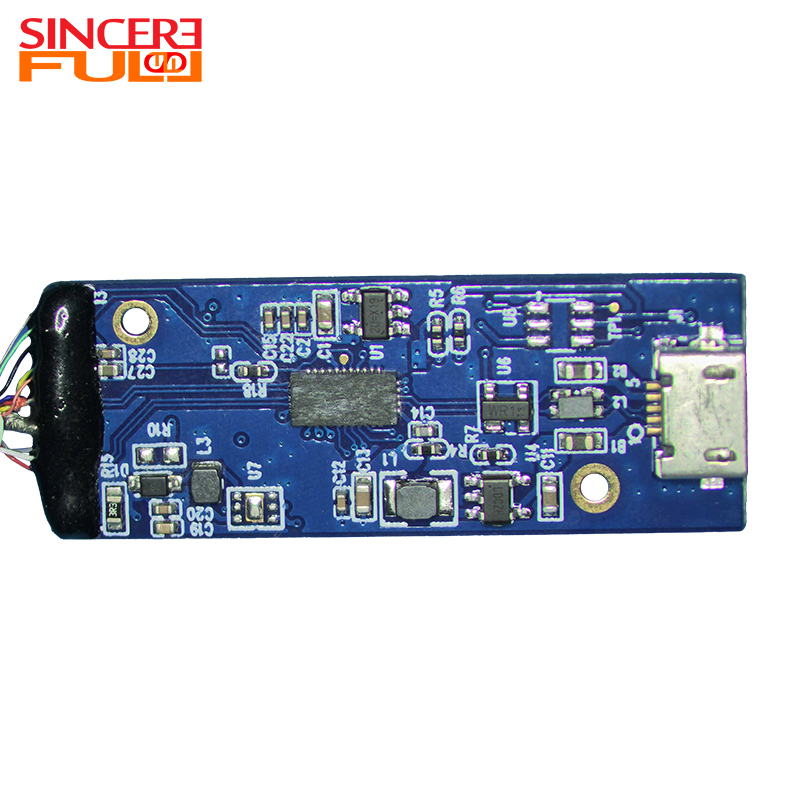

DSP | USB |
Sensor | OH01A10 |
Focusing Range | 10-100mm |
Focal Length | 1.25mm |
F Number | 3.58 |
FOV(D) | 95° |
TV Distortion | ＜-2% |
Diameter | 3.3mm |
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
2. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
3. How to evaluate the cost performance of the module?
For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.
