Micro 1MP OV9734 Sensor Wide Angle Side View Inspection Endoscope Camera Module
You are here: Home » Products » By Diameter » 1.2mm-10mm Endoscope Camera Module » Micro 1MP OV9734 Sensor Wide Angle Side View Inspection Endoscope Camera Module

Success Cases

Micro 1MP OV9734 Sensor Wide Angle Side View Inspection Endoscope Camera Module

This 1MP OV9734 endoscope camera features a 6mm diameter, 95°-140° DFOV, fixed focus, 1280x720 resolution at 30fps, and IP67 waterproof rating, making it ideal for medical and automotive inspections.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C1019USB-D6.0-SV-L25-D110

  • SINCEREFIRST


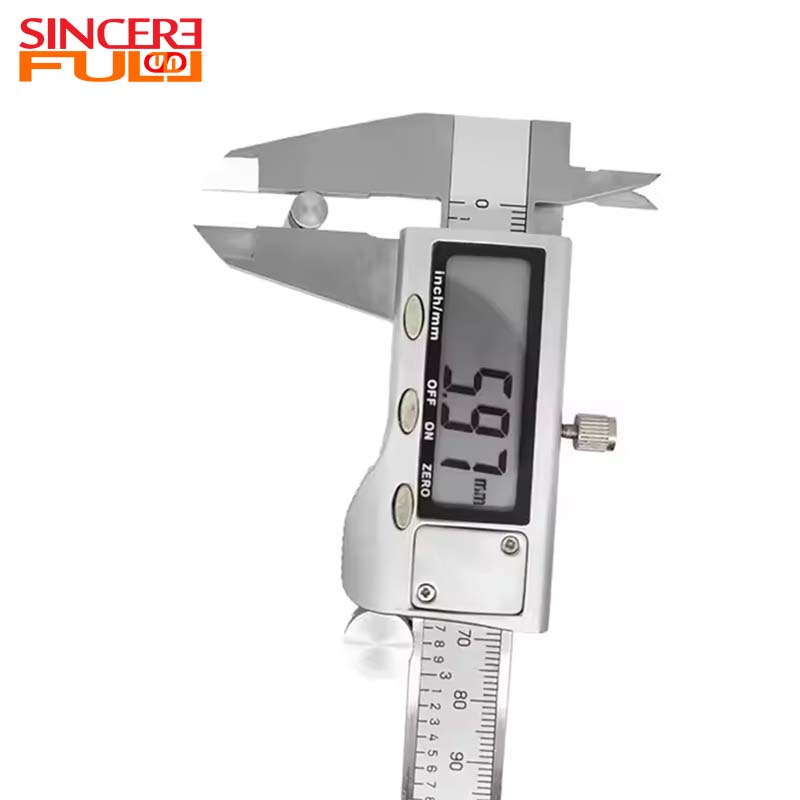

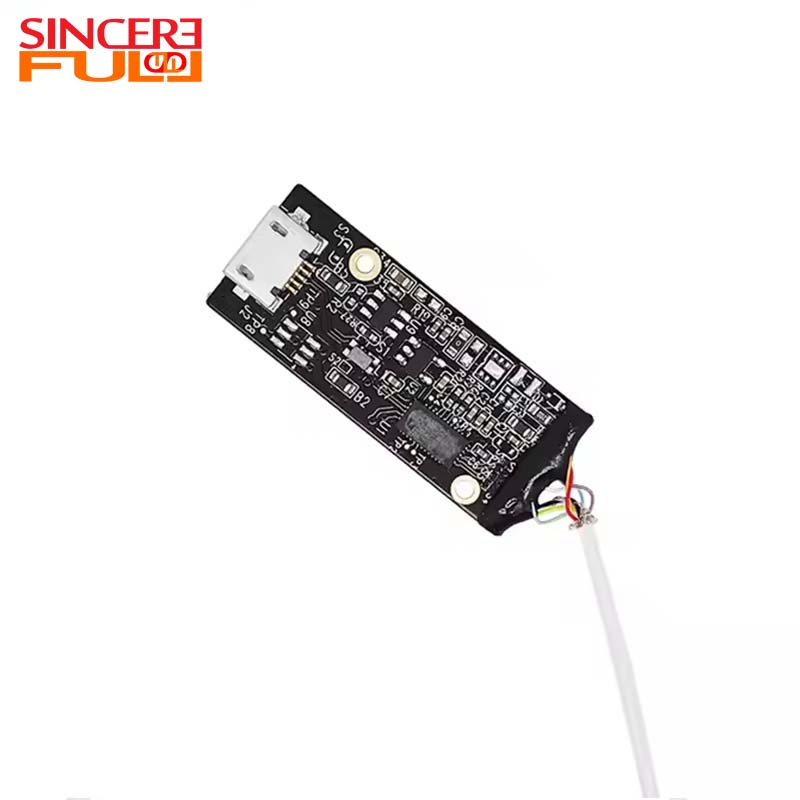

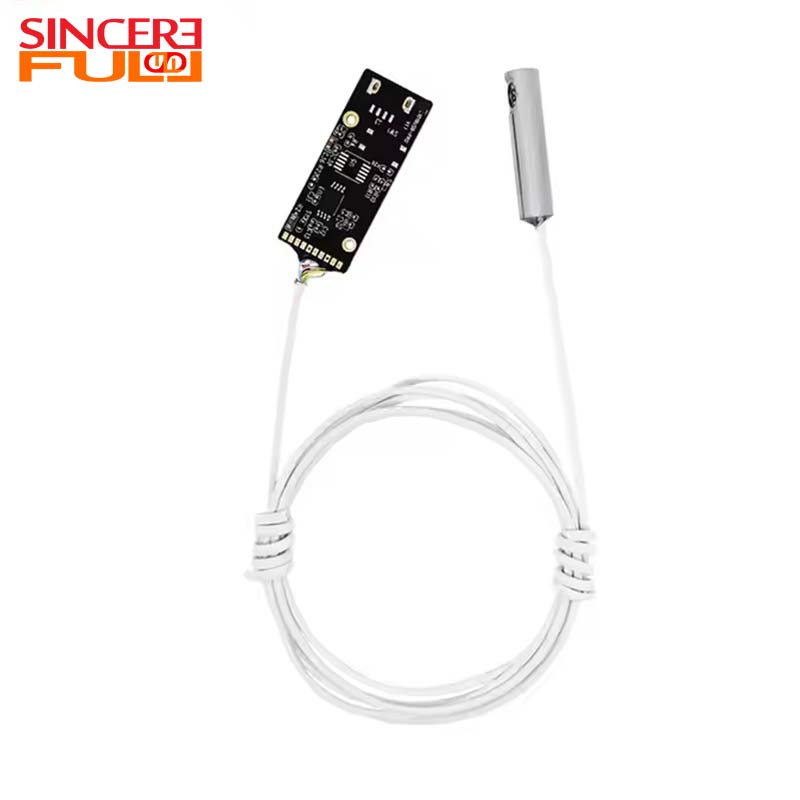

This is a 1MP OV9734 side-view inspection endoscope camera module, featuring a compact design with a diameter of just 6mm.


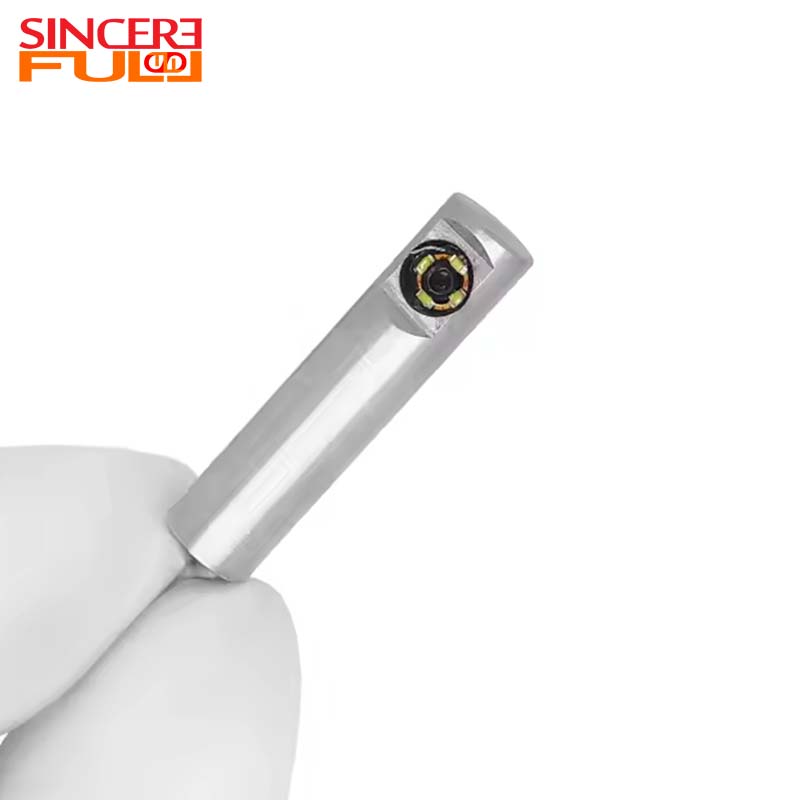

This versatile wide angle camera module offers selectable diagonal fields of view: 95°, 110°, and 140° DFOV. With a fixed focus lens and a depth of field ranging from 10mm to 100mm, this side view camera module employs four adjustable bright LEDs to enhance visibility.


Capable of achieving 1280x720 resolution at 30fps, it boasts an IP67 waterproof rating, making it ideal for various applications, including oral and medical endoscopes, gynecological endoscopes, automotive inspections, and pipeline inspections. Perfect for those needing a reliable micro camera module for intricate inspection tasks, this endoscope camera module delivers excellent performance and durability.


Wide Angle camera Module


Product Advantage ◢

Design: Diameter of only 6mm, suitable for tight spaces.

DFOV: Available in 95°, 110°, and 140° diagonal fields of view.

Resolution: Offers 1280x720 resolution at 30fps, with fixed focus lens (10-100mm depth of field).

Durable and Waterproof: IP67 rating, equipped with 4 adjustable bright LEDs for enhanced visibility.

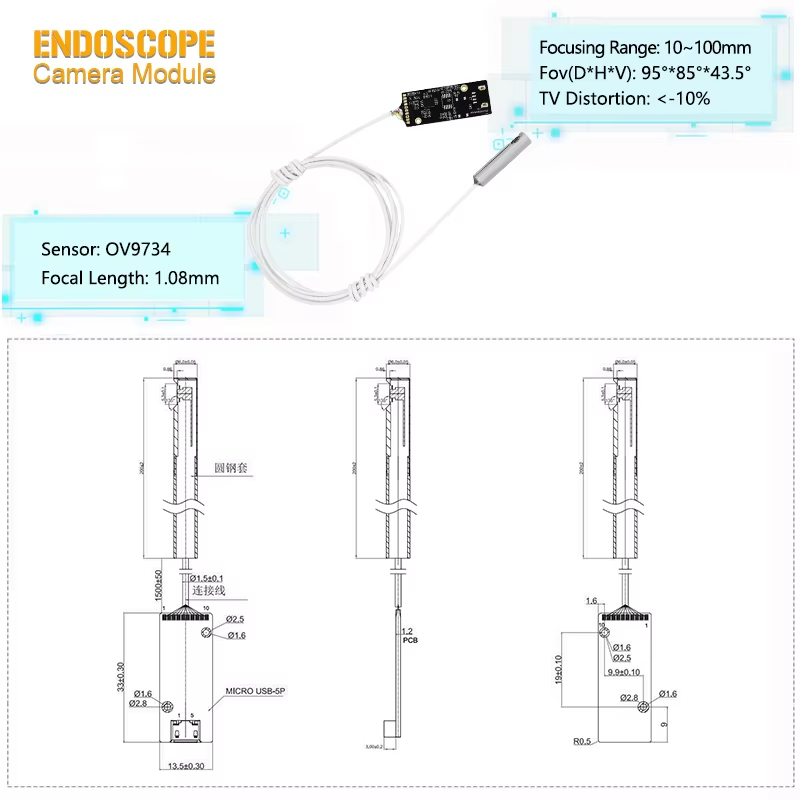

Technical Parameters ◢

Product Name

Side View Wide Angle endoscope camera module

Features

endoscope camera module

Pixel Size

1MP

Sensor

OV9734

TV Distortion

<-10%

Focal Length

1.08mm

FOV(D)

95°, 110°, 140°

Trademark

SINCERE FIRST

Interface

USB2.0

Focusing Range

10-100mm


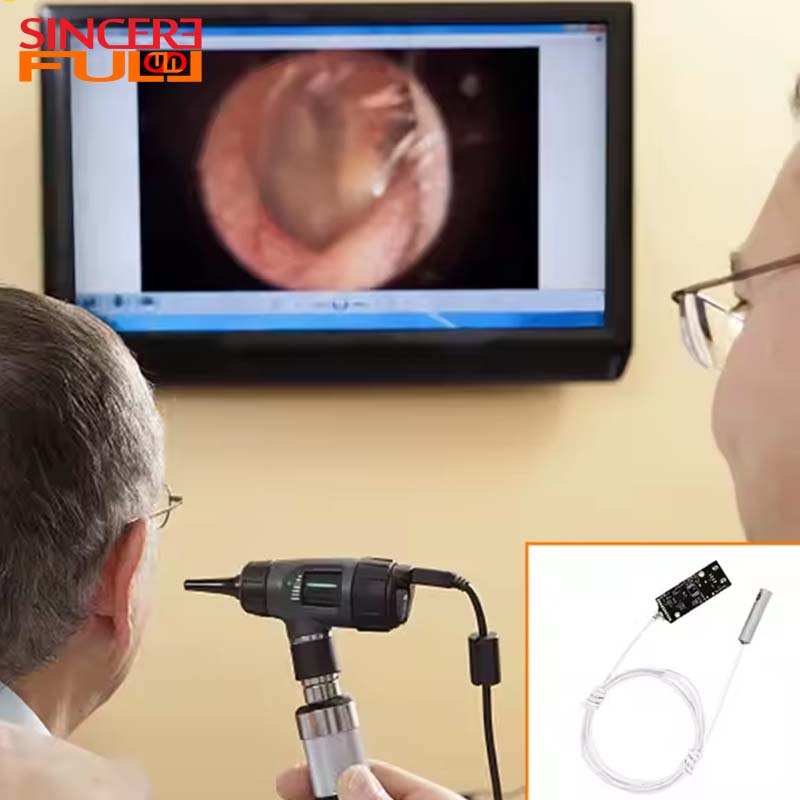

Application of Endoscope Camera Module

1. Precision dental treatment: root canal 3D navigation: 140° ultra-wide Angle covering multiple canals, 6mm diameter directly to the molar area.


2. Automobile manufacturing quality control: in-cylinder direct injection nozzle detection, 140° Angle to capture the full picture of the 8-hole injector.

Gearbox valve body maintenance, side view structure to avoid oil channel occlusion, 10-100mm depth of field to adapt to different layer depth.


3. Aviation precision maintenance: engine turbine disc inspection, IP67 protection against aviation kerosene corrosion. The inner wall of the actuator is worn, and the diameter of 6mm passes through the Φ6.5mm detection hole.



FAQ


1. How does the endoscope camera module work?

The endoscope camera module collects the internal image through the front optical lens, converts it into electrical signal by CMOS or CCD sensor, and then optimizes it through image processing chip for noise reduction and enhancement, and finally outputs high-definition video signal. Some modules support wireless transmission or fiber optic signal transmission, suitable for medical or industrial inspection scenarios.


2. Why is low illumination performance important for endoscope modules?

In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.


3. What is the significance of the depth of field range of the module?

Large depth of field (such as 5mm to 50mm) can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.
