Availability: | |
---|---|
Quantity: | |
SF-C2015USB-1080P-D8
SINCEREFIRST
This 2MP Endoscope Camera Module, featuring a compact 8mm diameter design ideal for medical applications. This high-quality 1/5" 2 Mega sensor delivers crisp 1080P video at 30fps, ensuring excellent imaging for Medical Borescope Inspection tasks. With dimensions of 32.4*13.4*3.6mm, it is perfect for miniature setups. The USB Endoscope Camera Module offers plug-and-play functionality and is UVC compliant, making integration effortless. It outputs MJPG and YUV formats via USB 2.0 UVC and supports USB2.0 OTG. The recommended focusing range of 30-50mm and IP67 waterproof rating enhance its usability, especially for medical applications. |
Features ◢
2MP, 1080P at 30fps.

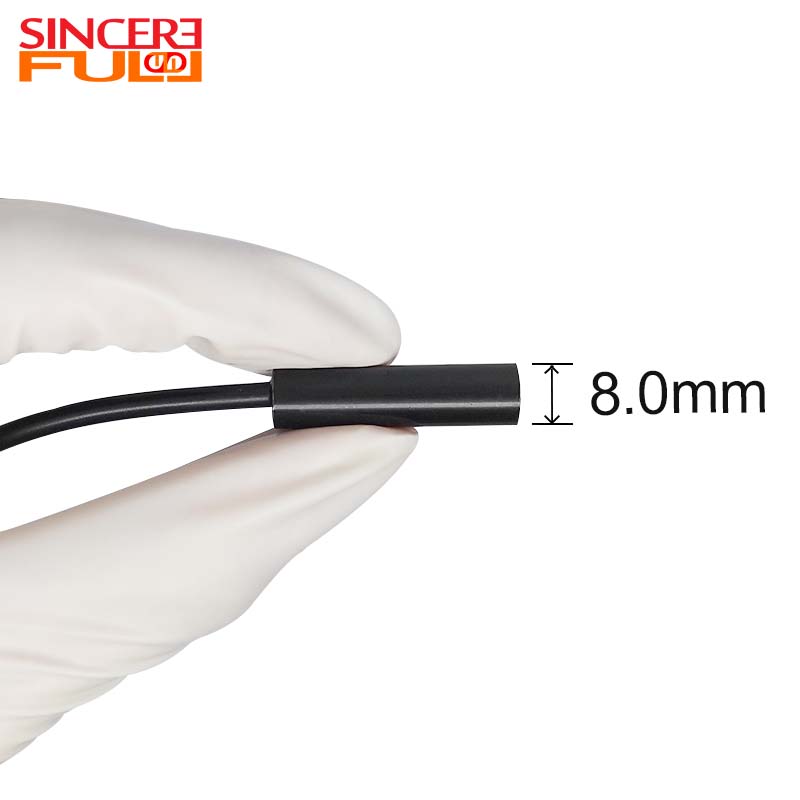

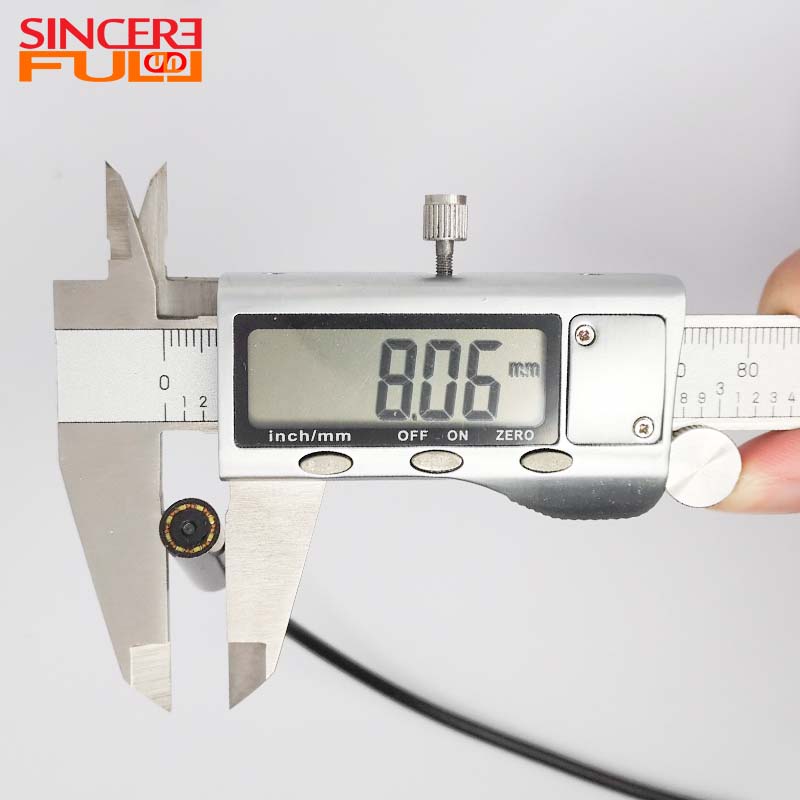

8mm diameter, 32.4*13.4*3.6mm.
USB Endoscope Camera Module, plug-and-play, UVC compliant.
Suggested 30-50mm, high-quality image.
IP67 waterproof, suitable for medical use.
Application Of Endoscope Camera Module ◢
Medical endoscope
hysteroscope
otoscope
Product Details ◢
Model Number | SF-C2015USB-1080P-D8 |
Series | Endoscope Camera Module |
Product Name | Inspection Endoscope Camera Module |
Features | Borescope Camera Module |
Focal Length | 2.63mm |
Application | Industrial, Medical |
Fov(D) | 60° |
Application | Medical |
FAQ ◢
1. What is a endoscope camera module?
A1: Endoscope camera modules are crucial for visual inspections across industries like healthcare, manufacturing, and home repairs. They enable real-time monitoring in hard-to-reach areas and feature LED lights for clear imaging in low light. Available in flexible and rigid designs, they connect via USB or HDMI, making them ideal for medical diagnostics, industrial assessments, and plumbing inspections.
2. Are you factory or trade company?
A2:We are a leading factory dedicated to producing high-quality smart camera modules in a sterile, controlled environment. Our trained team follows strict cleanliness protocols, ensuring uniformity and quality throughout production. We emphasize excellence with rigorous inspections and testing, supported by a strong in-house R&D system that fosters continuous innovation and helps us maintain our edge in the competitive market.
3. Why do Otolaryngology departments need ultra-small diameter modules?
With narrow ear/nasal space, modules with a diameter of less than 3mm can reduce patient discomfort while maintaining high resolution (e.g., ≥300 line pairs /mm) to identify small lesions.
4. How to choose the module suitable for car maintenance?
It is necessary to have an oil-proof lens, adjustable focal length (such as 10-100mm), LED strong light, some with magnetic probes or 360° rotating head to check the engine dead Angle.
5. What are the special requirements of laparoscopic surgical modules?
Anti-fogging design (lens heating or anti-fogging coating), 3D imaging capability, instrument channel integration, and color reproduction must be accurate (e.g., distinguishing tissue oxygen status).
