SF-C2015USB-1080P-D8 (with Steel Sheel)
SINCEREFIRST
| This 8mm Diameter 2MP 1080P HD Image USB Interface Endoscope Camera Module is a fixed-close-range imaging module built for high-precision visual capture within 30mm to 50mm working distances for embedded installation and precision image acquisition. Fitted with an 8±0.1mm round steel sheath probe, this standardized-sized module boasts outstanding compatibility to match most reserved mounting holes for effortless assembly. Equipped with a 2MP image sensor and F2.8 large aperture optics with a 2.63mm focal length, it outputs native 1080P full HD footage to restore intricate object details. The 60° diagonal field of view pairs with strict optical tuning to keep distortion below 1%, maintaining accurate geometric contours and delivering reliable data for observational measurement. It features preset fixed focus ranging from 30mm to 50mm to sustain consistent sharpness without manual focusing. The integrated USB Type-A port supports UVC driver-free output, allowing plug-and-play access across mainstream devices and cutting down integration costs. Fully compliant with RoHS regulations, this all-in-one imaging module balances structural durability, ultra-low distortion and simplified deployment to fit various close-range high-precision shooting scenarios |  |
Ultra-low Distortion (＜1%): Optimized optical structure suppresses geometric distortion to ensure precise shape and size observation.
1080P Full HD Imaging: 2MP sensor delivers high-resolution footage to capture subtle details for accurate visual identification.
8mm Standard Steel-sheathed Probe: Universal structural size elevates device compatibility and simplifies installation procedures.
Dedicated Close-range Focus: Pre-calibrated 30–50mm fixed focus maintains steady sharpness and eliminates frequent refocusing.
Product Name | 8mm Diameter USB2.0 Endoscope Camera Module |
F.NO | 2.8 |
| Focus Length | 2.63mm |
| Resolution | 1080P |
| Pixel | 2MP |
| Pixel Size | 1.6μm |
FOV(D) | 60° |
Sensor Size | 1/5inch |
Focusing Range | 30mm~50mm |

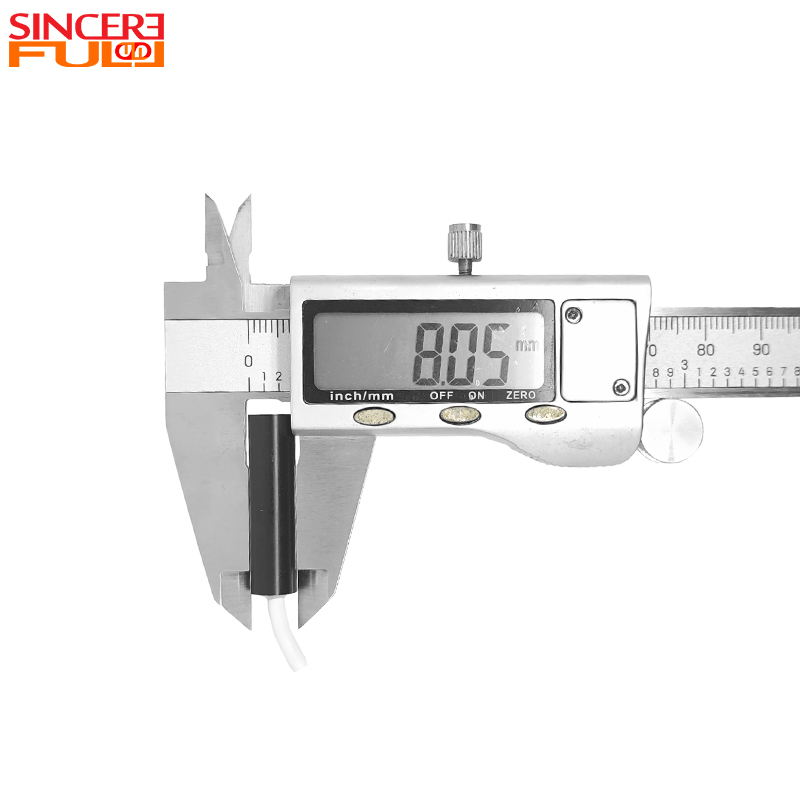

Diameter | 8mm |
| Distortion | <1% |
Output | USB2.0 UVC |
Waterproof | IP67 |
Output Format | YUV/MJPEG |
Brand | Sincerefirst |
Precision Visual Detection: Can observe tiny parts, solder joints and surface defects with high accuracy via its low-distortion and high-definition imaging capability.
Embedded Equipment Vision: Can be deployed as a standardized imaging unit inside machinery and testing instruments for long-term fixed-point image acquisition.
Close-range Image Archiving: Can record and archive high-definition material of product details and component status for quality review.
Standardized Module Matching: Can pair with devices equipped with 8mm mounting holes, enabling one-step installation and immediate operation.
Yes. The optical design strictly limits distortion to <1%, ensuring geometric fidelity and accurate dimensional analysis for precision inspection tasks.
Yes. It features an 8mm Len Diameter with steel sheel IP67 Waterproof, providing high durability and seamless integration into standard 8mm mounting fixtures.
Yes. It is factory-calibrated for a fixed focus range of 30mm to 50mm, ensuring optimal sharpness on tiny parts and solder joints without manual adjustment.
Yes. The USB 2.0 UVC interface requires no additional drivers, enabling immediate compatibility with Windows, Linux, and Android systems.
