SF-C1011USB-D3.3-720P60
SINCEREFIRST

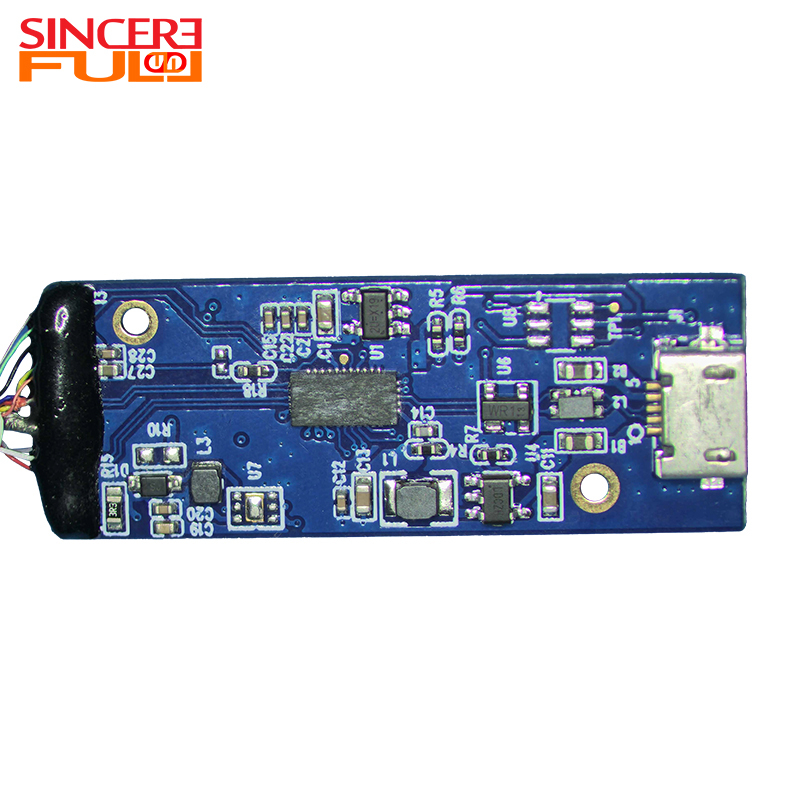

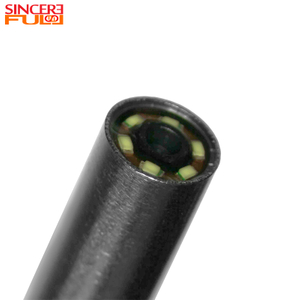

This is the 3.3mm Sensor OH01A10 Medical USB 2.0 Endoscope Camera Module with LED Light, a high-performance solution specifically designed for accurate imaging in confined spaces. It is core-equipped with the OH01A10 color sensor and adopts an innovative split-type structural design — it connects to the DSP processing board via high-stability wire bonding, and finally achieves efficient image output through the Micro USB interface, combining excellent installation adaptability and stable signal transmission. With an overall diameter of only 3.3mm, the module is paired with a 1.25mm short-focus lens and an optical configuration of F-number 3.58, allowing it to easily access narrow lumens or the interior of equipment in medical minimally invasive and industrial testing scenarios. Its core advantage lies in the synergistic design of the 10-100mm wide focusing range and 95° large field of view (FOV): the 10mm short-distance focusing can clearly capture details such as tiny lesions and defects in precision components, while the 100mm long-distance focusing can fully cover the inspection area without frequent adjustment of the module position. Combined with the 95° wide-angle view, it significantly reduces imaging blind spots. Especially in confined spaces such as otolaryngological lumens and laparoscopic surgical fields, it can present a wider range of observation images at one time, which not only improves the efficiency of diagnosis and operation but also reduces the risk of omissions caused by limited field of view. The module supports 720P@60fps high-definition video output, with TV distortion controlled within -2%, resulting in minimal edge distortion of the image. Additionally, it can be optionally equipped with 4 high-brightness LED fill lights of 0201 specification to ensure uniform illumination in low-light environments. The product is manufactured using the SMT process and AA (Active Alignment) process, ensuring consistent imaging through micron-level calibration. It has also passed multiple international testing and certifications including CE, FCC, RoHS, and Reach, featuring both compliance and reliability. |  |
1. High definition imaging: OH01A10 sensor and 1.25mm focal length lens are used to ensure clear and sharp imaging at close range (10mm-100mm).
2. Low distortion (TV distortion < -2%) : 95° wide viewing Angle (FOV) combined with optical optimization makes image edge deformation minimal and improves diagnostic accuracy.
3. High brightness LED lighting: Integrated LED light source to ensure that even lighting can be provided in low light environments to avoid shadow interference.
1. Medical Diagnostics: Ideal for ENT procedures including sinus examinations, vocal cord inspections, and pediatric bronchoscopy.
2. Minimally Invasive Surgery: Enables precise visualization during laparoscopic and arthroscopic procedures.
3. Ear, nose and throat (ENT) : nasal cavity, ear canal, throat and other parts of the examination and minimally invasive surgery.
Product Name | Miniature endoscope camera module with led |
Basic tolerance | ±0.1mm |
DSP | USB |
Sensor | OH01A10 |
Focusing Range | 10-100mm |
Focal Length | 1.25mm |
F Number | 3.58 |
FOV(D) | 95° |
TV Distortion | ＜-2% |
Diameter | 3.3mm |
1. Why is low illumination performance important for endoscope modules?
In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.
2. What is the significance of the depth of field range of the module?
Large depth of field (such as 5mm to 50mm) can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.
3. How to achieve waterproof and sterilization design?
The medical-grade module uses IP68 waterproof seal, the housing material is resistant to high temperature and pressure (such as epoxy resin), and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design (IP54).
