SF-C0115USB-D2.8-PRO-TypeC V1.2
SINCEREFIRST
This is 2.8mm Type-C CMOS sensor endoscope camera module with LED. It is equipped with a CMOS color image sensor and a wide-angle lens with a diagonal field of view of 105°, paired with a 0.5mm focal length. The combination of its 3~50mm focusing range and the wide-angle lens enables it to capture a larger range of scenes. Moreover, the focusing capability from 3mm (short distance) to 50mm (medium distance) allows the module to clearly present close-up details while completely capturing the image of slightly distant areas in narrow spaces, achieving an efficient combination of visual breadth and precise focusing. The module has an aperture of F4.5, and the distortion is controlled to be less than -10%, ensuring the stability and reducibility of imaging. It adopts a manual focusing design for easy precise adjustment according to actual needs. The lens integrates 4 0201LED lights, which can provide sufficient illumination to ensure clear images even in dim environments. In terms of interface, it uses USB2.0 and supports the UVC protocol, featuring strong compatibility and convenient connection. The product adopts a split design, with a lens diameter of 2.8mm and a steel sleeve, combining a compact size with reliable protection. The SMT process and AA manufacturing process are applied in the production process, ensuring high precision and consistency of the product, making it suitable for various precision detection scenarios. |  |
•Superior View & Focusing: 105° wide-angle lens with 3~50mm focus range captures large scenes and focuses precisely from 3mm (close) to 50mm (medium), balancing detail and wide shots in tight spaces.
•Reliable Imaging: F4.5 aperture and < -10% distortion ensure stability; 4 integrated 0201LEDs provide ample light for clear shots in dim environments.
•Easy To Use & Compatible: Manual focus for precise adjustment; USB2.0 with UVC protocol enables easy connection and broad device compatibility.
•Smart Design & Quality Build: 2.8mm steel-sleeved lens (compact yet protected) with split design; SMT and AA processes ensure high precision and consistency.
•Industrial Inspection: Inspect gaps in mechanical equipment and pipeline interfaces, such as the status of components in automobile engine compartments and corrosion or blockages in the inner walls of industrial pipelines. The wide angle and focusing range are suitable for observation at different distances.
•Electronic Maintenance: Overhaul the interior of mobile phones, computers, etc., check the welding of motherboard components and short-circuit traces. The small lens can easily enter narrow spaces, and manual focusing + LED lights ensure clear details.
•Medical Assistance: Assist in dental checks of tooth gaps and gums, and otolaryngological examinations of ear canals and nasal cavities, helping to detect potential problems.
•Construction Engineering: Inspect the direction of wall pipelines, cracks and minor damages to ancient buildings. The split design + steel-sleeved lens is suitable for operation and environment.
•Cultural Relic Restoration: Go deep into the gaps and holes of cultural relics to observe internal structures and damages. High-precision imaging meets the needs of detailed observation.

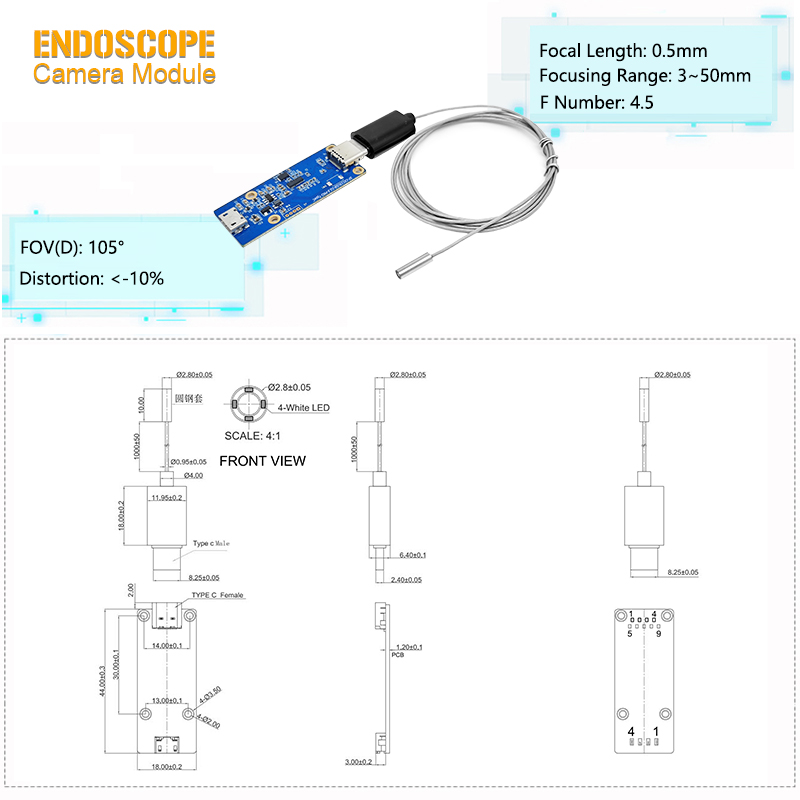

Product Name | LED Endoscope Camera Module |
Basic tolerance | ±0.1mm |
DSP | USB2.0 UVC |
LED | 0201 LED |
Focusing Range | 3-50mm |
Focal Length | 0.5mm |
F Number | 4.5 |
FOV(D) | 105° |
TV Distortion | ＜-10% |
Connector | Mini USB-5P |
1. What is a endoscope camera module?
The endoscope camera module is an essential part of endoscopic equipment, enabling the capture of high-quality images or videos of internal body structures. It usually consists of an image sensor, optical lens, light source, connection interface, and a protective casing. This module plays a vital role in assisting healthcare providers to examine and diagnose the condition of internal organs or cavities during medical procedures. It offers live visual feedback, supporting surgical decisions and interventions with accurate, real-time imagery.
2. Are you a factory or a trading company?
We are a leading manufacturer of smart camera modules, operating an in-house production line with 10 dust-free workshops. Our workers adhere to strict production guidelines to ensure uniformity and dependability throughout the entire process. To preserve the clean room environment, the team is thoroughly trained and wears specialized dust-free attire. Quality control is a top priority for us, with each product undergoing thorough inspections at various stages to guarantee the highest standards of performance and reliability.
3. Which devices can this endoscope module be connected to?
This endoscope camera module can be connected via the USB interface to most computers (including Windows, Mac OS, and Linux systems), laptops, and some tablets that support USB devices. As long as the device has a USB interface and can recognize external devices, this module can be used.
4. What are the specifications for the diameter of endoscope modules? What scenarios are different diameters suitable for?
The diameters of borescope modules usually have specifications of 1.6mm (super miniature), 2.8mm (miniature), 3.9mm (standard), 5mm (general-purpose), etc. 1.6mm modules are suitable for extremely narrow space inspection (such as the inside of precision instruments), while 3.9-5mm modules are more suitable for routine applications such as industrial pipelines or medical endoscopy. When choosing one, you need to consider the size of the inspection space and the imaging needs.
5. What is the effect of field of view (FOV) on detection? How to choose the right FOV?
Field of view determines the imaging range, narrow angle of view (such as 60 °) is suitable for high-precision measurements, distortion is small but the field of view is limited, wide angle of view (such as 100 ° +) is suitable for a wide range of rapid detection, but the edge of the possible aberrations, the recommended 75 ° - 90 ° balanced type of industrial inspection, medical endoscopy can be selected more than 100 ° ultra-wide angle.
6. What can be customized for endoscope camera modules?
The endoscopic camera modules we offer offer very many customization options to meet specific needs. You can choose the right software for your endoscope diameter, interface, and device. In addition, customization options also include choosing whether the module comes with a durable steel sleeve for additional protection, dust and water resistance, with certain drop protection features, and whether it comes with built-in LED lighting to ensure that your device is illuminated in low light or no light conditions. Its brightness is adjustable.
