SF-C0115USB-D2.8-PRO V1.2 D105
SINCEREFIRST

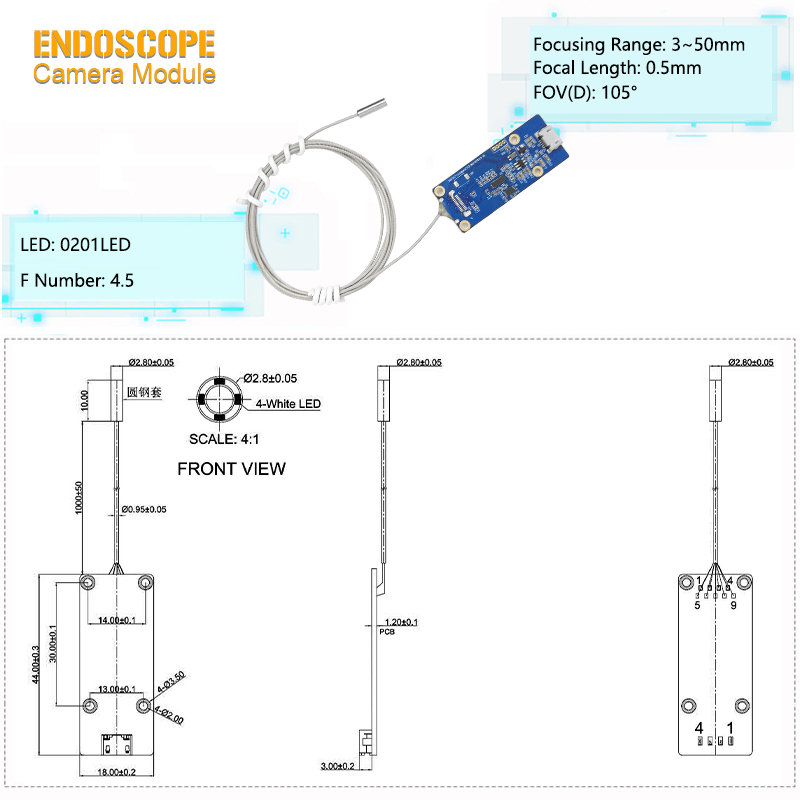

This is a 2.8mm diameter Separated medical industrial LED endoscope camera module. It is equipped with a CMOS color image sensor, featuring 0.08MP pixels, and can stably output QVGA resolution images, ensuring true color reproduction and basic imaging clarity. Its core advantage lies in the ultra-wide-angle lens with a viewing angle of up to 105°, combined with an ultra-short focal length of 0.5mm, and a focusing range of 3mm to 50mm, enabling clear wide-range imaging at close distances. In terms of structure, it adopts a Separated design and is connected to the DSP board via bonding wires. The DSP board is equipped with a Micro USB interface and supports USB 2.0 transmission speed and UVC Protocol, which can be directly compatible with mainstream operating systems such as Windows/MacOS/Linux. The lens has a diameter of only 2.8mm and is equipped with an outer Steel Shell, achieving IP67 dust and water resistance. At the same time, it integrates 4 0201-type LED fill lights to provide uniform and sufficient illumination for close-range wide-angle views. The module is manufactured using SMT (Surface Mount Technology) process and AA (Active Alignment) process, and has obtained EU RoHS and CE certifications, ensuring stable and reliable product quality. |  |
Panoramic View: Traditional wide-angle lenses tend to have distortion or fail to focus when shooting at close distances. However, the 0.5mm focal length ensures that at the minimum focusing distance of 3mm, the 105° wide-angle view can still clearly cover a large area, realizing "close-proximity panoramic observation" without the need to repeatedly adjust the distance by moving back, thus greatly improving inspection efficiency.
Strong Compatibility: The DSP board supports UVC Protocol and can be directly connected to mainstream systems such as Windows, Linux, and Android without the need to install additional drivers, enabling plug-and-play functionality. The Separated design, combined with bonding wire connection, allows the lens and control board to be flexibly arranged according to the installation space, adapting to the integration needs of different devices.
Stability and Durability: The 2.8mm-diameter lens with a Steel Shell design can not only penetrate into millimeter-level narrow gaps but also resist slight collisions and friction, extending the service life. The 4 0201-type LED fill lights provide sufficient light, ensuring imaging brightness even in dark cavities or pipelines and adapting to observation in low-light environments.
Minimally Invasive Medical Joint Cavity Inspection: Suitable for observing the interior of joint cavities such as knee joints and elbow joints. The 105° wide angle can reduce the number of times the lens needs to move inside the joint cavity, minimizing irritation to tissues. The 0.5mm focal length can clearly display close-range structures such as synovial folds and minor cartilage damage. The lens with a Steel Shell ensures safety during insertion, and the fill lights solve the problem of low light inside the joint cavity.
Internal Inspection of Industrial Precision Molds: Used for inspecting wear and foreign objects in injection mold runners and stamping mold micro-cavities. The wide-angle lens can observe the overall direction of the runner at one time, while the short focal length can accurately identify burrs or wear marks within 3mm. The Separated design adapts to the compact installation space of mold inspection equipment, and the UVC Protocol facilitates quick connection with inspection terminals.
Internal Maintenance of Home Appliance Compressors: Used for checking the status of valve plates and pipelines inside compressors of refrigerators and air conditioners. The 2.8mm lens with a Steel Shell can pass through the narrow maintenance opening of the compressor. The 105° wide angle covers multiple groups of internal pipelines, and the 0.5mm focal length can clearly distinguish minor scratches on the sealing surface of valve plates. The USB 2.0 speed ensures real-time transmission of maintenance images.
Internal Exploration of Small Cultural Relics: Suitable for non-contact observation of internal features of cultural relics, such as bronze artifact inscription grooves and ceramic micro-cracks. The wide-angle lens reduces the need for touching and adjusting the cultural relics. The short focal length can clearly capture the details of inscriptions within 3~10mm at close range. The LED fill lights avoid damage to cultural relics caused by strong light, while the color sensor restores the true color of the cultural relics.
Product Name | CMOS Endoscope Camera Module |
Image Sensor | CMOS Sensor |
Pixel | 0.08MP |
Focusing Range | 3-50mm |
Focal Length | 0.5mm |
F NO | 4.5 |
Product Type | Endoscope Camera Module |
Led | 0201 Led |
TV Distortion | <-10% |
Feature | CMOS sensor Endoscope Camera Module |
Use anti-bending cables with metal braid reinforcements. Avoid acute bends during use and wrap coils with a diameter greater than 10cm for storage. In industrial applications, consider adding protective spring tubes for strain relief.
For pipeline inspections, cables of 10–30 meters are common. They often include a Kevlar tensile layer and waterproof connectors, ensuring chemical resistance and real-time image transmission despite long-distance use.
The module complies with IP68 waterproof standards and can endure 134°C steam sterilization. Its housing material resists high pressure and temperature. While medical modules offer full sterilization compatibility, industrial versions may opt for basic splash resistance.
It features a 105° ultra-wide-angle lens paired with a 0.5mm ultra-short focal length. Even at the minimum 3mm focusing distance, it can clearly cover a large area for "close-proximity panoramic observation," eliminating repeated lens adjustments and boosting inspection efficiency.
It supports the UVC Protocol, enabling plug-and-play functionality with mainstream systems (Windows, Linux, Android, MacOS) without extra drivers. The Separated design also allows flexible arrangement of the lens and control board to fit installation spaces.
The 2.8mm-diameter lens has an outer Steel Shell for resistance to minor collisions and friction, plus IP67 dust and water resistance. It also integrates 4 0201-type LED fill lights to ensure bright imaging in dark cavities or pipelines.
Does the module support precise focusing, and what about image quality?
