SF-C16USB-D1.6
SINCEREFIRST

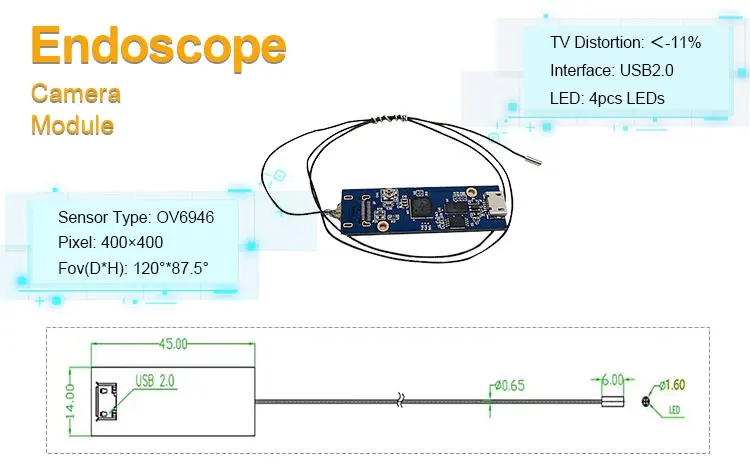

The OVM6496 USB endoscope camera module uses a 1/18-inch image sensor with a 400×400 pixel matrix to output a 0.16MP HD image quality. Its 1.6mm ultra-fine tube diameter design with 4 ring LED fill lights provides uniform lighting in the focus range of 5-50mm, and supports stable operation in a wide temperature environment of -20℃ to 70℃. The optical system has a large aperture of F5.0, 120°×87.5° ultra-wide field of view Angle, 30FPS real-time transmission through the USB2.0 interface to achieve smooth imaging, lens distortion control is better than the -11% standard, especially suitable for small space industrial inspection, mechanical exploration and outdoor work scenes, taking into account the portability and professional image acquisition needs. |  |
1. Ultra-fine diameter design and high adaptability: 1.6mm tube diameter can penetrate into small space, with 5-50mm wide focusing range, flexible response to complex detection environment.
2. Wide-angle distortion-free imaging: 120°×87.5° ultra-wide field of view Angle covers a larger area, distortion control <-11%, to ensure image geometric accuracy.
3. Intelligent lighting system: 4 ring leds provide uniform shadowless lighting, and F5.0 large aperture enhances low-light environment imaging ability.
1. Industrial testing: precision machinery internal exploration, pipeline corrosion detection, welding quality acceptance.
2. Automobile maintenance: internal engine troubleshooting, fuel system inspection.
3. Medical assistance: Visualization of minimally invasive surgery.
Product Name | 1.6mm Endoscope Camera Module |
lmage Device | 1/18” |
Output Interface | USB2.0 |
F No. | F5.0 |
TV Distortion | <-11% @ 0.95Field |
Focus Range | 5-50 |
Operating Temperature | -20°C~70°C |
Frame Rate | 400x400 @ 30fps |
Effective Picture Element | 400(H)X400(V) |
Dynamic Range | 65.8dB @ 4x gain |
1. Can the brightness of the lighting system be adjusted?
Yes, the brightness of the lighting system can usually be adjusted. You can adjust the lighting brightness through the operation interface on the connected device or the control buttons on the module itself (if available) to adapt to different inspection environments.
2. Can the images and videos be saved?
Yes, the operation software on the connected device generally provides the function of saving images and videos. You can save the captured images and videos to the hard disk or other storage media of the device for subsequent viewing, analysis, and archiving.
3. How to achieve waterproof and sterilization design?
The medical-grade module adopts IP68 waterproof seal, the shell material is resistant to high temperature and pressure, and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design.
4. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
5. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
