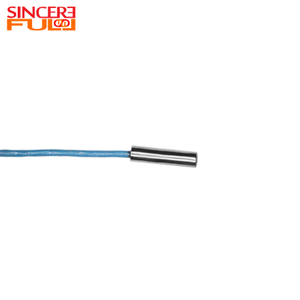

Sensor OCHTA10 Miniature Medical Inspection Endoscope Camera Module

This OCHTA10 mini medical endoscopy camera module adopts a professional-grade medical image sensor with 400 x 400 high-precision pixel array, with individual pixel size of 1.008μm x 1.008μm,
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

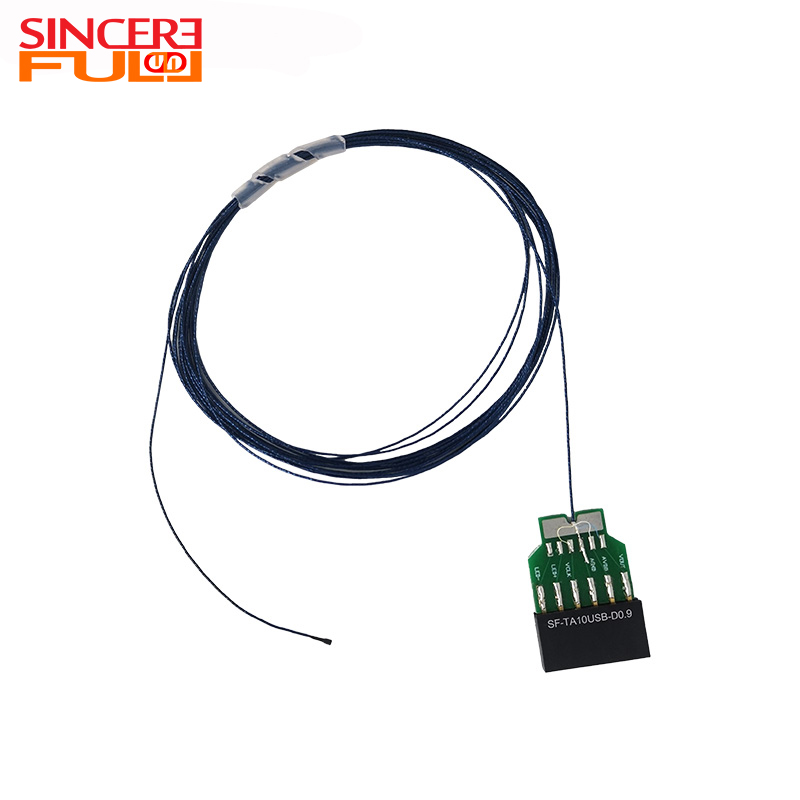

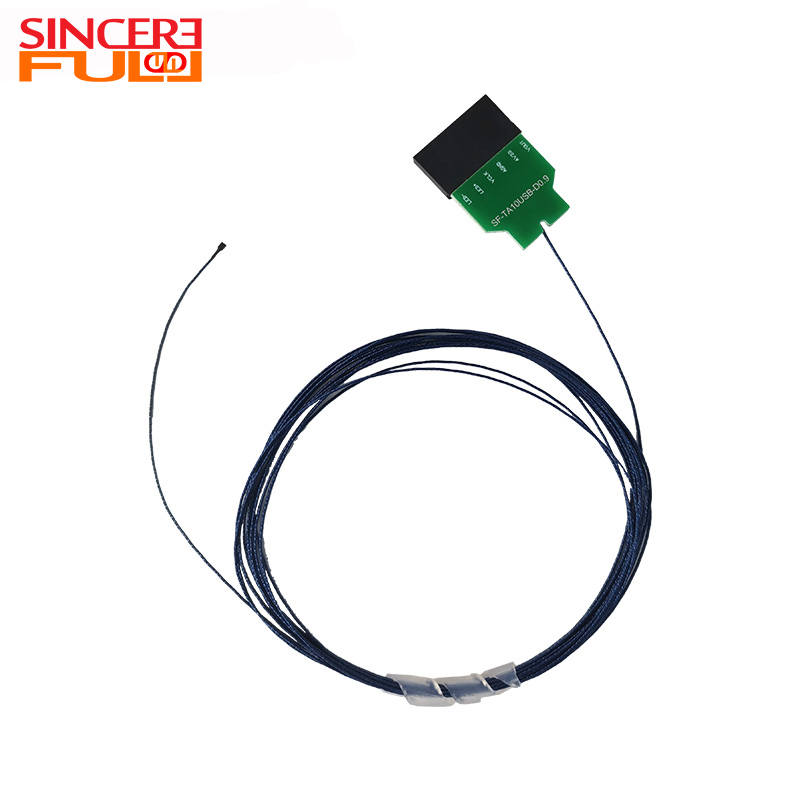

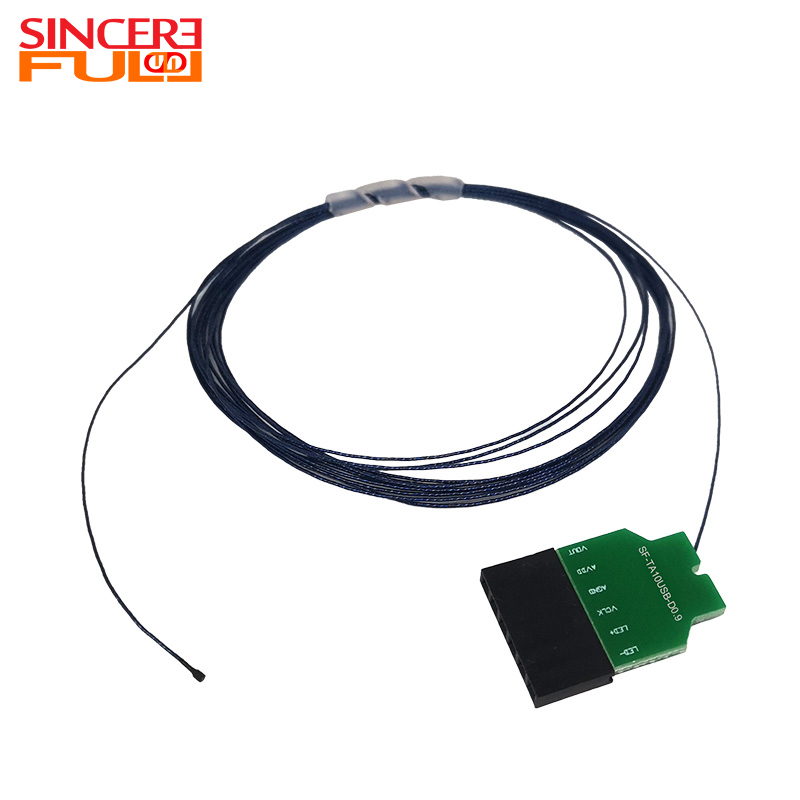

  • SF-TA10USB-D0.9

  • SINCEREFIRST

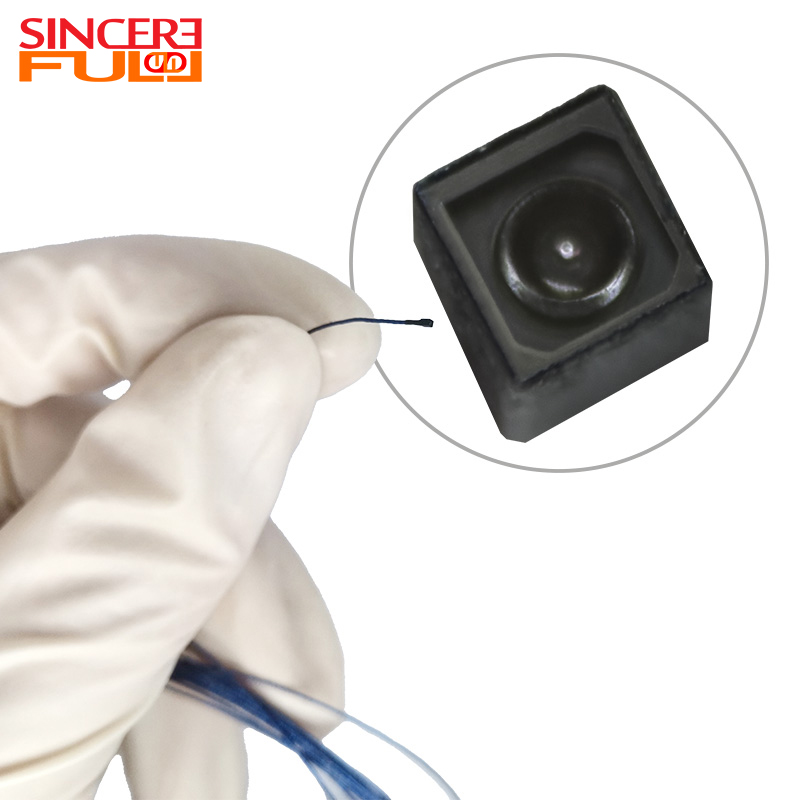

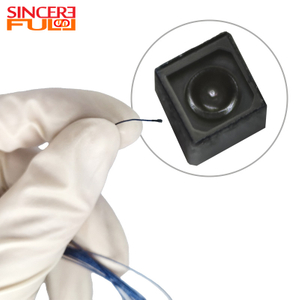

This OCHTA10 mini medical endoscopy camera module adopts a professional-grade medical image sensor with 400 x 400 high-precision pixel array, with individual pixel size of 1.008μm x 1.008μm, which can present detailed and clear microscope-grade images.The 120° ultra-wide field of view design provides healthcare workers with a wider observation range and significantly improves the efficiency of lesion detection.

miniature inspection camera


Product Advantage ◢

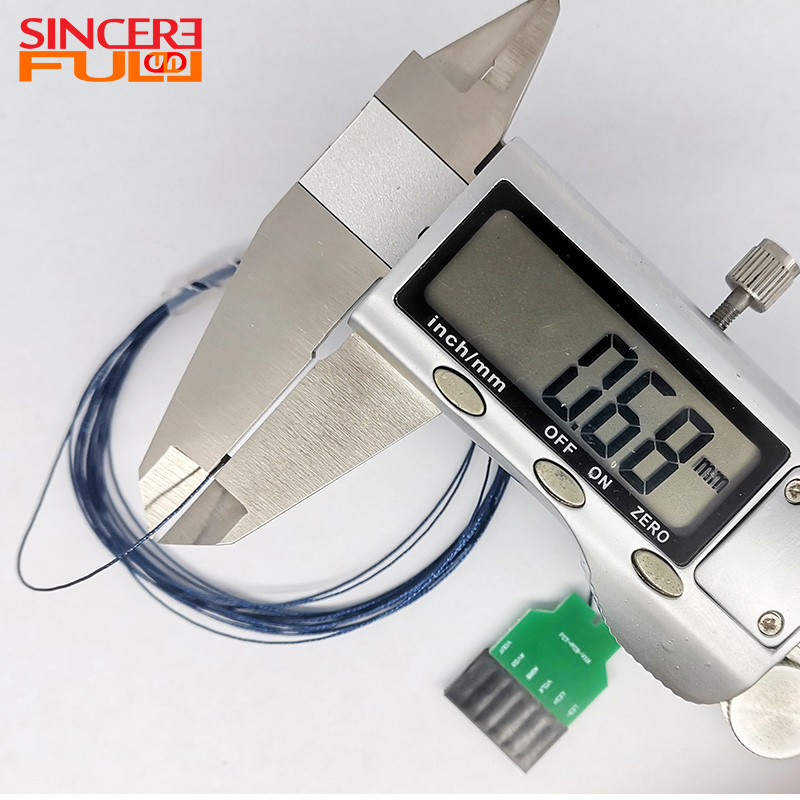

  • 0.9mm diameter

  • OCHTA10 sensor

  • 1/31" inch

  • 400x400 Resolution

  • 120° DFOV

  • Designed for medical and industrial

  • High-quality image

  • UVC compliant, Plug & Play

  • Support USB2.0 UV



Technical Parameters ◢


Product Name

Endoscope Camera Module

Image Sensor

OCHTA10

Diameter

0.9mm

Pixel

400(H)*400(V)

View Angle

120°±6°

pixel area

411.264μm×411.264μm

Replacement

1 Year

Interface

USB

Brand

SincereFirst

Format

YUV&MJPEG


Product Uses ◢

  • Laparoscopy

  • Medical Imaging Equipment

  • Minimally Invasive Surgery

  • Telemedicine


FAQ ◢

Q1: What is a endoscope camera module?

A1: An endoscope camera module is a small camera device attached to the end of an endoscope that is used to capture high-quality images of the inside of the body and transmit them to a monitor for viewing by medical professionals. An endoscope camera module consists of three main components: the camera sensor, the lens system, and the electronic circuitry.


Q2: Are you factory or trade company?

A2: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.


Q3: How to control an endoscope camera module?

A3: To use an endoscope camera module, first connect the camera to a compatible device, such as a smartphone, tablet, or computer. Then, insert the camera into the area you want to examine, such as a body cavity or a confined space. Use the camera's controls to adjust the focus and light as needed.


Q4: What does an endoscope camera module see?

A4: An endoscopic camera module exam uses an endoscope inserted into the body to take pictures or videos of organs and other structures. Healthcare providers use them to screen, diagnose, and treat disease. There are many types of endoscopic camera module exams that can view different organs.


Q5: What can be customized for endoscope camera modules?

A5: The endoscope camera module can be selected as integrated or separated, and the diameter size, and whether it comes with a steel sleeve and LED light can also be customized.
