Mini 0.9mm USB Inspection Endoscope Camera Module

This 0.9mm USB endoscope, featuring the OVM6948 sensor, captures 200x200 resolution images at 30fps, with a 120-degree field of view and a focal range of 3mm to 50mm, ideal for narrow vessels and low-light conditions.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C04USB-D0.9

  • SINCEREFIRST

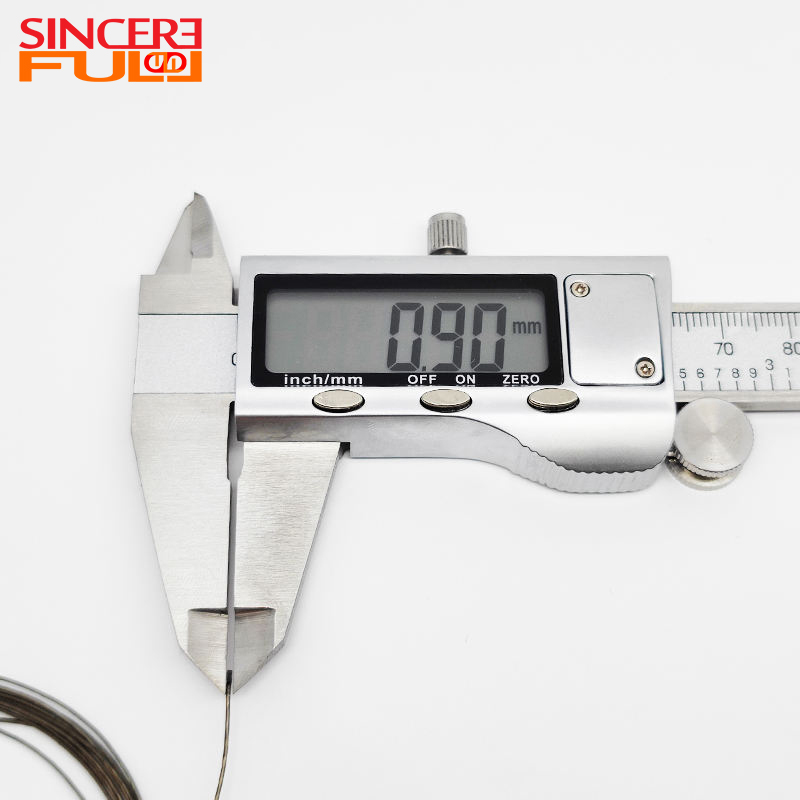

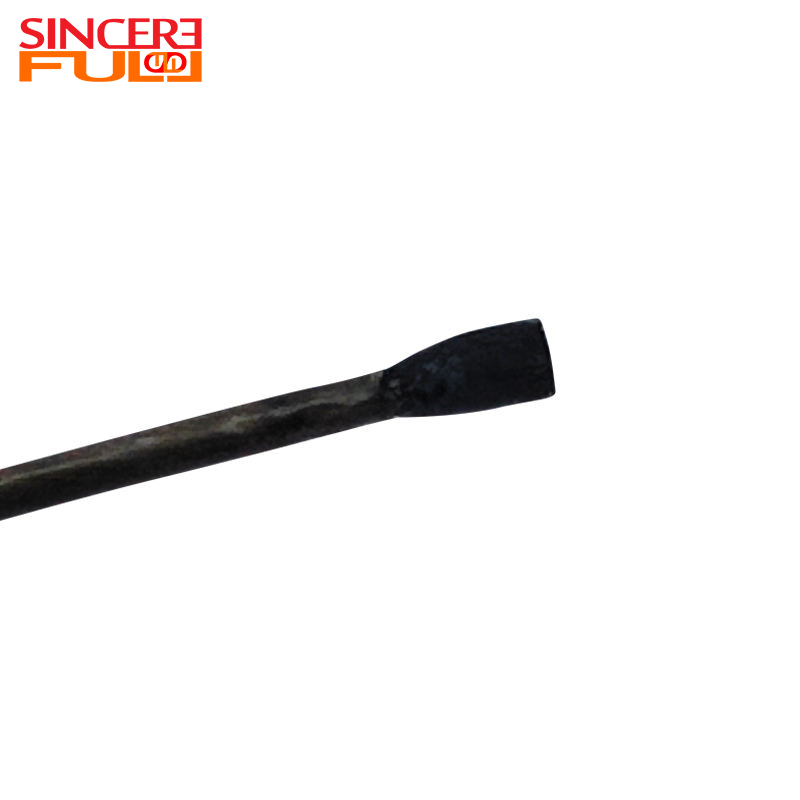

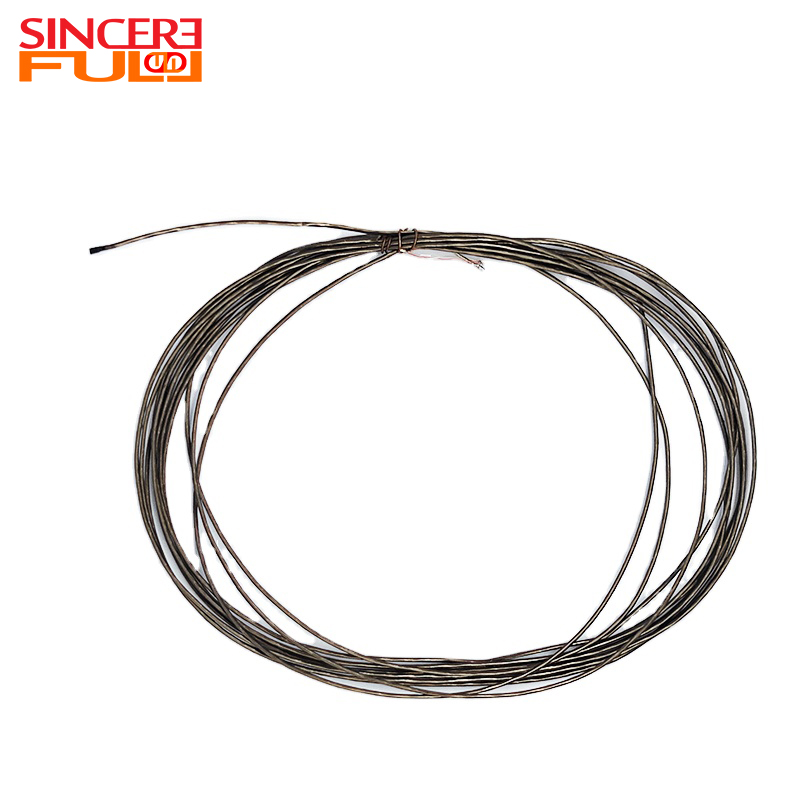

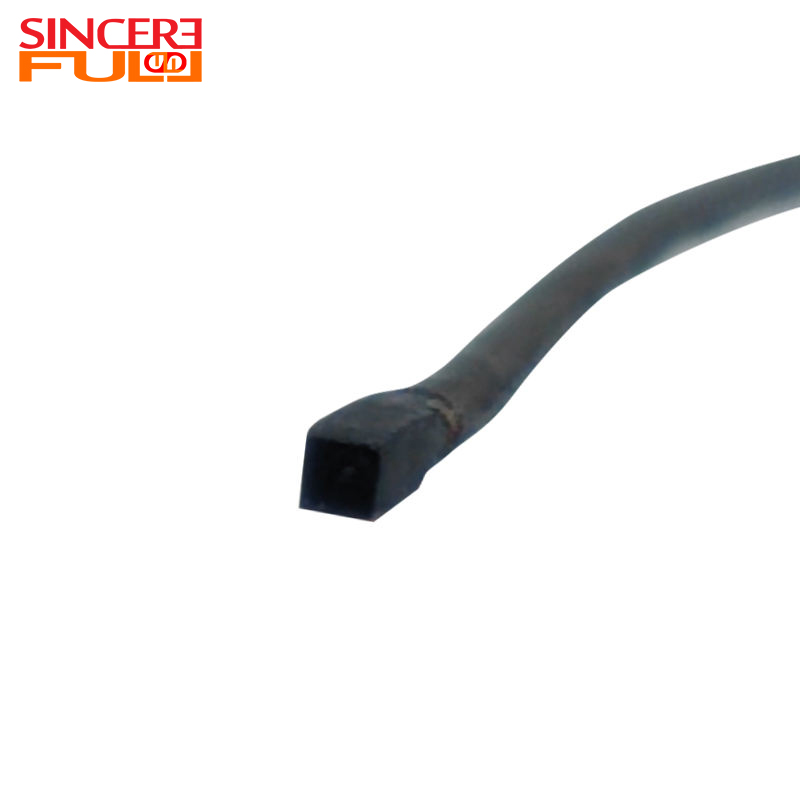

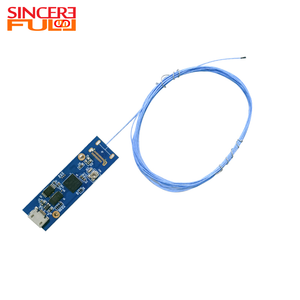

This is a mini 0.9mm USB inspection endoscope camera module, which can be said to be the smallest endoscope image sensor, capable of high-quality image capture in the narrowest blood vessels of the human body. The endoscope module is based on the OVM6948 image sensor with a wide field of view of 120 degrees and an extended focal length range of 3 mm to 50 mm. Its image array can capture 200 x 200 resolution images and videos at up to 30 frames per second, capable of providing high-quality images in low-light environments.


Product Advantage ◢

  • 0.3 Mega Pixel with CMOS image sensor

  • Ultra-small endoscope camera module

  • Low power consumption

  • High resolution and good image quality


Technical Parameters ◢

Product Name

0.9mm USB inspection endoscope camera module

Image Device

1/36”

Effective Picture Element

200(H)*200(V)

Output Interface

USB2.0

Frame Rate

30fps

S/N Ratio

>34.4dB

Focus Range

3mm-50mm

Power Supply

4.8~5.2V

Operating Tempeture

-20℃~70℃

Lens

120°*88.8°


Product Uses ◢

  • Neurology

  • Ophthalmology

  • Otolaryngology

  • Cardiology

  • Chiropractic

  • Urology

  • Gynecology

  • Arthroscopic Surgery


FAQ ◢

1. Why is low illumination performance important for endoscope modules?

In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.


2. What is the significance of the depth of field range of the module?

Large depth of field can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.


3. How to achieve waterproof and sterilization design?

The medical-grade module adopts IP68 waterproof seal, the shell material is resistant to high temperature and pressure, and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design.
