SF-C016USB-D0.9-Side
SINCEREFIRST

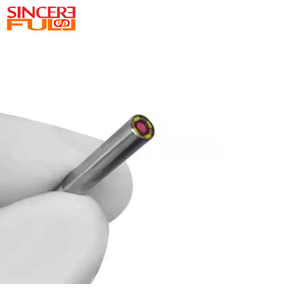

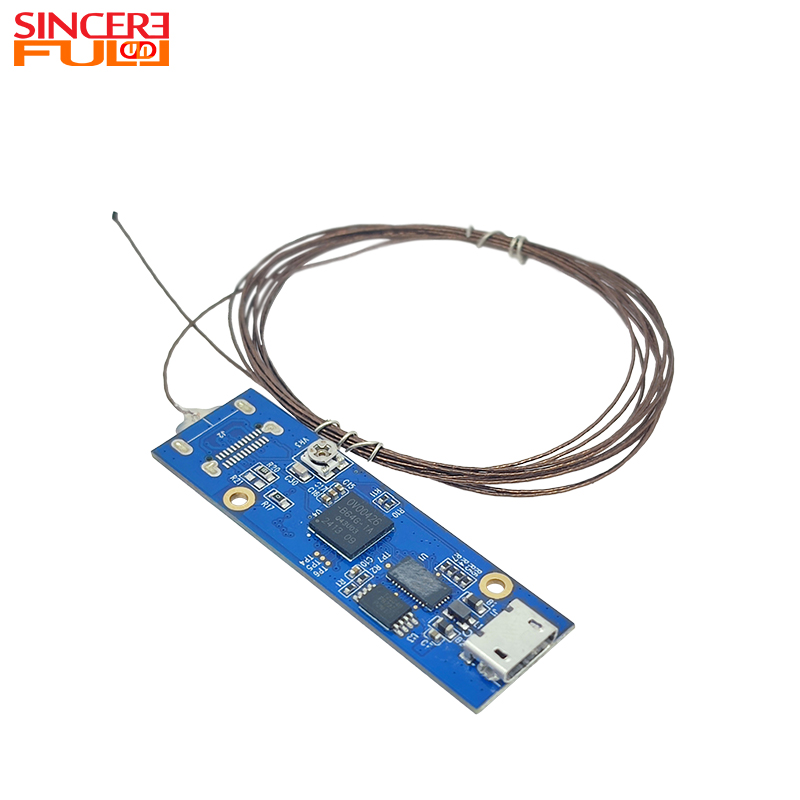

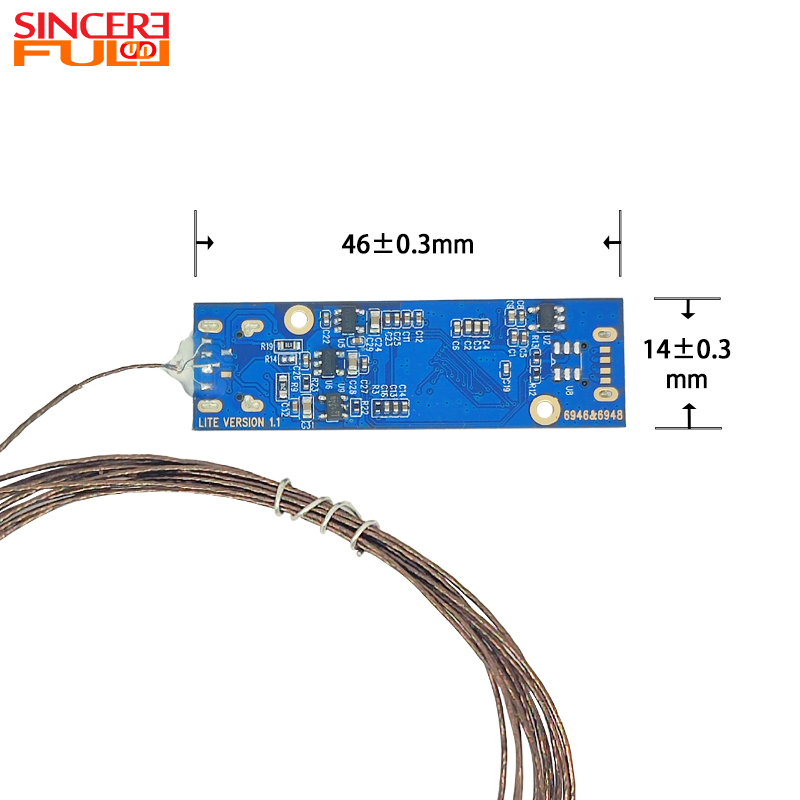

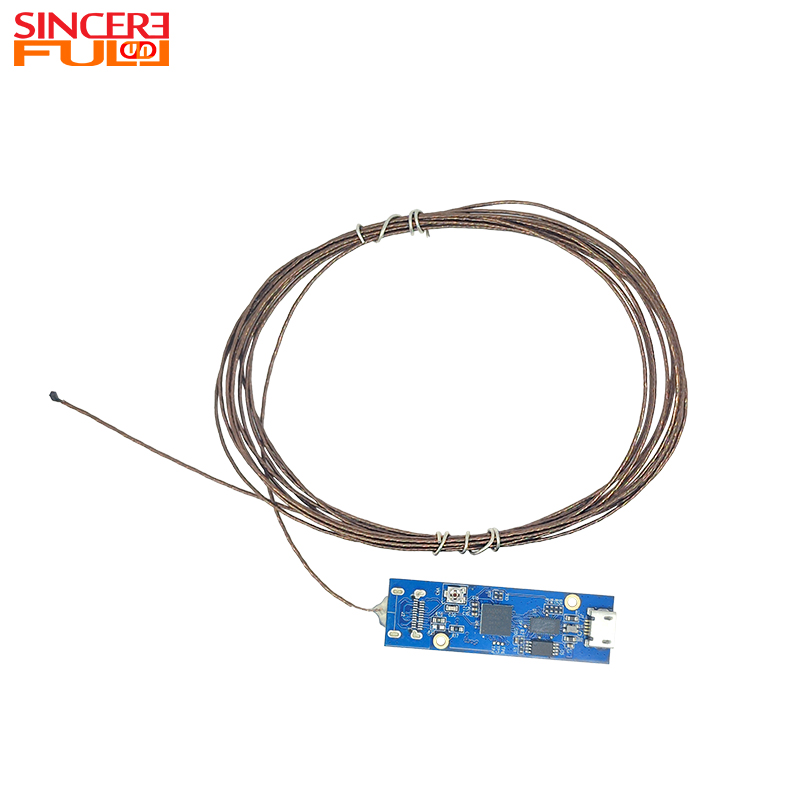

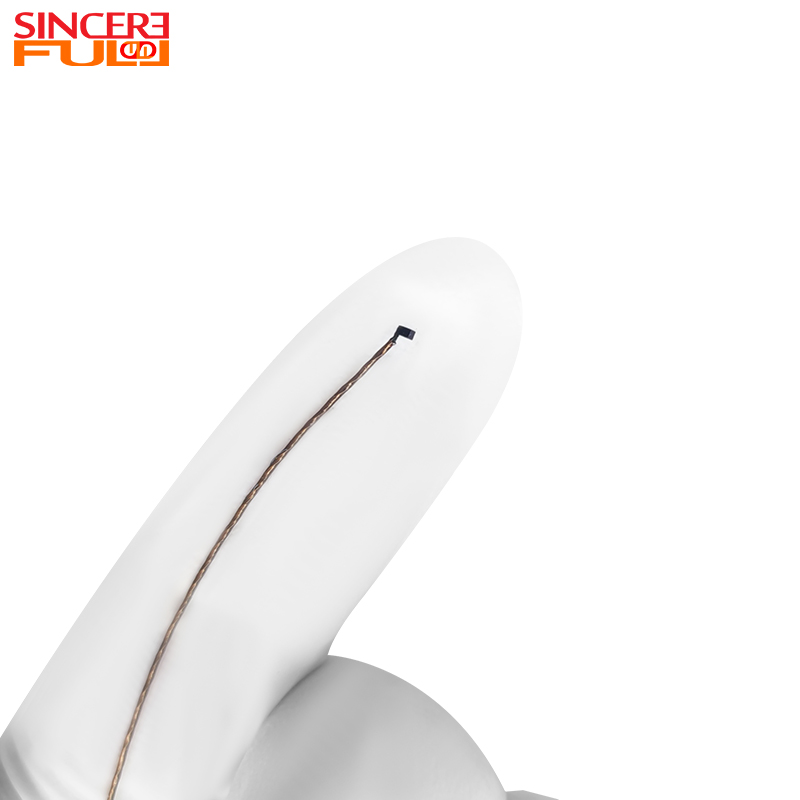

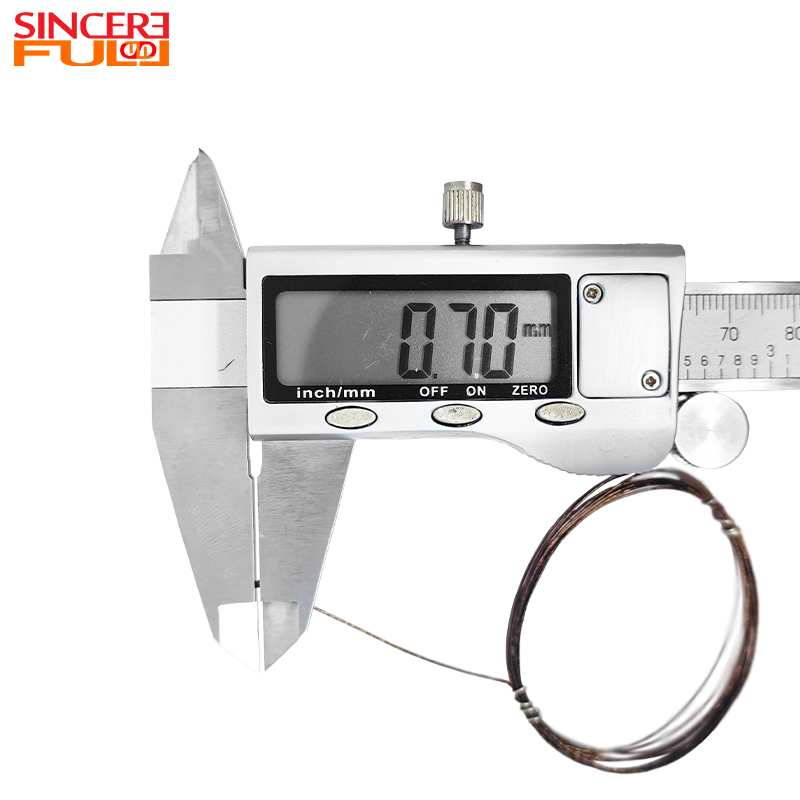

This 0.16MP OCHTA10 0.9mm Separate Type USB Endoscope Camera Module is a side-view imaging solution designed for industrial inspection, biological observation and scientific research scenarios. Equipped with OCHTA10 image sensor, it achieves fine image quality at 0.16MP resolution. Its 0.175mm ultra-short focal length supports a focusing range of 3-30mm, which can clearly capture close-range targets such as the internal texture of micro-parts and the microstructure of biological tissues, and the large aperture of F2.8 ensures the brightness of imaging in low-light environments. The 100°×100° ultra-wide field of view Angle covers a large area of observation, and the TV distortion rate is less than -11%, ensuring the geometric accuracy of the image. 30FPS real-time video transmission via USB high-speed interface, supporting lossless image output to PC for in-depth analysis. The module has a separate design and the sensor size is only 0.9mm, which is easy to integrate into industrial endoscopes, portable inspection equipment and other tools. |  |
1. Ultra-wide-angle distortion-free imaging: 100°×100° field of view Angle covers a large area of observation area, and the TV distortion rate is less than -11%, ensuring the image fidelity of industrial parts geometric size measurement and biological tissue morphology analysis.
2. Microscopic imaging capability: Equipped with OCHTA10 sensor, 0.16MP resolution and 0.175mm ultra-short focal length, it can clearly show 3mm ultra-close details, such as the texture of micro gear tooth surface and the shape of electronic components solder joint, replacing traditional microscopy to achieve non-contact detection.
3. Low light environment adaptability: F2.8 large aperture design improves imaging brightness in low light environment, and can still obtain usable images in low light scenes such as internal inspection of medical equipment and exploration of hidden parts of cultural relics.
1. Precision manufacturing: Detect the roughness of the tooth surface of the micro gear, the quality of the solder joint of the electronic components, and replace the traditional microscope to improve the detection efficiency.
2. Medical equipment: Observe the assembly accuracy of internal optical components of endoscope instruments, assist fault location and maintenance.
3. Biological research: record the compound eye structure of insects, the distribution of plant stems and vascular bundles, and adapt to the requirements of microscope modification.

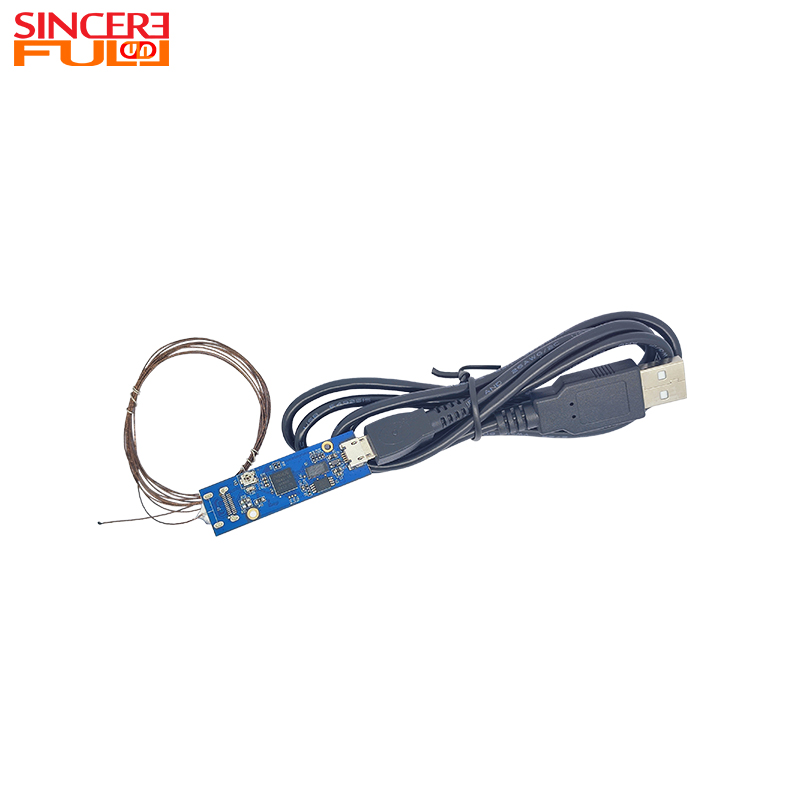

Product Name | Side-view endoscope camera module |
Basic tolerance | ±0.1mm |
DSP | USB2.0 |
Sensor | OCHFA10 |
Focusing Range | 3-30mm |
Focal Length | 0.175mm |
F Number | 4.5 |
FOV(H*V) | 100°*100° |
TV Distortion | ＜-11% |
Connector | Mini USB-5P |
